1.3MP High Speed USB2.0 Camera Module 1280x1024 Global Shutter with Distortion Correction for Industrial Machine Vision
No reviews yet
Attributes
1280X1024Resolution
USBConnectivity
USBStorage
USBnetwork
MJPEG, YUV2Video Compression Format
26H304Model Number
Brand Name:LLGCAM
Place of Origin:Guangdong, China
Mounting Type:USB
Description:1.3 MP USB2.0 Camera Module
Application:INDOOR
Series:USB
Features:4 PIN 1.25MM Socket

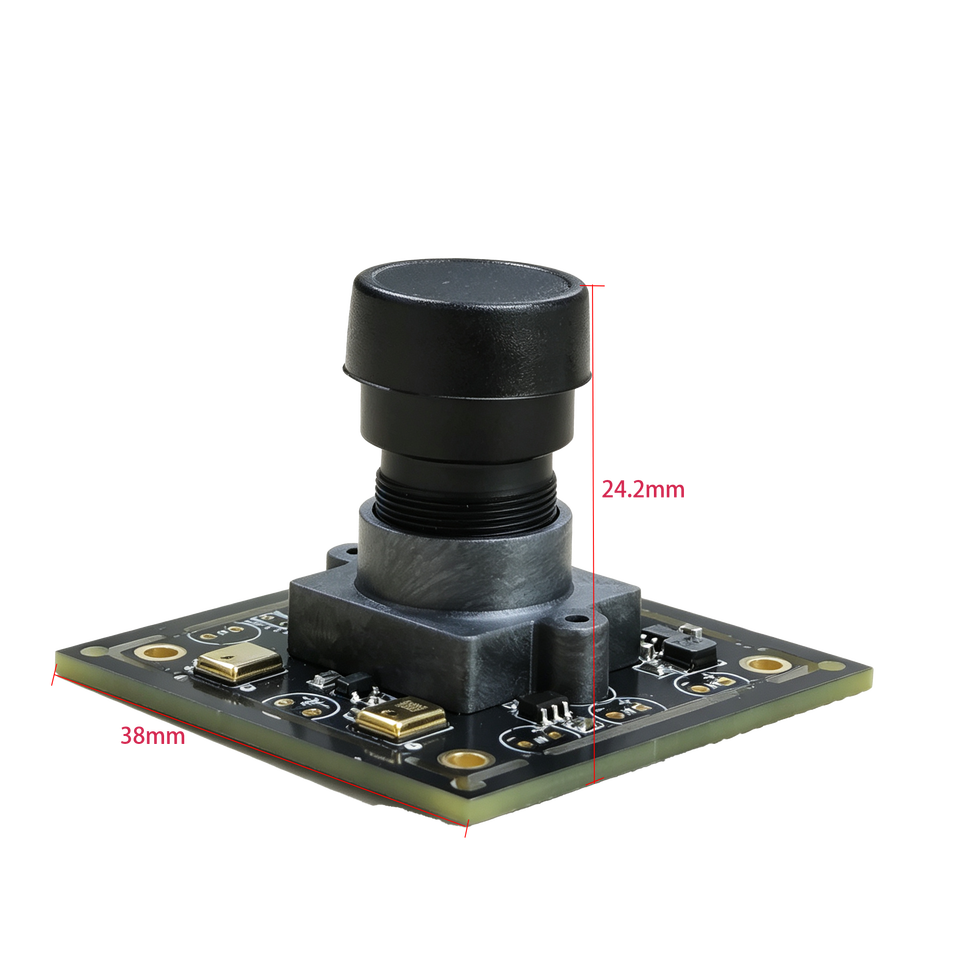

Size / Dimension:38mm x 38mm x 24.2 mm
Sensor:NO
Technology:High Speed USB2.0
Style:1.3 MP USB2.0 Camera Module
Feature:Distortion correction /Global Shutter
Sensor:1/2 -Inch CMOS Sensor
FOV:D:86° H:73° V:58°
Lens:FEL: 4.26 mm F/NO:2.8
Dynamic Range:NC
Scanning Speed:0.1S
Focus Type:FF/NF

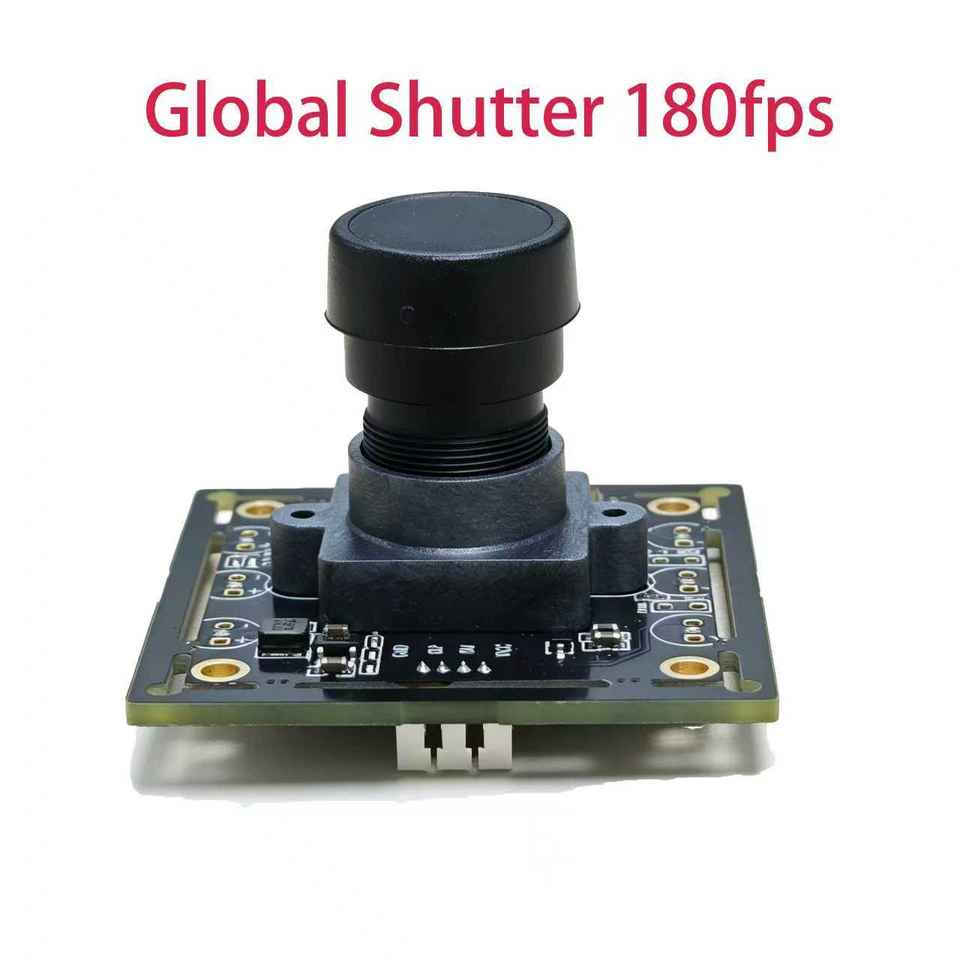

Shutter Type:Global Shutter
Controllable Parameters:Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Supported OS:Windows, Android, Linux, Wince, Mac OS
Cable Length:TBD
Operating Voltage:USB DC +5V Supply
Operating Current:<200mA
Operating Temperature:-20℃ ~ 60℃
Storage Temperature:-20℃ ~ 85℃
Key attributes
Resolution
1280X1024
Connectivity
USB
Storage
USB
network
USB
Video Compression Format
MJPEG, YUV2
Model Number
26H304
Application
INDOOR
Brand Name
LLGCAM
Description
1.3 MP USB2.0 Camera Module
Feature
Distortion correction /Global Shutter
Features
4 PIN 1.25MM Socket
Mounting Type
USB
Place of Origin
Guangdong, China
Sensor
NO
Series
USB
Size / Dimension
38mm x 38mm x 24.2 mm(1.50inx1.50inx0.95in)
Style
1.3 MP USB2.0 Camera Module
Technology
High Speed USB2.0
Sensor
1/2 -Inch CMOS Sensor
FOV
D:86° H:73° V:58°
Lens
FEL: 4.26 mm F/NO:2.8
Dynamic Range
NC
Scanning Speed
0.1S
Focus Type
FF/NF
Shutter Type
Global Shutter
Controllable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Supported OS
Windows, Android, Linux, Wince, Mac OS
Cable Length
TBD
Operating Voltage
USB DC +5V Supply
Operating Current
<200mA
Operating Temperature
-20℃ ~ 60℃
Storage Temperature
-20℃ ~ 85℃
Packaging and delivery
Selling Units
Single item
Package size per batch
16.5X11.5X6.5 cm
Gross weight per batch
0.500 kg
Lead time
Customization options
OEMODM(+ from /Min. order: 500 pieces)
