Attributes
5-YearWarranty(Year)
Guangdong, ChinaPlace of Origin

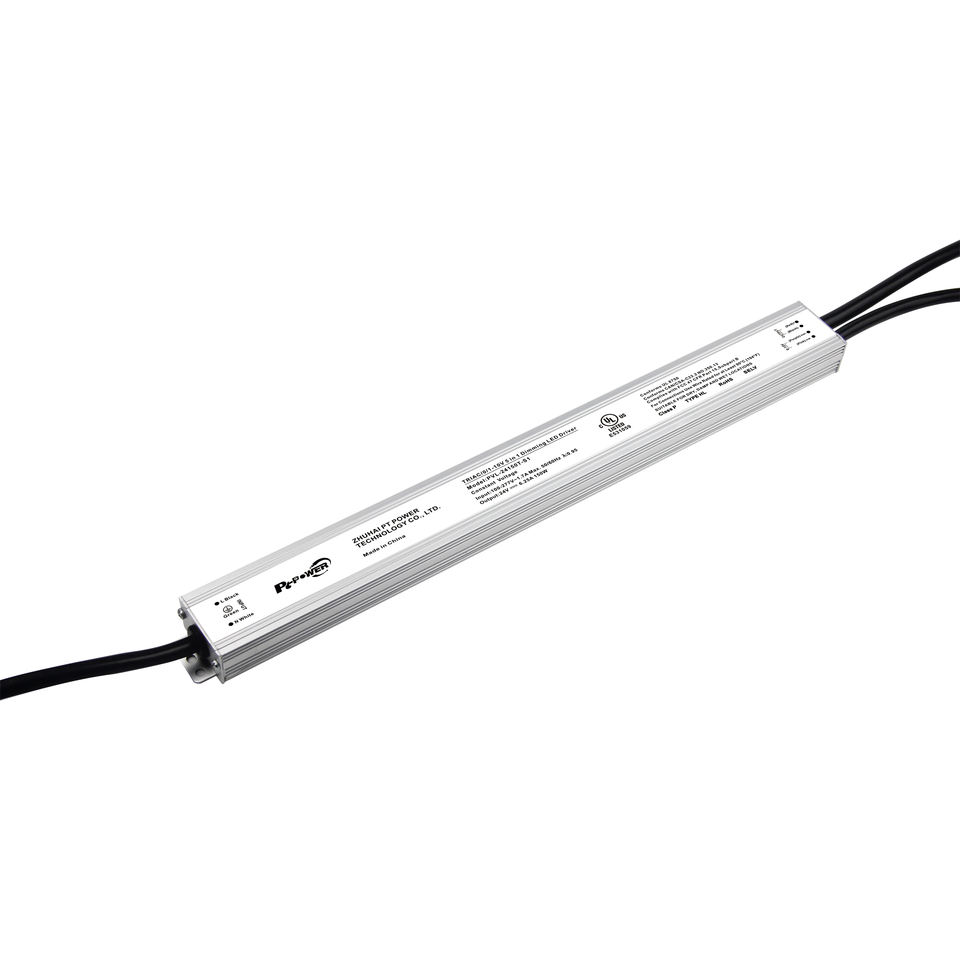

PVL-24150T-S1(5 in 1)Model Number
PT PowerBrand Name
Led Lighting, Outdoor LightingApplication
AluminumCase Material
Dimming:Triac 5 in 1 Dimmable
Dimming Mode:Triac/Phase, 0-10V, 1-10V,10V PWM, Potentiometer
Efficiency:92%-93%
Energy Transfer:AC-DC
Input Voltage:100-277VAC
Lighting solutions service:Lighting And Circuitry Design, other
Output Current:6.25A
Output Frequency:50-60Hz
Output Power:150W
Output Type:Single
Product Weight（kg）:0.55
Topology:Ac-Dc Converter
Type:IP67 waterproof
Type:Constant Voltage
OEM/ODM:Yes
Certification:UL/CUL/FCC/Class P/TYPE HL/Class 2/RoHS
Size:372*37*22mm
Power factor:≥0.95
IP rate:IP67
Output voltage:DC24V
Working temperature:-40°C~+60°C
Protection:Short circuit, overload and over-temperature protection
Safety standard:UL8750(Class, Class P, TYPE HL),CAN/CSA-C22.2 NO.250.13
EMC emission:FCC part 15
