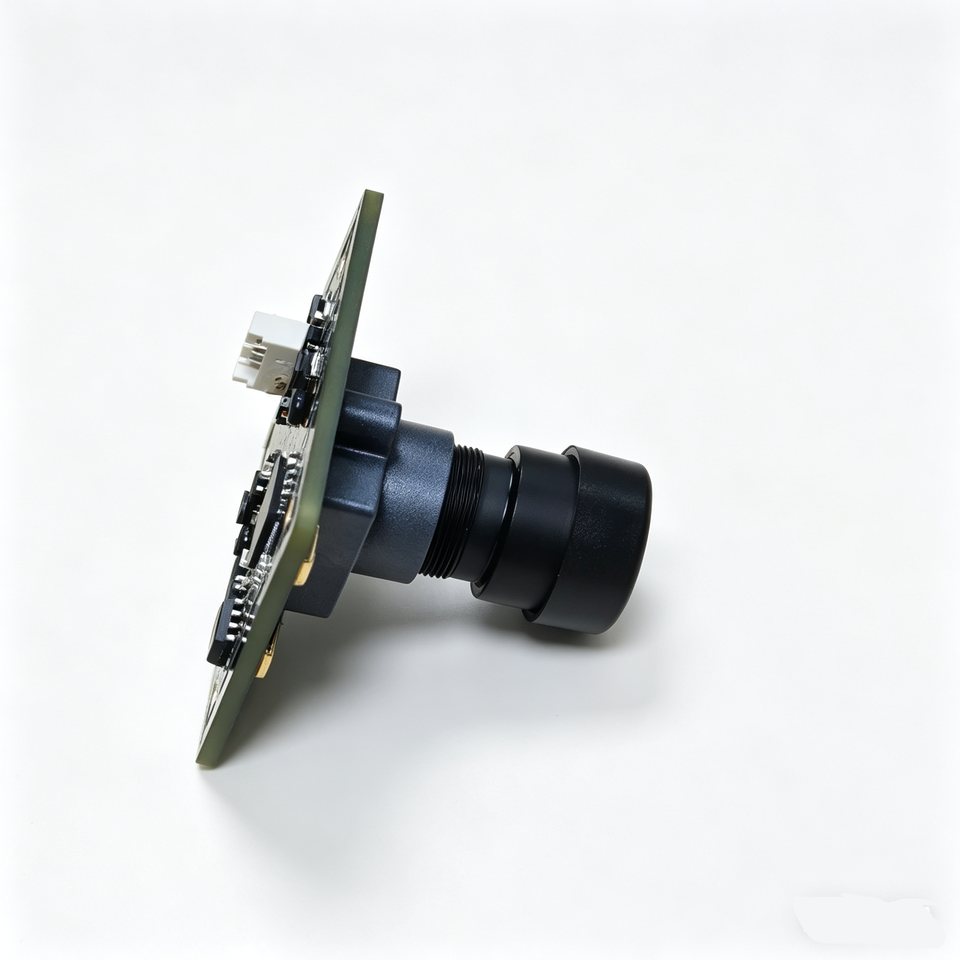

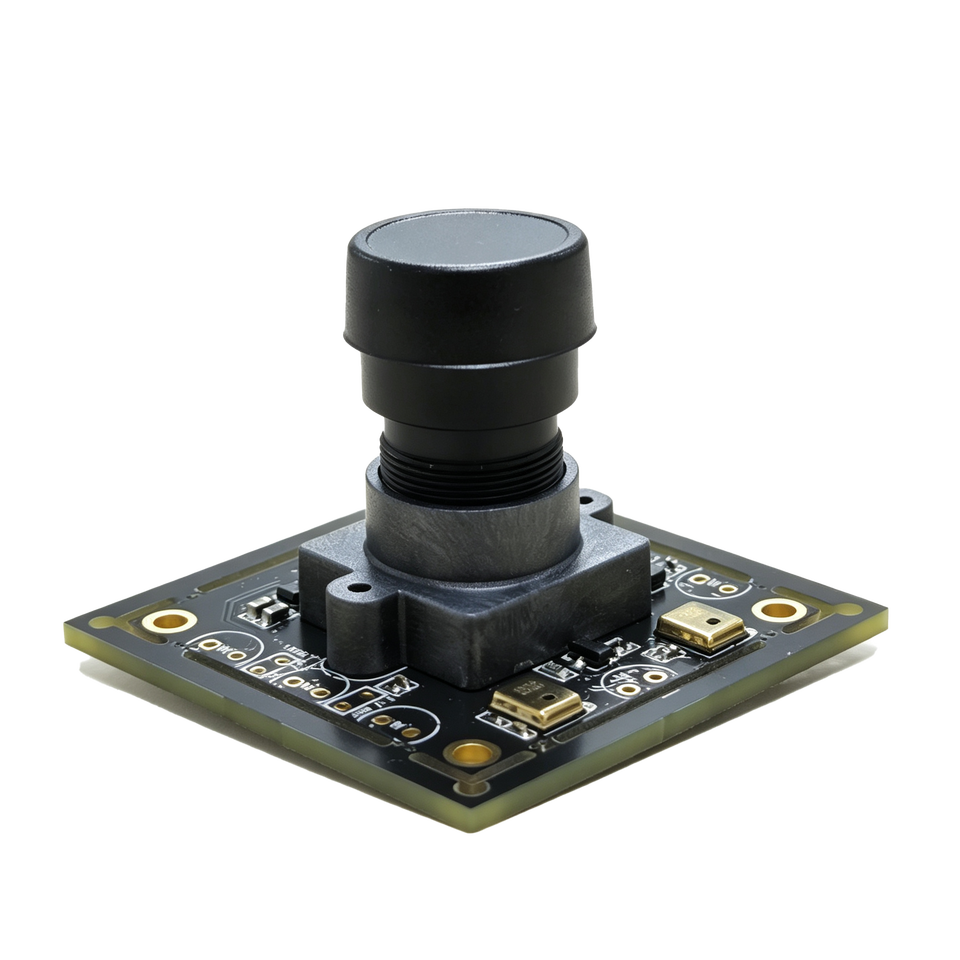

1280x1024 350fps USB Camera Module Anti-Flicker for Motion Tracking & Robotics
No reviews yet
Attributes
1280X1024Resolution
USBConnectivity
USBStorage
USBnetwork
MJPEG, YUV2Video Compression Format

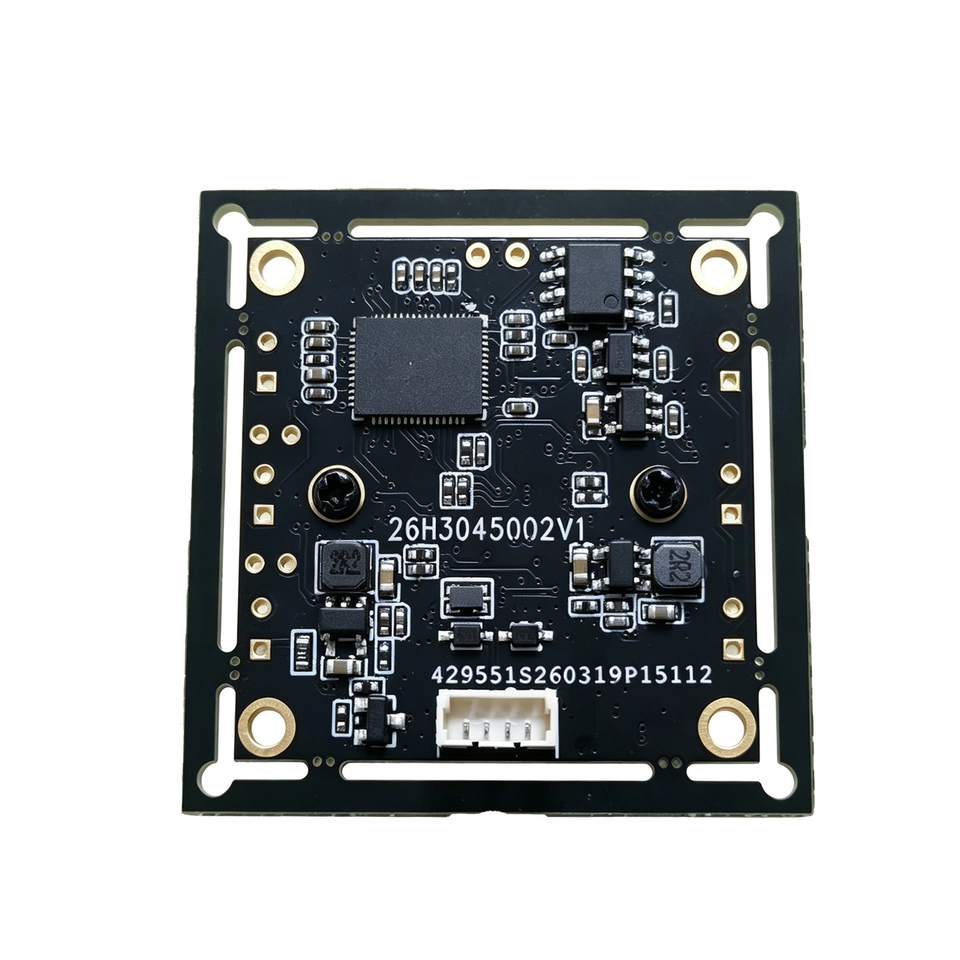

26H304Model Number
Brand Name:LLGCAM
Place of Origin:Guangdong, China
Mounting Type:USB
Description:1.3 MP USB2.0 Camera Module
Application:INDOOR
Series:USB
Features:4 PIN 1.25MM Socket

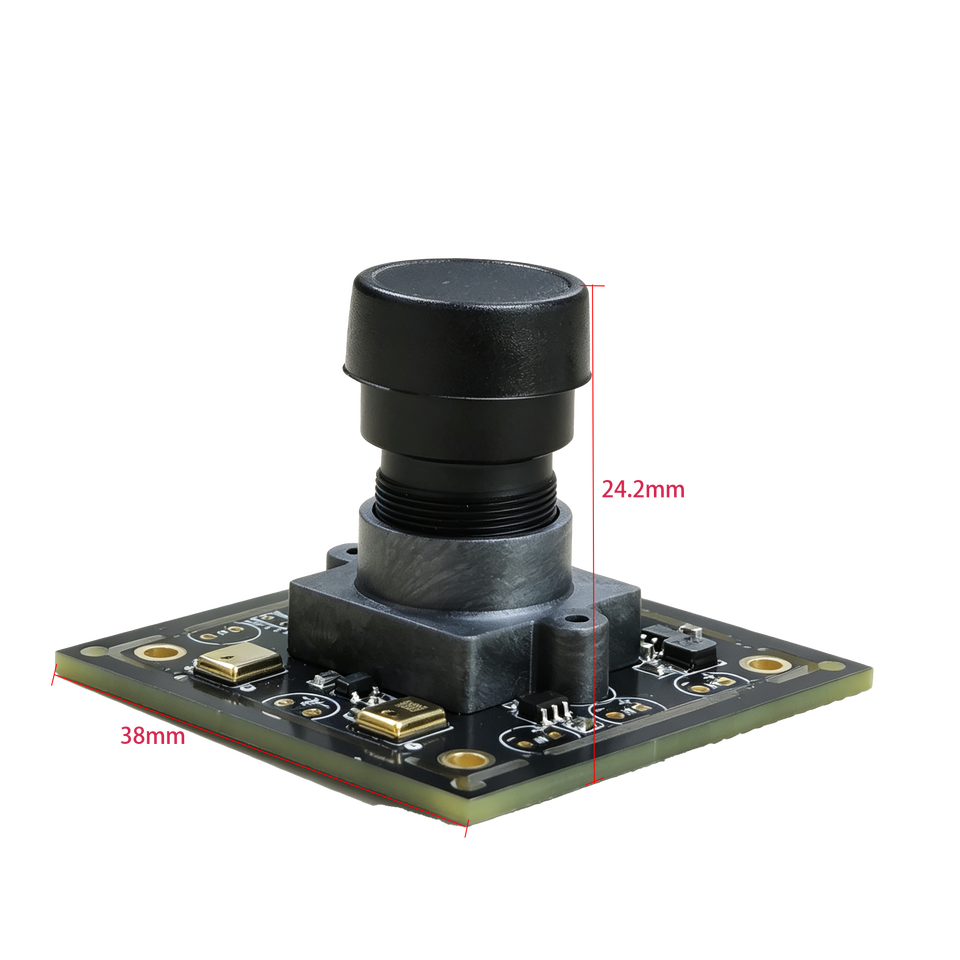

Size / Dimension:38mm x 38mm x 24.2 mm
Sensor:NO
Technology:High Speed USB2.0
Style:1.3 MP USB2.0 Camera Module

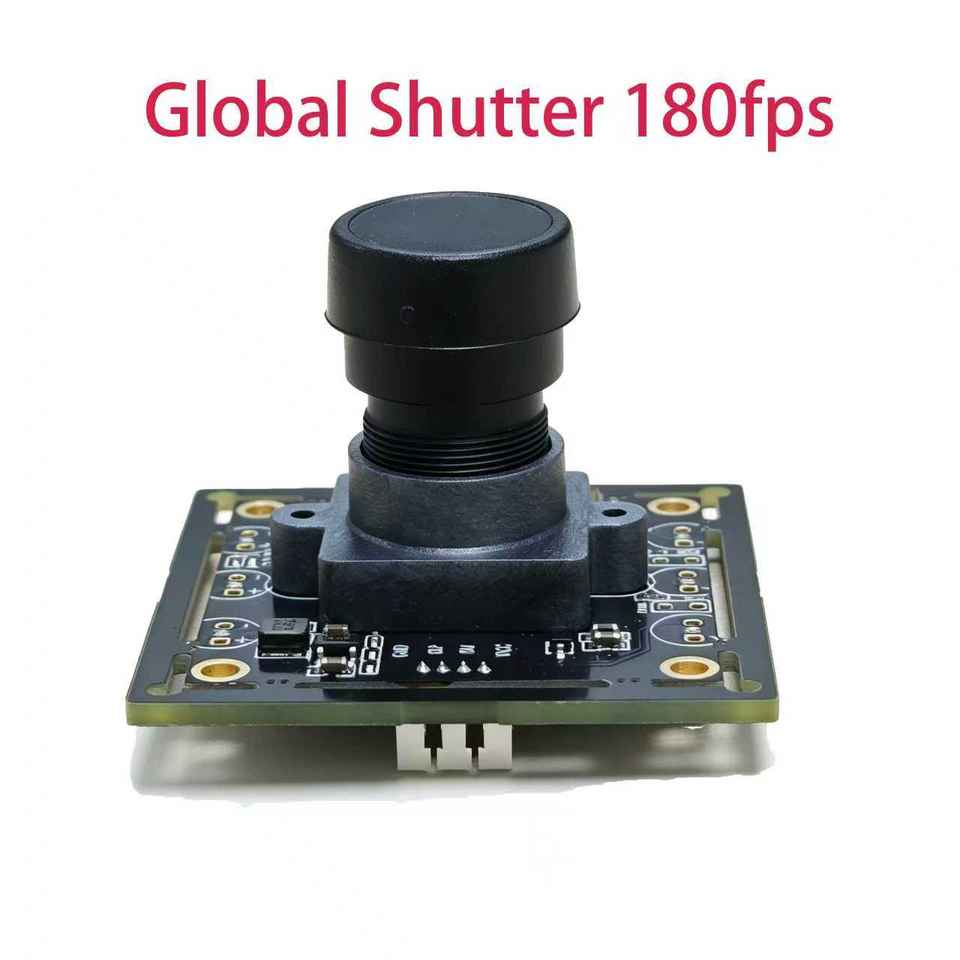

Feature:Distortion correction /Global Shutter
Sensor:1/2 -Inch CMOS Sensor
FOV:D:86° H:73° V:58°
Lens:FEL: 4.26 mm F/NO:2.8
Dynamic Range:NC
Scanning Speed:0.1S
Focus Type:FF/NF
Shutter Type:Global Shutter
Controllable Parameters:Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Supported OS:Windows, Android, Linux, Wince, Mac OS
Cable Length:TBD
Operating Voltage:USB DC +5V Supply
Operating Current:<200mA
Operating Temperature:-20℃ ~ 60℃
Storage Temperature:-20℃ ~ 85℃
Key attributes
Resolution
1280X1024
Connectivity
USB
Storage
USB
network
USB
Video Compression Format
MJPEG, YUV2
Model Number
26H304
Brand Name
LLGCAM
Place of Origin
Guangdong, China
Mounting Type
USB
Description
1.3 MP USB2.0 Camera Module
Application
INDOOR
Series
USB
Features
4 PIN 1.25MM Socket
Size / Dimension
38mm x 38mm x 24.2 mm
Sensor
NO
Technology
High Speed USB2.0
Style
1.3 MP USB2.0 Camera Module
Feature
Distortion correction /Global Shutter
Sensor
1/2 -Inch CMOS Sensor
FOV
D:86° H:73° V:58°
Lens
FEL: 4.26 mm F/NO:2.8
Dynamic Range
NC
Scanning Speed
0.1S
Focus Type
FF/NF
Shutter Type
Global Shutter
Controllable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Supported OS
Windows, Android, Linux, Wince, Mac OS
Cable Length
TBD
Operating Voltage
USB DC +5V Supply
Operating Current
<200mA
Operating Temperature
-20℃ ~ 60℃
Storage Temperature
-20℃ ~ 85℃
Packaging and delivery
Selling Units
Single item
Single package size
16.5X11.5X6.5 cm
Single gross weight
0.500 kg
Lead time
Customization options
OEMODM(+ from /Min. order: 500 pieces)
Custom Packaging(+ from /Min. order: 500 pieces)
View details
Product descriptions from the supplier
FREE shipping capped at $20
1 - 499 pieces
$68
500 - 999 pieces
$66
>= 1,000 pieces
$64
