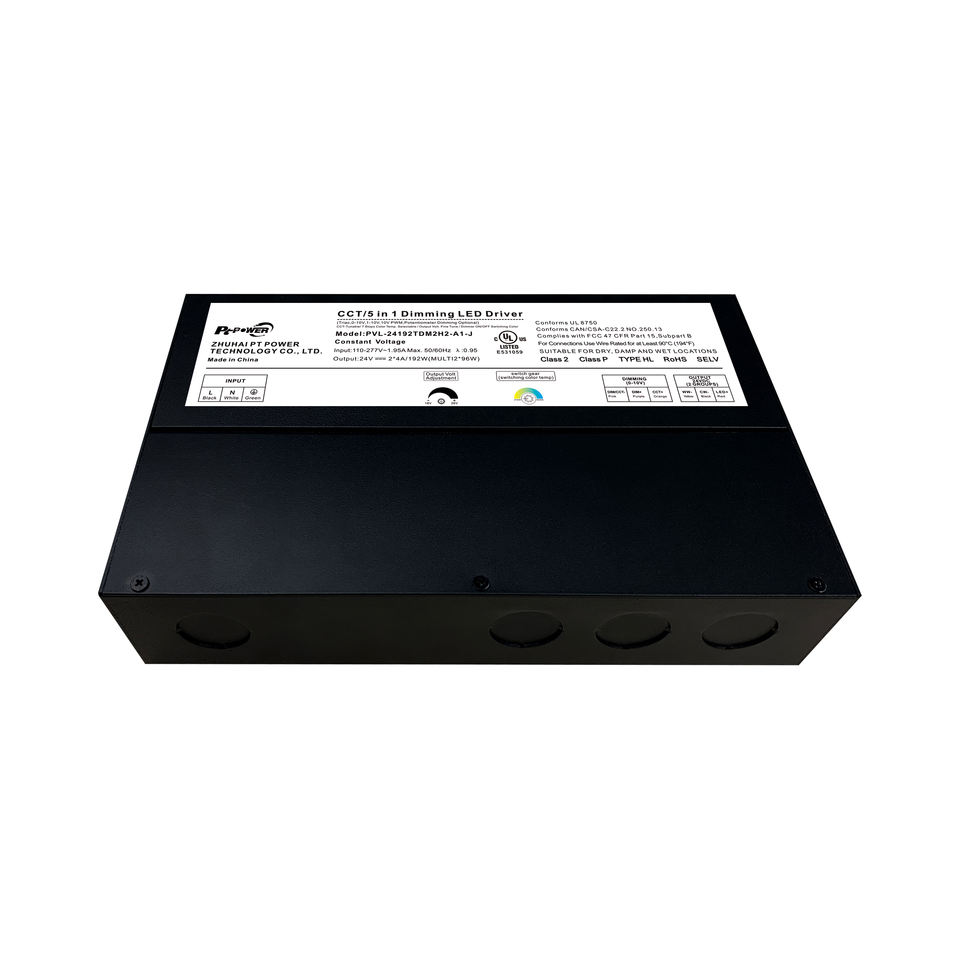

192W CCTV Tunable& TRIAC 5 in 1 Dimmable LED Driver 24V 48V Constant Voltage IP67 Waterproof Junction Box LED Power Supply Dual
Store rating:4.9
(4 reviews)1 sold
Attributes
5-YearWarranty(Year)
Guangdong, ChinaPlace of Origin
PVL-24192TDM2H2-A1-J PVL-48192TDM2H2-A1-JModel Number
Pt PowerBrand Name
Led LightingApplication
Metal-Junction BoxCase Material
Dimming:TRIAC 5 IN 1 Dimmable
Dimming Mode:CCTV Tunable& Triac/Phase, 0-10V, 1-10V, 10V PWM, Potentiometer
Efficiency:89%-91%
Energy Transfer:AC-DC
Input Voltage:AC110-277V
Lighting solutions service:Lighting And Circuitry Design, Other
Output Current:2*2A/2*4A
Output Frequency:50-60Hz
Output Power:192W
Output Type:Dual
Product Weight（kg）:1.4
Topology:Ac-Dc Converter
Type:IP67 Waterproof
Channels:2-Channel / Dual Channel
OEM:Yes
IP Rate:IP67
PF:≥0.95
Working temperature:-40℃~60℃
Certification:UL/CUL/FCC/Class P/TYPE HL/Class 2/RoHS
Type:Constant Voltage Triac 5 in 1 Dimmable LED Lighting
Protection:Short circuit, over-temperature and overload protection
CCT adjustable:Press the dimmer on/off button to change color temperature
Color temperature:7 levels to adjust color temperature in recycle 2700k-6500k
Size:228*130*45mm
Safety standard:UL8750(Class 2, Class P, TYPE HL),Can/CSA-C22.2 NO.250.13
EMC emission:FCC Part 15
Key attributes
Warranty(Year)
5-Year
Place of Origin
Guangdong, China
Model Number
PVL-24192TDM2H2-A1-J PVL-48192TDM2H2-A1-J
Brand Name
Pt Power
Application
Led Lighting
Case Material
Metal-Junction Box
Dimming
TRIAC 5 IN 1 Dimmable
Dimming Mode
CCTV Tunable& Triac/Phase, 0-10V, 1-10V, 10V PWM, Potentiometer
Efficiency
89%-91%
Energy Transfer
AC-DC
Input Voltage
AC110-277V
Lighting solutions service
Lighting And Circuitry Design, Other
Output Current
2*2A/2*4A
Output Frequency
50-60Hz
Output Power
192W
Output Type
Dual
Product Weight（kg）
1.4
Topology
Ac-Dc Converter
Type
IP67 Waterproof
Channels
2-Channel / Dual Channel
OEM
Yes
IP Rate
IP67
PF
≥0.95
Working temperature
-40℃~60℃
Certification
UL/CUL/FCC/Class P/TYPE HL/Class 2/RoHS
Type
Constant Voltage Triac 5 in 1 Dimmable LED Lighting
Protection
Short circuit, over-temperature and overload protection
CCT adjustable
Press the dimmer on/off button to change color temperature
Color temperature
7 levels to adjust color temperature in recycle 2700k-6500k
Size
228*130*45mm
Safety standard
UL8750(Class 2, Class P, TYPE HL),Can/CSA-C22.2 NO.250.13
EMC emission
FCC Part 15
