1MP USB2.0 High Speed Camera Module MJPEG YUV2 5PIN 0.8MM Socket Adaptive Digital Noise Reduction
No reviews yet
Attributes
1280X720Resolution
USBConnectivity
USBStorage
USBnetwork
MJPEG, YUV2Video Compression Format
H288-U1M-V1.0/70°Model Number
Brand Name:LLGCAM
Place of Origin:Guangdong, China
Mounting Type:USB
Description:1MP USB2.0 Camera Module
Application:INDOOR
Series:USB
Features:5 PIN 0.8 MM Socket

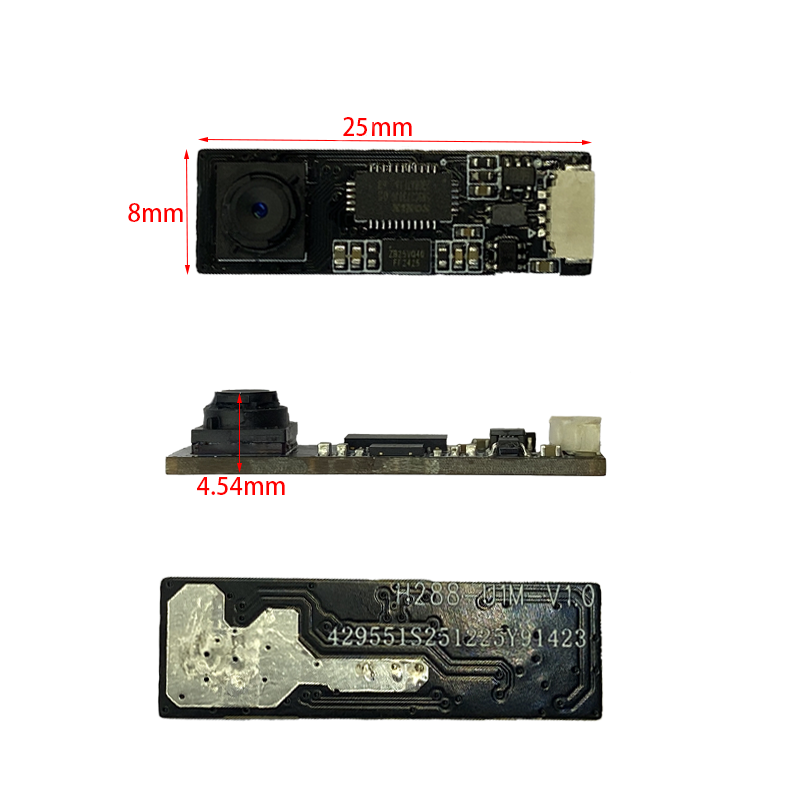

Size / Dimension:25mm x 8 mm x 4.54mm
Sensor:NO
Technology:High Speed USB2.0
Style:1MP USB2.0 Camera Module
Feature:Adaptive digital noise reduction
Sensor:1/5 -Inch CMOS Sensor
FOV:DFOV:70°
Lens:FEL:3 mm F/NO:2.8
Scanning Speed:0.1S
Focus Type:FF/NF
Shutter Type:Electronic Rolling shutter
Dynamic Range:NC
Controllable Parameters:White Balance, Backlight Contrast, Exposure
Supported OS:Windows, Android, Linux, Wince, Mac OS
Cable Length:TBD
MIC:NC
Operating Voltage:USB DC +5V Supply
Operating Current:<100mA
Operating Temperature:-20℃ ~ 60℃
Storage Temperature:-20℃ ~ 85℃
Key attributes
Resolution
1280X720
Connectivity
USB
Storage
USB
network
USB
Video Compression Format
MJPEG, YUV2
Model Number
H288-U1M-V1.0/70°
Application
INDOOR
Brand Name
LLGCAM
Description
1MP USB2.0 Camera Module
Feature
Adaptive digital noise reduction
Features
5 PIN 0.8 MM Socket
Mounting Type
USB
Place of Origin
Guangdong, China
Sensor
NO
Series
USB
Size / Dimension
25mm x 8 mm x 4.54mm
Style
1MP USB2.0 Camera Module
Technology
High Speed USB2.0
Sensor
1/5 -Inch CMOS Sensor
FOV
DFOV:70°
Lens
FEL:3 mm F/NO:2.8
Scanning Speed
0.1S
Focus Type
FF/NF
Shutter Type
Electronic Rolling shutter
Dynamic Range
NC
Controllable Parameters
White Balance, Backlight Contrast, Exposure
Supported OS
Windows, Android, Linux, Wince, Mac OS
Cable Length
TBD
MIC
NC
Operating Voltage
USB DC +5V Supply
Operating Current
<100mA
Operating Temperature
-20℃ ~ 60℃
Storage Temperature
-20℃ ~ 85℃
Packaging and delivery
Selling Units
Single item
Package size per batch
16.5X11.5X6.5 cm
Gross weight per batch
0.500 kg
Lead time
Customization options
OEMODM(+ from /Min. order: 500 pieces)
View details
Product descriptions from the supplier
1 - 499 pieces
£337
500 - 999 pieces
£3.00
>= 1,000 pieces
£262
