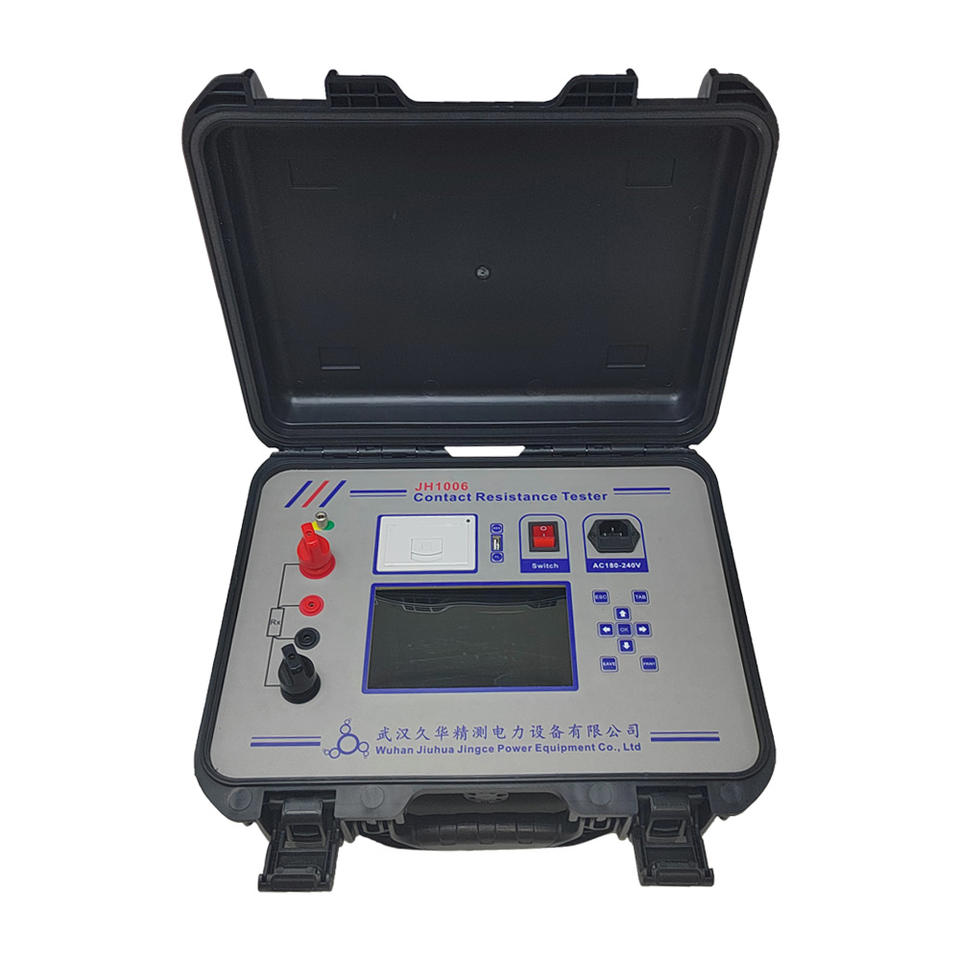

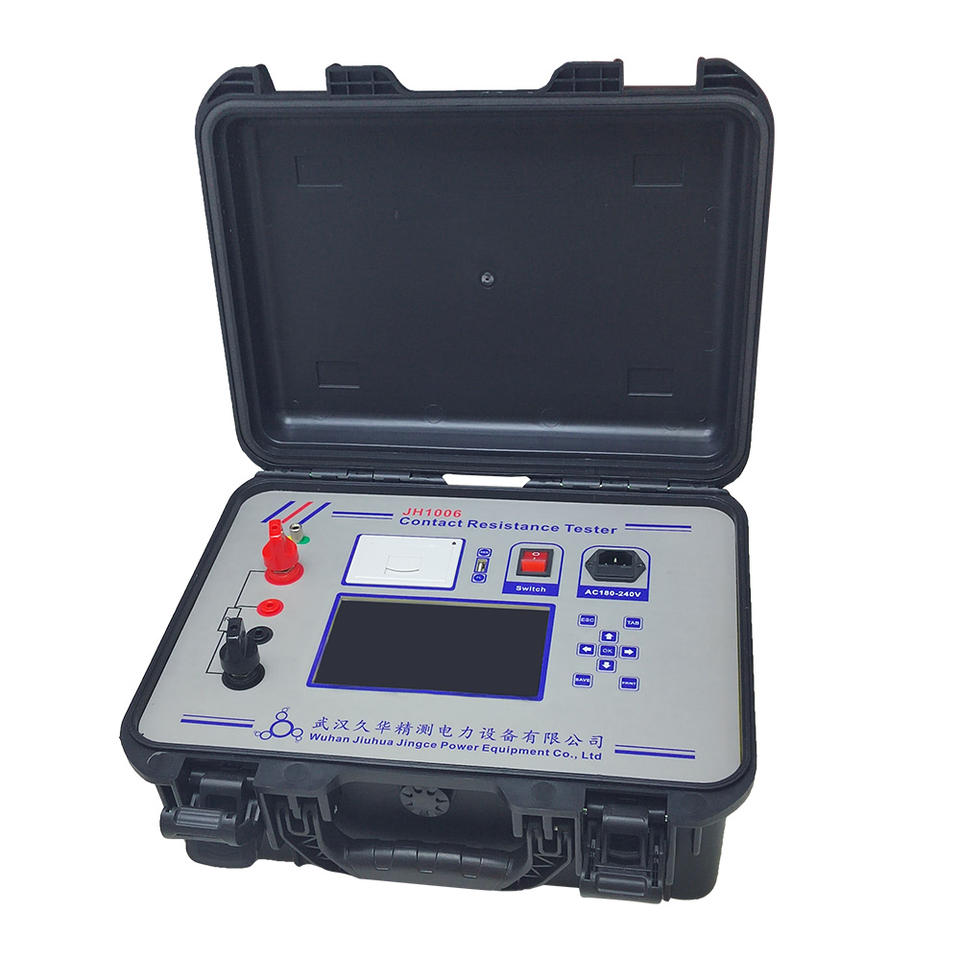

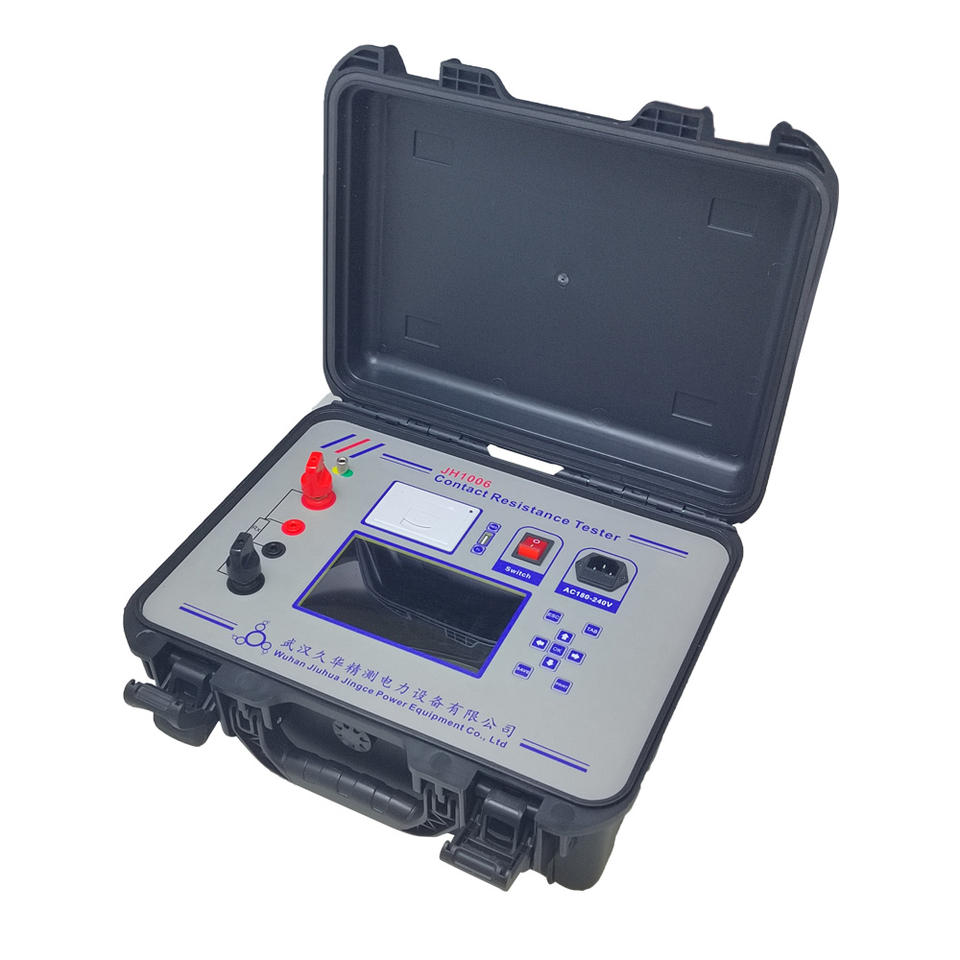

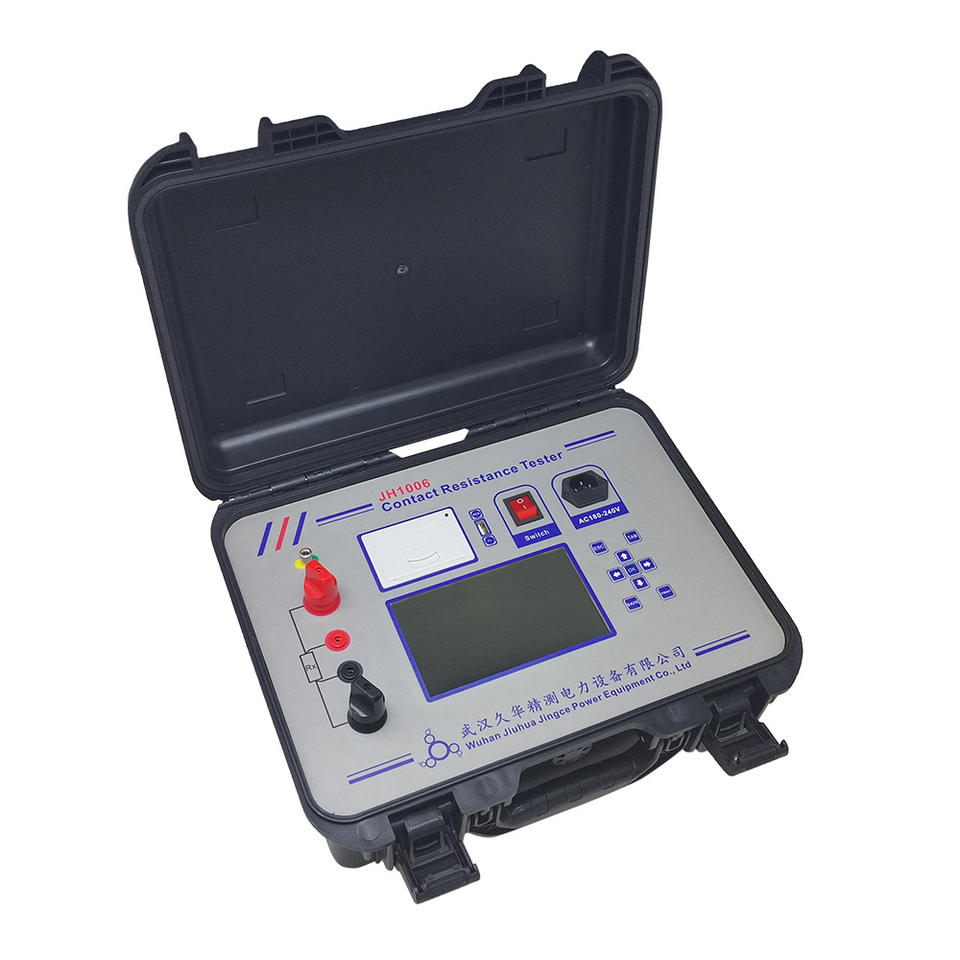

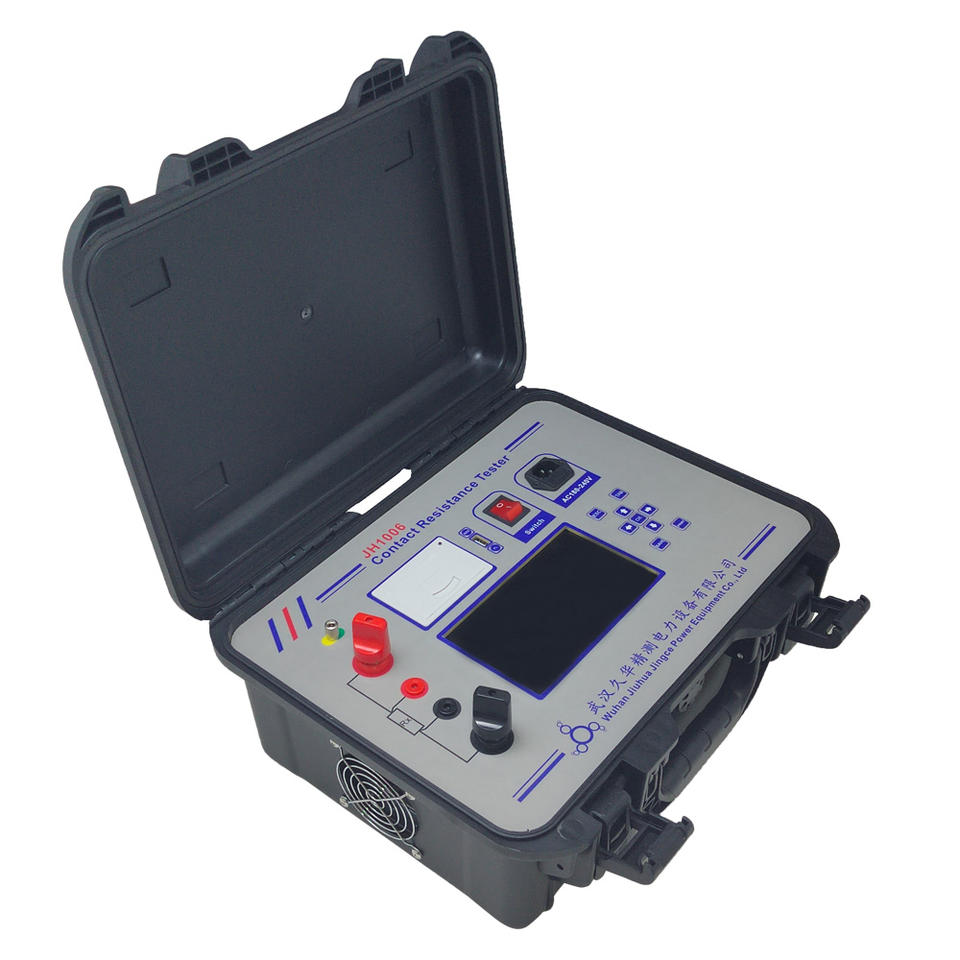

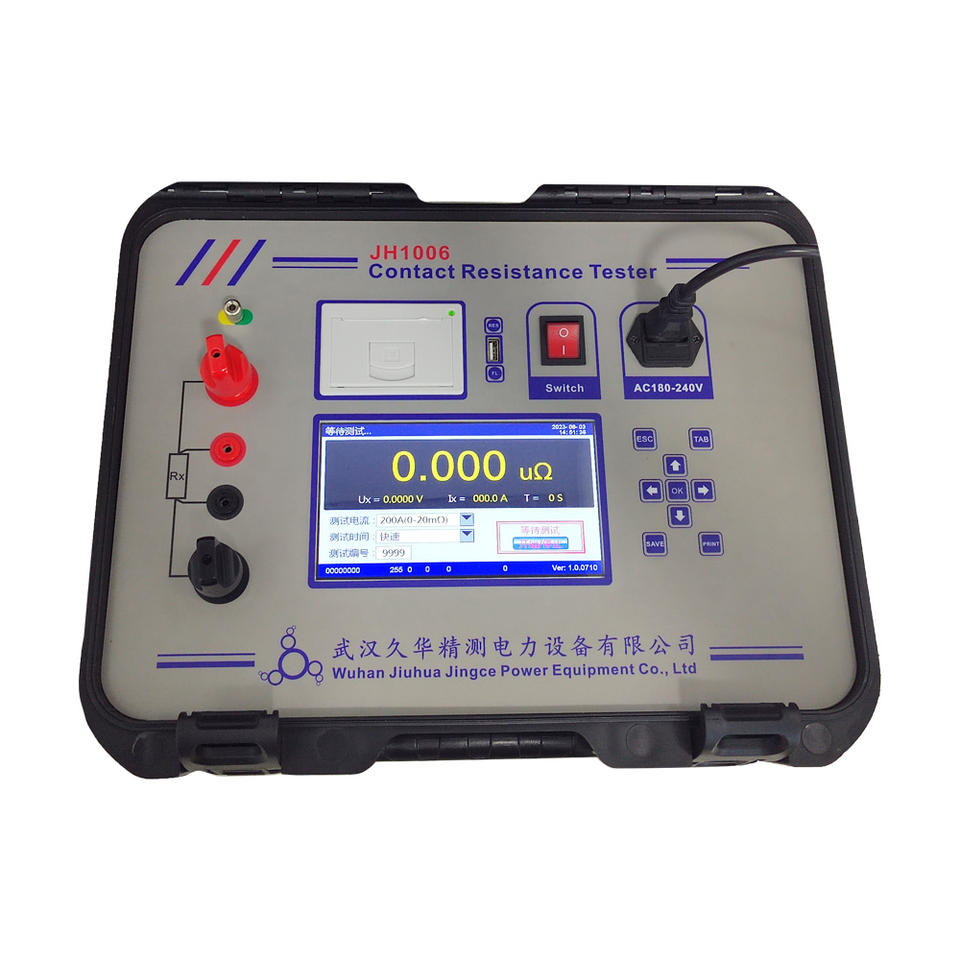

200A Loop Resistance Tester 0-80m Range 0.001 Resolution Test Power 50/100/150/200A Gears 100 Data Storage Accuracy Class 0.2

No reviews yet
£57857
1-4 sets
£56495
5-9 sets
£55134
≥10 sets
Select now

Color

Black

Key attributes

Accuracy Class

0.2

Current Range

0-100 A

Insulation Resistance

> 2 MΩ

Measuring Range

1.0 Ω ~ 50.0 kΩ

Testing Voltage

8V

Place of Origin

Hubei, China

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Key attributes

Accuracy Class
0.2
Current Range
0-100 A
Insulation Resistance
> 2 MΩ
Measuring Range
1.0 Ω ~ 50.0 kΩ
Testing Voltage
8V
Place of Origin
Hubei, China
Model Number
CJ1006B
Brand Name
SJJH
Current Resolution
1 mA
Dimensions
420mm*340mm*200mm
Display Type
LCD
Operating Temperature
0 °C ~ 40 °C
Speed Range
0.1 m/s
Time Resolution
10 ms
Test current
DC 50/100/150/200A
Minimum resolution
0.001u
Frequency
50Hz/60Hz
Test power supply
constant current and voltage limiting, approximately 8.0V
Measurement time
fast, 10~600seconds, continuous testing optional
Special testing line
resistance20m
Data storage
Store 100 sets of measurement data
Host weight
approximately 7kg (excluding cables)

Packaging and delivery

Selling Units
Single item
Single package size
45X35X25 cm
Single gross weight
15.0 kg

Lead time
