Attributes
3-YearWarranty(Year)
Guangdong, ChinaPlace of Origin

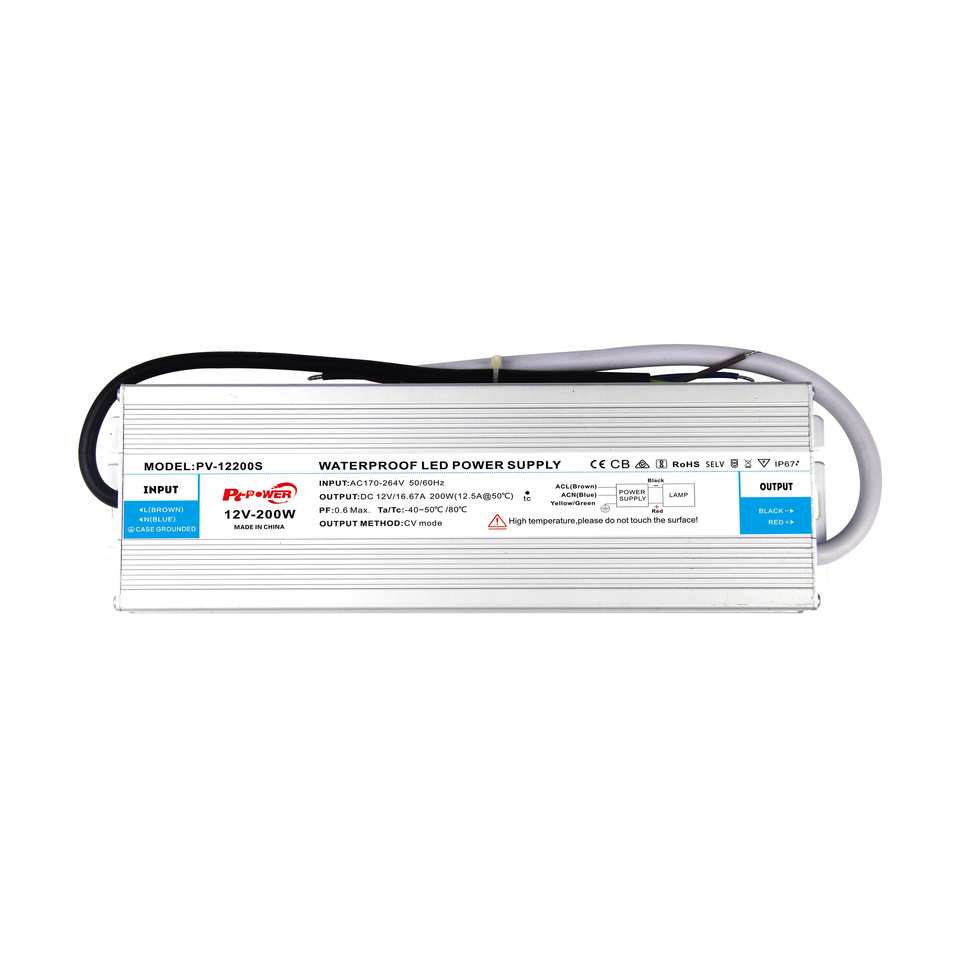

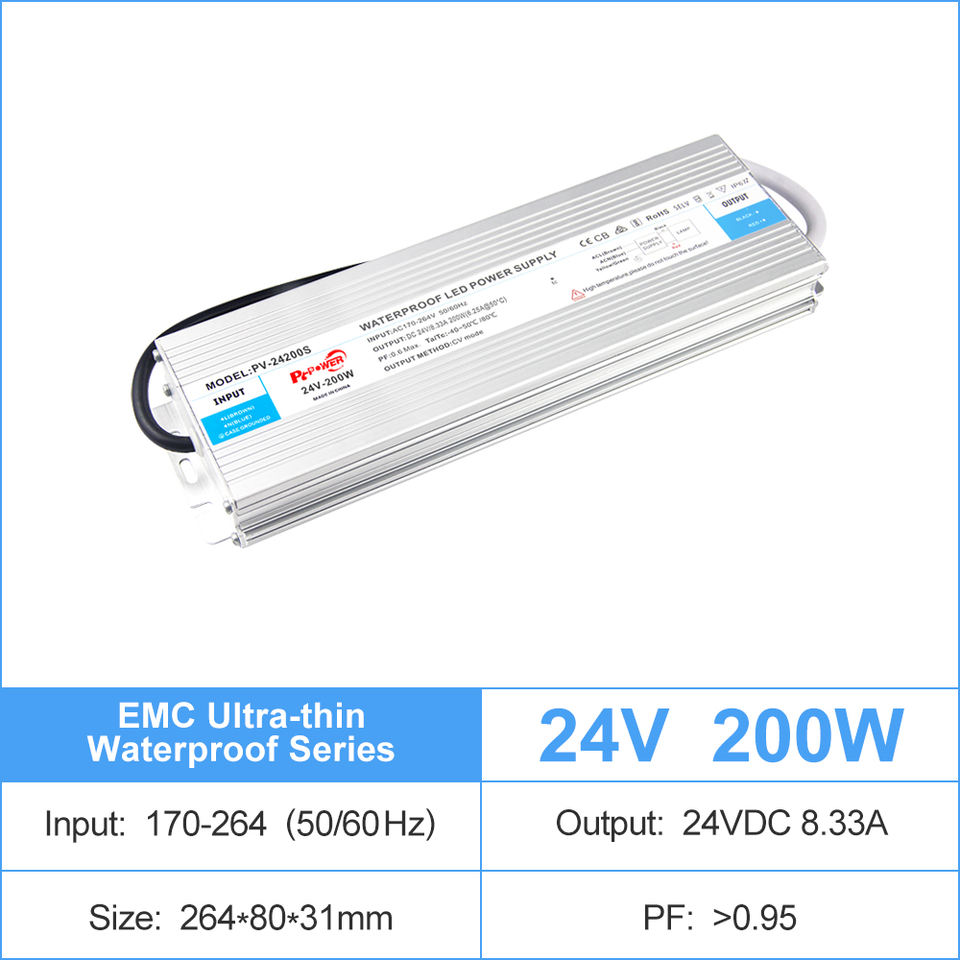

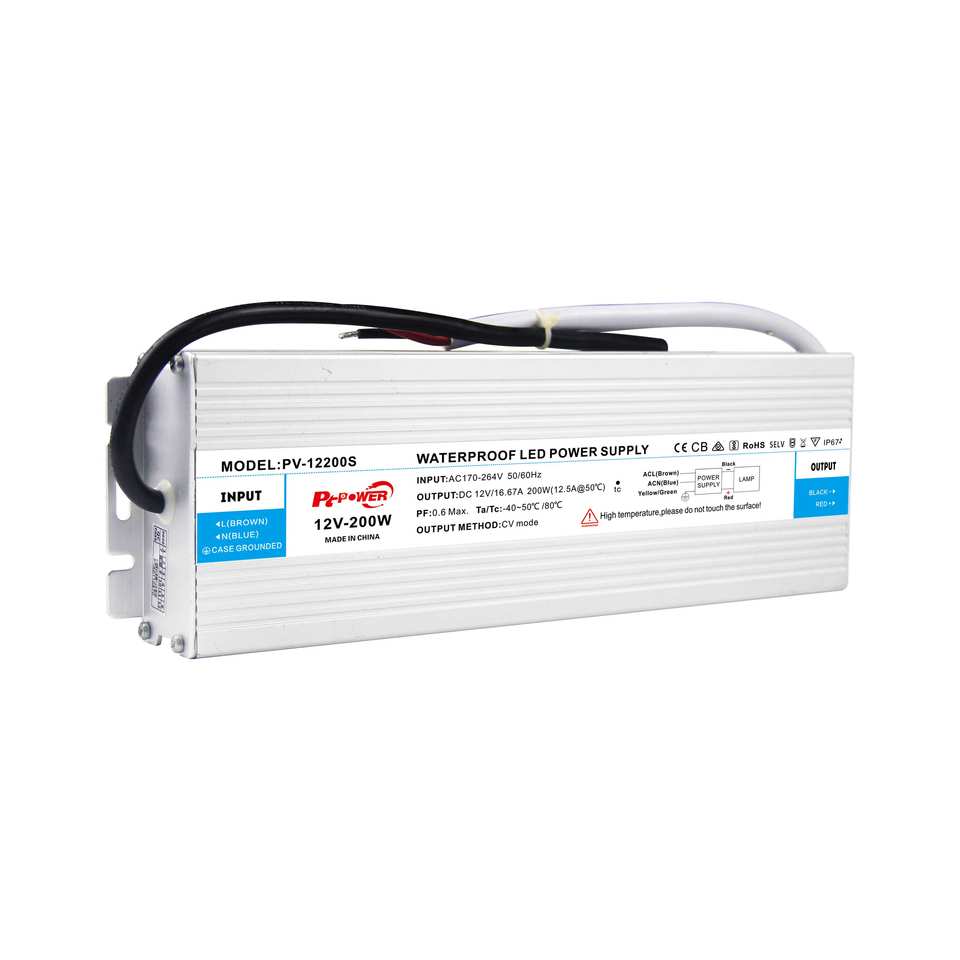

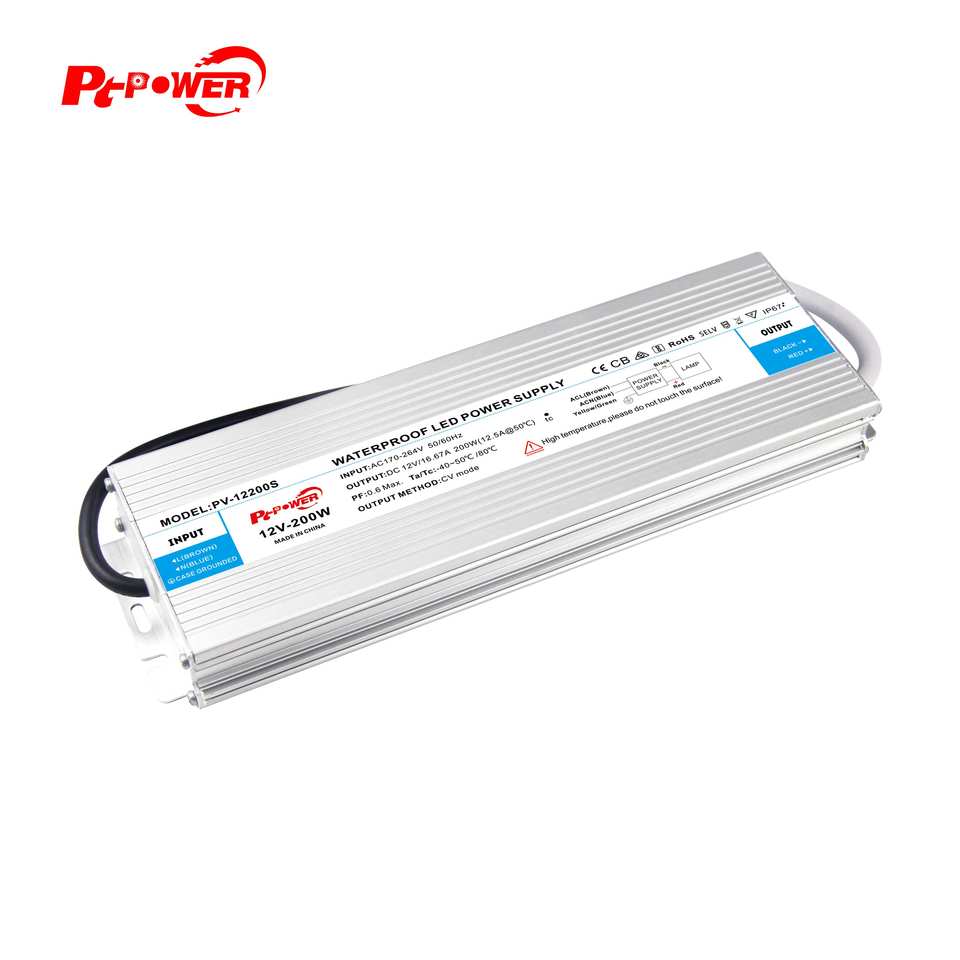

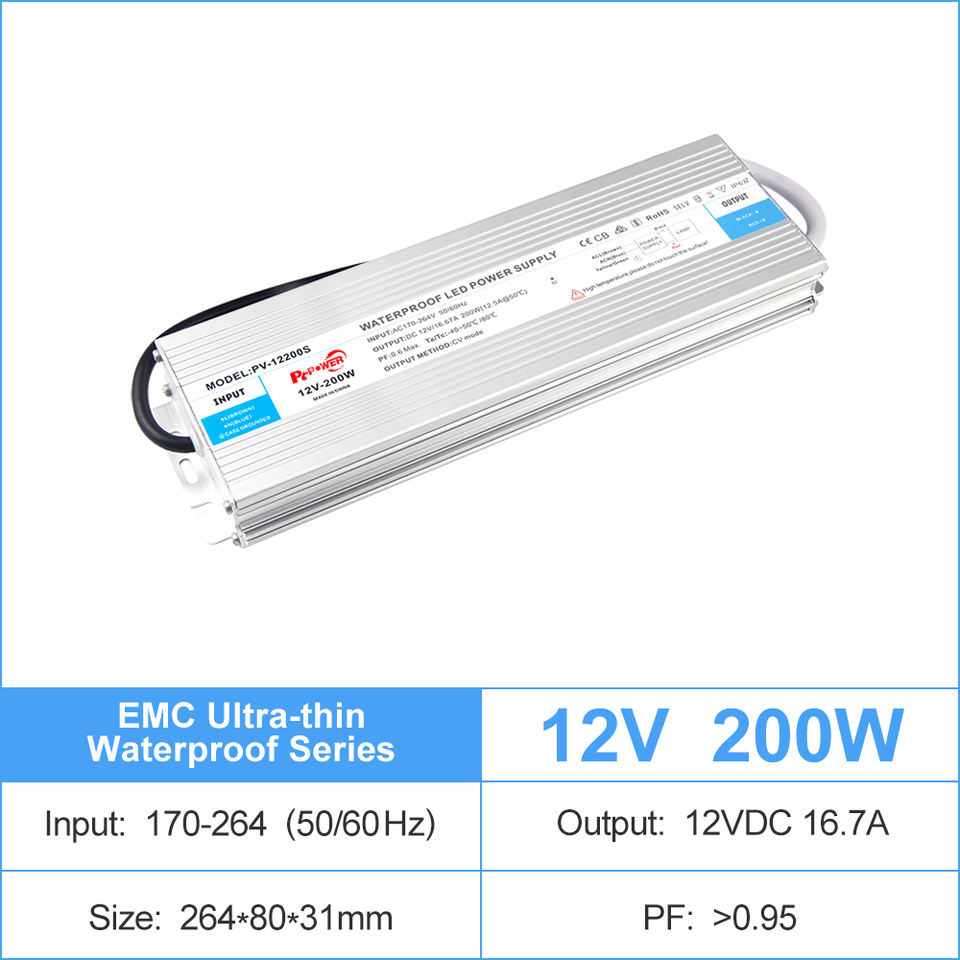

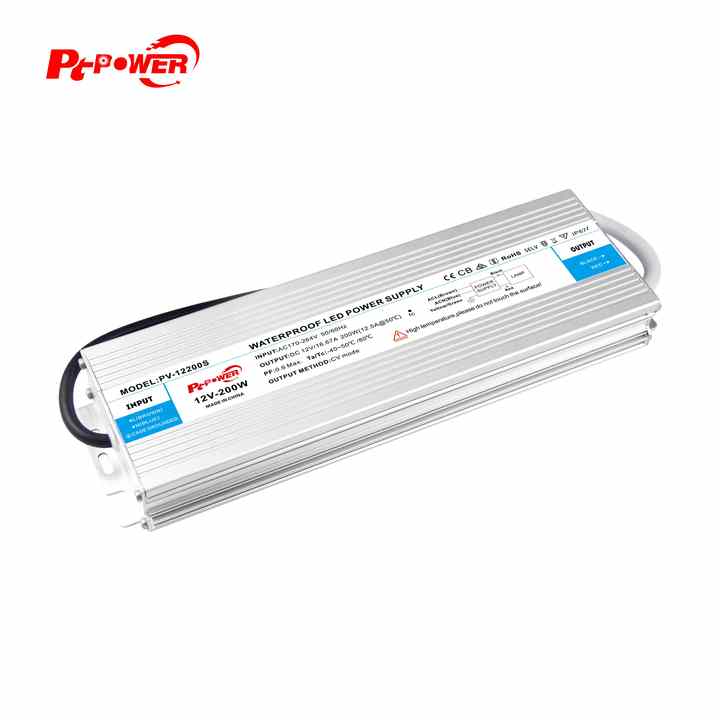

PV-12200S/PV-24200SModel Number
Pt POWERBrand Name
Led Lighting, Outdoor Lighting, Street LightApplication
AluminumCase Material
Dimming:None
Dimming Mode:Non-dimmable
Efficiency:≥88%
Energy Transfer:AC-DC
Input Voltage:AC170-264V
Lighting solutions service:Lighting And Circuitry Design, Project Installation, Other
Output Current:8.33A/16.7A
Output Frequency:50Hz~60Hz
Output Power:200W
Output Type:Single
Product Weight（kg）:1.1
Topology:Ac-Dc Converter
Type:IP67 Waterproof
Type:Constant Voltage Mode LED Driver
IP Rate:IP67
Certification:CE/CB/SAA RoHS
OEM/ODM:Yes
Size:264*80*31mm
Protections:Short Circuit / Output Overload / Class 1
Withstand Voltage:I/P-O/P:3.75KVA I/P-FG:2KCAC O/P-FG:1.5KVAC
Working temperature:-40°C~+70°C
EMC Standard:EN55032,EN61000-3-2,EN61000-3-3,EN55024
Safety standard:EN61347-1,EN61347-2-13
Output Voltage:DC12V/24V
