Attributes
CNC Routermachine type
1300×2500Working Table Size(mm)
4number of axes
ATCNo. of Spindles
380V/220Vvoltage
1 Yearwarranty
cnc or not:CNC
place of origin:Shandong, China
Power (kW):7.5
weight (kg):3000
range of spindle speed(r.p.m):0 - 24000 rpm
positioning accuracy (mm):0.03 mm
travel (x axis)(mm):1300 mm
travel (y axis)(mm):2500 mm
repeatability (x/y/z) (mm):0.03 mm
Spindle Motor Power (kw):6
brand name:Blue Elephant
dimension(l*w*h):Other
key selling points:Multifunctional
machinery test report:Provided
video outgoing-inspection:Provided
core components:Motor, PLC

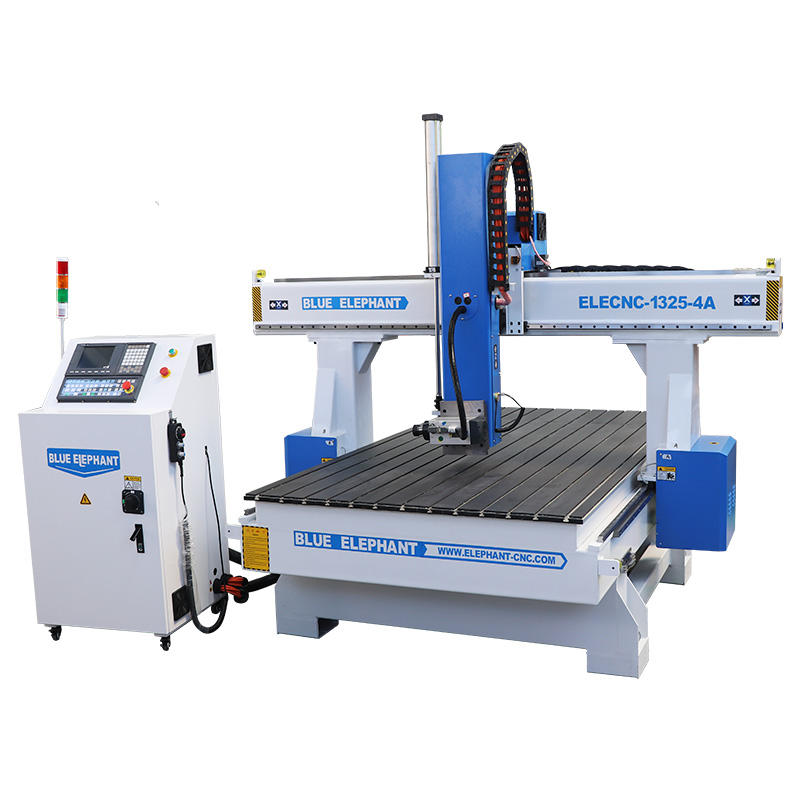

Model:ELECNC1325-4A
Inverter type:7.5kw
Working accuracy:±0.03mm
Dust collect system:3kw, 5.5kw, 7.5kw, etc
Air compressor:Piston air compressor screw air compressor
Protection device:Light curtain
Spindle type:9kw ATC spindle (HSK F63),12kw (IS030,HSK F63), etc
Rotary device:Industrial-grade support of rotary device, diameter 200mm, 320mm
Traveling speed:80m/min
Working speed:0-25m/min
