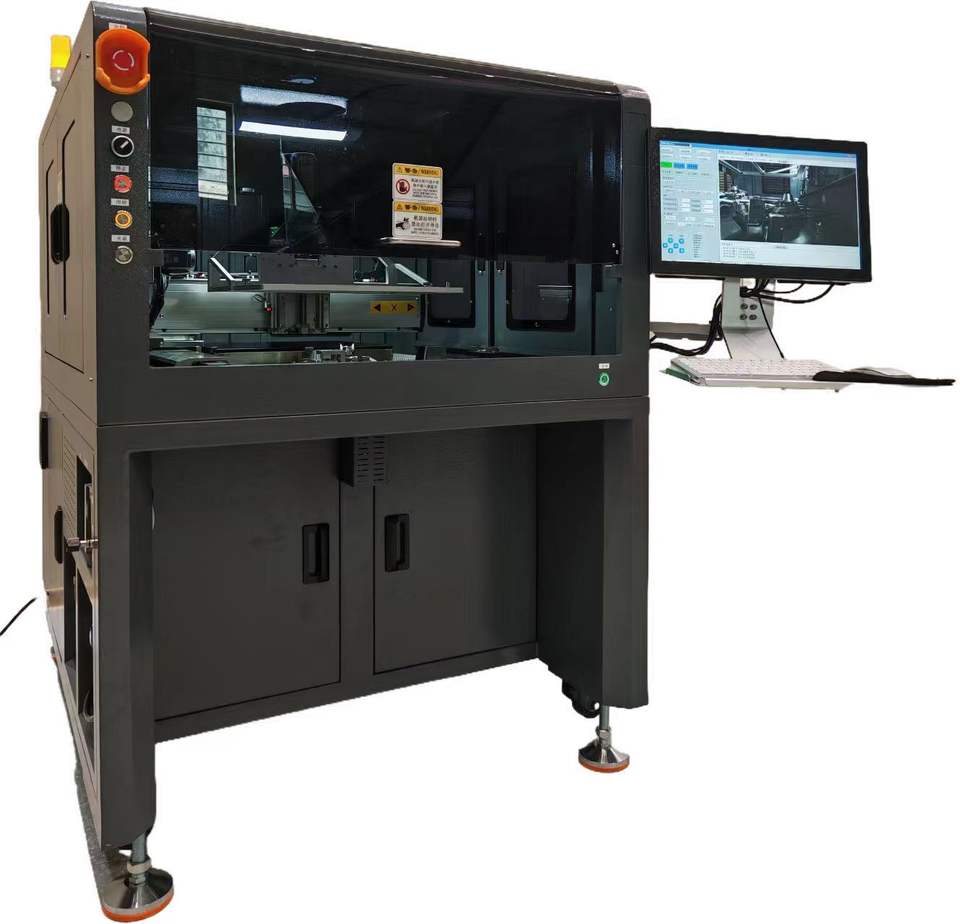

3-in-1 Offline Selective Soldering Station | Flux Spraying + Preheating + Soldering
Store rating:5.0
(9 reviews)
Attributes
Cuttingusage
AutomaticOperating Mode
SR-HC500model number
380Weight (KG)
Guangdong, Chinaplace of origin
Sinradbrand name
Dimension(L*W*H):1390*770*1350
Model:ST350DT
Model Name:Selective Wave Soldering Machine
Control System:Industrial PC + Motion Control Card
Drive Method:Servo Motor + Ball Screw
Repeat Positioning Accuracy:±0.02 mm
Max. Motion Speed:X/Y: 500 mm/s, Z: 250 mm/s
Max. PCB Size:350 x 300 mm (Customizable)
Wave Generation Method:Electromagnetic Pump
Solder Pot Capacity:15 kg
Flux Spraying:Selective Jet Spray
Preheating Method:Bottom-side IR Preheating
Preheat Temperature:Ambient to 350°C
Solder Pot Temperature:Max. 420°C
Temp. Control Accuracy:±3°C (PID)
Solder Type:Lead-Free
Positioning System:Vision Guidance
Camera Resolution:1080P HD
Programming Method:Offline w/ CAD import + Online
Power Supply:220V / 50Hz / 5KW
Compressed Air:0.4 - 0.6 MPa
Key attributes
usage
Cutting
Operating Mode
Automatic
model number
SR-HC500
Weight (KG)
380
place of origin
Guangdong, China
brand name
Sinrad
Dimension(L*W*H)
1390*770*1350
Model
ST350DT
Model Name
Selective Wave Soldering Machine
Control System
Industrial PC + Motion Control Card
Drive Method
Servo Motor + Ball Screw
Repeat Positioning Accuracy
±0.02 mm
Max. Motion Speed
X/Y: 500 mm/s, Z: 250 mm/s
Max. PCB Size
350 x 300 mm (Customizable)
Wave Generation Method
Electromagnetic Pump
Solder Pot Capacity
15 kg
Flux Spraying
Selective Jet Spray
Preheating Method
Bottom-side IR Preheating
Preheat Temperature
Ambient to 350°C
Solder Pot Temperature
Max. 420°C
Temp. Control Accuracy
±3°C (PID)
Solder Type
Lead-Free
Positioning System
Vision Guidance
Camera Resolution
1080P HD
Programming Method
Offline w/ CAD import + Online
Power Supply
220V / 50Hz / 5KW
Compressed Air
0.4 - 0.6 MPa
Packaging and delivery
Selling Units
Single item
Single package size
130X135X150 cm
Single gross weight
450.000 kg
Lead time
Product descriptions from the supplier
Warning/Disclaimer
This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.View more
Minimum order quantity: 1 set
£12,21045-12,95048
