Attributes
2AContinuous Current(A)
IE 1Efficiency
3000Speed(RPM)
Zhejiang, ChinaPlace of Origin
60mmFrame
Flange MountMotor Mounting Type
Rated Power:100 W
Rated voltage:48 V DC
Model Number:IGS60-100W
Brand Name:HLTNC
Commutation:Brushless
Protect Feature:IP65
Speed Rpm:3 000 RPM
Torque:0.35nm
Type:Servo Motor
Usage:cnc
Warranty:Other

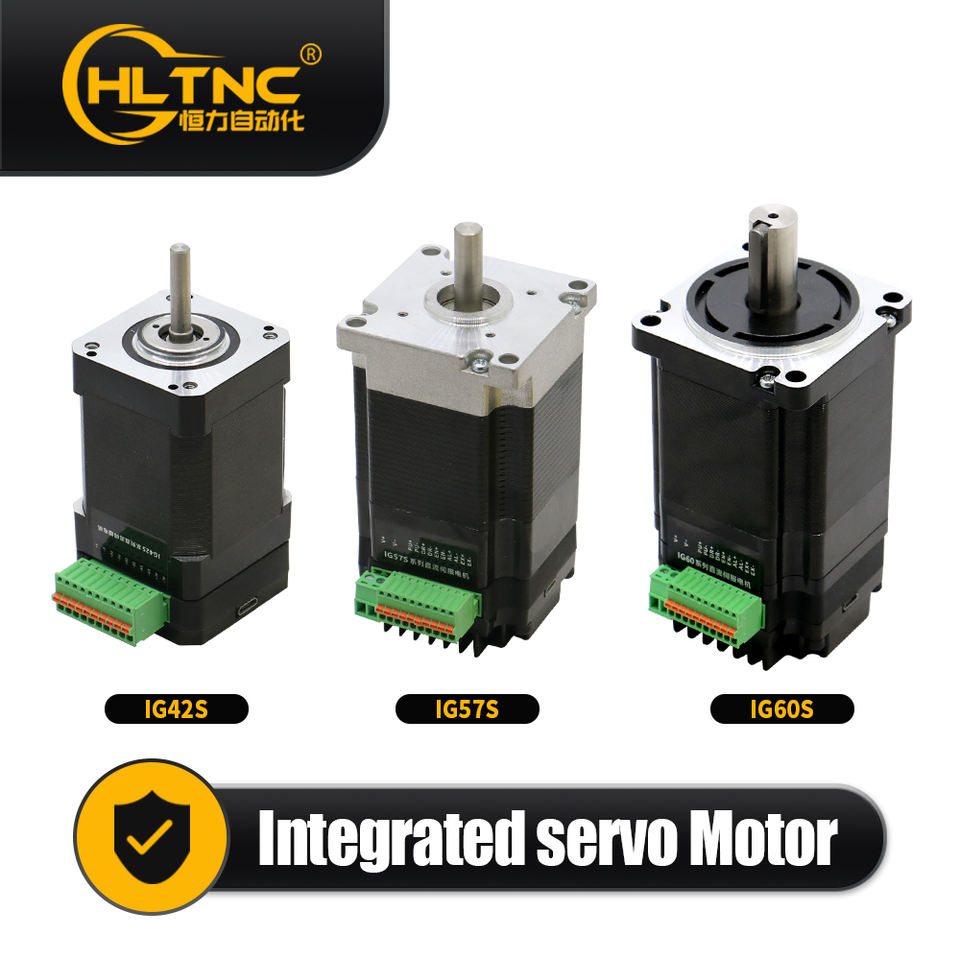

Product name:Integrated DC 100w Servo Motor
Model:IG60S-100W
Power:100W
Input current:2A
Torque:0.35N.m
Voltage:48V
Signal voltage:3.3-24V
Rated speed:3000rpm
Encoder:14-digit absolute value (16,384 lines)

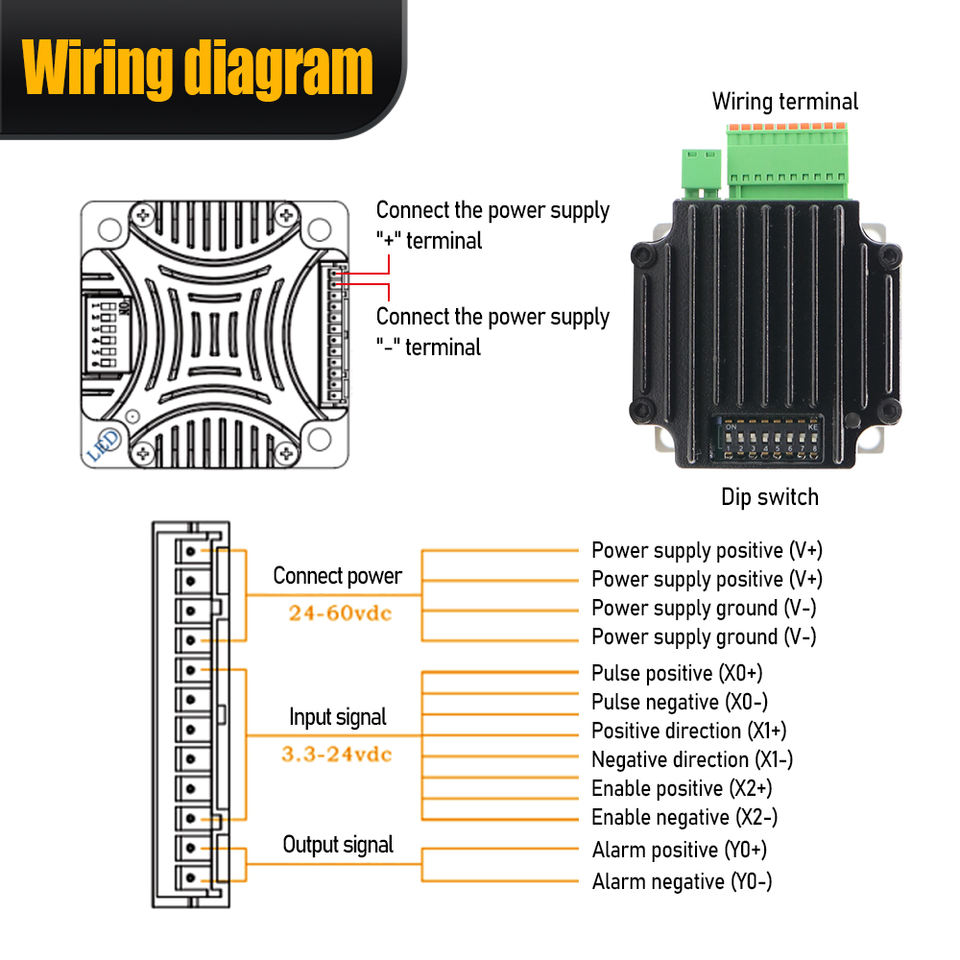

Control mode:RS485/ Pulse + direction
