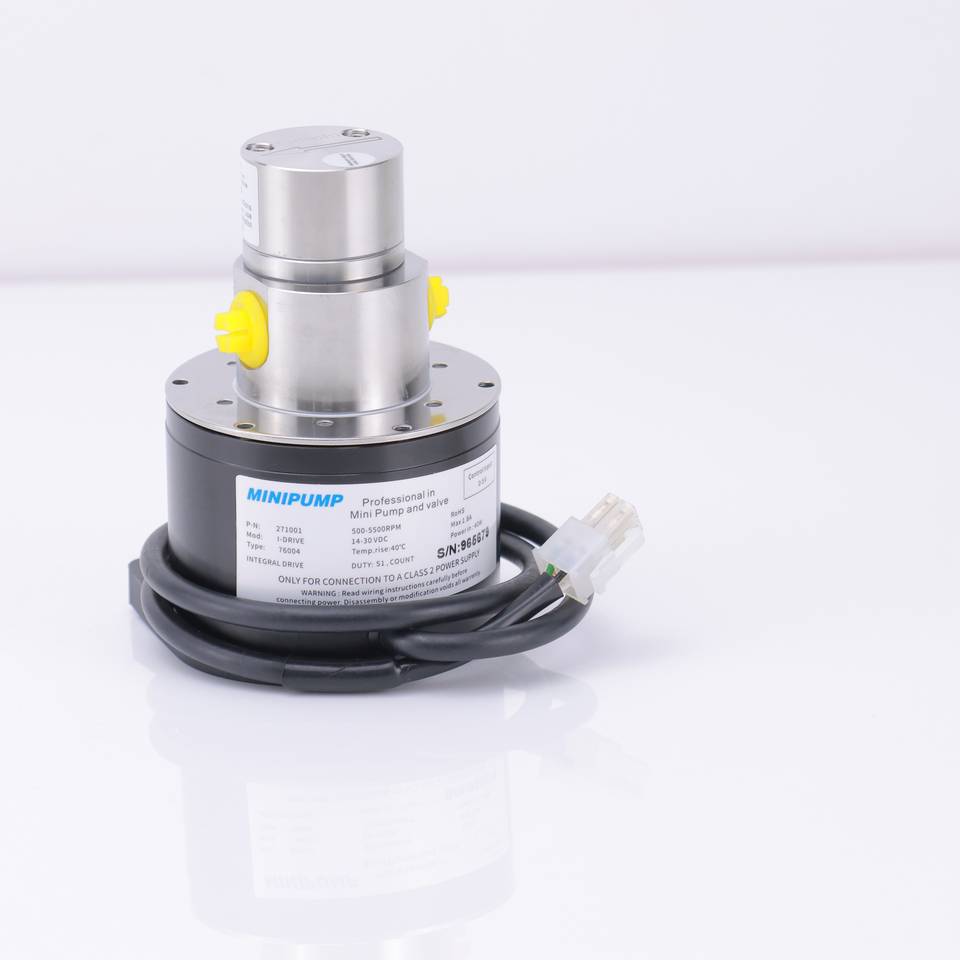

316L Stainless Steel Leakproof Metering Pump Micro Magnetic Gear Pump Water DC24v Brushless Integrated Motor for Coffee Machine
No reviews yet
Attributes
Food And Beverage Industryapplication
Low Pressurepressure
OEM, ODM, OBMcustomized support
1 Yearwarranty
Guangdong, Chinaplace of origin
Electricpower source
structure:Gear Pump
model number:GQA032ESLB01
brand name:DOCOD

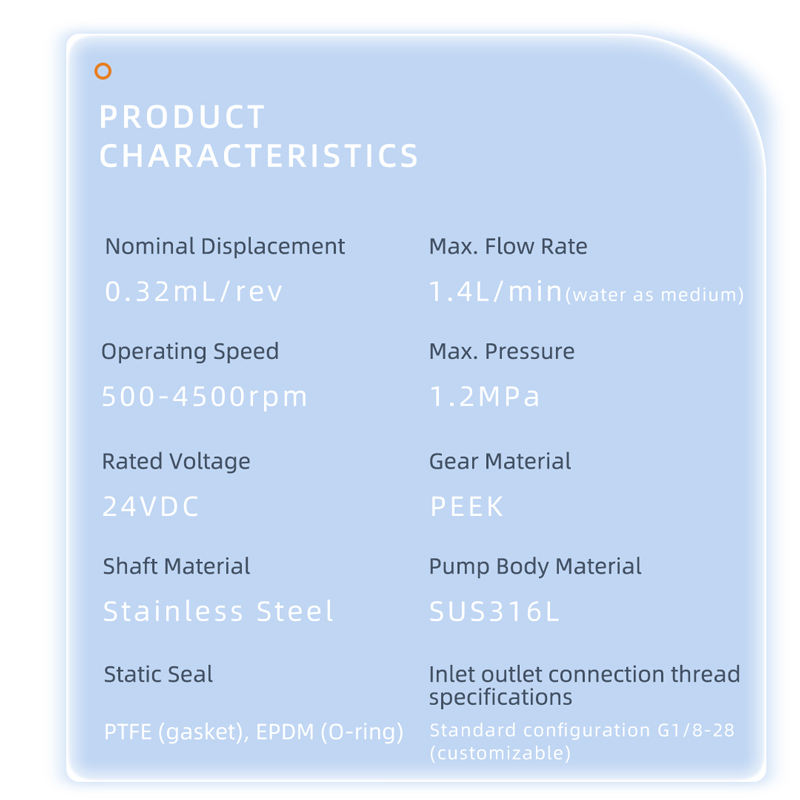

Applicable temperature:-40 to 105 degrees Celsius
Chemical Compatibility:Water
Displacement:0.32mL/rev
Flow Rate:1.4L/min
Max Flow Rate:1.4L/min(water as medium)
Max Pressure:1.2MPa
motor:Servo Motor, Brushless DC Motor, Stepper Motor
Material:Stainless Steel
Viscosity Range:0.5-1500CP
Operating Speeds:500-4500rpm
Rated Voltage:24VDC
Rated Power:40W
Gear Material:PEEK
Pump Body Material:SUS316L
Static Seal:PTFE (gaskets), EPDM (O-rings)

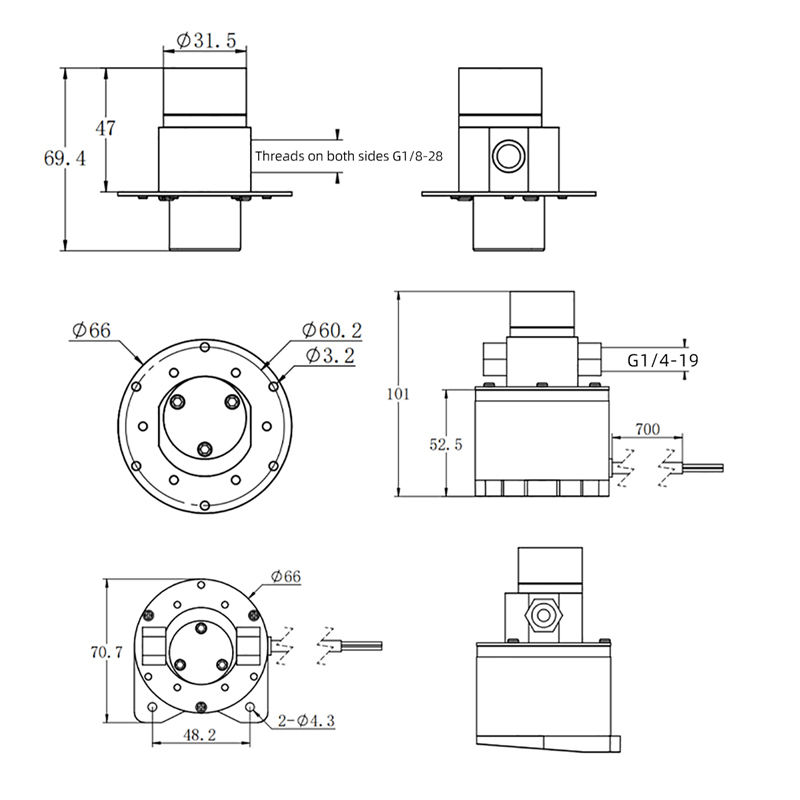

thread specifications:G1/8-28
Shaft Material:Stainless steel
Compatible Drive:Brushless DC, Stepper, Servo
Key attributes
application
Food And Beverage Industry
pressure
Low Pressure
customized support
OEM, ODM, OBM
warranty
1 Year
place of origin
Guangdong, China
power source
Electric
structure
Gear Pump
model number
GQA032ESLB01
brand name
DOCOD
Applicable temperature
-40 to 105 degrees Celsius
Chemical Compatibility
Water
Displacement
0.32mL/rev
Flow Rate
1.4L/min
Max Flow Rate
1.4L/min(water as medium)
Max Pressure
1.2MPa
motor
Servo Motor, Brushless DC Motor, Stepper Motor
Material
Stainless Steel
Viscosity Range
0.5-1500CP
Operating Speeds
500-4500rpm
Rated Voltage
24VDC
Rated Power
40W
Gear Material
PEEK
Pump Body Material
SUS316L
Static Seal
PTFE (gaskets), EPDM (O-rings)
thread specifications
G1/8-28
Shaft Material
Stainless steel
Compatible Drive
Brushless DC, Stepper, Servo
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
1 - 99 pieces
£16357
100 - 499 pieces
£13085
>= 500 pieces
£10905
