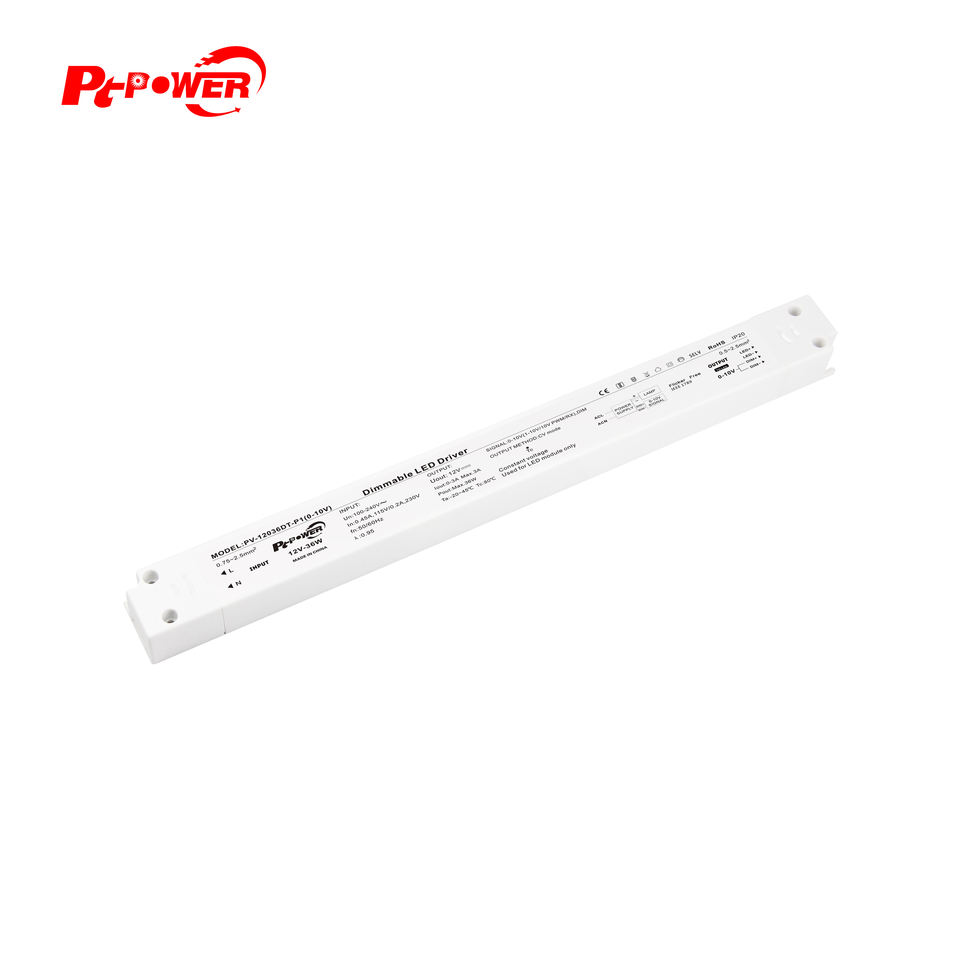

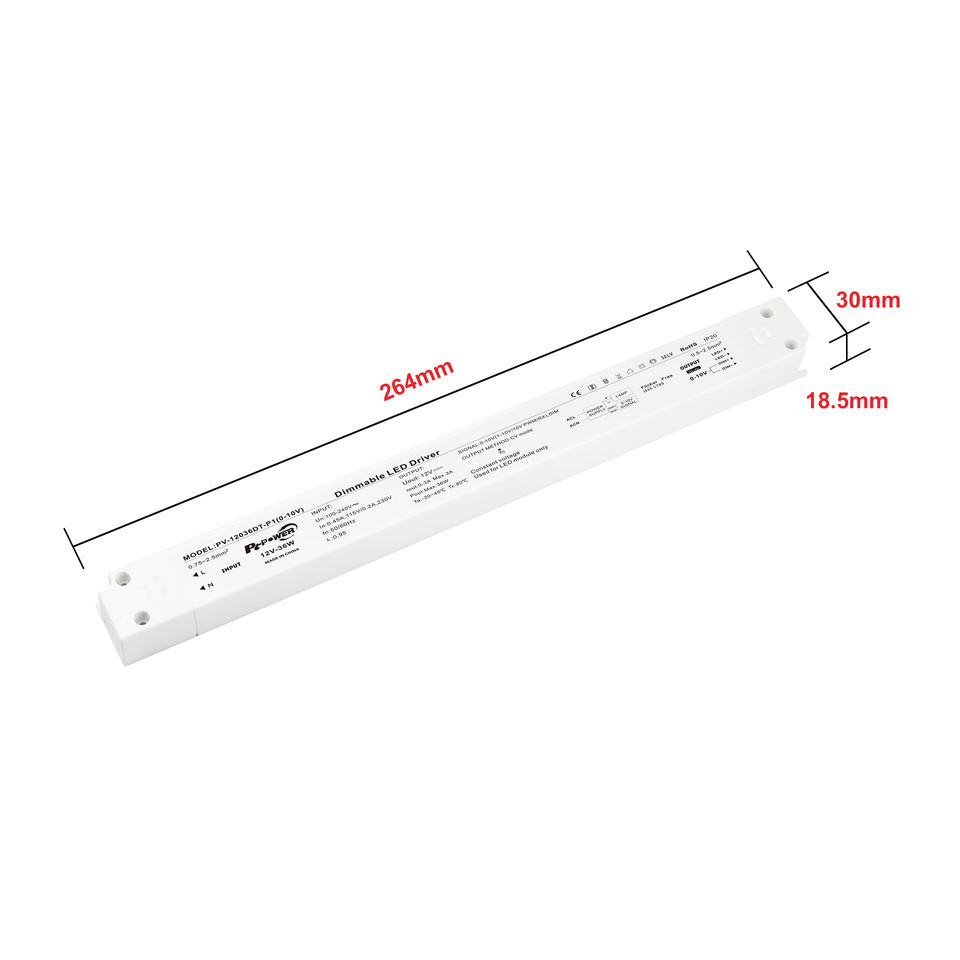

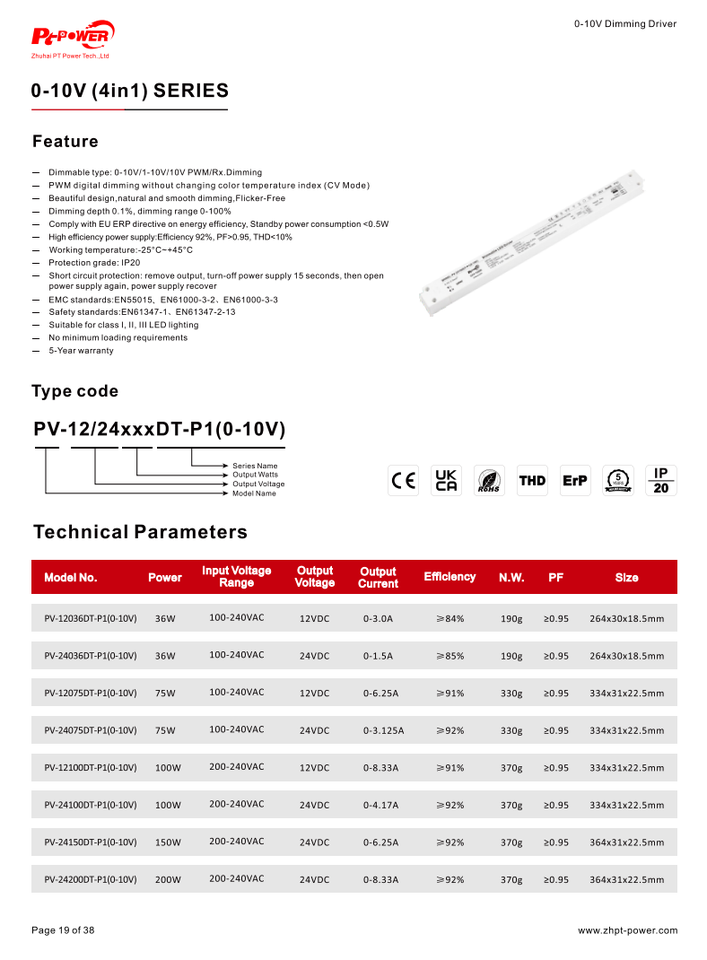

36W Constant Voltage 0-10V/1-10V/10V PWM/Rx Dimmable LED Strips Driver 100-240VAC-DC12V 24V IP20 Non-waterproof LED Power Supply
Store rating:4.9
(4 reviews)
Attributes
5-YearWarranty(Year)
Guangdong, ChinaPlace of Origin
PV-12036DT-P1(0-10V)/PV-24036DT-P1(0-10V)Model Number
Pt PowerBrand Name
Led Lighting, Indoor LightingApplication
PlasticCase Material
Dimming:0-10V 4 in 1 Dimmable
Dimming Mode:0-10V/1-10V/10V PWM/Rx. Dimming
Efficiency:≥85%
Energy Transfer:AC-DC
Input Voltage:AC100-240V
Lighting solutions service:Lighting And Circuitry Design, Other
Output Current:1.5A/3A
Output Frequency:50~60HZ
Output Power:36W
Output Type:Single
Product Weight（kg）:0.19
Topology:Ac-Dc Converter
Type:IP20 Non-waterproof
OEM/ODM:Yes
IP Rate:IP20
PF:>0.95
working temperature:-25°C~+50°C
Type:Constant Voltage LED Driver
Certification:CE/UKCA/SAA/RoHS
Safety standard:EN61347-1,EN61347-2-13
Other suitable application:Class 1, 2, 3 LED Lighting
EMC standard:EN55015,EN61000-3-2,EN61000-3-3
protection:Short circuit protection, Overload protection
Other application:Class 1 2 3 LED Lighting
Output voltage:DC12V/24V
Key attributes
Warranty(Year)
5-Year
Place of Origin
Guangdong, China
Model Number
PV-12036DT-P1(0-10V)/PV-24036DT-P1(0-10V)
Brand Name
Pt Power
Application
Led Lighting, Indoor Lighting
Case Material
Plastic
Dimming
0-10V 4 in 1 Dimmable
Dimming Mode
0-10V/1-10V/10V PWM/Rx. Dimming
Efficiency
≥85%
Energy Transfer
AC-DC
Input Voltage
AC100-240V
Lighting solutions service
Lighting And Circuitry Design, Other
Output Current
1.5A/3A
Output Frequency
50~60HZ
Output Power
36W
Output Type
Single
Product Weight（kg）
0.19
Topology
Ac-Dc Converter
Type
IP20 Non-waterproof
OEM/ODM
Yes
IP Rate
IP20
PF
>0.95
working temperature
-25°C~+50°C
Type
Constant Voltage LED Driver
Certification
CE/UKCA/SAA/RoHS
Safety standard
EN61347-1,EN61347-2-13
Other suitable application
Class 1, 2, 3 LED Lighting
EMC standard
EN55015,EN61000-3-2,EN61000-3-3
protection
Short circuit protection, Overload protection
Other application
Class 1 2 3 LED Lighting
Output voltage
DC12V/24V
