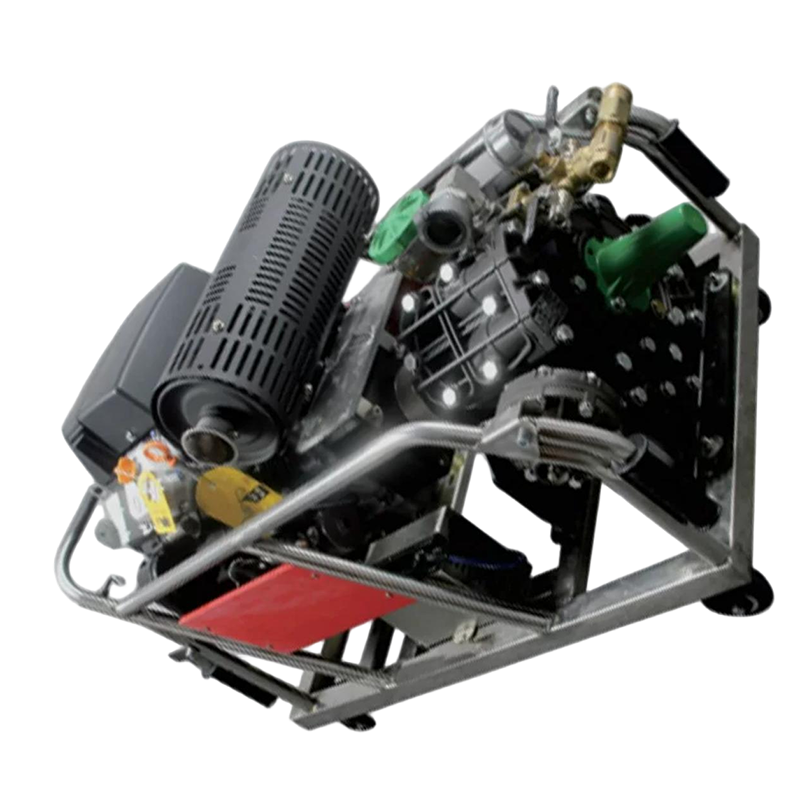

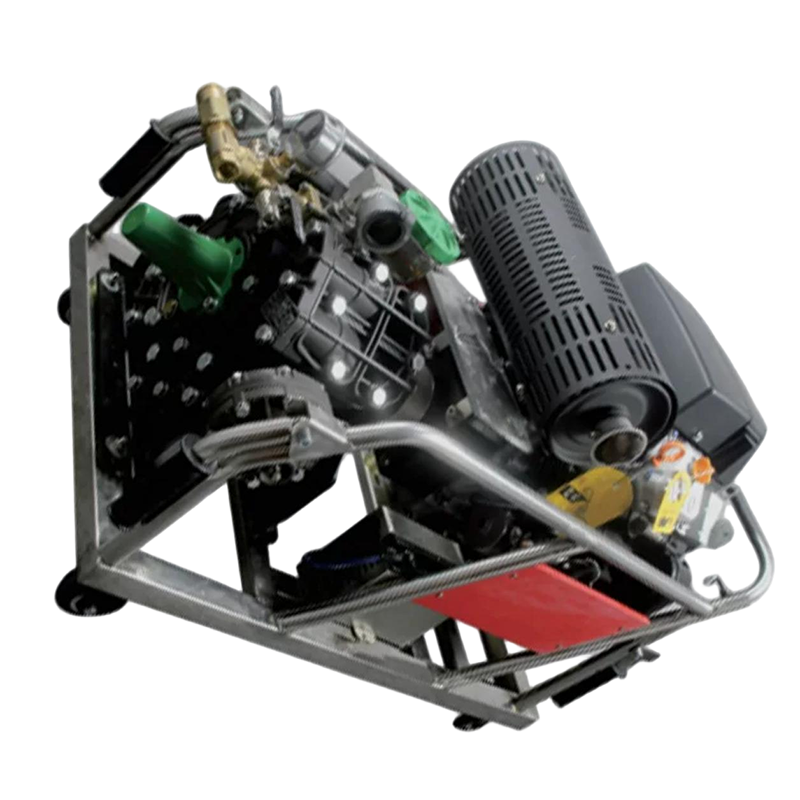

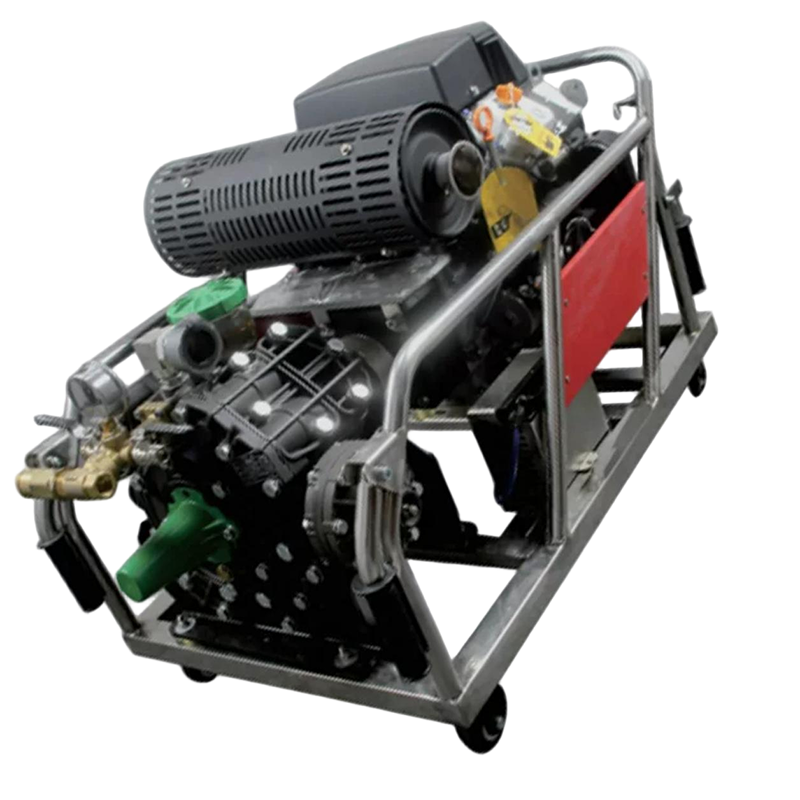

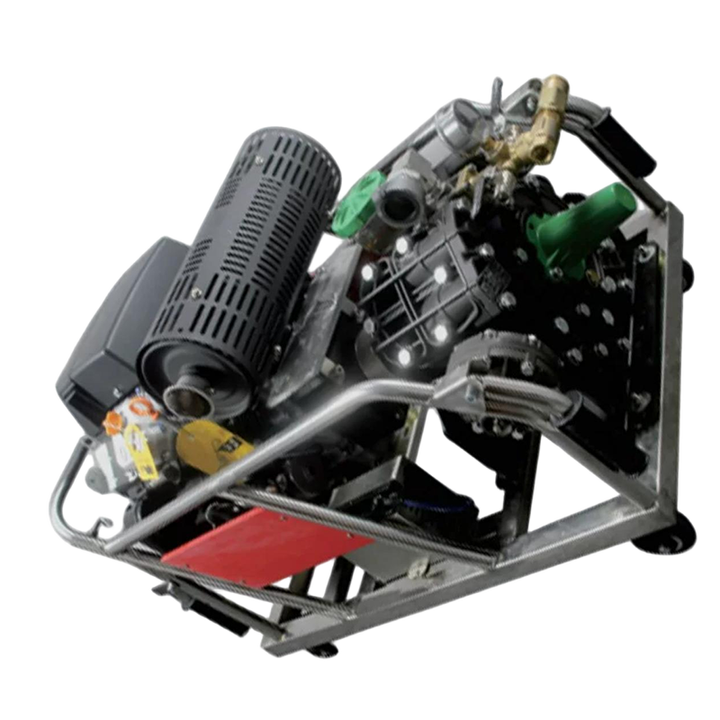

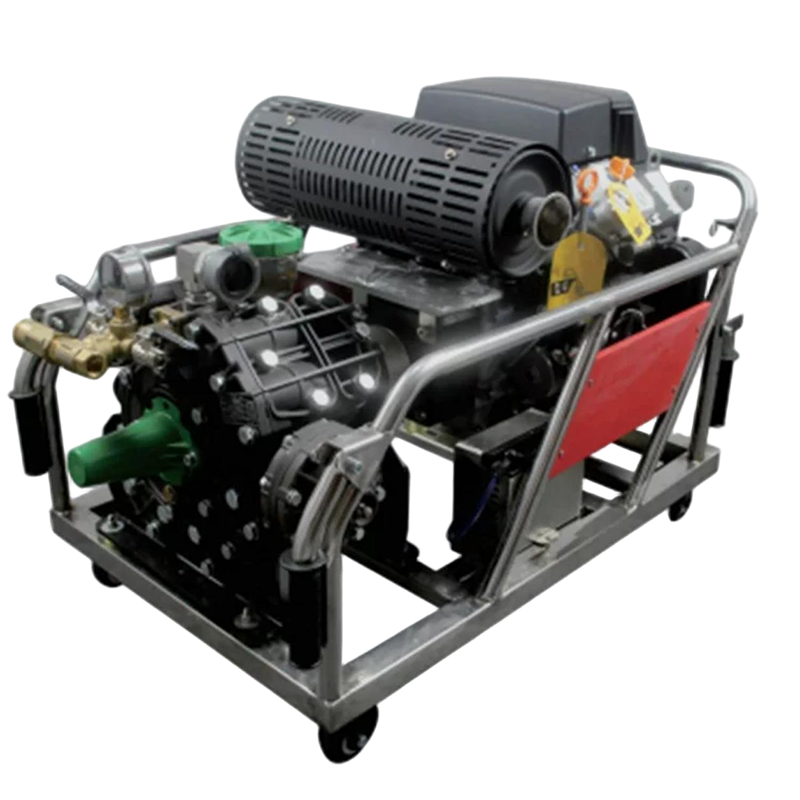

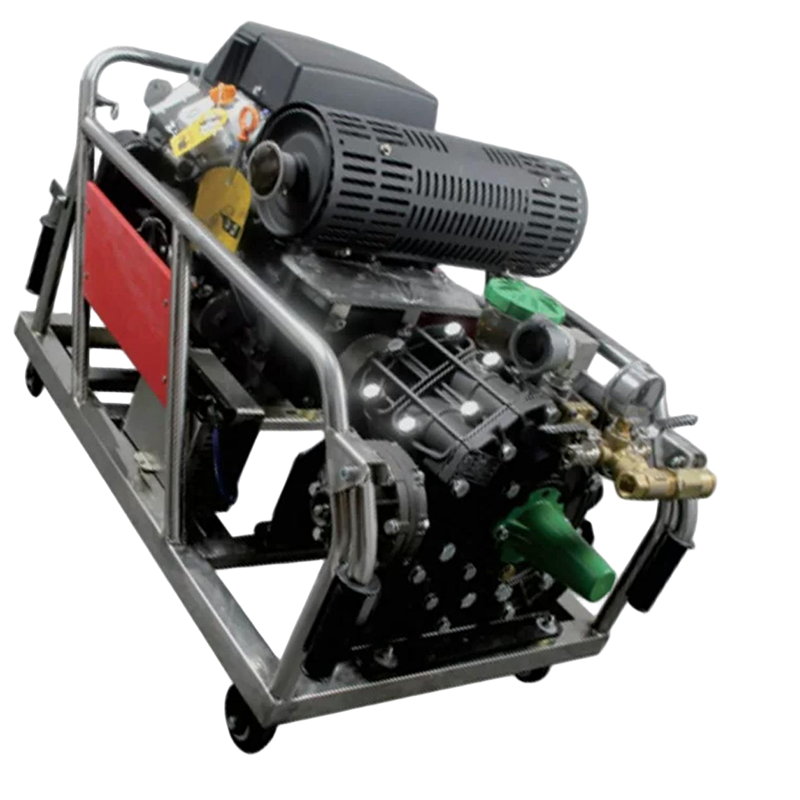

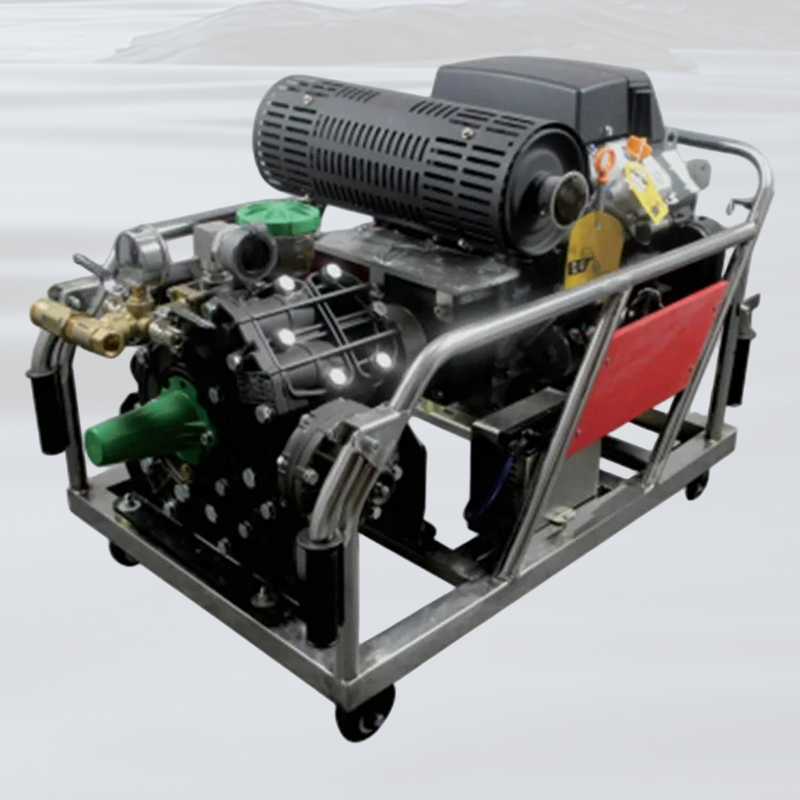

400m High-Flow Six-Cylinder Diaphragm Pump – Gasoline-Powered for Irrigation & Firefighting
Store rating:4.4
(4 reviews)
Attributes
Agricultural Irrigation, Landscape Wateringapplication
≥7.5 MPa / ≥4 MPapressure
ODM, OEMcustomized support
Negotiations between the two partieswarranty
Chinaplace of origin
Gasoline-Poweredpower source
structure:Six-Cylinder Diaphragm Pump
model number:LEGEND-S800
Applicable temperature:-10°C to 60°C
Chemical Compatibility:Compatible with Water, Fertilizer Solutions, Foam
Connection Type:Forest Fire Quick-Connect
Control Method:One-Button Electric Start + Optional APP Remote Co
Discharge Pipe Size:40 mm (1.6")
Filter material:Stainless Steel Mesh
Flow Meter Specification:Integrated Pressure Gauge
Flow Rate:260 L/min (Max) / 255 L/min (@2 MPa)
Hardness:High-Impact Resistant
horsepower:≥34HP (≥25kW)
Impeller Material:Wear-Resistant Ceramic Alloy
Import Size:40 mm (1.6")
Inlet Height:≥7 m (Suction Head)
Max Flow Rate:260 L/min
Max Pressure:≥7.5 MPa
Membrane material:TPU Diaphragm
motor:Twin-Cylinder Forced Air-Cooled 4-Stroke Gasoline
outlet size:40 mm (1.6")
Outlet Type:High-Pressure Nozzle
Outlet Water Oil Content:0% (Oil-Free Pumping)
Sealing Material:FKM
suction head:≥7 m
Surface Treatment:Anodized Alloy + Anti-Corrosion Coating
Key attributes
application
Agricultural Irrigation, Landscape Watering
pressure
≥7.5 MPa / ≥4 MPa
customized support
ODM, OEM
warranty
Negotiations between the two parties
place of origin
China
power source
Gasoline-Powered
structure
Six-Cylinder Diaphragm Pump
model number
LEGEND-S800
Applicable temperature
-10°C to 60°C
Chemical Compatibility
Compatible with Water, Fertilizer Solutions, Foam
Connection Type
Forest Fire Quick-Connect
Control Method
One-Button Electric Start + Optional APP Remote Co
Discharge Pipe Size
40 mm (1.6")
Filter material
Stainless Steel Mesh
Flow Meter Specification
Integrated Pressure Gauge
Flow Rate
260 L/min (Max) / 255 L/min (@2 MPa)
Hardness
High-Impact Resistant
horsepower
≥34HP (≥25kW)
Impeller Material
Wear-Resistant Ceramic Alloy
Import Size
40 mm (1.6")
Inlet Height
≥7 m (Suction Head)
Max Flow Rate
260 L/min
Max Pressure
≥7.5 MPa
Membrane material
TPU Diaphragm
motor
Twin-Cylinder Forced Air-Cooled 4-Stroke Gasoline
outlet size
40 mm (1.6")
Outlet Type
High-Pressure Nozzle
Outlet Water Oil Content
0% (Oil-Free Pumping)
Sealing Material
FKM
suction head
≥7 m
Surface Treatment
Anodized Alloy + Anti-Corrosion Coating
