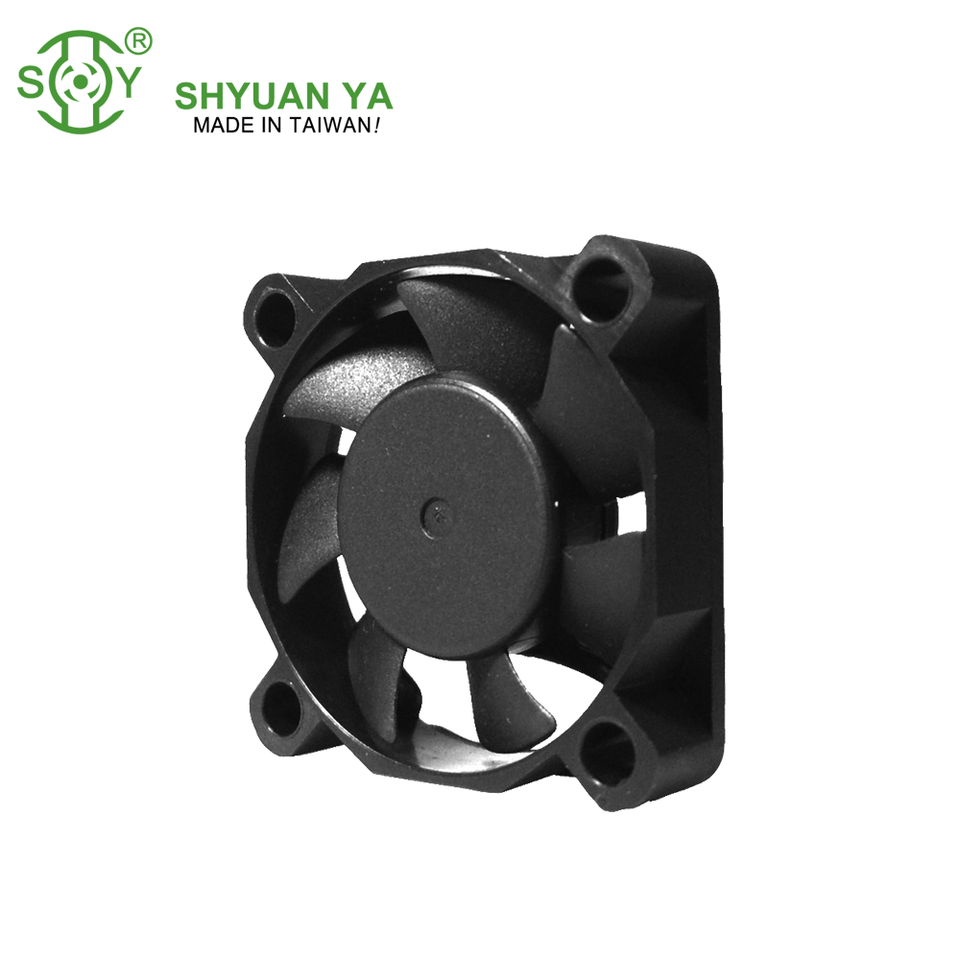

40mmx10mm 5W 12V Brushless BLDC Kit Motor DC Fan OEM/ODM Customizable with Dual Ball Bearing Plastic Blades

See store reviews
LIANG HERNG ELEC MACH CO., LTD.
21 yrs

Attributes

5, 12, 24, 48VVoltage
Thermoplastic PBT, UL94V-0Material
7000RPMspeed
Wall Fanmounting type
silent dc fanType
1 Yearwarranty
Power Source:Battery
blade material:Plastic
bearing type:DUAL BALL BEARING
customized support:OEM, ODM
after-sales service provided:Online support
place of origin:Taiwan, China
brand name:SHYUAN YA
model number:AD40-10T
After-sales Service Provided:Overseas third-party support available

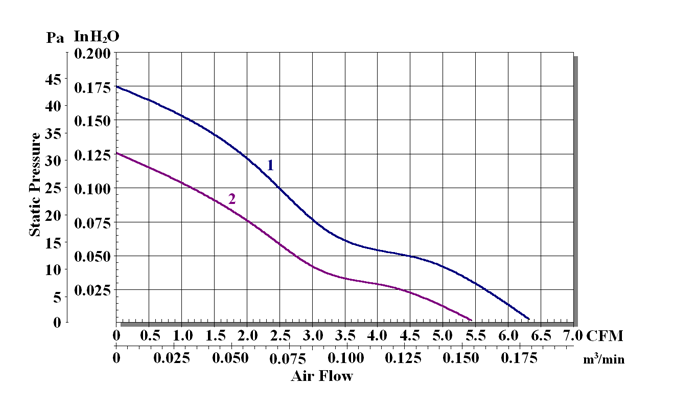

Air Flow:5.4 ~ 6.3 CFM
Housing:Thermoplastic PBT, UL94V-0
Impeller:Thermoplastic PBT, UL94V-0
Bearing:Ball or Sleeve
Termination:Lead Wire 2468 AWG#26
Operating Temperature:-20°C to +80°C
Weight:13.7g
Function:Function type is optional
Certification:CE
Type:Axial Flow Fan
Applicable Industries:Electronic and Industrial Plant
Core Components:Motor and Bearing

Key attributes

Voltage
5, 12, 24, 48V
Material
Thermoplastic PBT, UL94V-0
speed
7000RPM
mounting type
Wall Fan
Type
silent dc fan
warranty
1 Year
Power Source
Battery
blade material
Plastic
bearing type
DUAL BALL BEARING
customized support
OEM, ODM
after-sales service provided
Online support
place of origin
Taiwan, China
brand name
SHYUAN YA
model number
AD40-10T
After-sales Service Provided
Overseas third-party support available
Air Flow
5.4 ~ 6.3 CFM
Housing
Thermoplastic PBT, UL94V-0
Impeller
Thermoplastic PBT, UL94V-0
Bearing
Ball or Sleeve
Termination
Lead Wire 2468 AWG#26
Operating Temperature
-20°C to +80°C
Weight
13.7g
Function
Function type is optional
Certification
CE
Type
Axial Flow Fan
Applicable Industries
Electronic and Industrial Plant
Core Components
Motor and Bearing

Packaging and delivery

Selling Units
Single item
Single package size
4X4X1 cm
Single gross weight
0.140 kg
Show more

Lead time

Customization options

Customized logo (Min. order: 1,000 pieces)
View details

Product descriptions from the supplier

Customizable
Minimum order quantity: 1 piece
$104-320
Sample price: $1.50

Variations

Select now
Customization options
Customized logo (Min. order: 1000 pieces)

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
