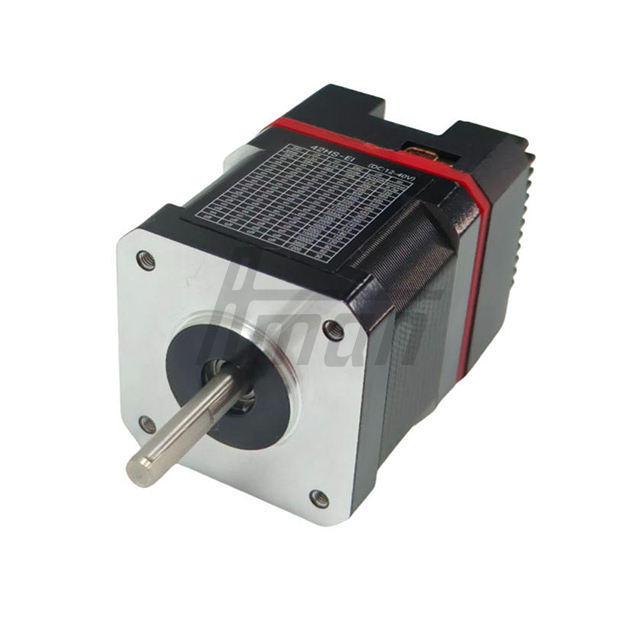

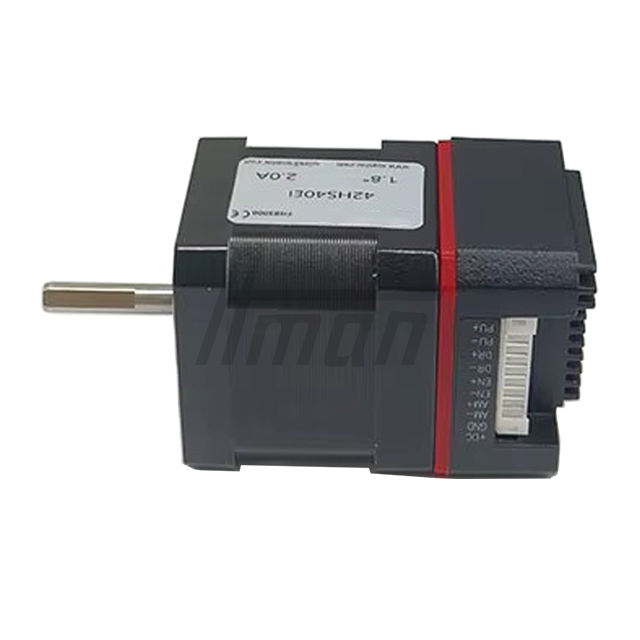

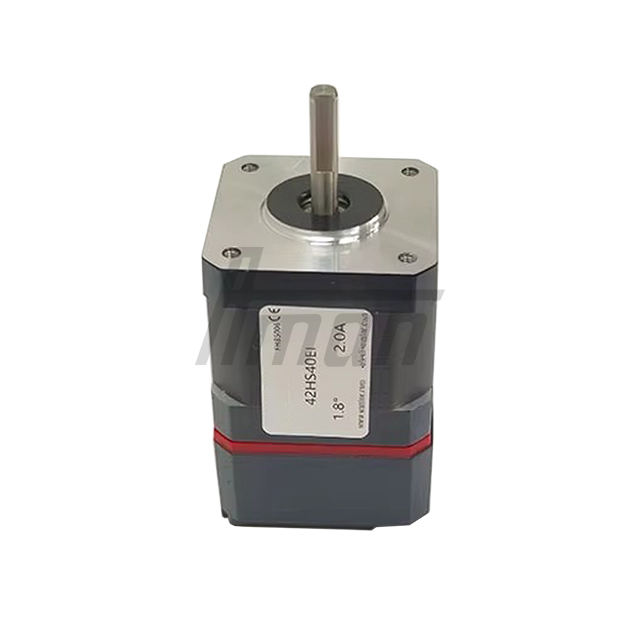

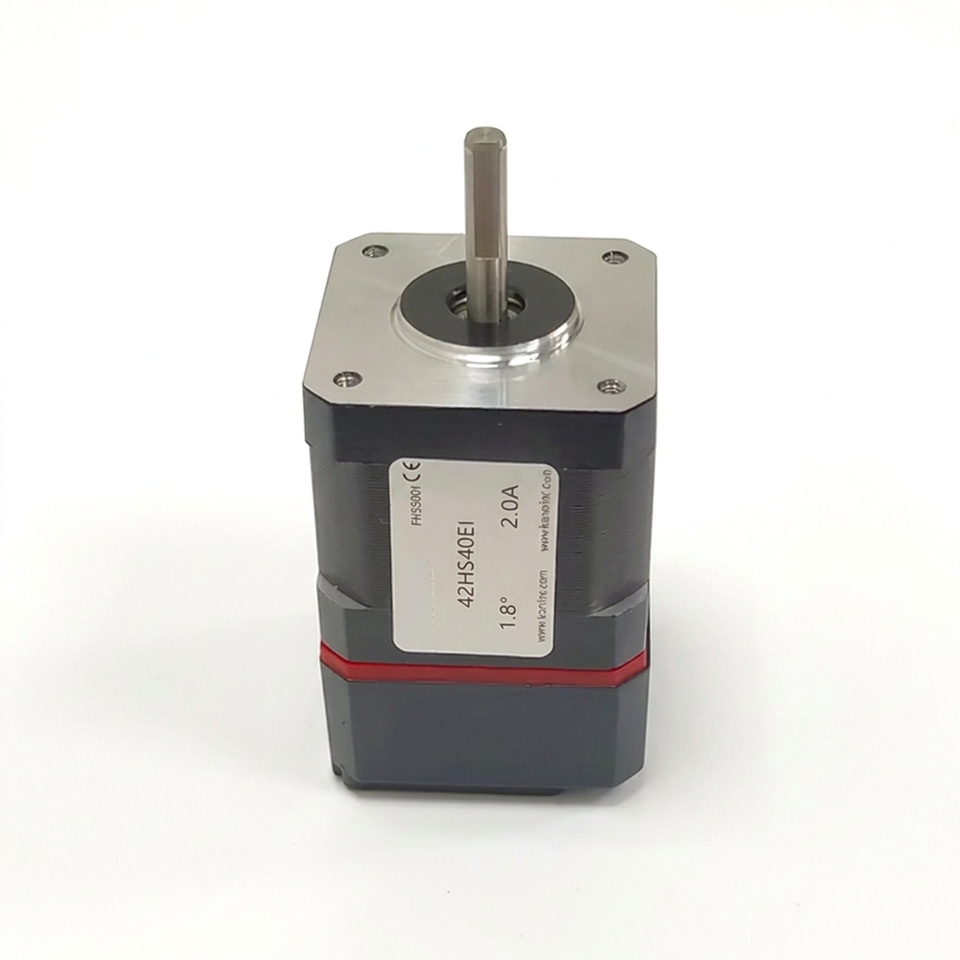

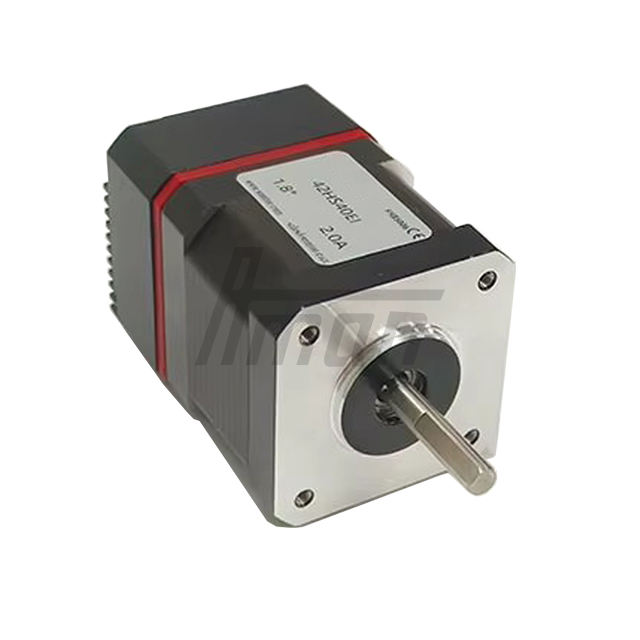

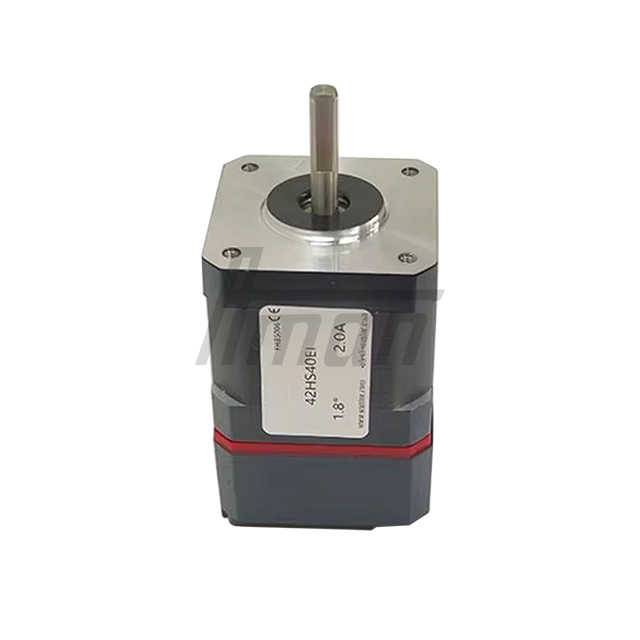

42HS40EI 2-Phase Open Loop Integrated Stepper Motor NEMA 17 0.48N.m Torque Hybrid Engineering Vehicles Off-Road Vehicles
No reviews yet

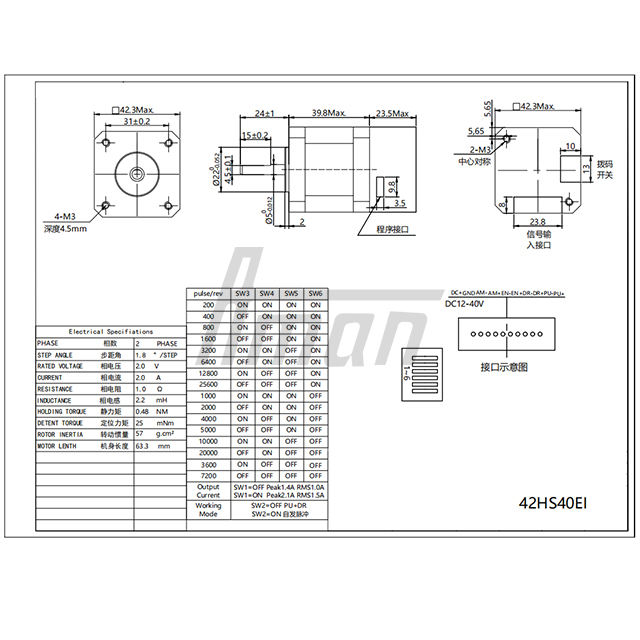

Attributes
NEMA 17Nema Frame Size
-Voltage
HybridType
2Phase
5.0mmShaft Diameter
0.48N.mTorque
Warranty:1 year
Place of Origin:Jiangsu, China
Model Number:42HS40EI
Current / Phase:2A
Step Accuracy:±5%
Resistance Accuracy:±10%
Inductance Accuracy:±20%
Temperature Rise:60°(Max)
Ambient Temperature:-20℃~+50℃
Insulation Resistance:100MQ Min(500VDC)
Resistor:1Ω
Inductance:2.2mH
Static Torque:0.48N.m
Detent Torque:25m.Nm
Moment of Inertia:57g.cm2

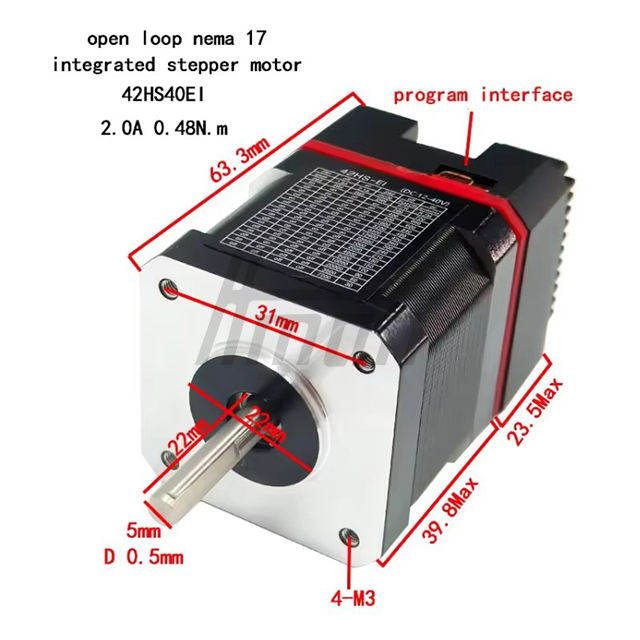

Motor Length:63.3mm
Control Mode:Open Loop
Application:Engraving Machine, 3D Printer, Dispensing Machine
Application2:Industrial Robot, Textile Machinery, Medical Equipment
Application3:Precision Flow Control Industrial Pumps
Application4:Engineering Vehicles,Off-Road Vehicles
ACE TECH SOLUTIONS LIMITED
HK1 yr on Alibaba.com
Response Time ≤ 5hOn-time delivery rate ≥ 100%
Main markets: Indonesia, United States, Zambia
Key attributes
Nema Frame Size
NEMA 17
Voltage
-
Type
Hybrid
Phase
2
Shaft Diameter
5.0mm
Torque
0.48N.m
Warranty
1 year
Current / Phase
2A
Model Number
42HS40EI
Place of Origin
Jiangsu, China
Step Accuracy
±5%
Resistance Accuracy
±10%
Inductance Accuracy
±20%
Temperature Rise
60°(Max)
Ambient Temperature
-20℃~+50℃
Insulation Resistance
100MQ Min(500VDC)
Resistor
1Ω
Inductance
2.2mH
Static Torque
0.48N.m
Detent Torque
25m.Nm
Moment of Inertia
57g.cm2
Motor Length
63.3mm
Control Mode
Open Loop
Application
Engraving Machine, 3D Printer, Dispensing Machine
Application2
Industrial Robot, Textile Machinery, Medical Equipment
Application3
Precision Flow Control Industrial Pumps
Application4
Engineering Vehicles,Off-Road Vehicles
Packaging and delivery
Selling Units
Single item
Package size per batch
15X15X10 cm
Gross weight per batch
1.000 kg
Lead time
Product descriptions from the supplier
1 - 9 pieces
£1225
10 - 99 pieces
£1148
>= 100 pieces
£1072
