48VDC Frameless Torque Brushless Rotary Direct Drive Robotics Motor IE4 Efficiency for Exoskeleton Industrial Home Appliance Fan

No reviews yet
£32710
2-299 pieces
£15605
≥300 pieces
Rated Voltage
Output Power
Speed of Revolution

Key attributes

Continuous Current (A)

custom

Efficiency

IE 4

Speed (RPM)

300rpm

Place of Origin

China

Frame

NO

Motor Mounting Type

Glue type

At a glance

  • Brushless Motor: Ensures high reliability and low maintenance due to the absence of friction loss, improving overall performance and reducing downtime.

  • IE4 Efficiency: Provides higher energy savings and improved device performance, enhancing user experience and reducing operational costs.

  • Totally Enclosed: Protects the motor from dust and contaminants, ensuring long-term durability and reducing the need for maintenance.

  • High Rigidity: Enables the motor to withstand large radial and axial static loads, making it suitable for applications with load fluctuations.

Further analysis & research about this product
Calculate the cost and margin
Shipping
Select shipping

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Payment & financing

Buy now, pay later

Key attributes

Continuous Current (A)
custom
Efficiency
IE 4
Speed (RPM)
300rpm
Place of Origin
China
Frame
NO
Motor Mounting Type
Glue type
Rated Power
408.72W
Model Number
U20025
Brand Name
other
Commutation
Brushless
Construction
Permanent Magnet
IP Rating
other
Protect Feature
Totally Enclosed
Speed Rpm
300 RPM
Torque
13NM
Type
Brushless Motor
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home, Medical machinery
Warranty
Other

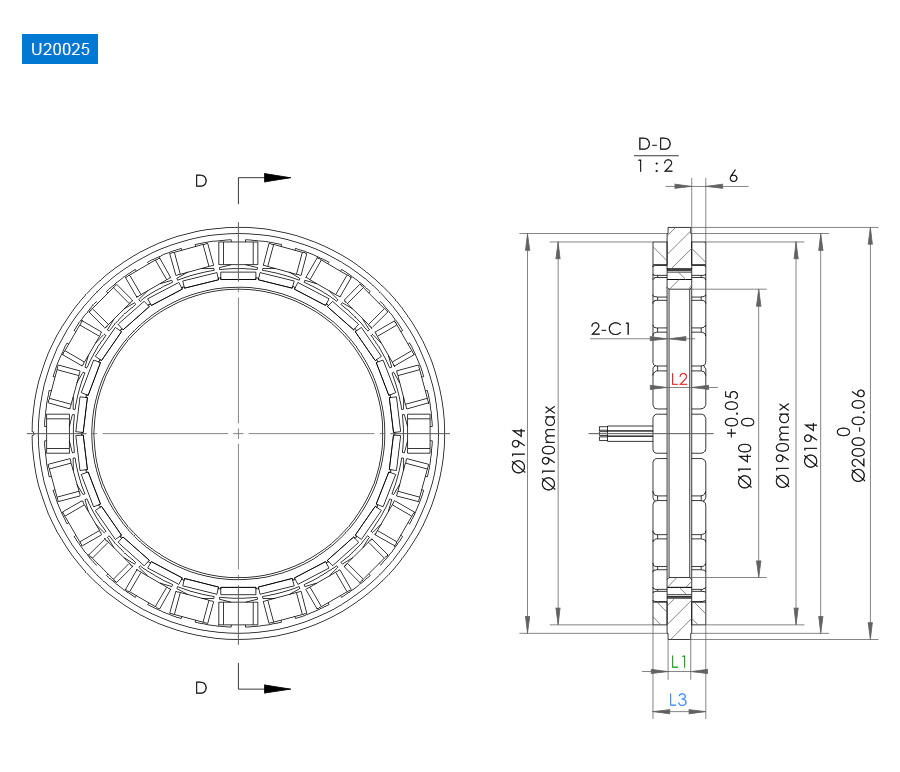

OD(mm)
200
Height(mm)
23

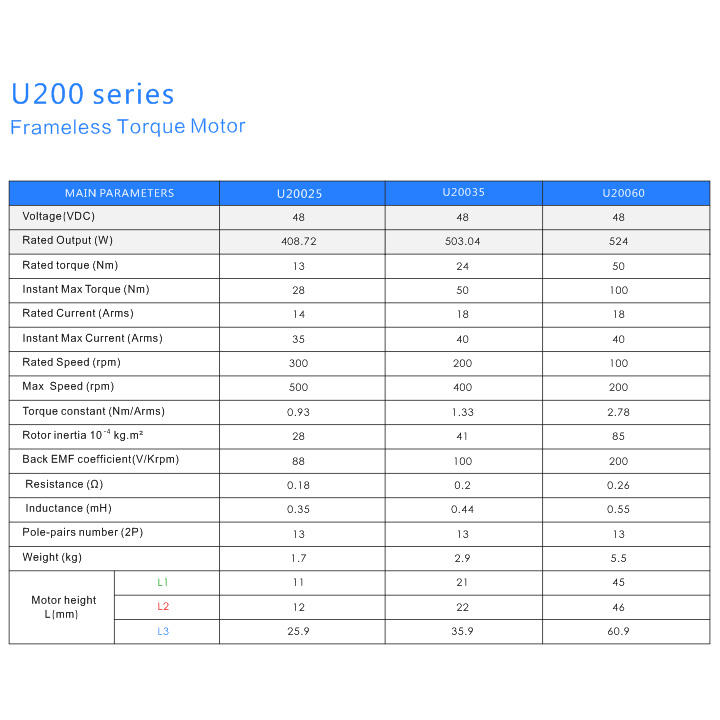

Voltage
48V DC
Rated Output*1 (W)
408.72
Rated torque*1 (Nm)
13
Instant Max Torque*1 (Nm)
28
Rated Current*1 (Arms)
14
Instant Max Current*1 (Arms)
35
Rated Speed*1 (Rpm)
300
Max Speed*1 (Rpm)
500

Packaging and delivery

Selling Units
Single item
Single package size
12X12X12 cm
Single gross weight
30.0 kg

Lead time

Product descriptions from the supplier
