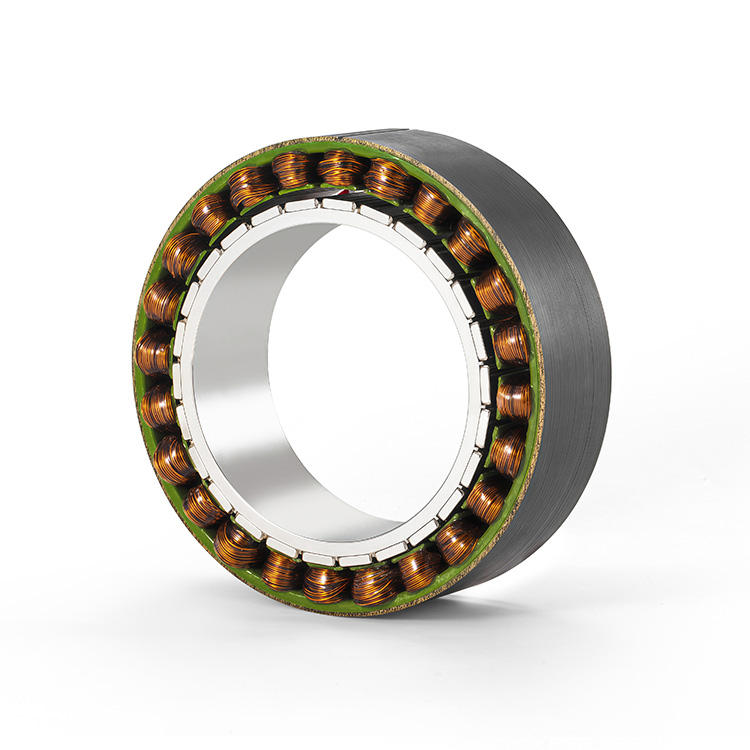

48VDC Frameless Toruqe Brushless Rotary Direct Drive Robotics Motor for Exoskeleton Industrial Robotic Arm
No reviews yet
Attributes
customContinuous Current(A)
IE 4Efficiency
300rpmSpeed(RPM)
ChinaPlace of Origin
NOFrame
Glue typeMotor Mounting Type
Rated Power:408.72W
Model Number:U20025
Brand Name:other
Commutation:Brushless
Construction:Permanent Magnet
IP Rating:other
Protect Feature:Totally Enclosed
Speed Rpm:300 RPM
Torque:13NM
Type:Brushless Motor
Usage:Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home, Medical machinery
Warranty:Other

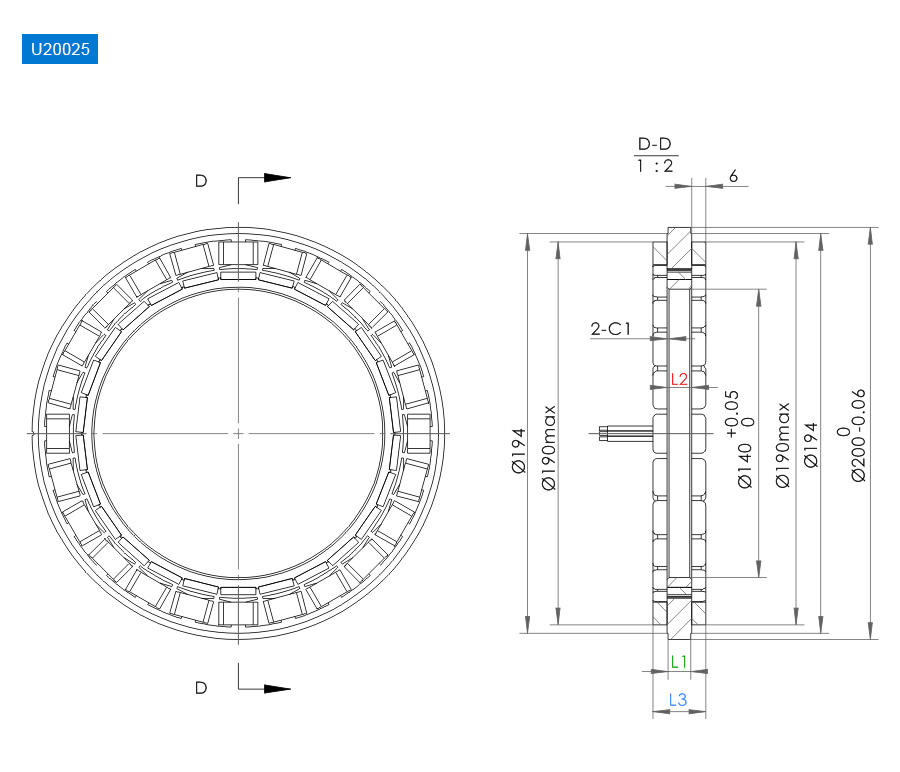

OD(mm):200
Height(mm):23
Voltage:48V DC
Rated Output*1 (W):408.72
Rated torque*1 (Nm):13
Instant Max Torque*1 (Nm):28
Rated Current*1 (Arms):14
Instant Max Current*1 (Arms):35
Rated Speed*1 (Rpm):300
Max Speed*1 (Rpm):500
Key attributes
Continuous Current(A)
custom
Efficiency
IE 4
Speed(RPM)
300rpm
Place of Origin
China
Frame
NO
Motor Mounting Type
Glue type
Rated Power
408.72W
Model Number
U20025
Brand Name
other
Commutation
Brushless
Construction
Permanent Magnet
IP Rating
other
Protect Feature
Totally Enclosed
Speed Rpm
300 RPM
Torque
13NM
Type
Brushless Motor
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home, Medical machinery
Warranty
Other
OD(mm)
200
Height(mm)
23
Voltage
48V DC
Rated Output*1 (W)
408.72
Rated torque*1 (Nm)
13
Instant Max Torque*1 (Nm)
28
Rated Current*1 (Arms)
14
Instant Max Current*1 (Arms)
35
Rated Speed*1 (Rpm)
300
Max Speed*1 (Rpm)
500
Packaging and delivery
Selling Units
Single item
Single package size
12X12X12 cm
Single gross weight
30.000 kg
Lead time
Product descriptions from the supplier
2 - 299 pieces
$436
>= 300 pieces
$208
