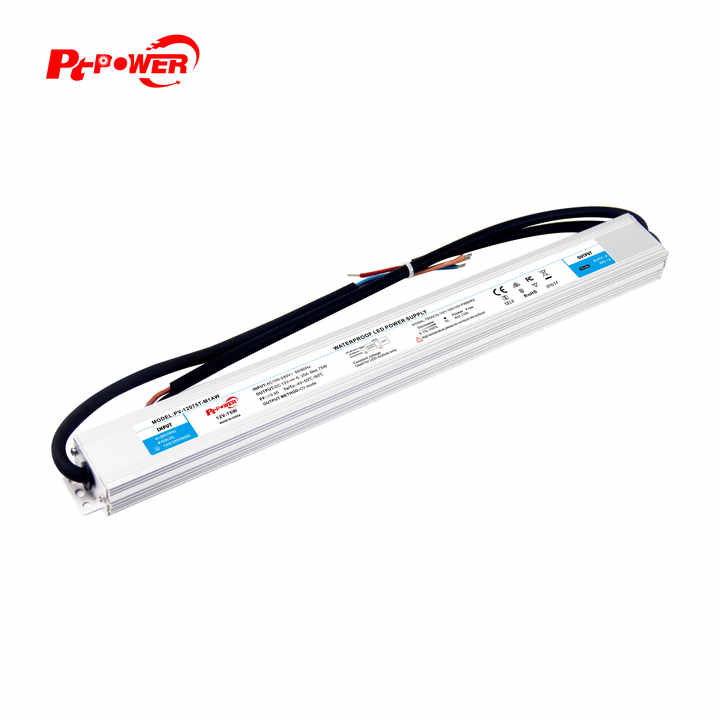

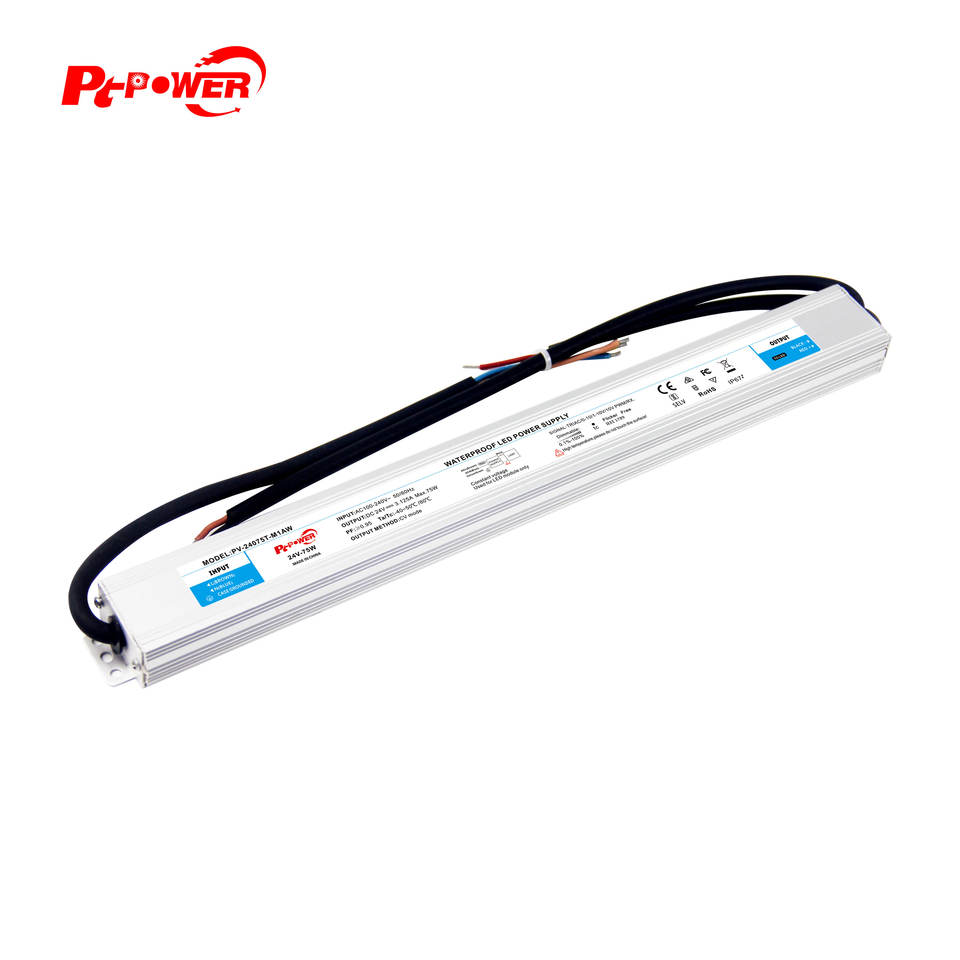

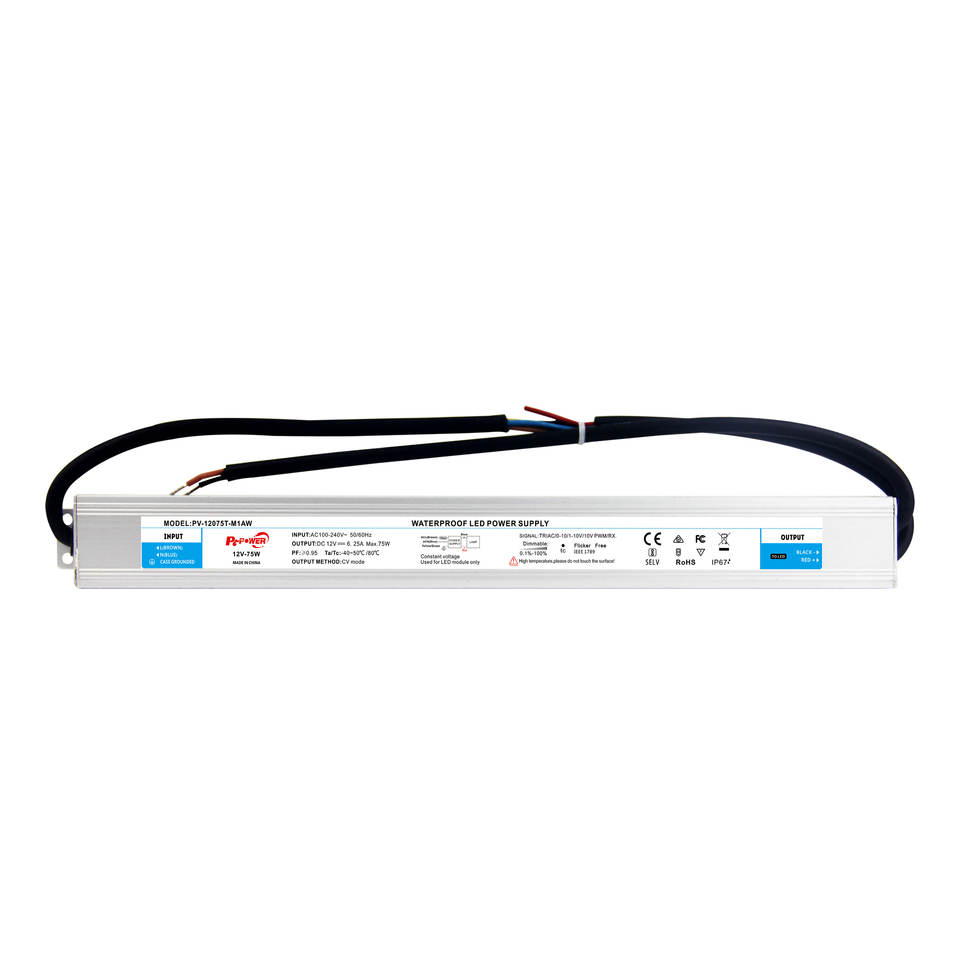

75W CV IP67 Outdoor Slim LED Strip Driver Flicker Free TRIAC/0-10V/1-10V/10V PWM/Rx Dimmable LED Driver 100-240V AC-DC 12V 24V
No reviews yet
Attributes
Led Lighting, Outdoor LightingApplication
100-240VACInput Voltage
75WOutput Power
0-6.25A, 0-3.13AOutput Current
IP67 WaterproofType
AC-DCEnergy Transfer
Warranty(Year):5-Year
Place of Origin:Guangdong, China
Model Number:PV-12075T-M1AW/PV-24075T-M1AW
Brand Name:Pt POWER
Case Material:Aluminum
Dimming:Triac
Dimming Mode:Triac/0-10V/1-10V/10V PWM/Rx. Dimming
Efficiency:91%~92%
Lighting solutions service:Lighting And Circuitry Design, Project Installation, Other
Output Frequency:50~60 Hz
Output Type:Single
Product Weight（kg）:0.3
Topology:Ac-Dc Converter
IP Rate:IP67 Waterproof
Certification:CE/CB/SAA/RoHS
OEM/ODM:YES
Working temperature:-40°C~~+60°C
Safety standard:EN61347-1, EN61347-2-13
Protection:Short circuit and over-load protection
Output Voltage:DC12V/24V
Feature:Flicker-free dimming 0-100% full load aging test
Power Factor:PF≥0.95
Size:372*37*22mm
Key attributes
Application
Led Lighting, Outdoor Lighting
Input Voltage
100-240VAC
Output Power
75W
Output Current
0-6.25A, 0-3.13A
Type
IP67 Waterproof
Energy Transfer
AC-DC
Output Type
Single
Dimming Mode
Triac/0-10V/1-10V/10V PWM/Rx. Dimming
Dimming
Triac
Efficiency
91%~92%
Topology
Ac-Dc Converter
Case Material
Aluminum
Warranty(Year)
5-Year
Lighting solutions service
Lighting And Circuitry Design, Project Installation, Other
Place of Origin
Guangdong, China
Model Number
PV-12075T-M1AW/PV-24075T-M1AW
Brand Name
Pt POWER
Output Frequency
50~60 Hz
Product Weight（kg）
0.3
Type
Constant Voltage TRIAC Dimmable LED Driver (5 in 1 ) version
IP Rate
IP67 Waterproof
Certification
CE/CB/SAA/RoHS
OEM/ODM
YES
Working temperature
-40°C~~+60°C
Safety standard
EN61347-1, EN61347-2-13
Protection
Short circuit and over-load protection
Output Voltage
DC12V/24V
Feature
Flicker-free dimming 0-100% full load aging test
Power Factor
PF≥0.95
Size
372*37*22mm
Packaging and delivery
Selling Units
Single item
Single package size
40X5.5X3.5 cm
Single gross weight
0.650 kg
Lead time
Customization options
Customized logo(+ from /Min. order: 500 pieces)
Customized packaging(+ from /Min. order: 500 pieces)
Graphic customization(+ from /Min. order: 500 pieces)
View details
Product descriptions from the supplier
FREE shipping capped at £20
Lower priced than similar
2 - 99 pieces
£1445
100 - 499 pieces
£1385
≥ 500 pieces
£1332
Variations
Select nowInput Voltage(V): 100-240VAC
100-240VAC
Lamp Power(W): 75W
75W
Output Voltage
12 V
24 V
