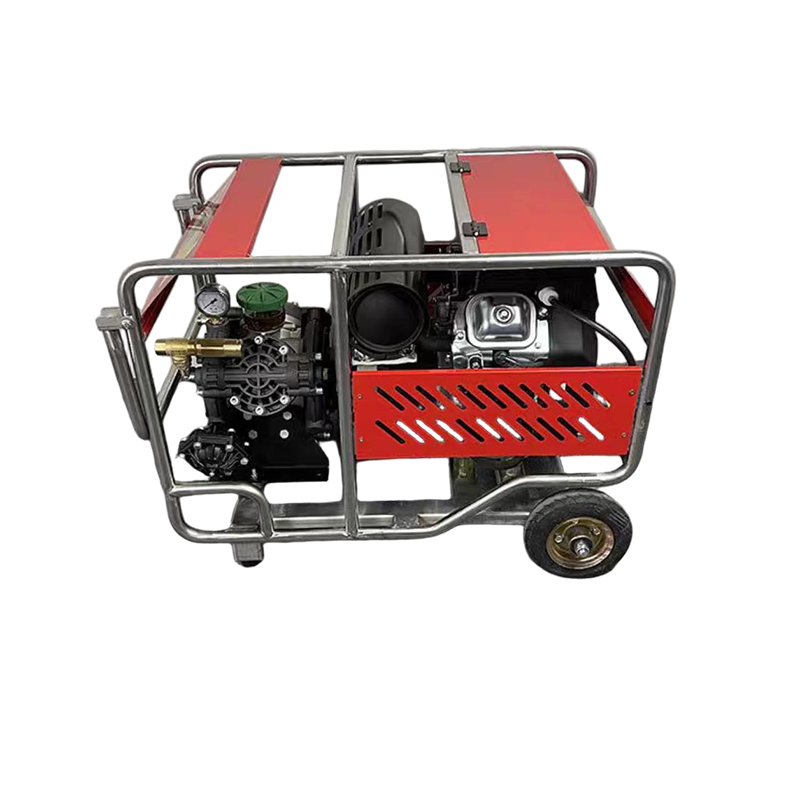

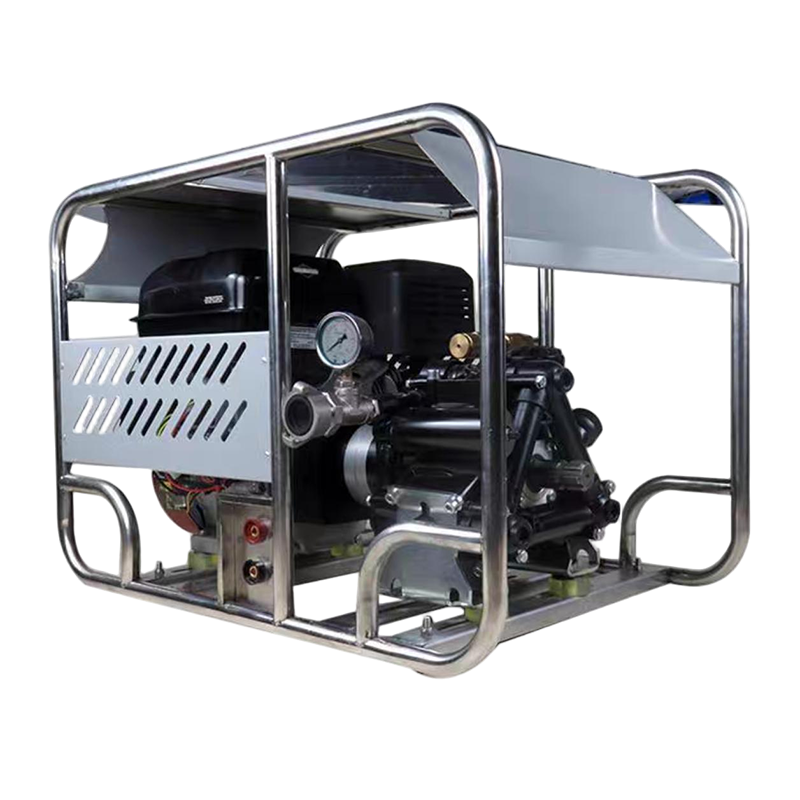

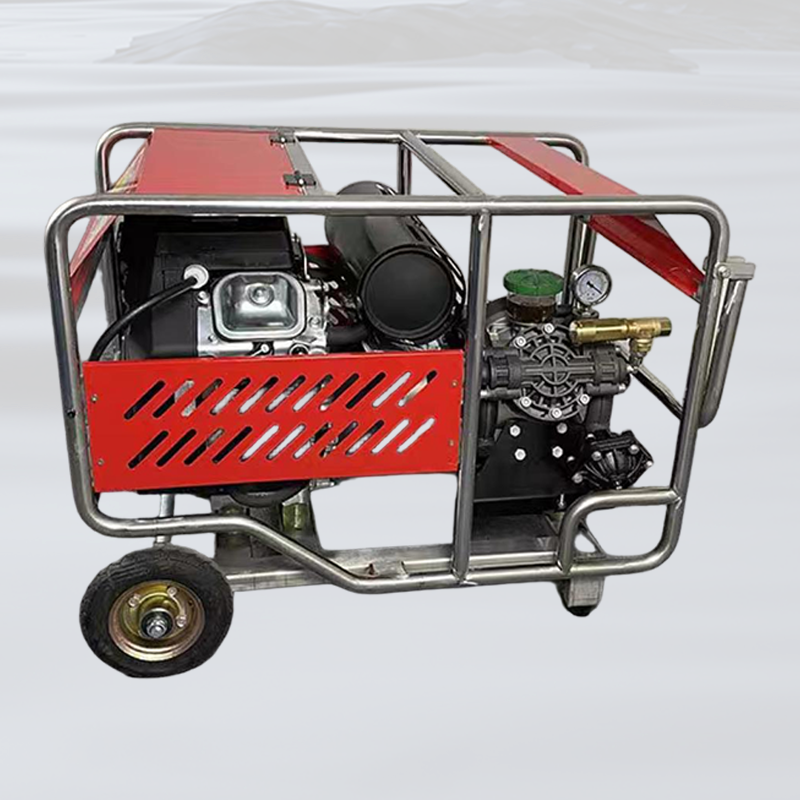

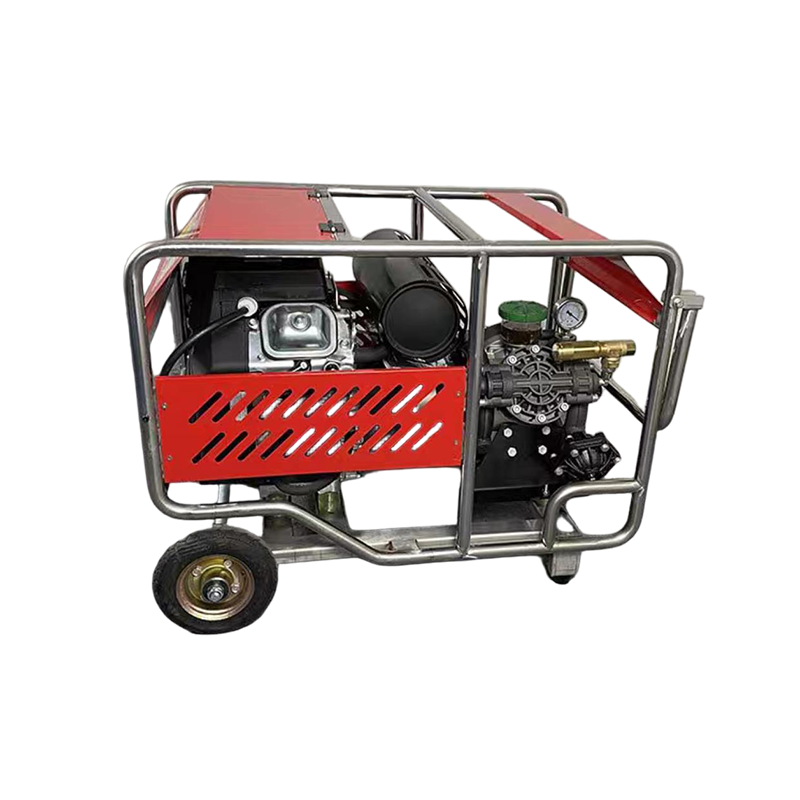

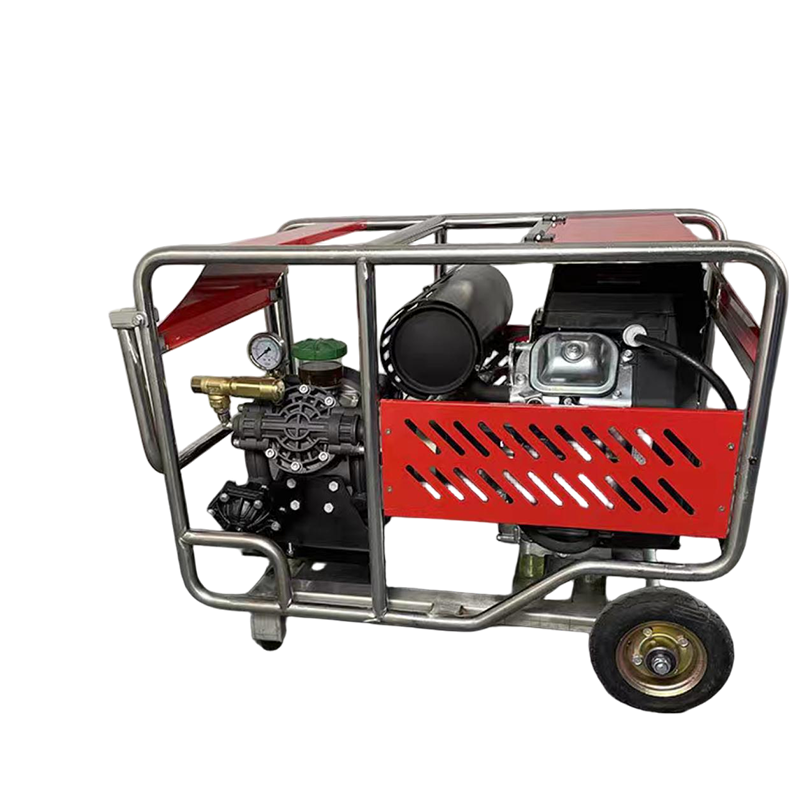

80m High-Pressure Triple-Cylinder Diaphragm Pump – Gasoline-Powered for Irrigation & Firefighting
No reviews yet
Attributes
Agricultural Irrigation, Landscape Wateringapplication
≥8 MPa (Working Pressure)pressure
ODM, OEMcustomized support
Negotiations between the two partieswarranty
Chinaplace of origin
Gasoline-Poweredpower source
structure:Triple-Cylinder Hydraulic Diaphragm Pump
model number:YPB10.8-6
Applicable temperature:-10°C to 60°C
Chemical Compatibility:Compatible with Water, Fertilizer Solutions, Foam
Connection Type:Quick-Connect Stainless Steel (40 mm Inlet / 40 mm
Control Method:Electric Start + Manual Pull Start
Discharge Pipe Size:40 mm (1.6")
Filter material:Stainless Steel Mesh
Flow Meter Specification:Integrated Pressure Gauge
Flow Rate:150 L/min (Max) / 125 L/min (@6 MPa)
Hardness:High-Impact Resistant
horsepower:≥25HP
Impeller Material:Wear-Resistant Ceramic Alloy
Import Size:40 mm (1.6")
Inlet Height:≥7 m (Suction Head)
Max Flow Rate:150 L/min
Max Pressure:≥8 MPa
Membrane material:TPU Diaphragm
motor:Twin-Cylinder Forced Air-Cooled 4-Stroke OHV Gasol
outlet size:40 mm (1.6")
Outlet Type:High-Pressure Nozzle
Outlet Water Oil Content:0% (Oil-Free Pumping)
Sealing Material:FKM
suction head:≥7 m
Surface Treatment:Red Anodized Aluminum + Brushed Stainless Steel
Material:High-Strength Aluminum Alloy + Stainless Steel + T
Key attributes
application
Agricultural Irrigation, Landscape Watering
pressure
≥8 MPa (Working Pressure)
customized support
ODM, OEM
warranty
Negotiations between the two parties
place of origin
China
power source
Gasoline-Powered
structure
Triple-Cylinder Hydraulic Diaphragm Pump
model number
YPB10.8-6
Applicable temperature
-10°C to 60°C
Chemical Compatibility
Compatible with Water, Fertilizer Solutions, Foam
Connection Type
Quick-Connect Stainless Steel (40 mm Inlet / 40 mm
Control Method
Electric Start + Manual Pull Start
Discharge Pipe Size
40 mm (1.6")
Filter material
Stainless Steel Mesh
Flow Meter Specification
Integrated Pressure Gauge
Flow Rate
150 L/min (Max) / 125 L/min (@6 MPa)
Hardness
High-Impact Resistant
horsepower
≥25HP
Impeller Material
Wear-Resistant Ceramic Alloy
Import Size
40 mm (1.6")
Inlet Height
≥7 m (Suction Head)
Max Flow Rate
150 L/min
Max Pressure
≥8 MPa
Membrane material
TPU Diaphragm
motor
Twin-Cylinder Forced Air-Cooled 4-Stroke OHV Gasol
outlet size
40 mm (1.6")
Outlet Type
High-Pressure Nozzle
Outlet Water Oil Content
0% (Oil-Free Pumping)
Sealing Material
FKM
suction head
≥7 m
Surface Treatment
Red Anodized Aluminum + Brushed Stainless Steel
Material
High-Strength Aluminum Alloy + Stainless Steel + T
Packaging and delivery
Selling Units
Single item
Single package size
85X55X70 cm
Single gross weight
110.000 kg
Lead time
Product descriptions from the supplier
1 - 9 pieces
£74535
>= 10 pieces
£67074
Sample price: £745.35
Variations
Select nowSupplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
