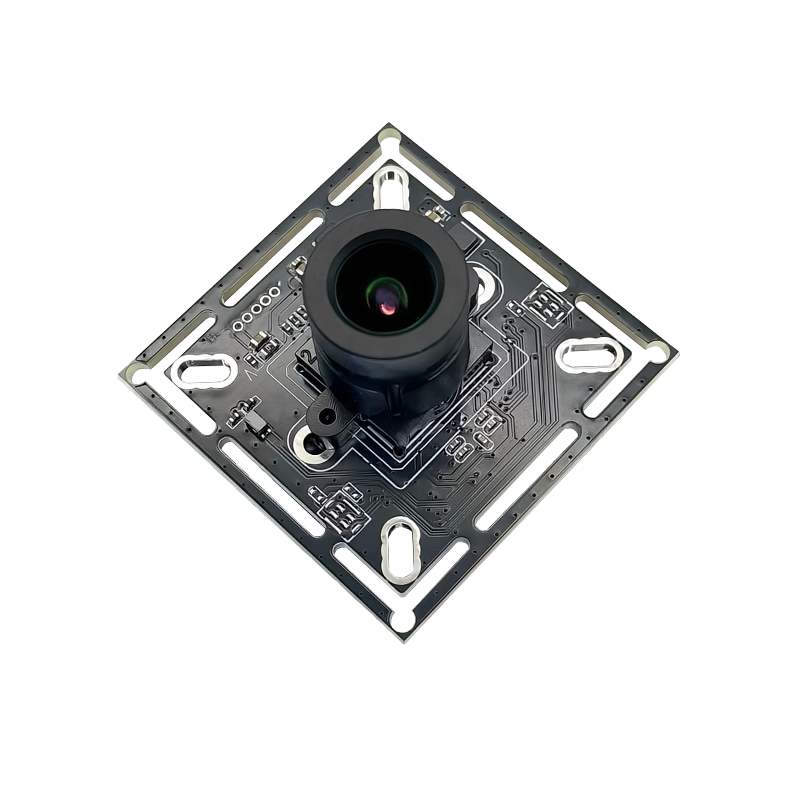

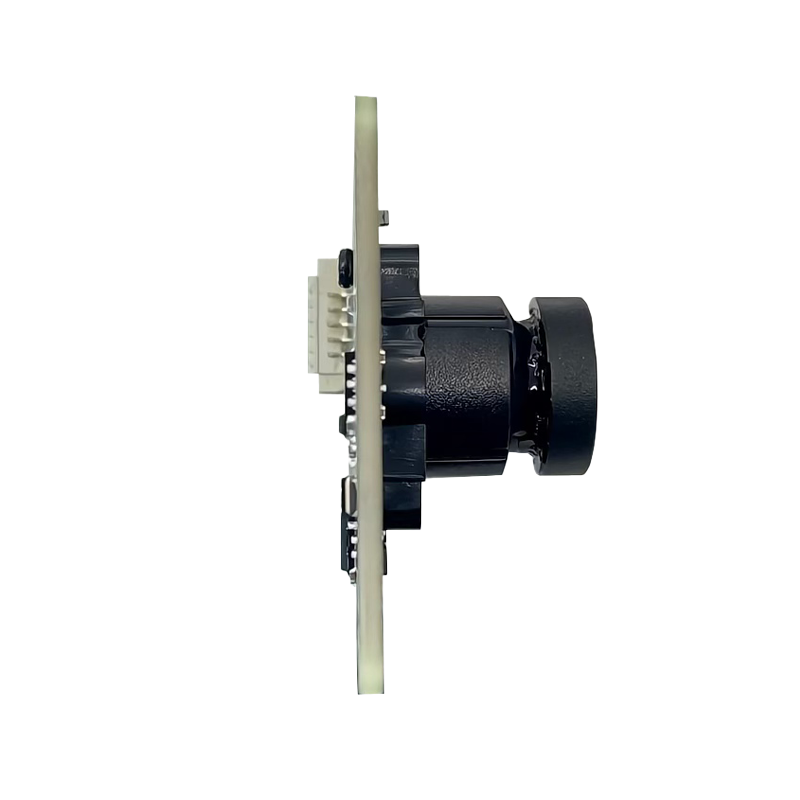

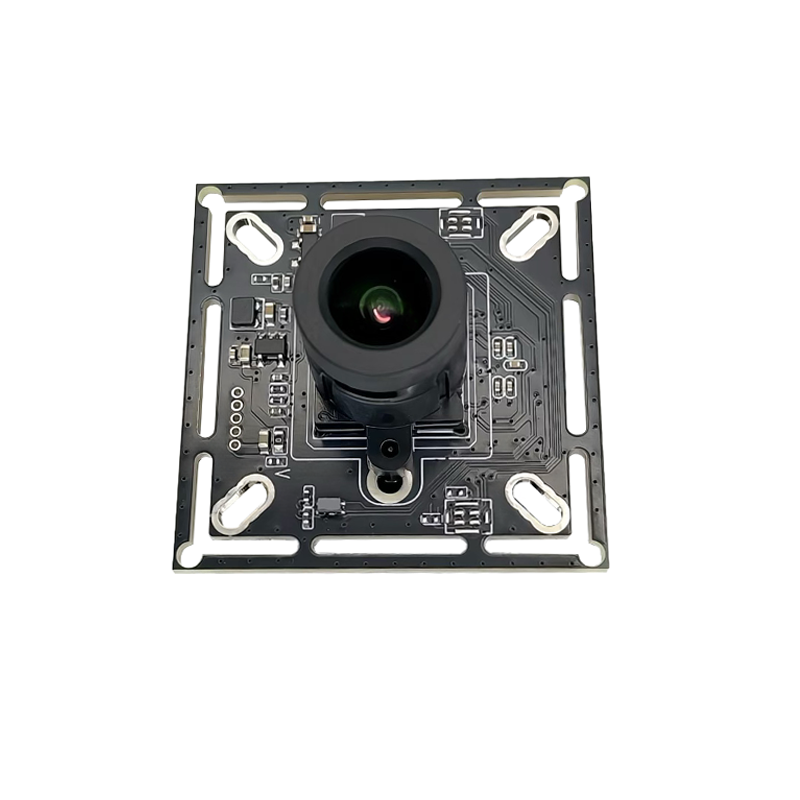

8MP 4K Square Board Camera Module, 30fps High Definition Industrial Grade Camera Module, Customizable Supported
No reviews yet
Attributes
3840 H x 2160 VResolution
USBConnectivity
USBStorage
USBnetwork
MJPEGVideo Compression Format
24H217/130°/110°Model Number
Brand Name:LLGCAM
Place of Origin:Guangdong, China
Mounting Type:USB
Description:8MP USB2.0 Camera Module
Application:INDOOR
Series:USB

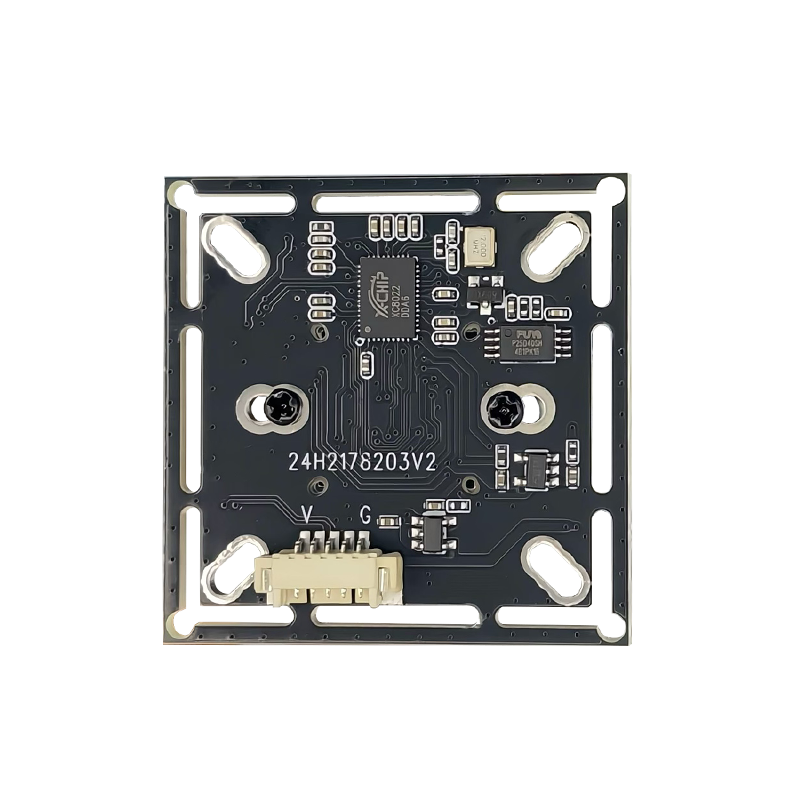

Features:5 PIN 1.25 MM Socket

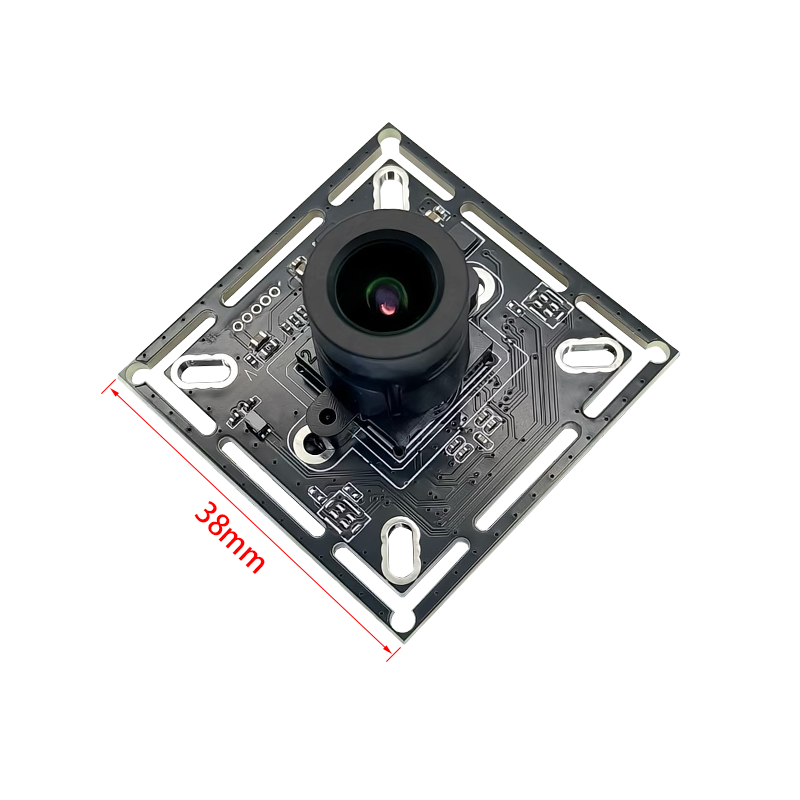

Size / Dimension:38 * 38 * 17 mm
Sensor:NO
Technology:High Speed USB2.0
Style:8MP USB2.0 Camera Module
Feature:High Definition Industrial Grade
Sensor:1/2.65-Inch CMOS Sensor
Dynamic Range:NC
FOV:DFOV:130°/110°
Lens:FEL:1.9mm F/NO:2.3
Scanning Speed:0.1S
Focus Type:FF/ MF
Shutter Type:Electronic Rolling shutter
Controllable Parameters:Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Supported OS:Windows, Android, Linux, Wince, Mac OS
Cable Length:TBD
MIC:DMIC
Operating Voltage:USB DC +5V Supply
Operating Current:<150mA
Operating Temperature:-20℃ ~ 60℃
Storage Temperature:-20℃ ~ 85℃
Key attributes
Resolution
3840 H x 2160 V
Connectivity
USB
Storage
USB
network
USB
Video Compression Format
MJPEG
Model Number
24H217/130°/110°
Brand Name
LLGCAM
Place of Origin
Guangdong, China
Mounting Type
USB
Description
8MP USB2.0 Camera Module
Application
INDOOR
Series
USB
Features
5 PIN 1.25 MM Socket
Size / Dimension
38 * 38 * 17 mm(1.50*1.50*0.67in)
Sensor
NO
Technology
High Speed USB2.0
Style
8MP USB2.0 Camera Module
Feature
High Definition Industrial Grade
Sensor
1/2.65-Inch CMOS Sensor
Dynamic Range
NC
FOV
DFOV:130°/110°
Lens
FEL:1.9mm F/NO:2.3
Scanning Speed
0.1S
Focus Type
FF/ MF
Shutter Type
Electronic Rolling shutter
Controllable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Supported OS
Windows, Android, Linux, Wince, Mac OS
Cable Length
TBD
MIC
DMIC
Operating Voltage
USB DC +5V Supply
Operating Current
<150mA
Operating Temperature
-20℃ ~ 60℃
Storage Temperature
-20℃ ~ 85℃
Packaging and delivery
Selling Units
Single item
Single package size
16.5X11.5X6.5 cm
Single gross weight
0.500 kg
Lead time
Customization options
OEMODM(+ from /Min. order: 500 pieces)
View details
Product descriptions from the supplier
Minimum order quantity: 1 piece
£1234-1757
*Taxes and import charges will be calculated at checkout
Variations
Select nowSpecification
2K 2.8mm Low Distortion 110° Wide Angle
2K 2.8mm Low Distortion 130° Wide Angle
4K 2.8mm Low Distortion 110° Wide Angle
4K 2.8mm Low Distortion 130° Wide Angle
