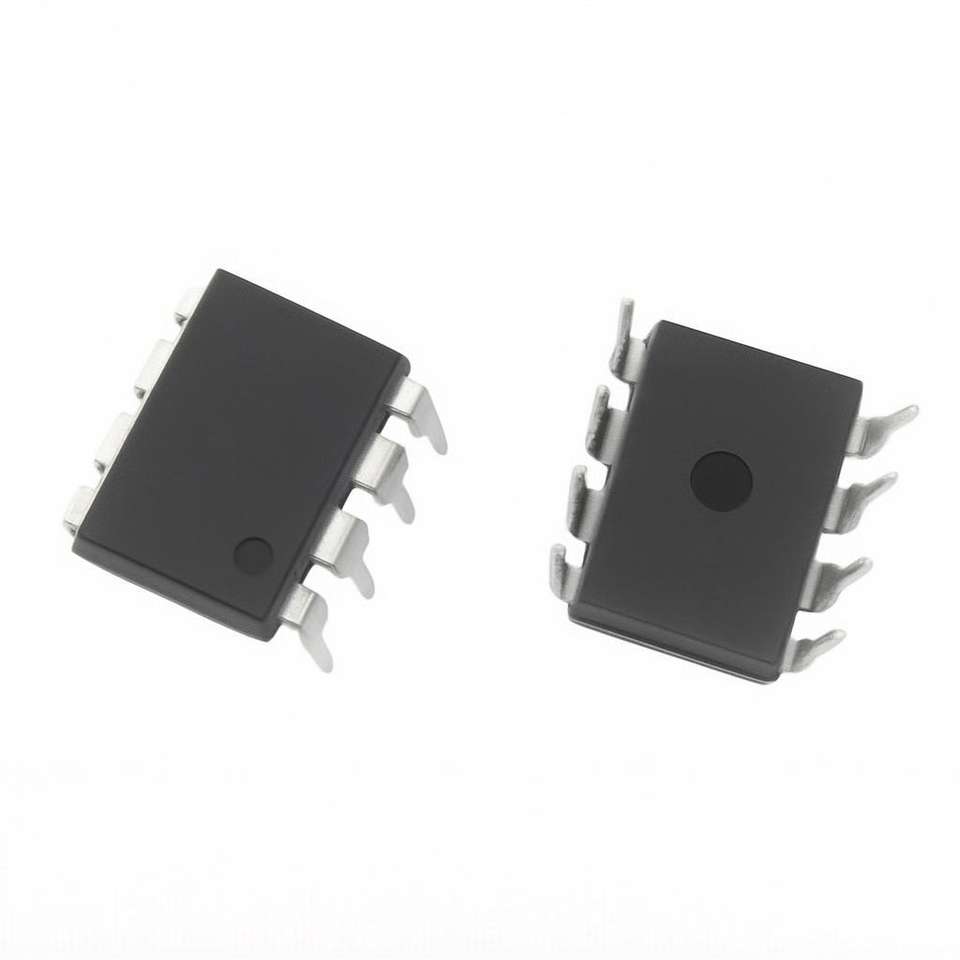

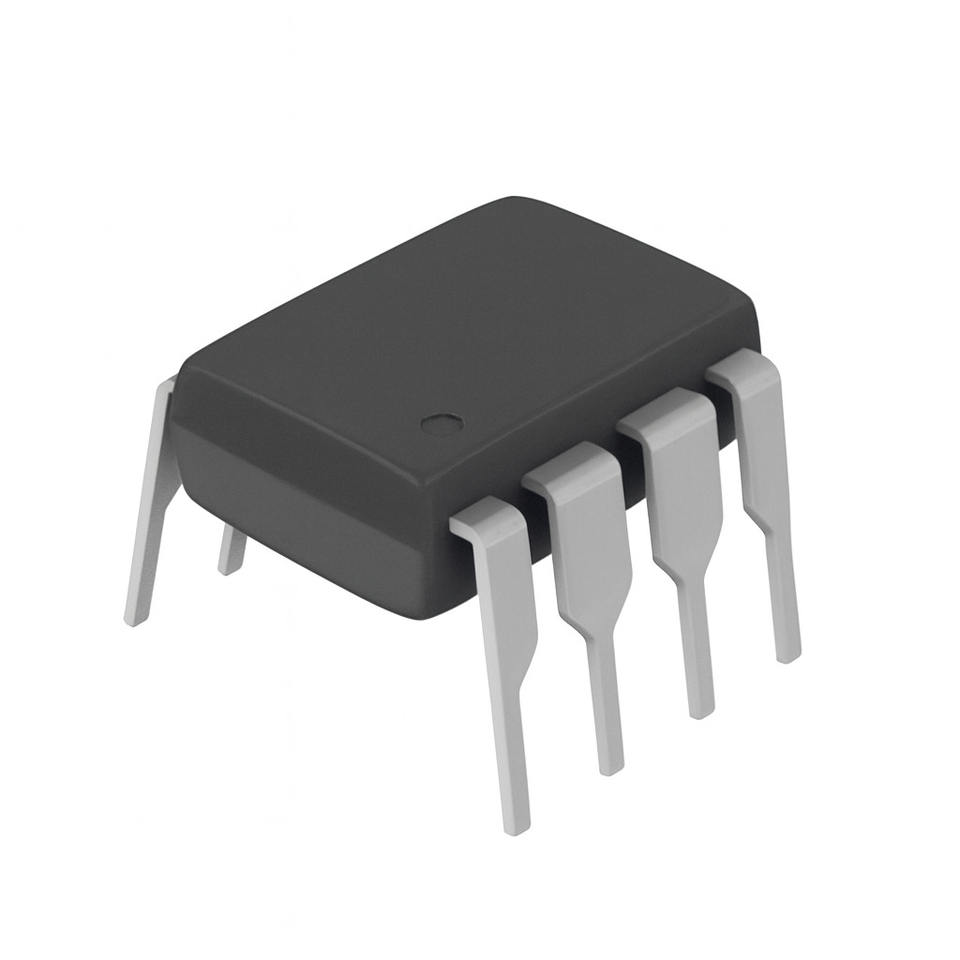

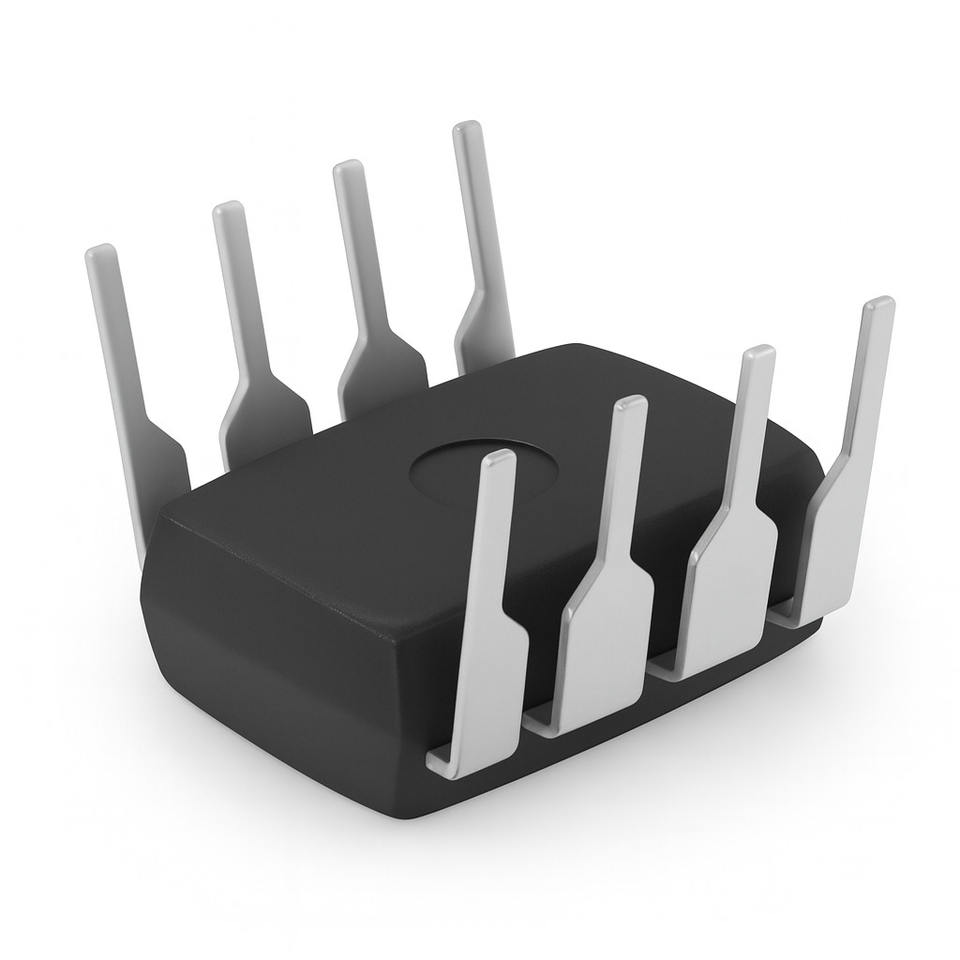

A3120V DIP-8 Optocoupler IC High Voltage Isolation Chip Industrial Signal Transfer Component PCB Mounting Electronic Part
No reviews yet1 sold
Attributes
BrandedBrand Name
A3120VModel Number
Through Hole DIP 8Mounting Type
2348Manufacturing Date Code
California, United StatesPlace of Origin
IGBT Gate DriveApplication
Package / Case:0.97 0.64 0.33
Packaging Type:Through Hole
Product name:IC
MOQ:1 Piece
Warranty:1 Years
Condition:100% Original
Certificate:Coo
Quality:High-quality
Product Type:Optocoupler
Package Type:DIP 8
Output Type:Transistor driver
Input Type:LED
Input Forward Current:10 20 mA
Output Supply Voltage Range:15 30 V
Propagation Delay Time:500 ns
Common Mode Rejection:15 kV
Operating Temperature Range:40 C to 100 C
Storage Temperature Range:55 C to 125 C
Turn On Time:500 ns
Turn Off Time:500 ns
Applications:IGBT
Pin Count:8 pins
Isolation Type:Optical isolation
Output Drive Type:Totem pole driver for direct gate control
Supply Current:3 mA typical
Safety Feature:Built in under voltage lockout protection
Key attributes
Brand Name
Branded
Model Number
A3120V
Mounting Type
Through Hole DIP 8
Manufacturing Date Code
2348
Place of Origin
California, United States
Application
IGBT Gate Drive
Package / Case
0.97 0.64 0.33
Packaging Type
Through Hole
Product name
IC
MOQ
1 Piece
Warranty
1 Years
Condition
100% Original
Certificate
Coo
Quality
High-quality
Product Type
Optocoupler
Package Type
DIP 8
Output Type
Transistor driver
Input Type
LED
Input Forward Current
10 20 mA
Output Supply Voltage Range
15 30 V
Propagation Delay Time
500 ns
Common Mode Rejection
15 kV
Operating Temperature Range
40 C to 100 C
Storage Temperature Range
55 C to 125 C
Turn On Time
500 ns
Turn Off Time
500 ns
Applications
IGBT
Pin Count
8 pins
Isolation Type
Optical isolation
Output Drive Type
Totem pole driver for direct gate control
Supply Current
3 mA typical
Safety Feature
Built in under voltage lockout protection
Packaging and delivery
Selling Units
Single item
Single package size
0.5X0.5X0.3 cm
Single gross weight
0.300 kg
Lead time
Product descriptions from the supplier
FREE shipping capped at £20
180-day lowest prices
1 - 1 pieces
£112
2 - 2 pieces
£111
3 - 3 pieces
£109
>= 4 pieces
£108
Sample price: £1.12
