Attributes
415V, 3 Ph., 50/60 Hzvoltage
"SIEMENS 828D; FANUC 0i TF"cnc control system
Heavy Dutymachining capacity
2number of axes
Twinno. of spindles
8 (BTP 80)tool post stations
type:CNC Turning Center
max. length of workpiece (mm):350
max. weight of workpiece(kg):2650
spindle motor power(kw):Fanuc: 5.5 (7.5); Siemens: 5.5 (7.5)
travel (x axis)(mm):130 mm
travel (z axis)(mm):400 mm
positioning accuracy (mm):0.01
repeatability (x/y/z) (mm):±0.005
place of origin:Rajasthan, India
warranty:1 Year
width of bed (mm):528 mm
dimension(l*w*h):2200 x 1860 x 1900 mm
brand name:Tesca
model number:54010
weight:2650
key selling points:High-Accuracy
machinery test report:Not Available
video outgoing-inspection:Not Available

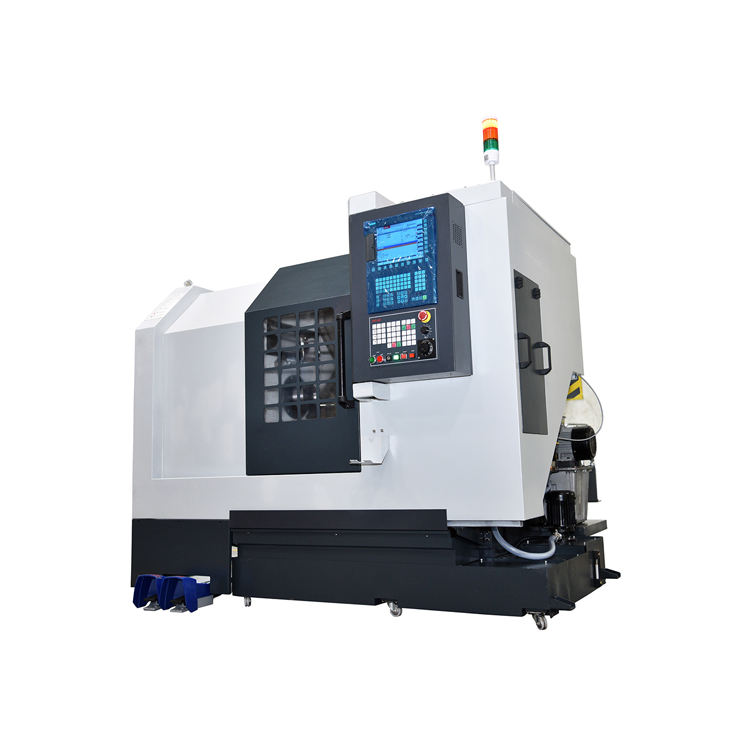

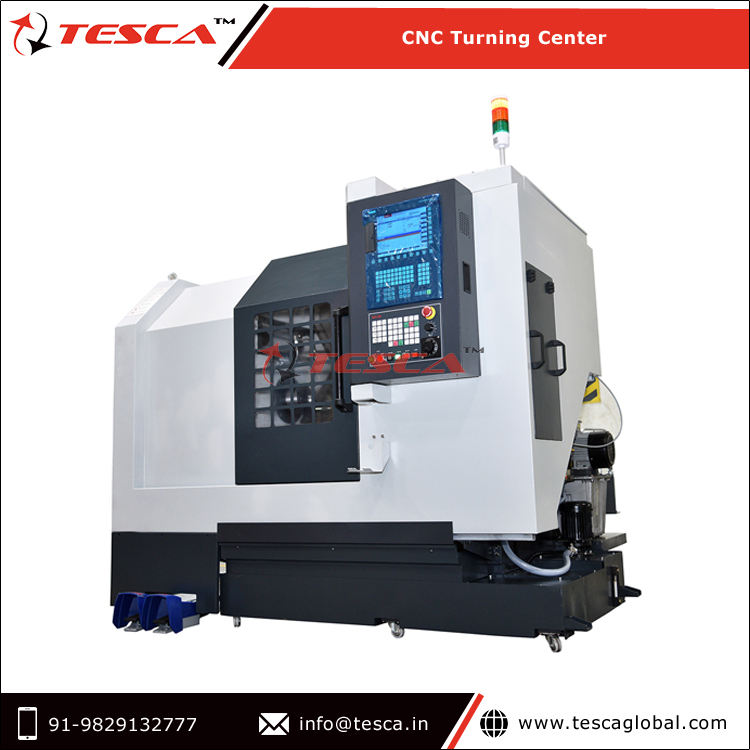

Product Name:CNC Turning Center
Tool cross section:25 x 25
Indexing Time Adjacent Tool &180 Deg:0.45 / 1.6
Boring bar size(capacity):40 mm
Tailstock base travel:190 mm
Capacity:100/ 25 LPM
Coolant motor:0.37 kw
Lubrication:Automatic
Power:16 KVA
Services:Turnkey Projects, OEM
