Attributes
Horizontaltype
1055max. length of workpiece (mm)
350max. weight of workpiece(kg)
Singleno. of spindles
320travel (x axis)(mm)
1550travel (z axis)(mm)
positioning accuracy (mm):±0.005
repeatability (x/y/z) (mm):±0.007
place of origin:Jiangsu, China
warranty:1 Year
machining capacity:Medium Duty
width of bed (mm):240
number of axes:2
dimension(l*w*h):3422*1900*2010
brand name:Minnuo
model number:MT-40H
voltage:380 V, 220 V
cnc control system:FANUC
tool post stations:12
weight:6300
key selling points:Competitive Price
machinery test report:Provided
video outgoing-inspection:Provided
range of spindle speed:3500 - 5000 r.p.m
cutting torque:10

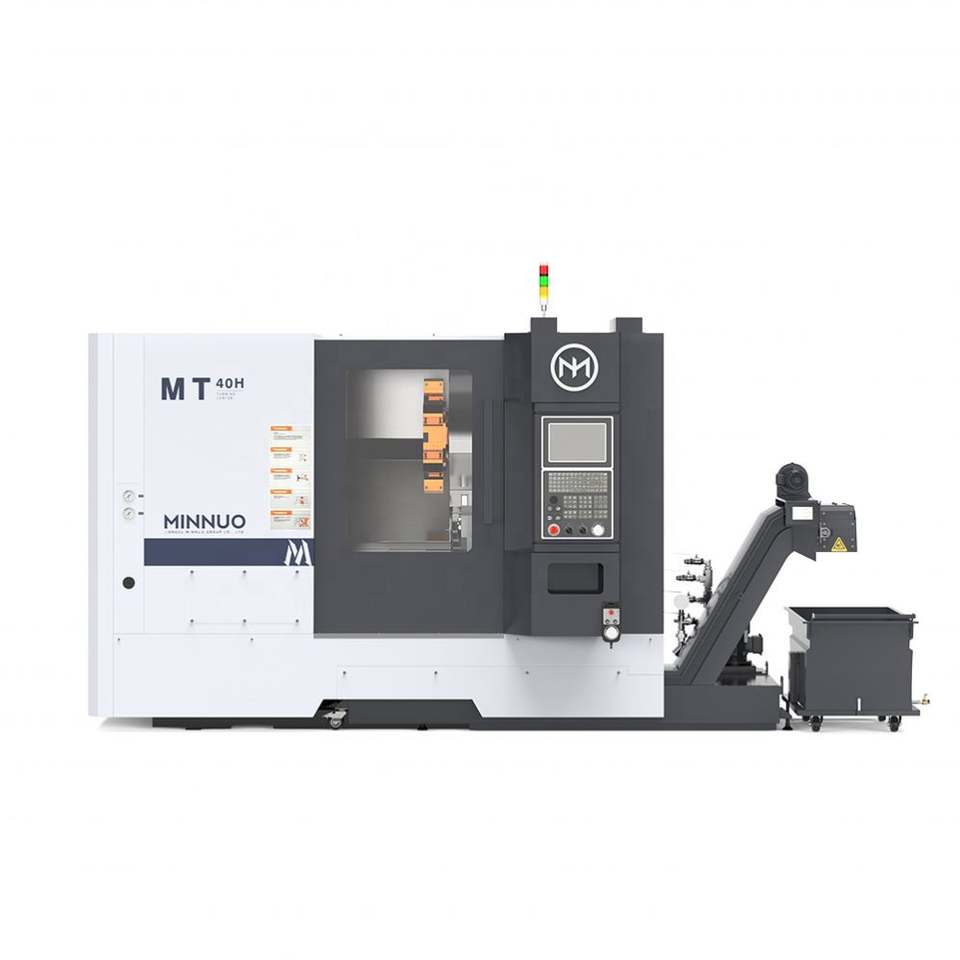

Product name:Alloy wheel cnc lathe slant bed turning lathe 4000 rpm
CNC Controller:Siemens 808DA
CNC or Not:CNC Lathe Machine
Positioning Accuracy (mm):±0.005
Repeatability (X/Y/Z) (mm):±0.003
Max.Swing diameter over bed:580mm
Max turning diameter(Shaft/Disk):350/350mm
Max turning length:555/1055mm
Spindle speed range:45-4000rpm
Guide way type:Liner guideway
Selling Units:Single item
