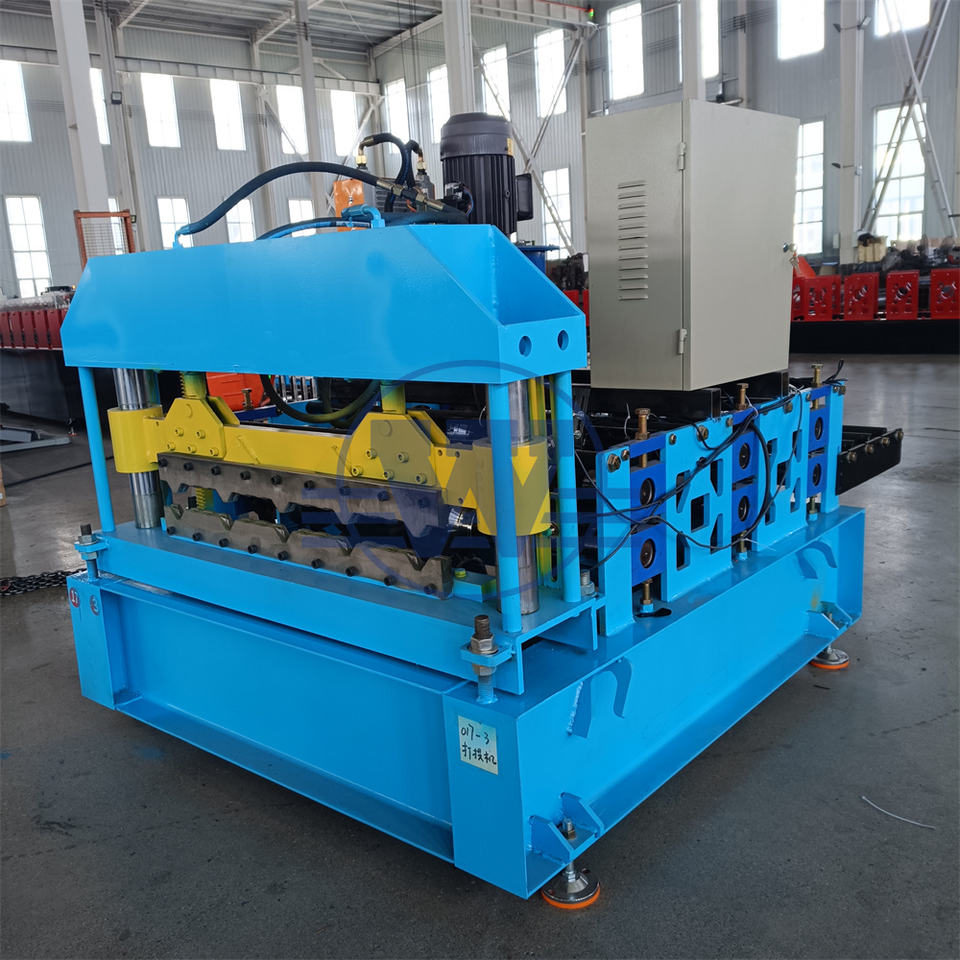

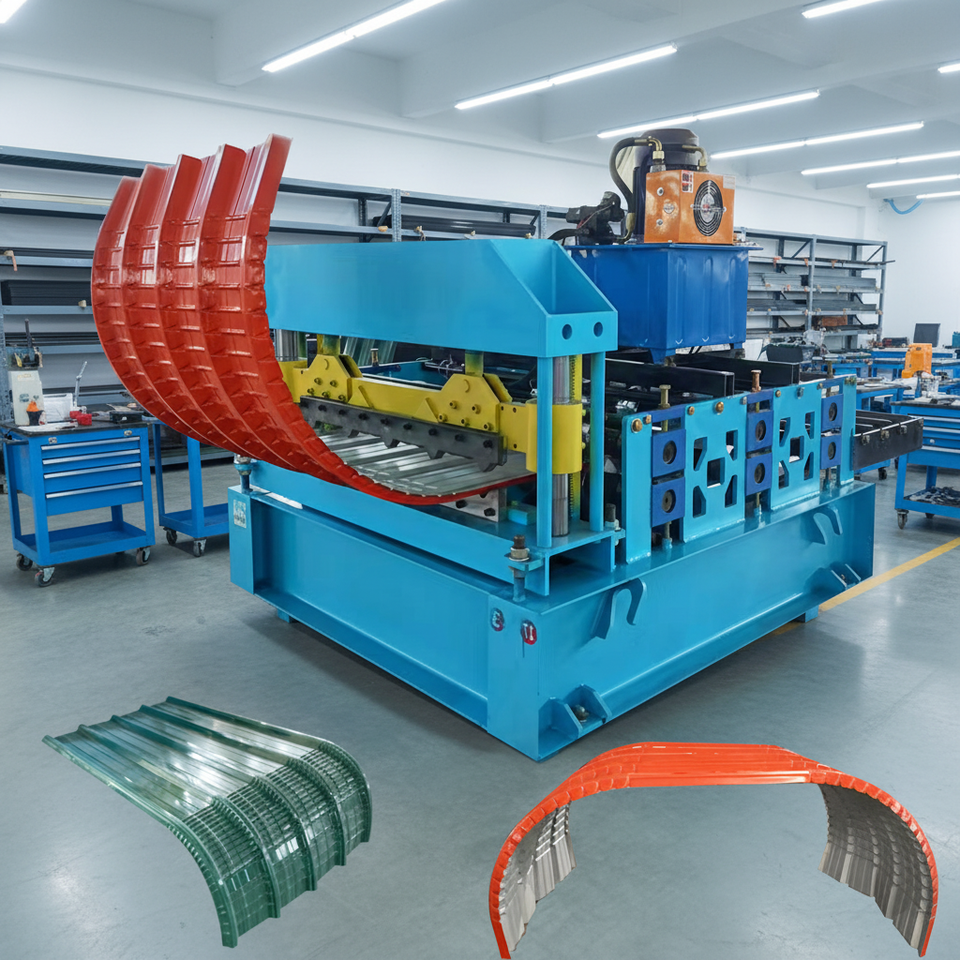

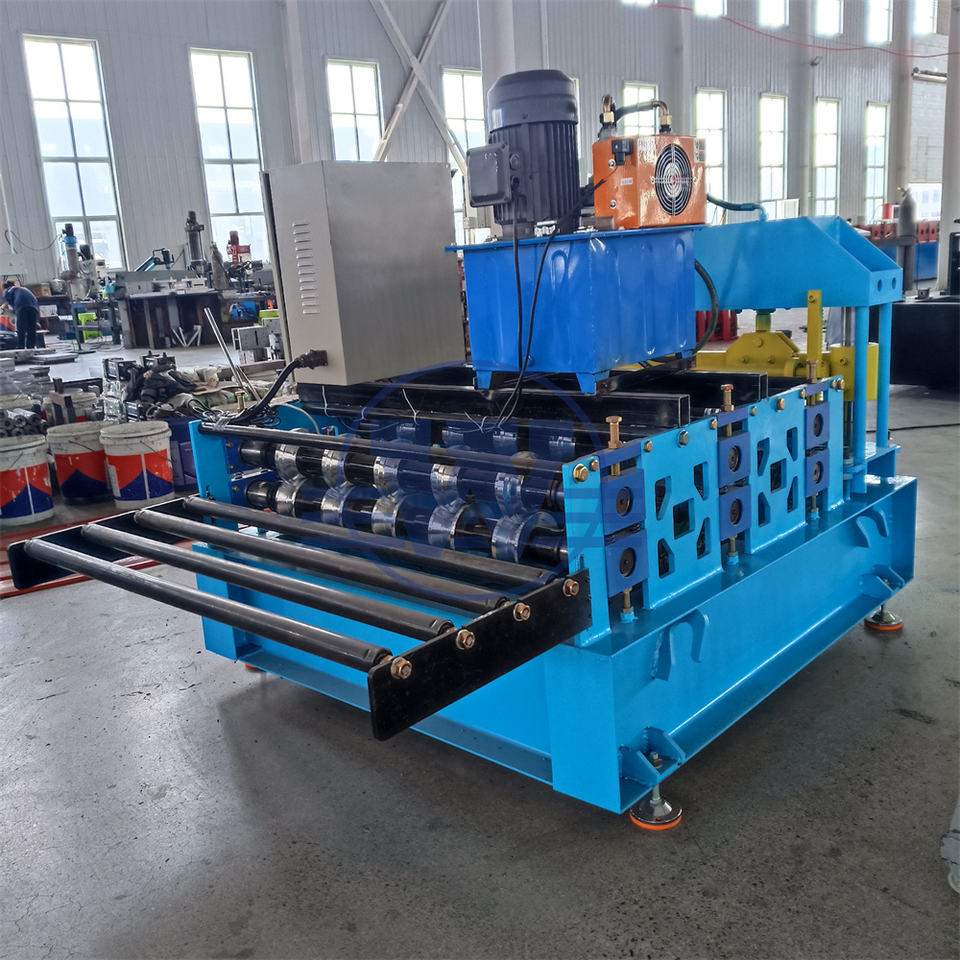

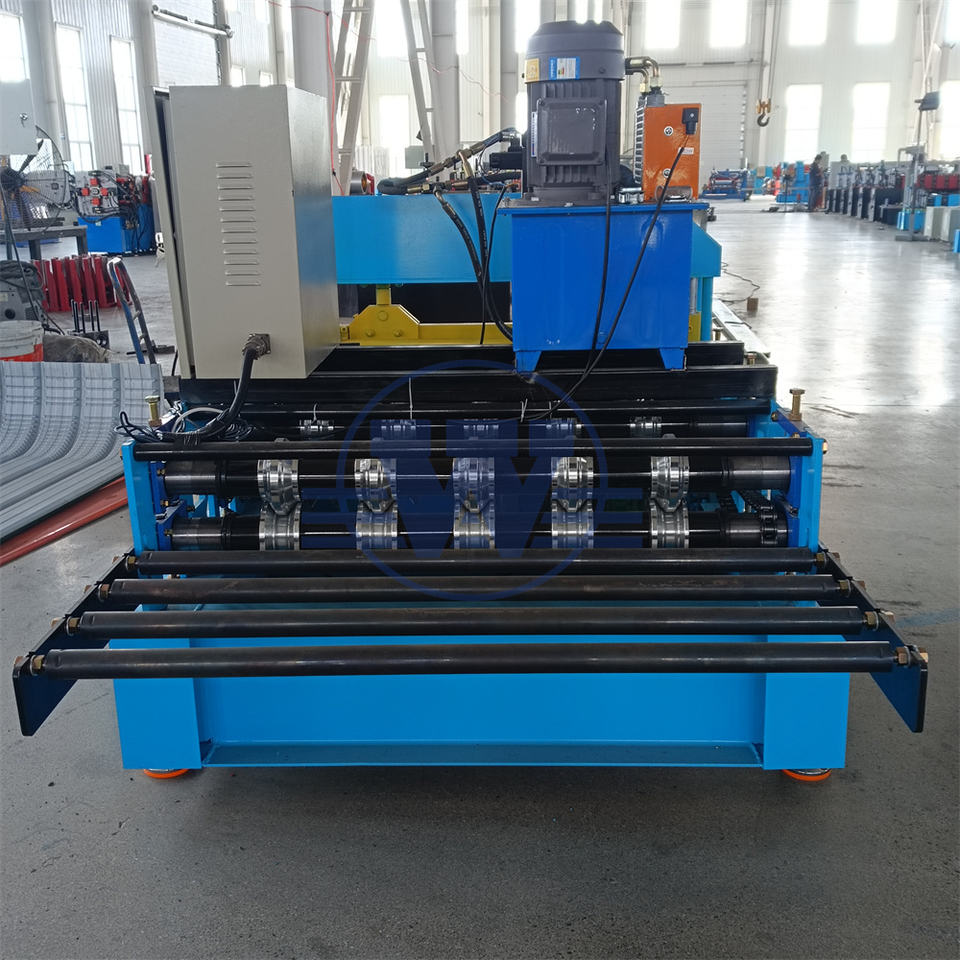

Auto Crimping Steel Tile Forming Machine for Curved Roof Panels and Wall Use with Bearing & Motor
No reviews yet
Attributes
Tile Forming MachineType
SteelTile Type
700-1450mmFeeding width
0.3-0.8mmRolling thinckness
380V or as requiredVoltage
Motor, BearingCore Components
Use:Wall
Warranty:1 Year
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Key Selling Points:Easy To Operate
Place of Origin:Henan, China
Weight:2000
Brand Name:Wadley
Dimension(L*W*H):4.5*1.65*1.5m
Product name:metal curved roof panel bending roll forming machine
Usage:Steel Construction
Raw material:Galvanized Sheet
Shaft material:High Grade No.45 Forged
Cutting blade material:Cr 12 High Grade Steel
Material of rollers:45# Cr Plated
Main frame:350H Steel
Cutting Thickness (mm):0.3-0.8mm
Control system:PLC(imported Brand)
Main motor power:4kw
Key attributes
Type
Tile Forming Machine
Tile Type
Steel
Feeding width
700-1450mm
Rolling thinckness
0.3-0.8mm
Voltage
380V or as required
Core Components
Motor, Bearing
Use
Wall
Warranty
1 Year
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Key Selling Points
Easy To Operate
Brand Name
Wadley
Dimension(L*W*H)
4.5*1.65*1.5m
Place of Origin
Henan, China
Weight
2000
Product name
metal curved roof panel bending roll forming machine
Usage
Steel Construction
Raw material
Galvanized Sheet
Shaft material
High Grade No.45 Forged
Cutting blade material
Cr 12 High Grade Steel
Material of rollers
45# Cr Plated
Main frame
350H Steel
Cutting Thickness (mm)
0.3-0.8mm
Control system
PLC(imported Brand)
Main motor power
4kw
Packaging and delivery
Selling Units
Single item
Lead time
Customization options
Name plate(+ from /Min. order: 5 sets)
View details
Product descriptions from the supplier
Customizable
1 - 2 sets
£5,62293
>= 3 sets
£5,47298
Variations
Select nowProduction Capacity: 15 m/min
15 m/min
Crimping Bending Machine
Model Number: Crimping Bending Machine
Crimping Bending Machine
Power(W)
4000
Customization options
Name plate (Min. order: 5 sets)
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
