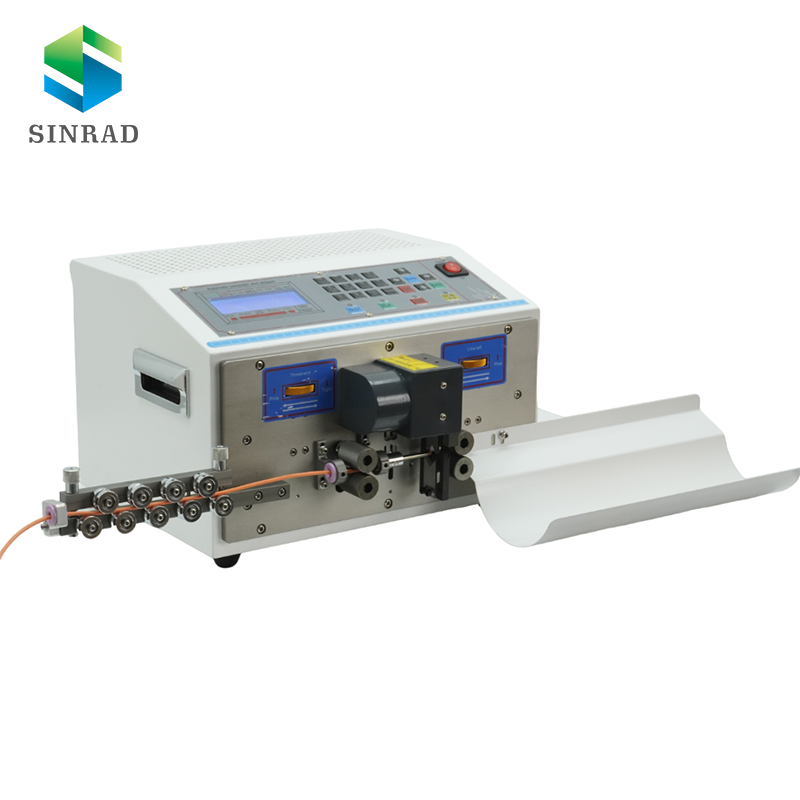

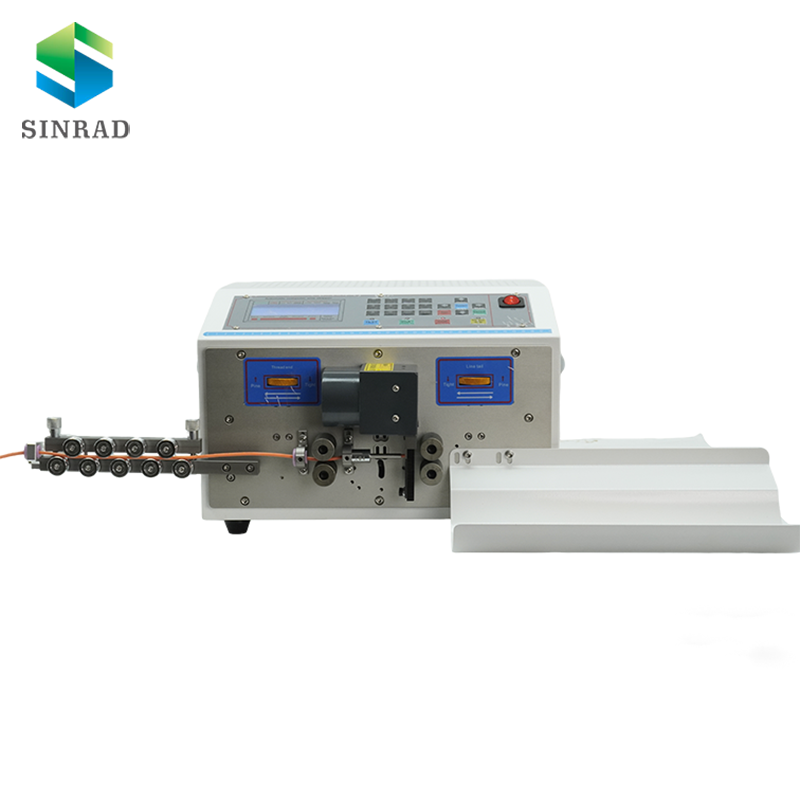

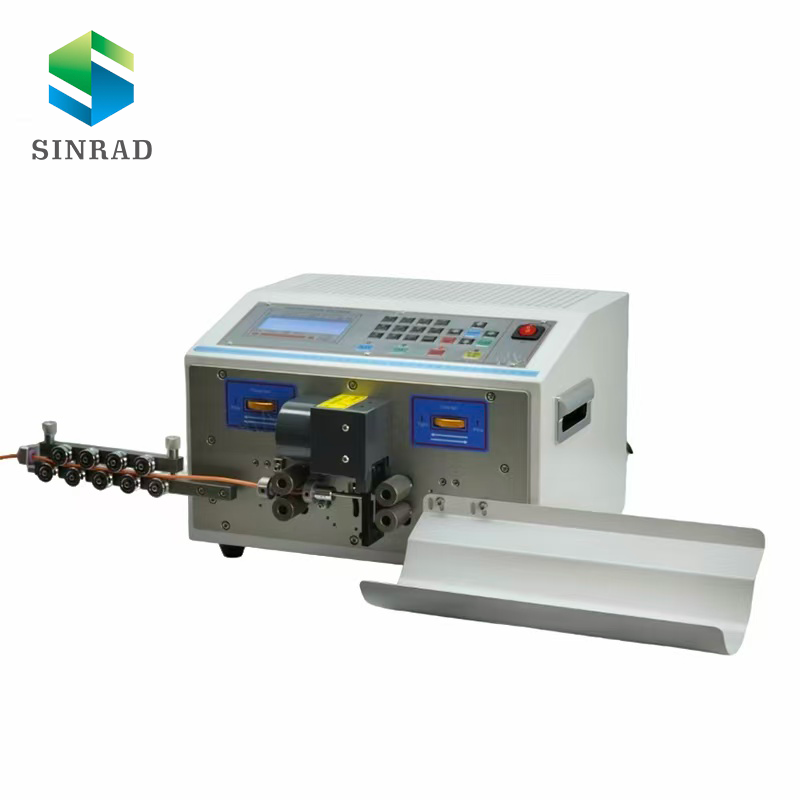

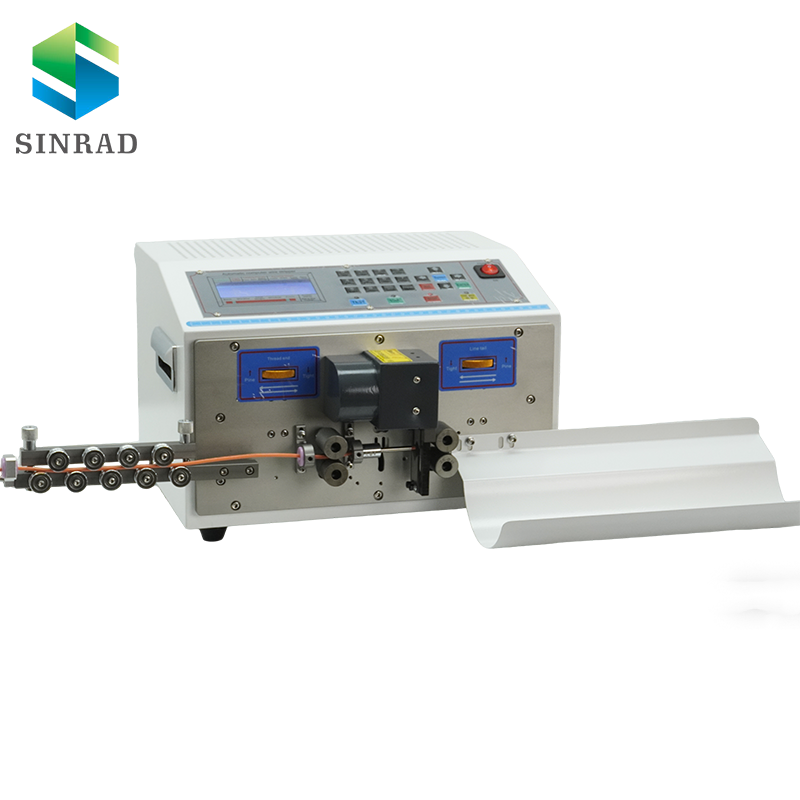

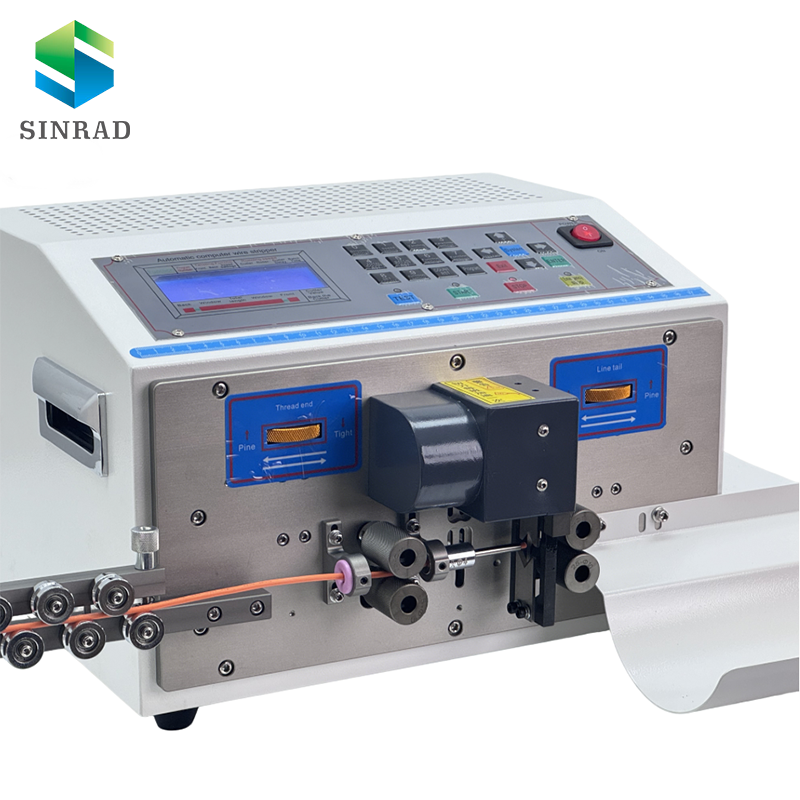

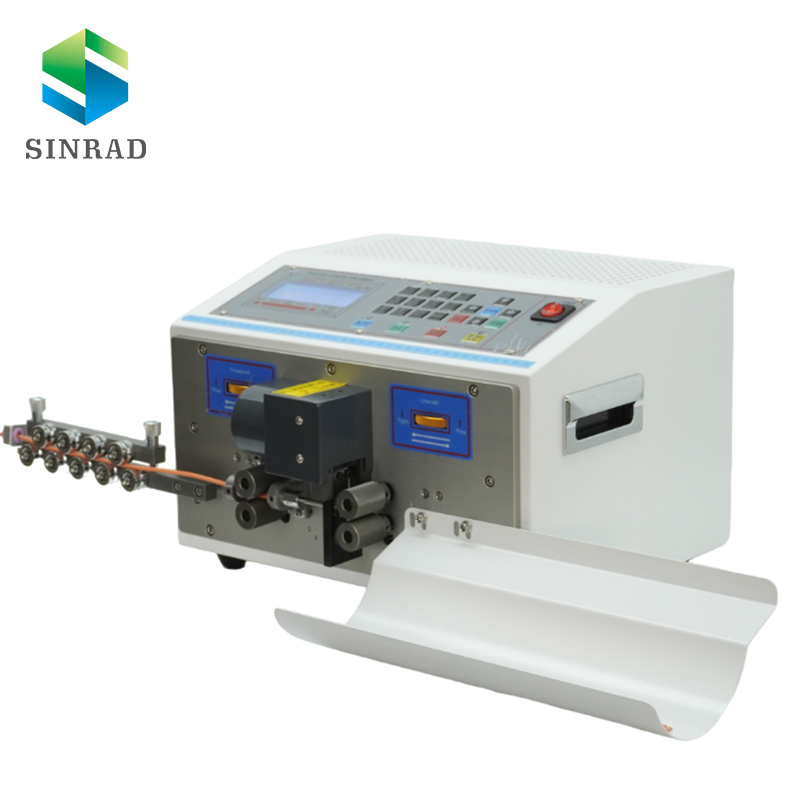

Automatic Cable Manufacturing Equipment Double Head Wire Cutting Peeling Machine for 0.1-4sqmm Automotive Wire Harness
Store rating:5.0
(7 reviews)
Attributes
Cutting, Strippingusage
Automatic, Semi-AutomaticOperating Mode
SR-500Mmodel number
20Weight (KG)
Guangdong, Chinaplace of origin
Sinradbrand name
Dimension(L*W*H):420mm*297mm*345mm
Display method:Key operation template
Power:AC220V 50Hz 200W
Cutting length:0.1mm-99999.9mm
Stripping length:Stripping head 0.1-20mm, stripping tail 0.1-20mm
Cutting wire core:0.1-4.0mm2
Cutting tolerance:Within 0.002*L (mm) L=cutting length
Peel and cut in the middle:13 places
Catheter diameter:1.5mm--4mm
Tool material:Tungsten steel/imported high speed steel
Drive mode:Four wheels
Stripping per hour:2000-4000 items
Pulse equivalent:The error within 1 meter is 0.1mm
Key attributes
usage
Cutting, Stripping
Operating Mode
Automatic, Semi-Automatic
model number
SR-500M
Weight (KG)
20
place of origin
Guangdong, China
brand name
Sinrad
Dimension(L*W*H)
420mm*297mm*345mm
Display method
Key operation template
Power
AC220V 50Hz 200W
Cutting length
0.1mm-99999.9mm
Stripping length
Stripping head 0.1-20mm, stripping tail 0.1-20mm
Cutting wire core
0.1-4.0mm2
Cutting tolerance
Within 0.002*L (mm) L=cutting length
Peel and cut in the middle
13 places
Catheter diameter
1.5mm--4mm
Tool material
Tungsten steel/imported high speed steel
Drive mode
Four wheels
Stripping per hour
2000-4000 items
Pulse equivalent
The error within 1 meter is 0.1mm
Packaging and delivery
Selling Units
Single item
Single package size
42X30X35 cm
Single gross weight
20.000 kg
Lead time
Customization options
Customized logo (Min. order: 10 sets)
Customized packaging (Min. order: 10 sets)
Graphic customization (Min. order: 10 sets)
View details
Product descriptions from the supplier
FREE shipping capped at $20
1 - 19 sets
$418
>= 20 sets
$401
*Taxes and import charges will be calculated at checkout
