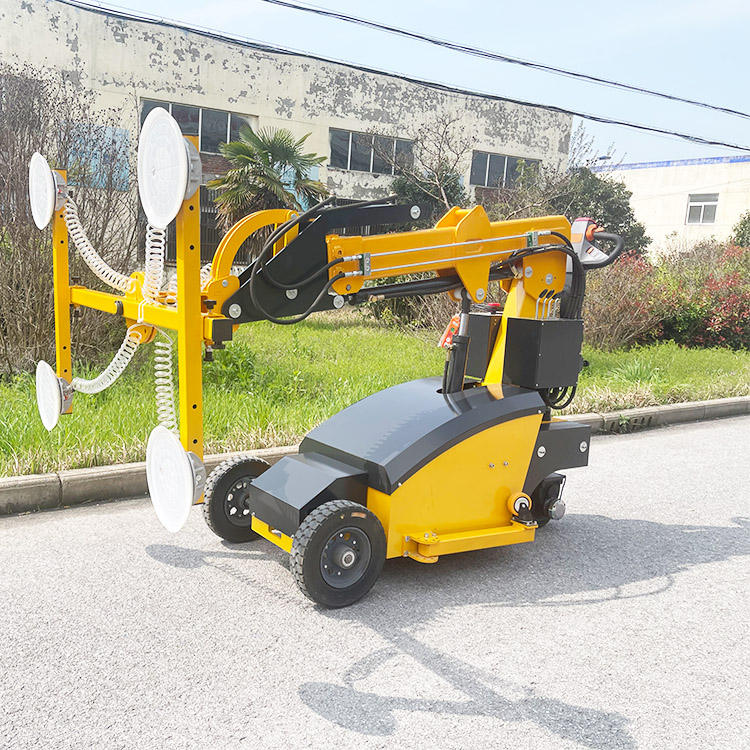

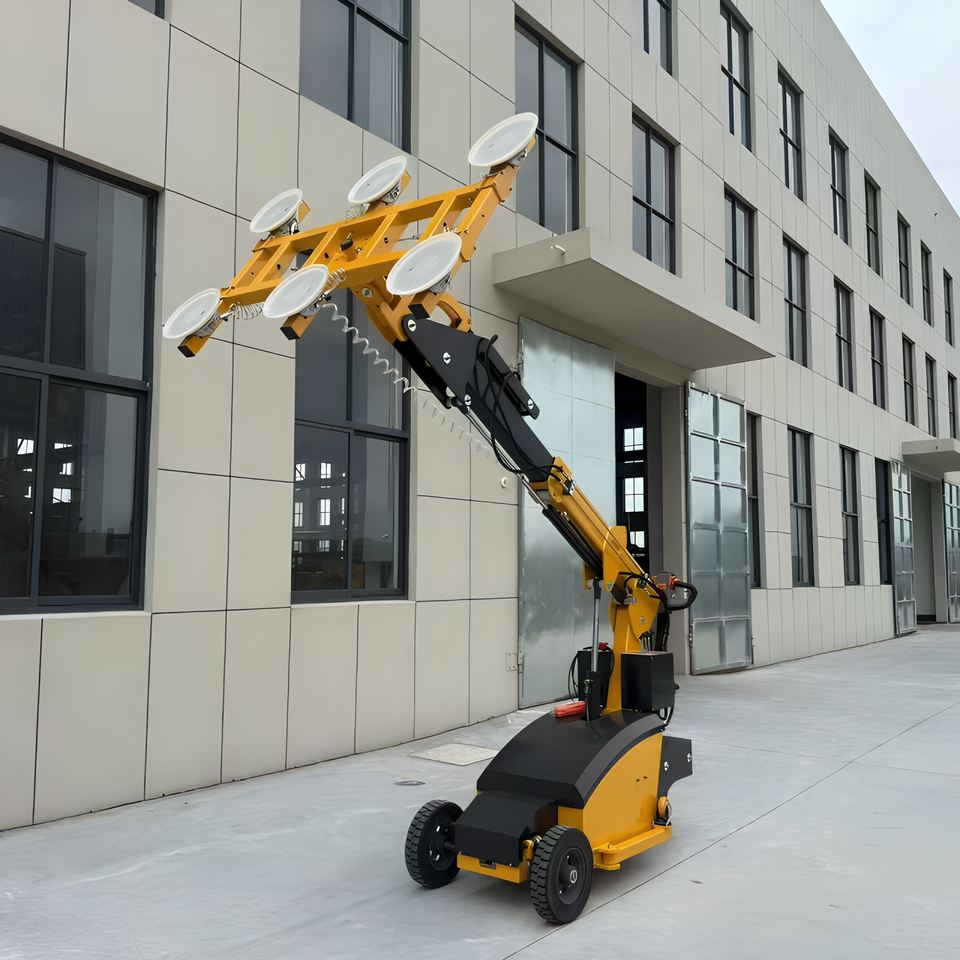

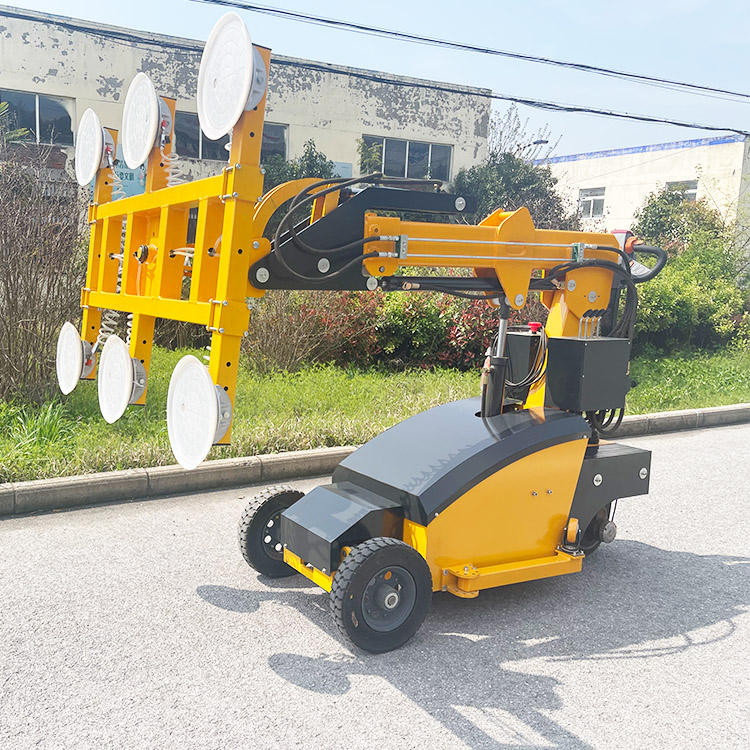

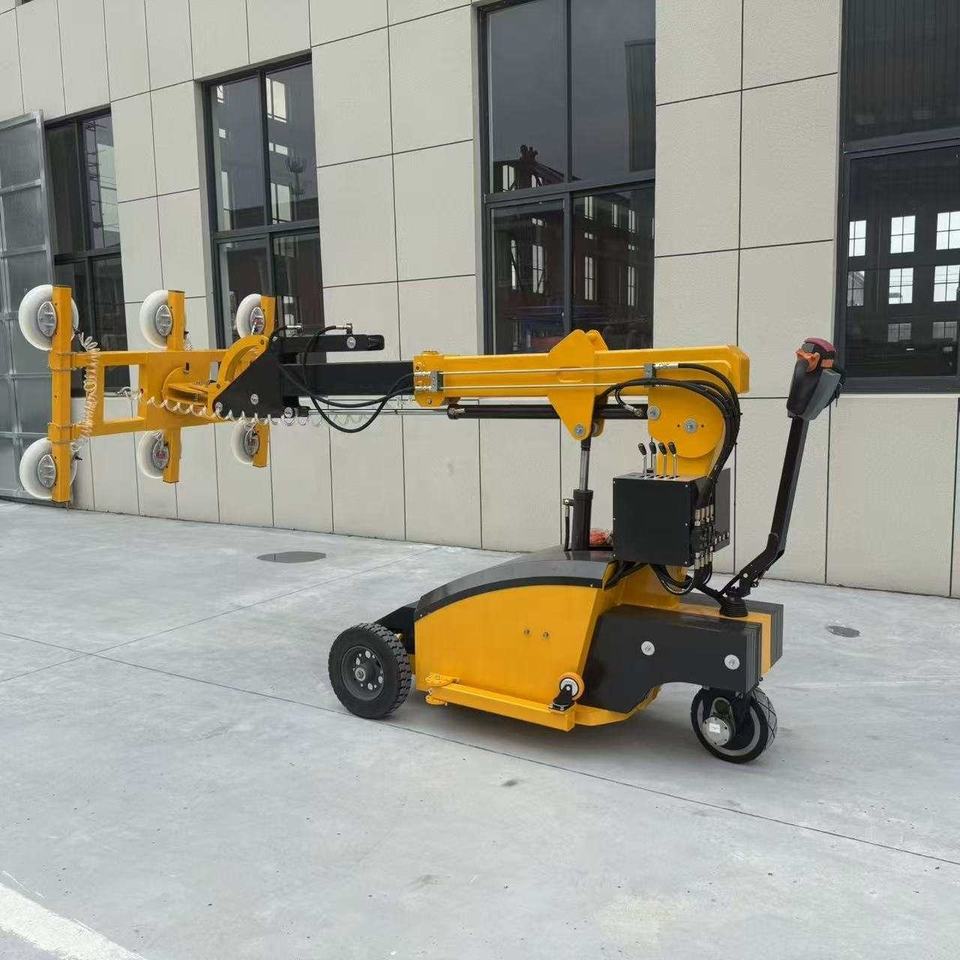

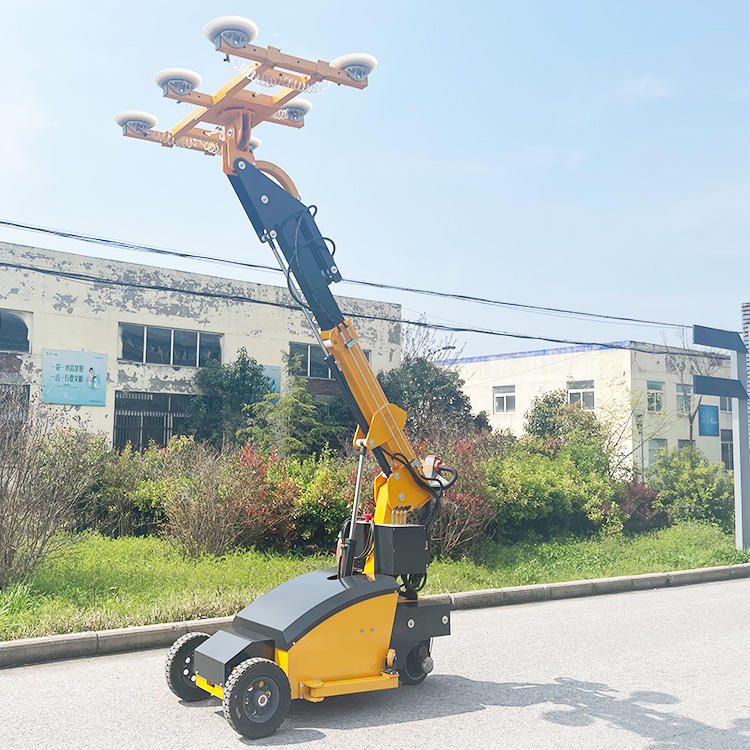

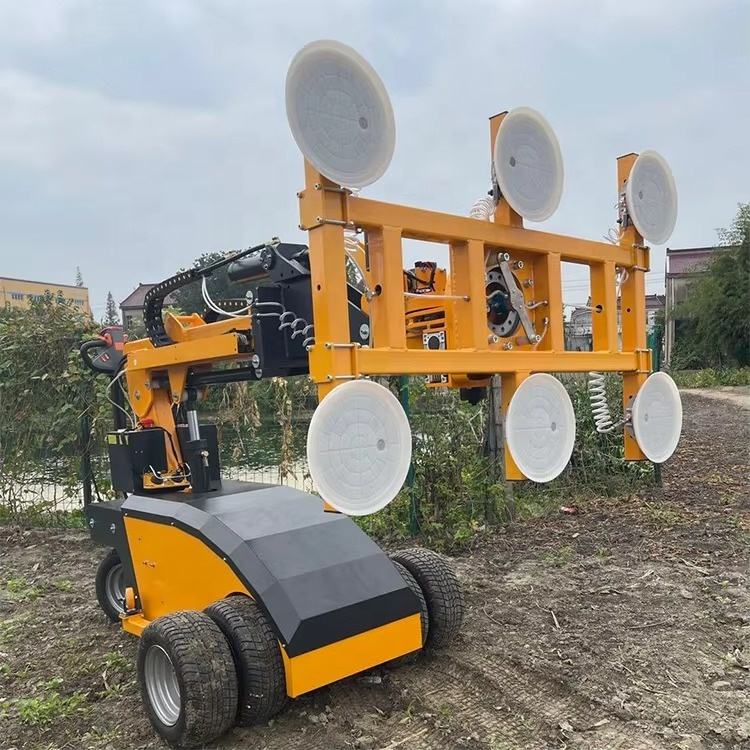

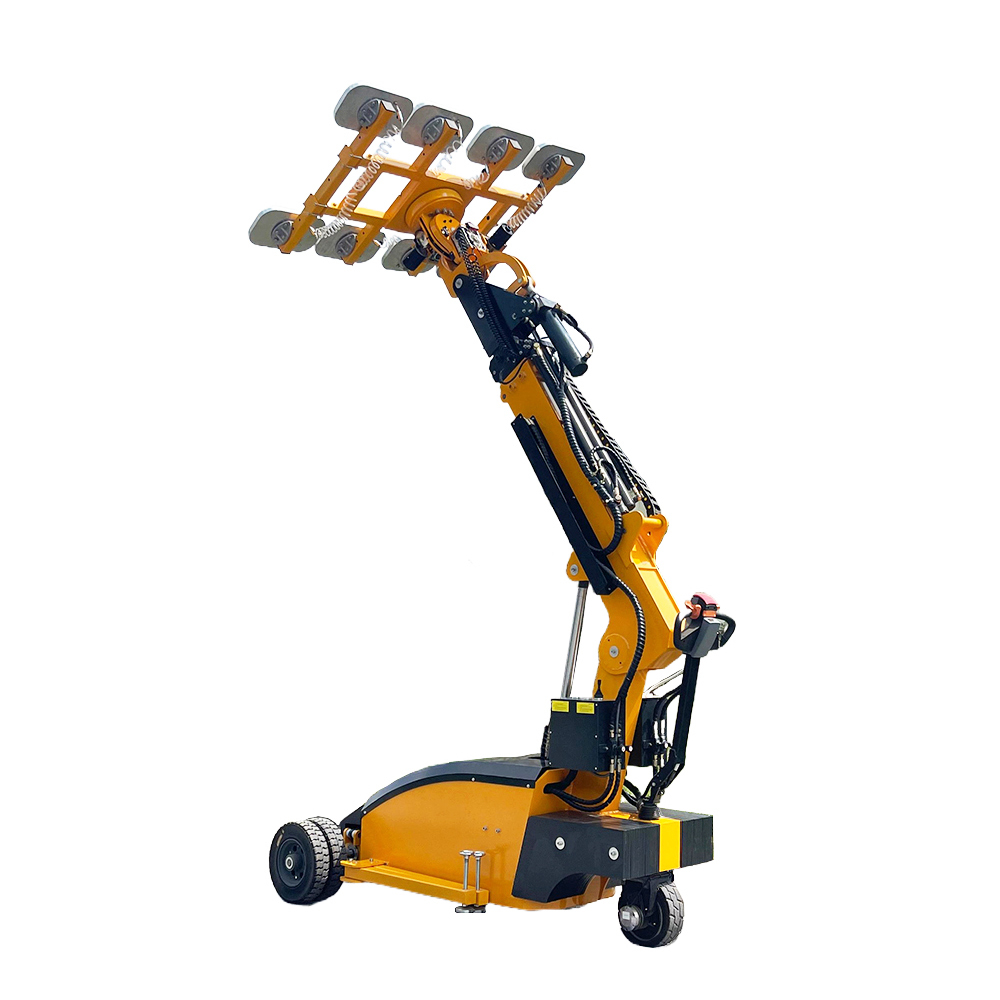

Automatic Glass Installation Vehicle Lifter Vacuum Suction Handling Machine for Curtain Wall Window

No reviews yet
£2,81677
1-9 pieces
£2,50379
≥10 pieces
Select now

Color

yellow

Model Number

RYG-300
RYG-400
RYG-500
RYG-600

Key attributes

Compatible Material Type

Glass

Load Capacity

600 kg, 600kg

maximal lifting height

3700mm

Number of pads

4, 6

Suction Force

0.06~0.08 MPa

Warranty

1 Year

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Key attributes

Compatible Material Type
Glass
Load Capacity
600 kg, 600kg
maximal lifting height
3700mm
Number of pads
4, 6
Suction Force
0.06~0.08 MPa
Warranty
1 Year
Place of Origin
Shandong, China
Controls
Remote Control, Manual Control
Bag handle
D-Handle
Load Movement
Horizontal, 90° Tilt, Manual 360° Rotation
Power Source
Battery, Hydraulic Systems
Weight (KG)
850 kg
Rotation Angle
360°
Cantilever Length
1600mm
Brand Name
zhongmei
Additional Function
Pressure maintaining system, 90. tilting, Self-propelled walking, Battery drive
Air Consumption
No need external air source
Application of Vacuum Lifters
Glass Curtain Wall Installation, Building Glass Handling
Condition
New
Dimension(L*W*H)
2560*840*3700 mm
Feature
Double vacuum system, Emergency pressure holding, Adjustable suction cups
number of suction cups
4, 6
Operating temperature range
-10c ~ +50c
Pad Diameter
300 mm
Pad Shape
Round
pad size
300mm
Pad Type
Rubber Suction Pad
Power
3400W
Release mechanism
Electric Vacuum Release
Single Suction Cup Size
300 mm
Voltage
24V DC
Working Pressure
0.07 MPa
Working Temperature
-10c ~ +50c
Model
RYG
Rotation
360.
Max Lifting Height
3700
Operation Type
Walkie Type
Battery
2*12/100V/A
Charger
24/18V/A
Driving Motor
24/1500V/W
Lifting Motor
24/2200V/W
Width
840mm
