Attributes
Customizedvoltage
FANUCcnc control system
Medium Dutymachining capacity
2number of axes
Singleno. of spindles
4, 6, 8tool post stations
max. length of workpiece (mm):550, 750, 1000, 1500, 2000
key selling points:High-Accuracy
repeatability (x/y/z) (mm):±0.005
positioning accuracy (mm):±0.005
warranty:1 Year
type:Horizontal
machinery test report:Provided
video outgoing-inspection:Provided
max. weight of workpiece(kg):1000
travel (x axis)(mm):280
travel (z axis)(mm):2000
place of origin:Jiangsu, China
width of bed (mm):400
dimension(l*w*h):2650*1650*1820
brand name:Minnuo
model number:CK6150
weight:2650
range of spindle speed:1 - 1800 r.p.m
cutting torque:10

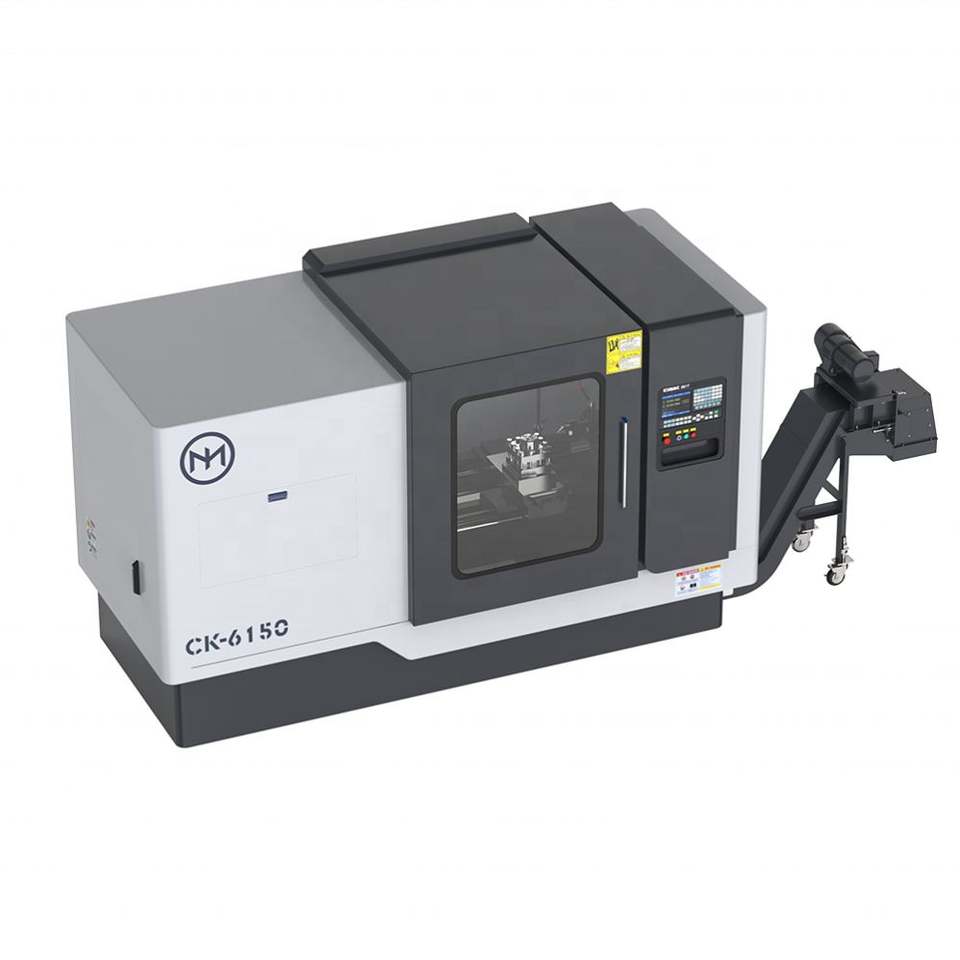

Product name:CK6150 Cnc Lathe Machine Wood with FANUC Control
CNC Controller:FANUC
CNC or Not:CNC Lathe Machine
Positioning Accuracy (mm):±0.005
Repeatability (X/Y/Z) (mm):±0.005
X axis rapid traverse:6m/min
Z axis rapid traverse:8m/min
X axis servo motor torque:5/7.5 N.m
Z axis servo motor torque:7.5/10/15N.m
Guide way type:Hard rail
