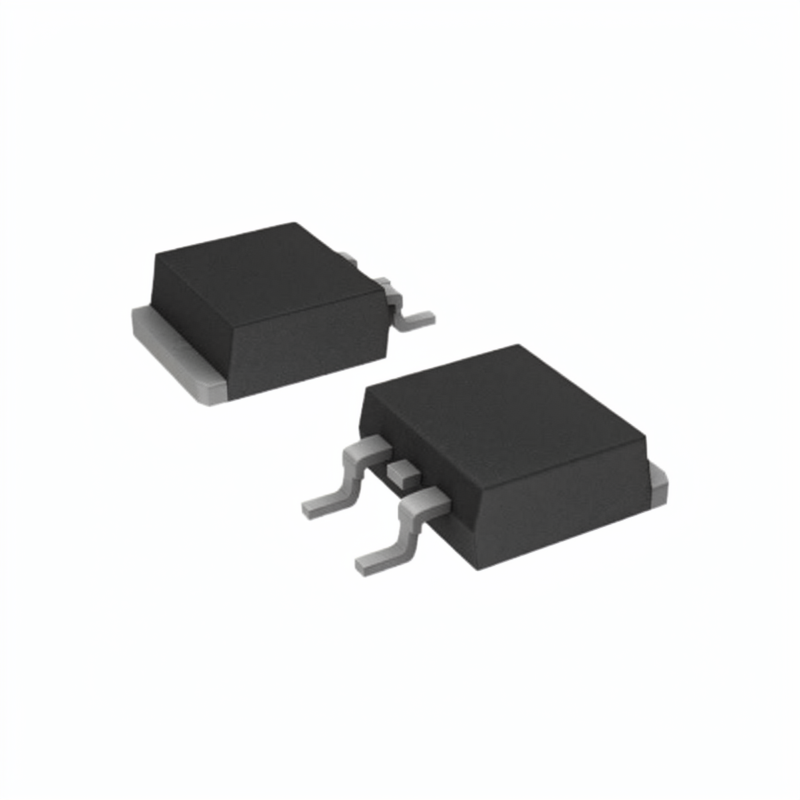

BOM IC In Stock Transistors D2PAK IRF9540NSPBF Electronics Component
No reviews yet
$0.91
100-3,099 pieces
$0.46
≥3,100 pieces
Quantity
Key attributes
Manufacturer Part Number
IRF9540NSPBF
Brand Name
Original
Description
MOSFET P-CH 100V 23A D2PAK
Place of Origin
China
Package / Case
D2PAK
Operating Temperature
-55°C ~ 150°C (TJ)
Shipping
Select shipping
- Item subtotal
- $0.00
- Shipping total
- To be negotiated
Subtotal
$0.00
Alibaba.com order protection
Secure payments
Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols
Money-back protection
Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Payment & financing
Buy now, pay later
Key attributes
Manufacturer Part Number
IRF9540NSPBF
Brand Name
Original
Description
MOSFET P-CH 100V 23A D2PAK
Place of Origin
China
Package / Case
D2PAK
Operating Temperature
-55°C ~ 150°C (TJ)
Series
HEXFET
Mfg Date Code
NEW
FET Type
P-Channel
FET Feature
-
Drain to Source Voltage (Vdss)
100 V
Current - Continuous Drain (Id) @ 25°C
23A (Tc)
Rds On (Max) @ Id, Vgs
117mOhm @ 14A, 10V
Vgs(th) (Max) @ Id
4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs
110 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds
1450 pF @ 25 V
Drive Voltage (Max Rds On, Min Rds On)
10V
Vgs (Max)
±20V
Mounting Type
Surface Mount
Package
Tube
FET Type
P-Channel
Technology
MOSFET (Metal Oxide)
Packaging and delivery
Selling Units
Single item
Single package size
1X1X1 cm
Single gross weight
0.1 kg
Lead time
