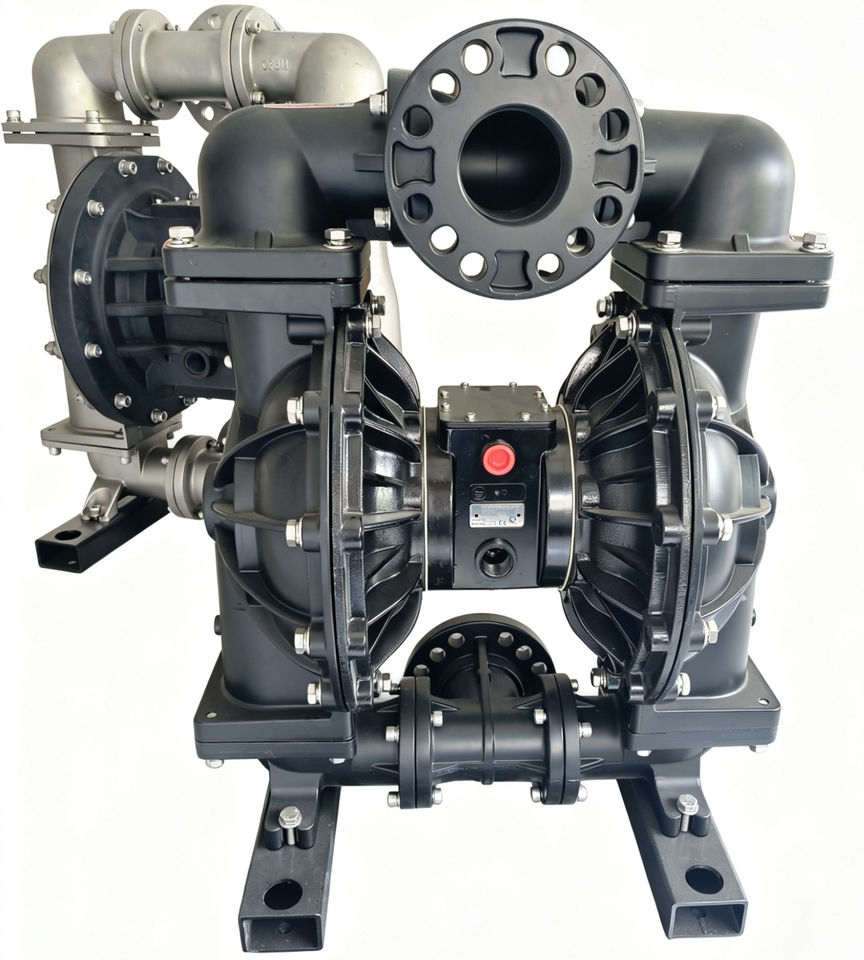

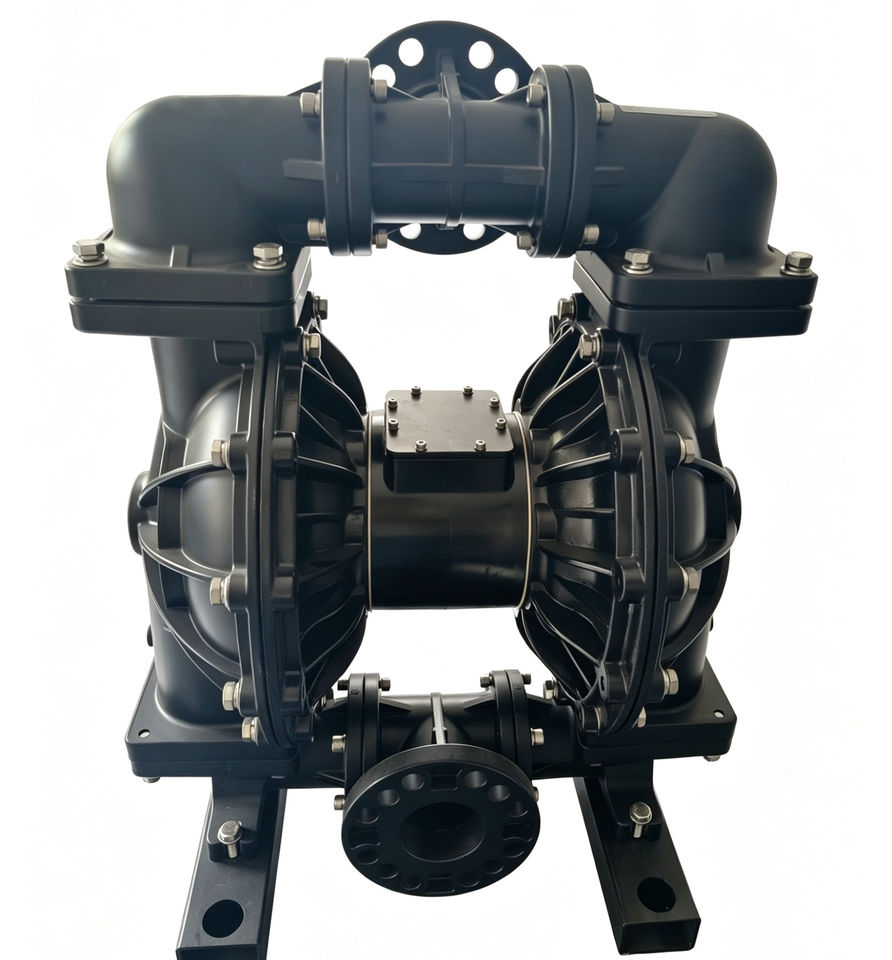

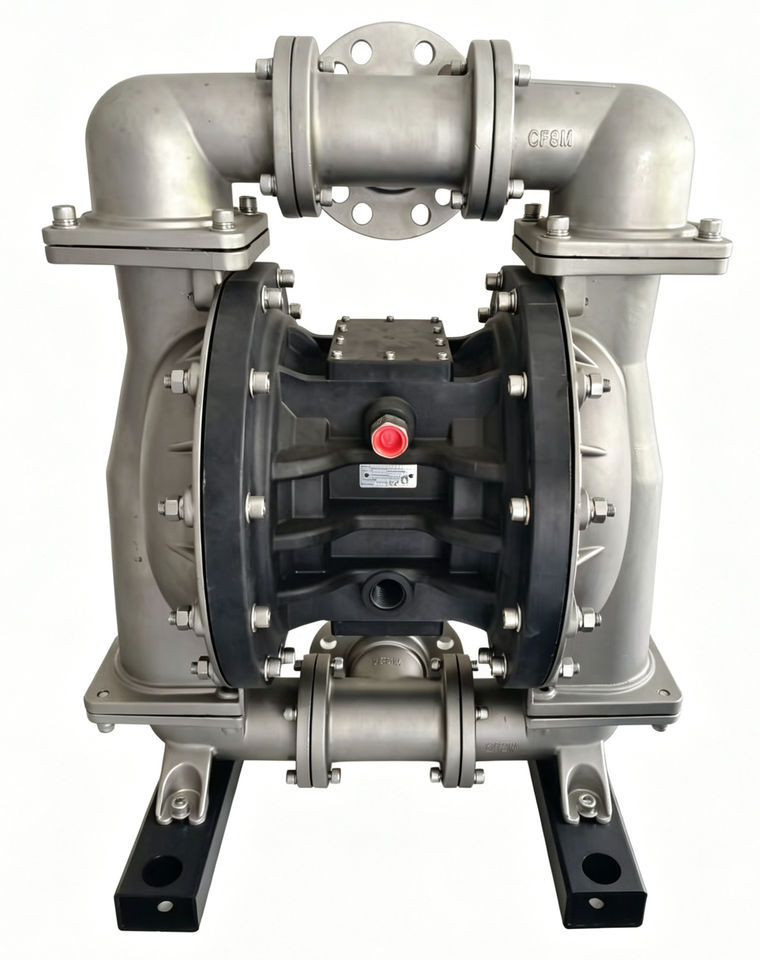

Big Flow Factory Customized Food Grade Stainless Steel Pneumatic Double Diaphragm Pump OSY-80 Light Weight OSY-80

No reviews yet
£94443
1-9 sets
£83332
≥10 sets
Select now

Flow Rate

1060L/min

maximum head

84m

type

Diaphragm Pumps

+ 1 more variants

Customization options
outlet size (Min. order: 2 sets)

Key attributes

application

Chemical Industry

pressure

High Pressure

customized support

OEM, ODM, OBM

place of origin

Henan, China

power source

Air

warranty

1 Year

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Key attributes

application
Chemical Industry
pressure
High Pressure
customized support
OEM, ODM, OBM
place of origin
Henan, China
power source
Air
warranty
1 Year
model number
OSY-80
brand name
FITES
Applicable temperature
≤100.C
cable length
NO
Chemical Compatibility
Water, Alcohol, Diesel, Kerosene
Connection Type
Flange Connection, clamping coupling
Control Method
Fully Automatic Control, Manual Control, Semi-Automatic Control
Discharge Pipe Size
3inch
Displacement
9.1m3/min
Dwell time
/
Filter material
PTFE
Flow Meter Specification
1-60m³/h
Hardness
50Shorea
horsepower
NO
Impeller Material
NO
Import Size
DN80
Inlet Height
130mm
Max Flow Rate
60m3/h
Max Pressure
8.4bar
Membrane material
Polytetrafluoroethylene (Ptfe)
motor
no
outlet size
80MM
Outlet Type
Universal Style
Outlet Water Oil Content
no
Sealing Material
no
structure
Diaphragm Pump
suction head
5m/8m
Surface Treatment
Electroplating
Material
stainless steel 304
name
Diaphragm pump
Application
food/juice/hot water/clear water/hotel/chemical/medical
Package
Wooden Case/Carton case
Certification
CE ISO
Warranty
12 Months
Function
Transfer liquid
After-sales Service Provided
Online Support
MOQ
1 Set
Payment terms
T/T
OEM
YES

Packaging and delivery

Selling Units
Single item
Single package size
67X47X103 cm
Single gross weight
133.0 kg

Lead time

Customization options

outlet size(+ from /Min. order: 2 sets)
