Attributes
CNC Routermachine type
4200mmx3200mmx2400mmWorking Table Size(mm)
3number of axes
OtherNo. of Spindles
220V/380Vvoltage
1 Yearwarranty
cnc or not:CNC
place of origin:Shandong, China
Power (kW):25.6
weight (kg):3000
range of spindle speed(r.p.m):0 - 24000 rpm
positioning accuracy (mm):0.03 mm
travel (x axis)(mm):4200 mm
travel (y axis)(mm):3200 mm
repeatability (x/y/z) (mm):2400 mm
Spindle Motor Power (kw):8.2
brand name:Blue elephant
dimension(l*w*h):4200mm*3200mm*2400mm
key selling points:Easy To Operate
machinery test report:Provided
video outgoing-inspection:Provided
core components:Bearing, Motor, Pump, Gear, Other, Engine

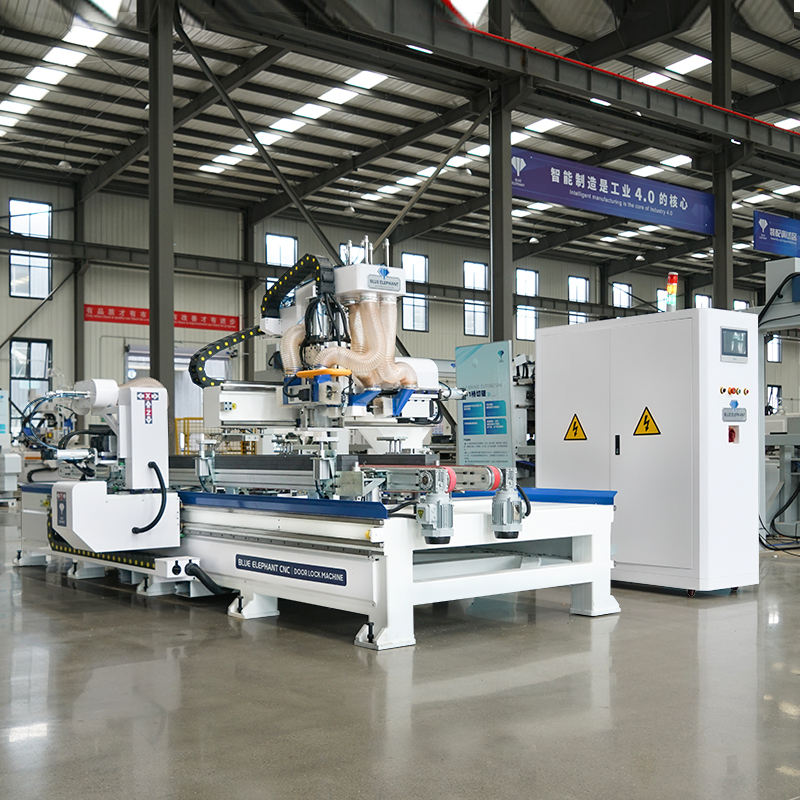

Product name:Door Lock Making Machine
Keywords:Lock slots steps holes making
Max. processing thickness:35mm-65mm
Key hole spindle power:6kwx1 2.2kwx1
Key slot spindle power:6kwx1 2.2kwx1
Total power:25.6kw
Max. processing speed:50m/min
Air pressure:0.5-0.7mpa
