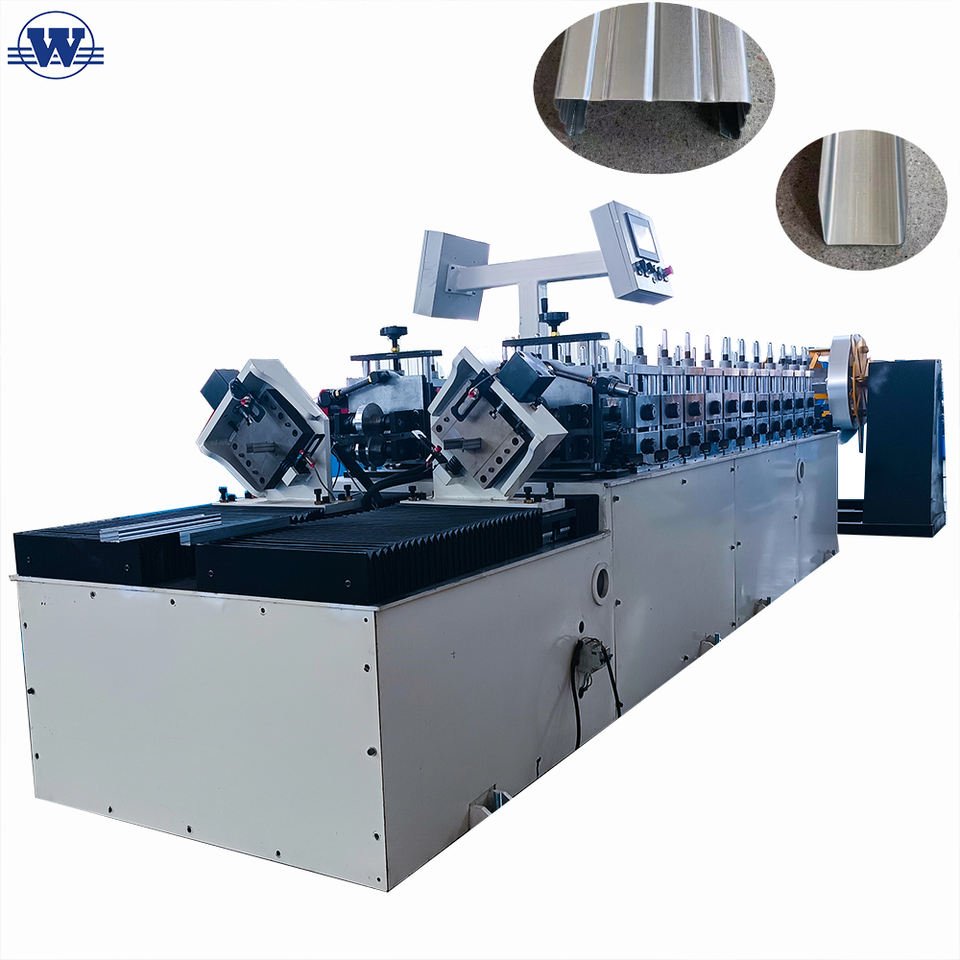

Building Strut Channel Steel Frame Making Machine Ceiling Gypsum Roll Former Machine Cu Track Stud Roll Forming Machine
No reviews yet
Attributes
Tile Forming MachineType
SteelTile Type
500mmFeeding width
0.3-1mmRolling thinckness
380V or as requiredVoltage
Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, OtherCore Components
Use:Wall
Warranty:1 Year
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Key Selling Points:High Productivity
Place of Origin:China
Weight:2300
Brand Name:Wadley
Dimension(L*W*H):5500*900*1500
Product name:C & U Channel Dry Wall Metal Steel Frame & Purlin Machine
Cutting blade material:Cr12 Heat Treatment
Roller material:45#steel Chrome Plated
Shaft material:45# Steel Outer Diameter: 50mm
Main frame:350mm H-Beam
Cutting type:Hydraulic Cutting
Profiles:Ceiling Light Keel Roll Forming
Color:Customized Color
Decoiler:3T Manual Decoiler
Plc:DETLA
Key attributes
Type
Tile Forming Machine
Tile Type
Steel
Feeding width
500mm(19.69in)
Rolling thinckness
0.3-1mm(0.01-0.04in)
Voltage
380V or as required
Core Components
Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, Other
Use
Wall
Warranty
1 Year
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Key Selling Points
High Productivity
Brand Name
Wadley
Dimension(L*W*H)
5500*900*1500
Place of Origin
China
Weight
2300
Product name
C & U Channel Dry Wall Metal Steel Frame & Purlin Machine
Cutting blade material
Cr12 Heat Treatment
Roller material
45#steel Chrome Plated
Shaft material
45# Steel Outer Diameter: 50mm
Main frame
350mm H-Beam

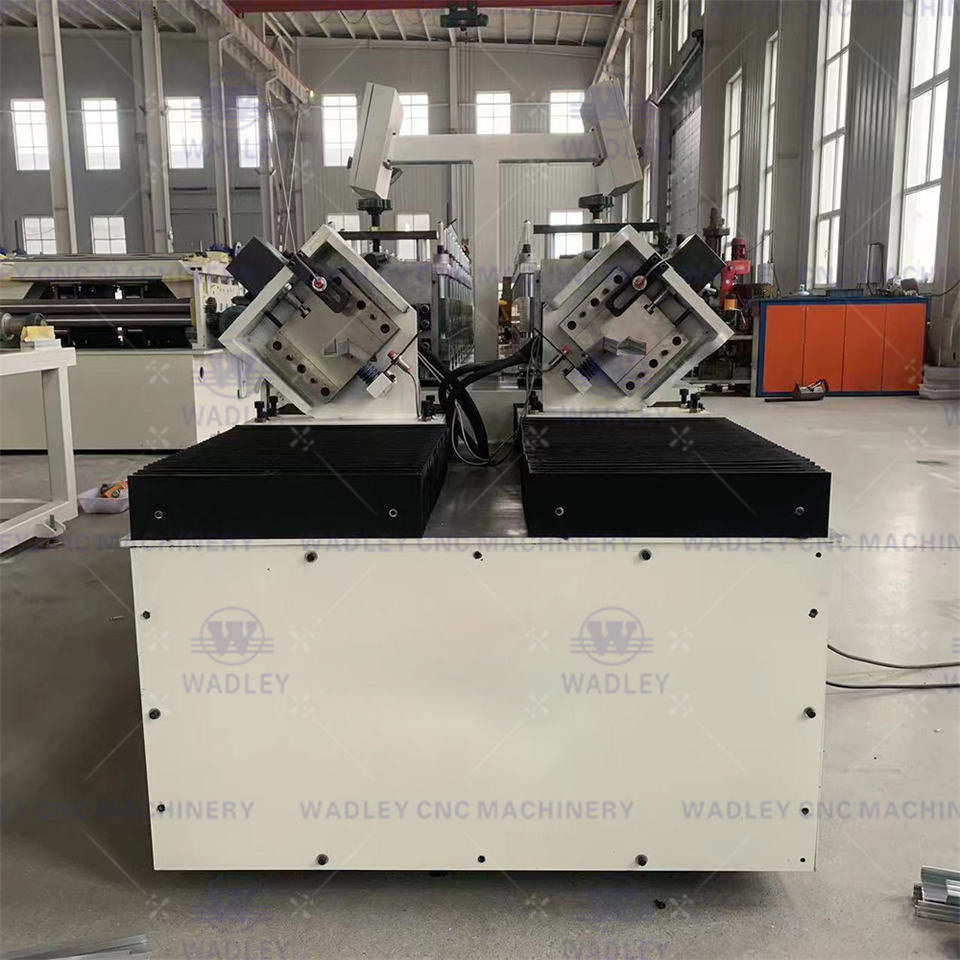

Cutting type
Hydraulic Cutting
Profiles
Ceiling Light Keel Roll Forming
Color
Customized Color
Decoiler
3T Manual Decoiler
Plc
DETLA
Packaging and delivery
Selling Units
Single item
Lead time
Customization options
Name plate(+ from /Min. order: 5 sets)
View details
Product descriptions from the supplier
Customizable
1 - 4 sets
£17,16233
>= 5 sets
£14,17758
Variations
Select nowProduction Capacity: 15 m/min(49.21ft/min)
15 m/min(49.21ft/min)
Model Number: Light Keel Roll Forming Machine
Light Keel Roll Forming Machine
Power(W)
5500
Customization options
Name plate (Min. order: 5 sets)
