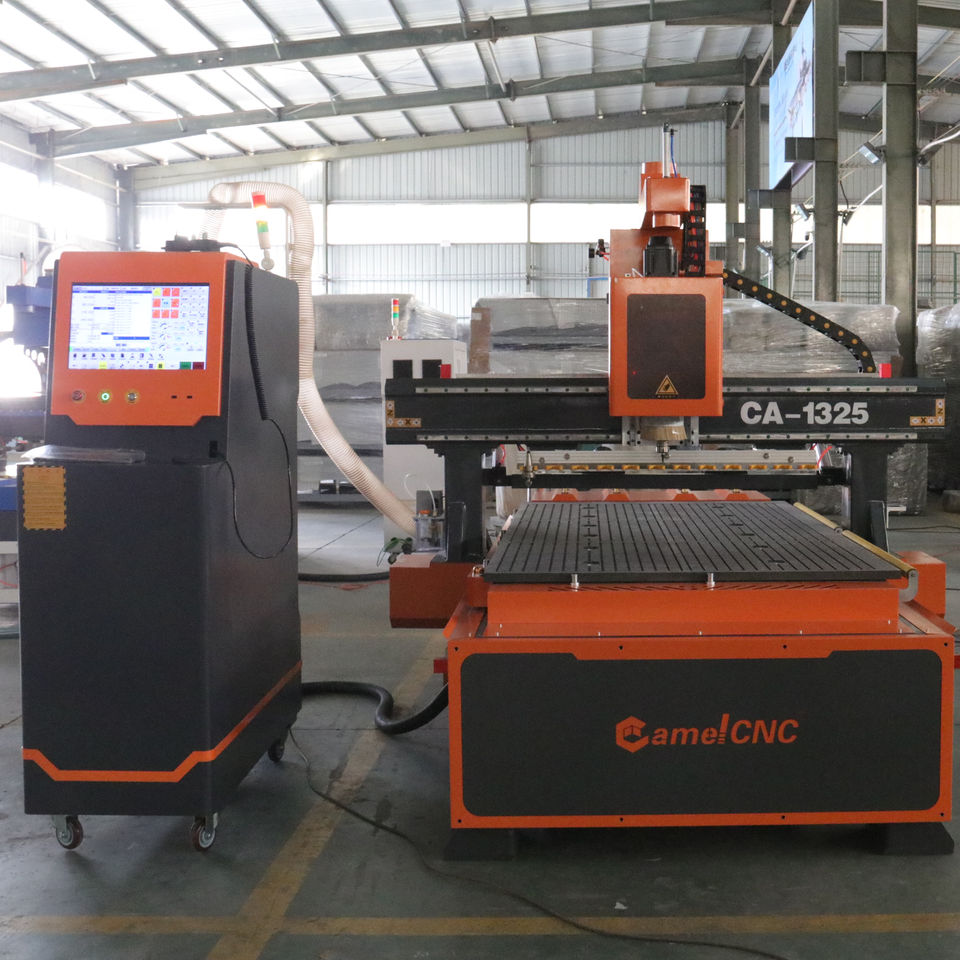

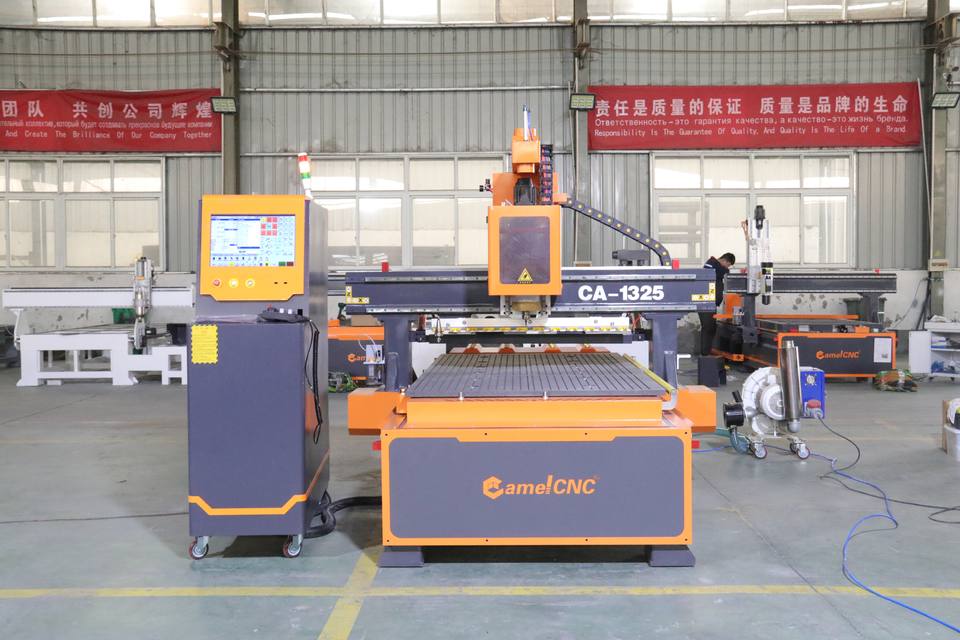

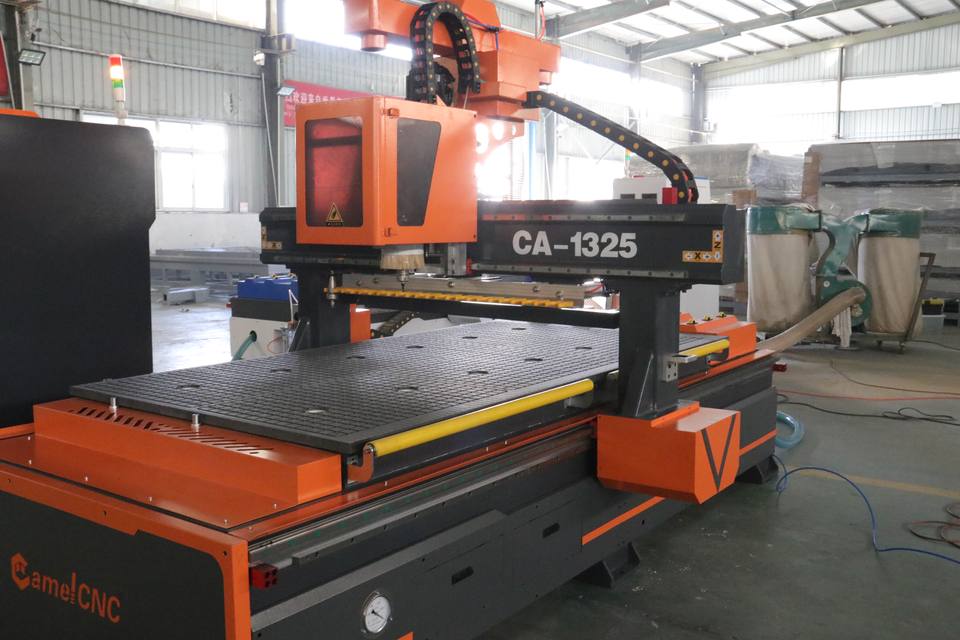

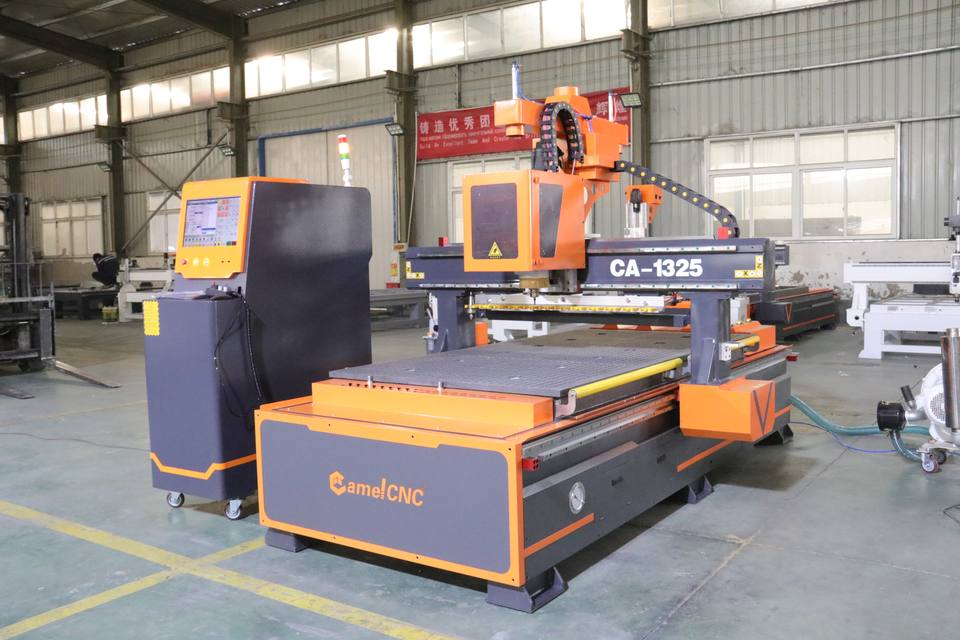

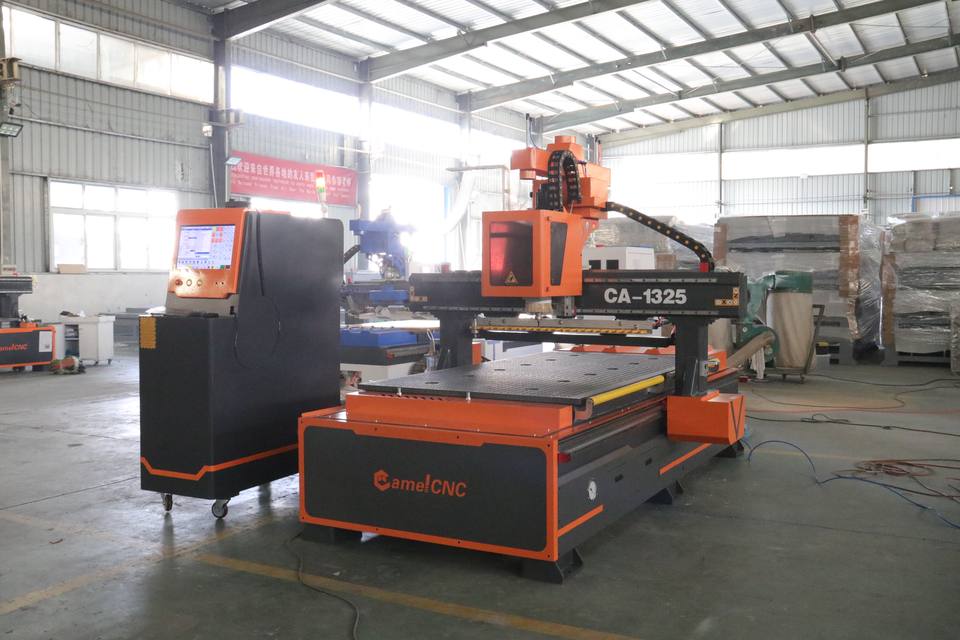

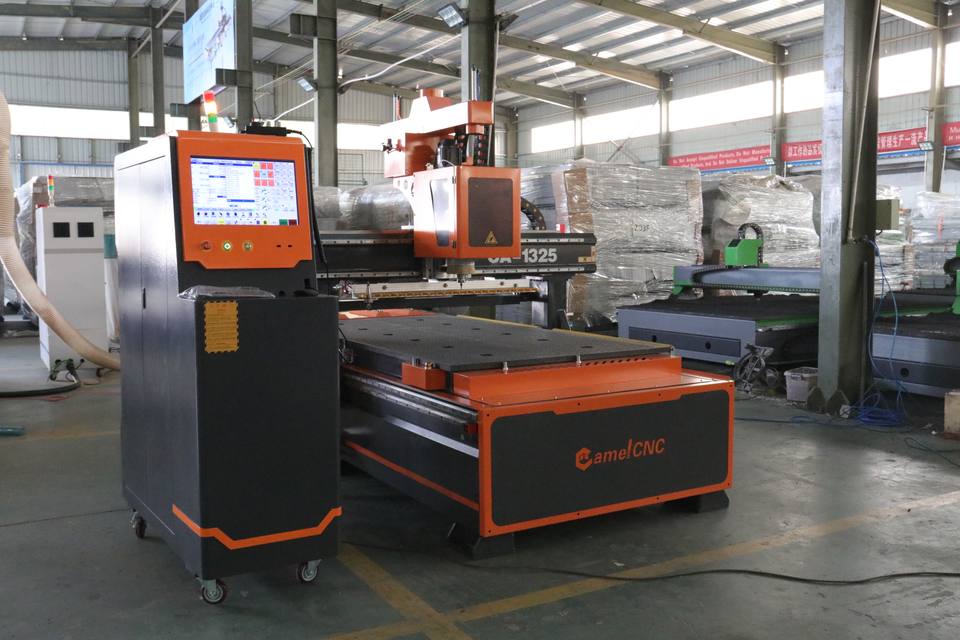

CA-1325 Atc Cnc Router Machine 3 Axis Linear Auto Tool Changer Wood Cnc Engraving Machinery for Furniture Cabinet Making
Store rating:4.9
(3857 reviews)Complies with EU standards
Complies with EU standards
Attributes
3number of axes
380V, three phase,60HZvoltage
CNC Routermachine type
SingleNo. of Spindles
Easy To Operatekey selling points
Dust collectionAccessory Type
core components:Bearing, Motor, Pump, Gear, Pressure Vessel, Engine
warranty:3 Years
cnc or not:CNC
video outgoing-inspection:Provided
machinery test report:Provided
place of origin:Shandong, China
weight (kg):2000
range of spindle speed(r.p.m):0 - 24000
positioning accuracy (mm):0.03
travel (x axis)(mm):1300
travel (y axis)(mm):2500
repeatability (x/y/z) (mm):0.05
Spindle Motor Power (kw):9
brand name:CAMEL
dimension(l*w*h):3500*2220*2250mm
Product name:Cnc Machine Linear Auto Tool Changer Wood Cnc Engraving Machinery
Control system:LNC Control System
Spindle:9kw ATC Air Cooling Spindle
Transmission:XY-axis:rack Z-axis:ball Screw
Motor:1.5KW Servo Motor
Guide rail:Taiwan Hiwin Square Guide Rail
Working table:Vacuum Table
Inverter:11kw Fuling Inverter
Spindle speed:0-24000RPM
Working Voltage:AC220V/AC380/50HZ/60HZ
Service
Free replacement parts & online technical support
Key attributes
number of axes
3
voltage
380V, three phase,60HZ
machine type
CNC Router
No. of Spindles
Single
key selling points
Easy To Operate
Accessory Type
Dust collection
core components
Bearing, Motor, Pump, Gear, Pressure Vessel, Engine
warranty
3 Years
cnc or not
CNC
video outgoing-inspection
Provided
machinery test report
Provided
place of origin
Shandong, China
weight (kg)
2000
range of spindle speed(r.p.m)
0 - 24000
positioning accuracy (mm)
0.03
travel (x axis)(mm)
1300
travel (y axis)(mm)
2500
repeatability (x/y/z) (mm)
0.05
Spindle Motor Power (kw)
9
brand name
CAMEL
dimension(l*w*h)
3500*2220*2250mm
Product name
Cnc Machine Linear Auto Tool Changer Wood Cnc Engraving Machinery
Control system
LNC Control System
Spindle
9kw ATC Air Cooling Spindle
Transmission
XY-axis:rack Z-axis:ball Screw
Motor
1.5KW Servo Motor
Guide rail
Taiwan Hiwin Square Guide Rail
Working table
Vacuum Table
Inverter
11kw Fuling Inverter
Spindle speed
0-24000RPM
Working Voltage
AC220V/AC380/50HZ/60HZ
Packaging and delivery
Selling Units
Single item
Lead time
Customization options
Working Table Size(mm)(+ from /Min. order: 1 set)
View details
Product descriptions from the supplier
Warning/Disclaimer
California Proposition 65 Consumer WarningView more
This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.View more
1 - 2 sets
£7,83286
>= 3 sets
£7,45986
Variations
Select nowWorking Table Size(mm): 2000×4000
2000×4000
1300×2500
2000×3000
1500×3000
model number: CA-1325
CA-1325
CA-1530
CA-2030
CA-2040
Power (kW)
11KW
Customization options
Working Table Size(mm) (Min. order: 1 set)
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization
