Attributes
5-YearWarranty(Year)
Guangdong, ChinaPlace of Origin
PV-12075DT-M1AW/PV-24075DT-M1AWModel Number
Pt POWERBrand Name
Led Lighting, Outdoor Lighting, Street LightApplication
AluminumCase Material
Dimming:DALI Dimmable
Dimming Mode:DALI & Push Dimming
Efficiency:≥91%
Energy Transfer:AC-DC
Input Voltage:100-240VAC
Lighting solutions service:Lighting And Circuitry Design, Project Installation, Other
Output Current:3.13A/6.25A
Output Frequency:50-60 Hz
Output Power:75W
Output Type:Single
Product Weight（kg）:0.49
Topology:Ac-Dc Converter
Type:IP67 Waterproof
Type:Constant Voltage LED Driver
Waterproof Level(IP Rate):IP67
Certification:CE/CB/SAA RoHS

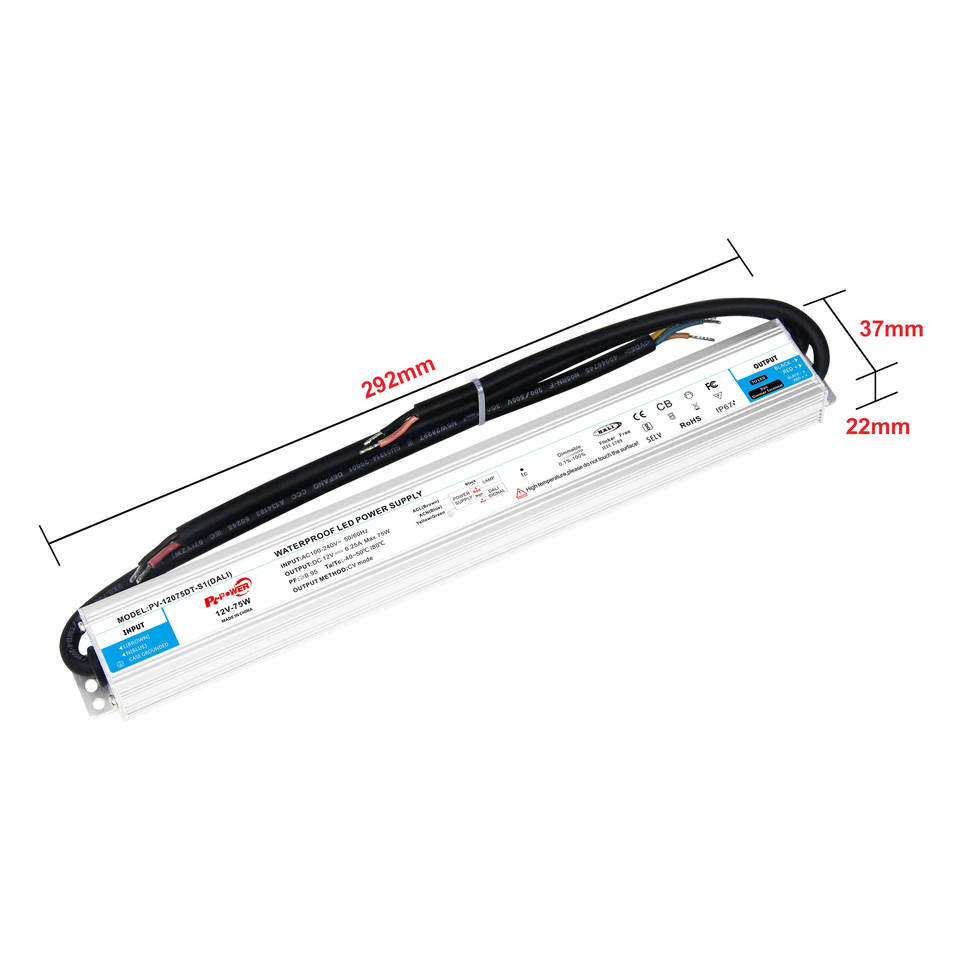

Size:292*37*22mm
OEM/ODM:Yes
Power factor:PF≥0.95
Working temperature:-25°C~+60°C
DALI Standard:IEC62386
EMC standard:EN55015,EN61000-3-2,EN61000-3-3
Safety standard:EN61347-1,EN61347-2-13
Other application:Class 1 2 3 LED lighting
Standby power consumption:<0.5W
