Attributes
1/2"~3", 1/2"~4"port size

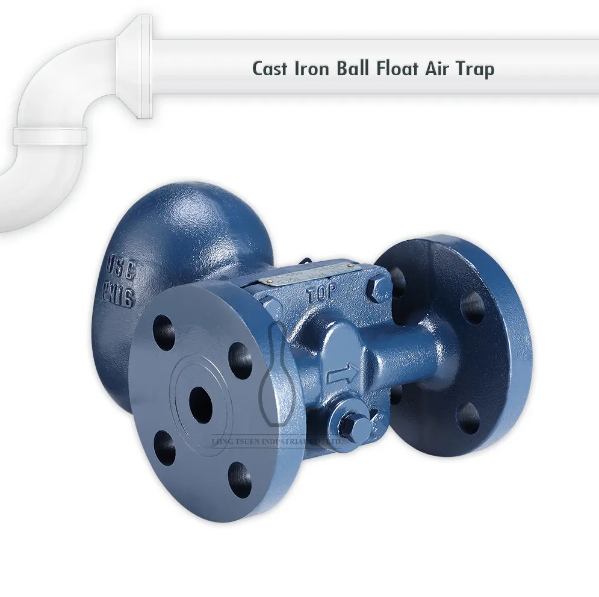

Ball Float Air Trapstructure
air trap valvetype
OEMcustomized support
Taiwan, Chinaplace of origin
Generalapplication
power:Pneumatic
model number:F2A - F12A
brand name:DSC
media:steam, air
temperature of media:High Temperature
Standard or Nonstandard:Standard
Connection End:NPT and BSPT Screwed End, PN/ JIS/ ANSI Flanged End
Working Pressure:17 KGS
Working Temperature:Normal Temperature
CAP & BODY:ASTM A48 No.30 CAST IRON FC200, ASTM A536 FCD DUCTILE IRON
FLOAT:STAINLESS STEEL 304
MECHANISM:STAINLESS STEEL 304
GASKET:COMPRESSED NON-ASBESTOS
BOLTS & NUTS:CARBON STEEL
