Attributes
380 V, 220V Electrical Equipmentvoltage
FANUCcnc control system
Light Dutymachining capacity
2number of axes
Singleno. of spindles
8tool post stations
max. length of workpiece (mm):250
key selling points:Multifunctional, Automatic, Competitive Price
repeatability (x/y/z) (mm):±0.005
positioning accuracy (mm):±0.005
warranty:1 Year

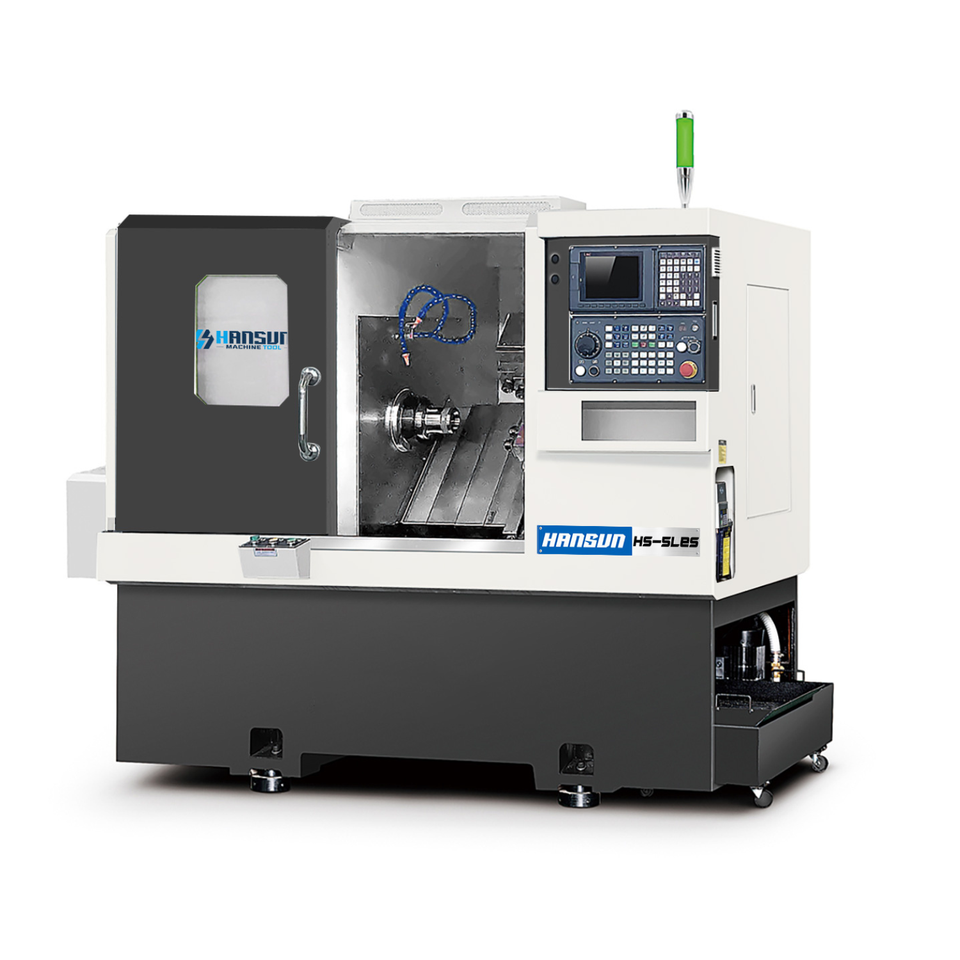

type:cnc lathe
machinery test report:Provided
video outgoing-inspection:Provided
max. weight of workpiece(kg):50
travel (x axis)(mm):1040
travel (z axis)(mm):330
place of origin:Guangdong, China
dimension(l*w*h):2400x1500x2000
brand name:HANSUN
model number:5LES
weight:2900
range of spindle speed:0 - 4500
CNC or Not:CNC
max process diameter:380mm
spindle bore:46mm
chuck size:5 inch
x/z axis machining travel:1030/330 mm
center height:56mm
bar feeder ground to center:1120mm
square tool holder size:20x20 mm
max passable bar diameter:35mm
power head speed:3000 r/min
x/z axis fast moving speed:26/26 m/min

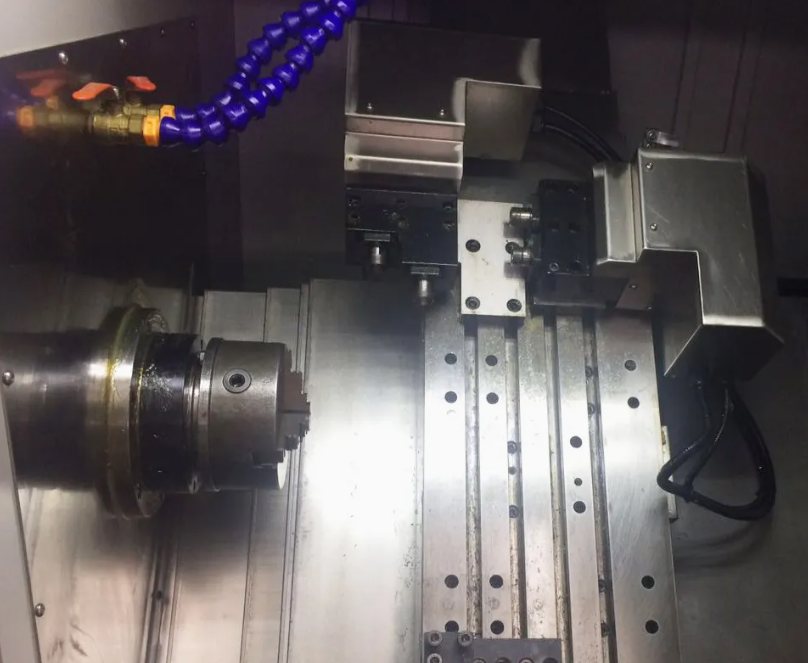

tool installation:ER25 live tools + gang type
side milling power head structure:1 long 1 shor live tools
end milling power head structure:2 short live tools
