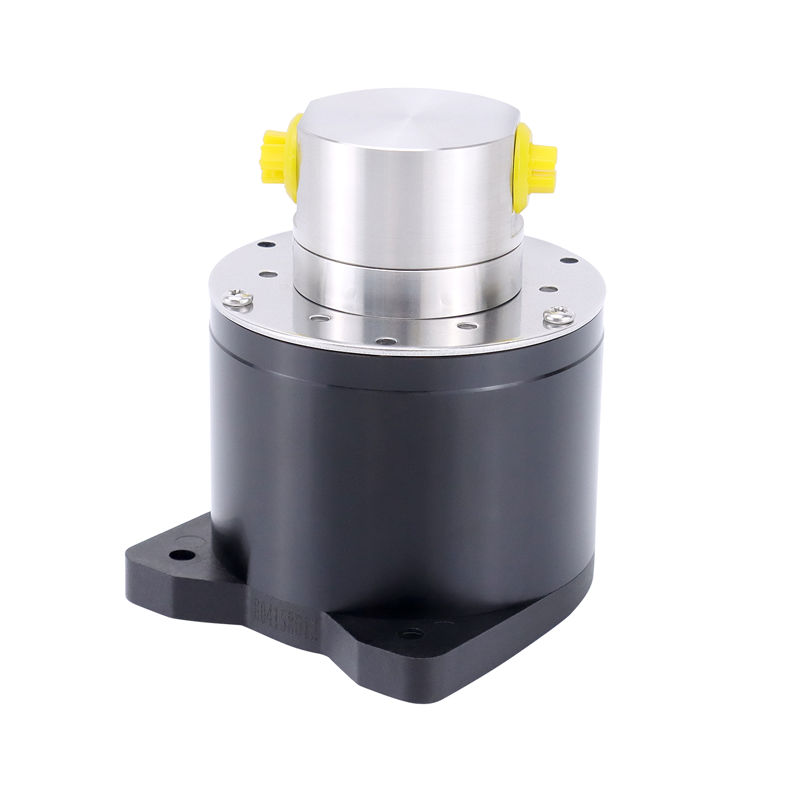

China Manufacturer 450ml/Min Flow Miniature Oil Sealed Helical Gear Pump Stainless Steel 3.2MPa Electric Micro Fluid Pump
No reviews yet
Attributes
Otherapplication
3.2MPapressure
OEM, ODM, OBMcustomized support
1 Yearwarranty
Guangdong, Chinaplace of origin
Electricpower source
structure:Gear Pump
model number:GQC010ESLB03
brand name:DOCOD
Applicable temperature:-40 to 105 degrees Celsius
Chemical Compatibility:Water
Max Flow Rate:450mL/min
Max Pressure:3.2MPa
motor:Servo Motor, Brushless DC Motor, Stepper Motor
Material:Stainless Steel
Nominal Displacement:0.1mL/rev
Max. Flow Rate:450mL/min(water as medium)
Max. Pressure:3.2MPa
Viscosity Range:0.5-1500CP
Operating Speeds:500-4500rpm
Rated Voltage:24VDC
Rated Power:40W
Gear Material:PEEK
Pump Body Material:Tungsten steel (main material), ceramics (secondary material)
Static Seal:EPDM (O-rings)
thread specifications:Standard configuration G1/8-28(customizable)
Compatible Drive:Brushless DC Motor, Stepper Motor, Servo Motor
Temperature resistance:-40 to 105 degrees Celsius
Key attributes
application
Other
pressure
3.2MPa
customized support
OEM, ODM, OBM
warranty
1 Year
place of origin
Guangdong, China
power source
Electric
structure
Gear Pump
model number
GQC010ESLB03
brand name
DOCOD
Applicable temperature
-40 to 105 degrees Celsius
Chemical Compatibility
Water
Max Flow Rate
450mL/min
Max Pressure
3.2MPa
motor
Servo Motor, Brushless DC Motor, Stepper Motor
Material
Stainless Steel
Nominal Displacement
0.1mL/rev
Max. Flow Rate
450mL/min(water as medium)
Max. Pressure
3.2MPa
Viscosity Range
0.5-1500CP
Operating Speeds
500-4500rpm
Rated Voltage
24VDC
Rated Power
40W
Gear Material
PEEK
Pump Body Material
Tungsten steel (main material), ceramics (secondary material)
Static Seal
EPDM (O-rings)
thread specifications
Standard configuration G1/8-28(customizable)
Compatible Drive
Brushless DC Motor, Stepper Motor, Servo Motor
Temperature resistance
-40 to 105 degrees Celsius
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
1 - 99 pieces
$24923
100 - 499 pieces
$19938
>= 500 pieces
$16615
