Attributes
220v/380vvoltage
Siemenscnc control system
Medium Dutymachining capacity
2number of axes
Singleno. of spindles
4tool post stations
max. length of workpiece (mm):550
key selling points:High-Accuracy
repeatability (x/y/z) (mm):±0.005
positioning accuracy (mm):±0.005
warranty:1 Year
type:Horizontal
machinery test report:Provided
video outgoing-inspection:Provided
max. weight of workpiece(kg):650
travel (x axis)(mm):280
travel (z axis)(mm):1500
place of origin:Jiangsu, China
width of bed (mm):210 mm
dimension(l*w*h):2000*1600*1800
brand name:Minnuo
model number:CK6140
weight:1900
range of spindle speed:150 - 2500 r.p.m
cutting torque:10

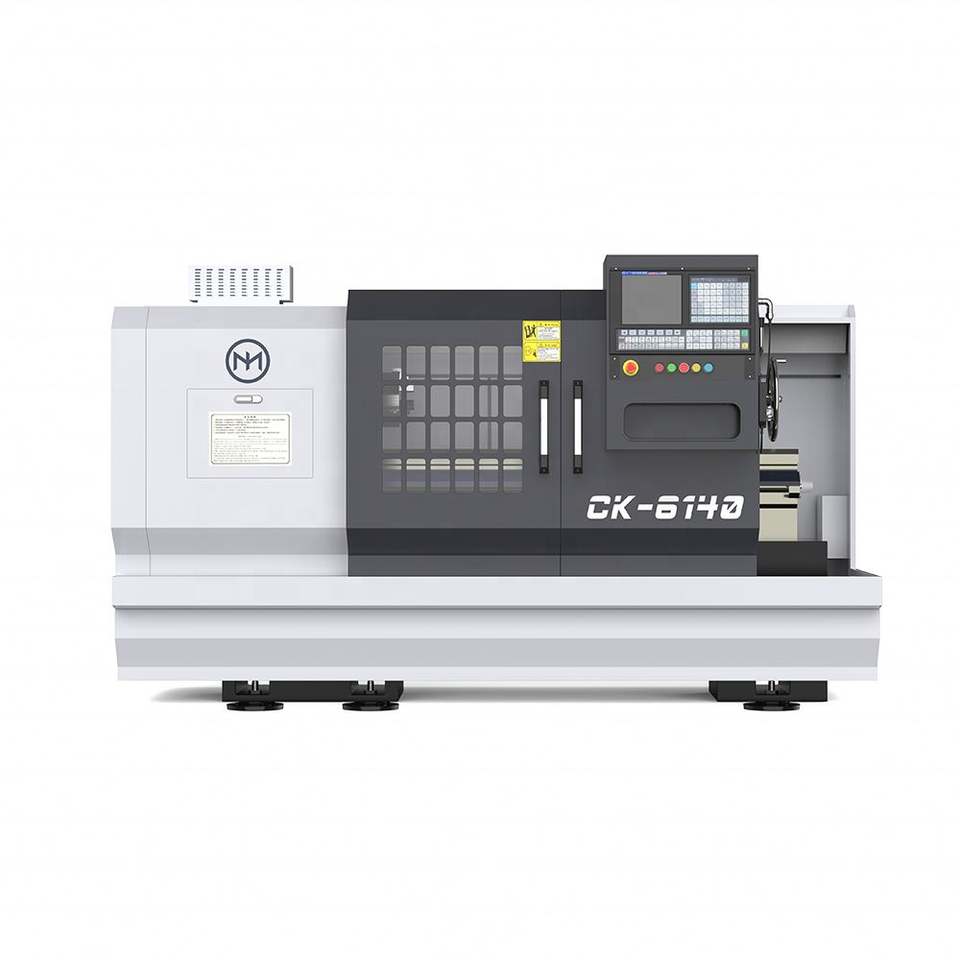

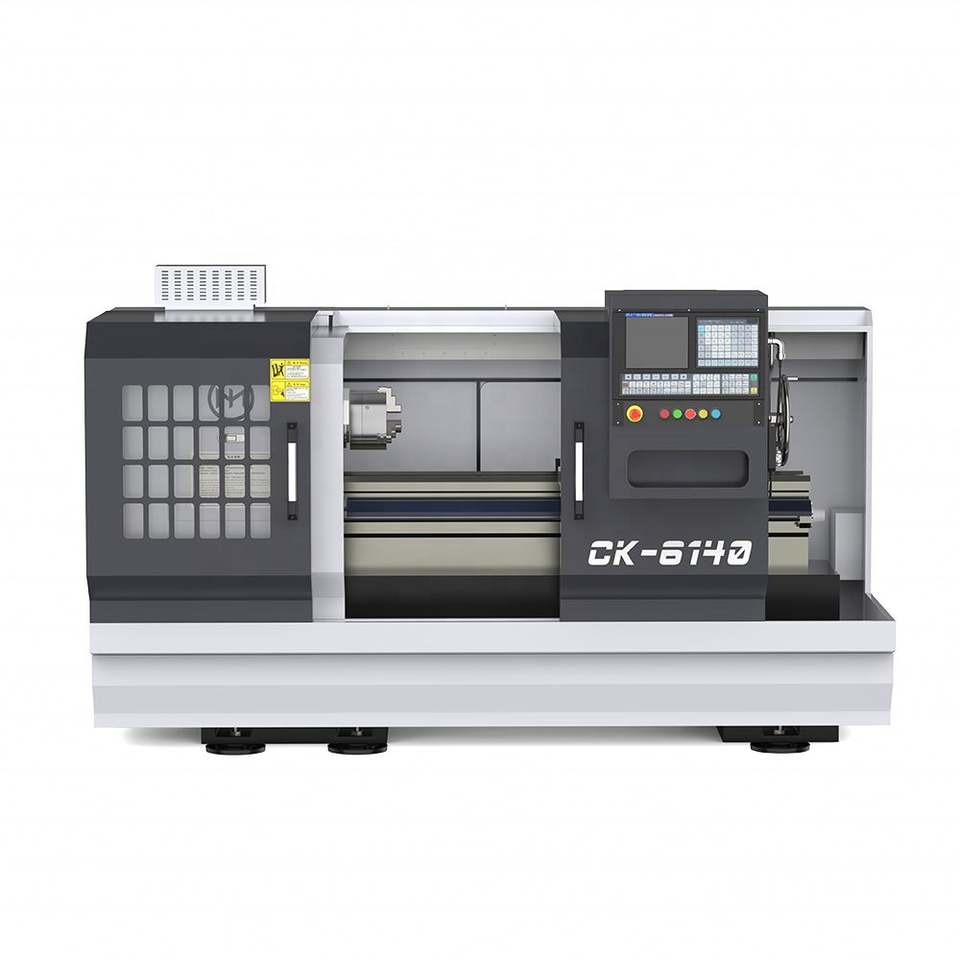

Product name:Chinese Machine Tool Factory mini lathe machine CK6140
CNC Controller:Siemens 808DA
CNC or Not:CNC Lathe Machine
Positioning Accuracy (mm):±0.005
Repeatability (X/Y/Z) (mm):±0.005
X axis rapid traverse:6m/min
Z axis rapid traverse:8m/min
X axis servo motor torque:4 N.m
Z axis servo motor torque:6N.m
Guide way type:Hard rail
