Attributes
380 V, 220V Electrical Equipmentvoltage
FANUCcnc control system
Light Dutymachining capacity
3number of axes
Singleno. of spindles
250max. length of workpiece (mm)
key selling points:Multifunctional, Automatic
repeatability (x/y/z) (mm):±0.005
positioning accuracy (mm):±0.005
warranty:1 Year

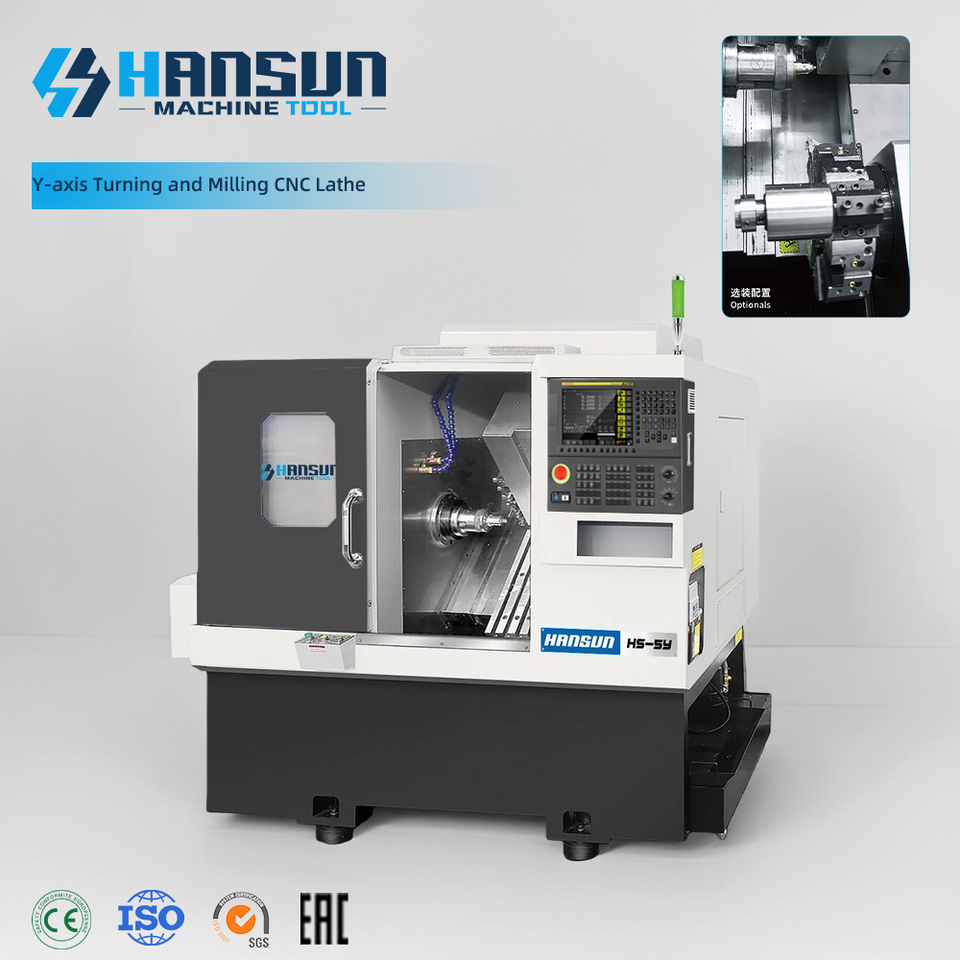

type:cnc lathe
machinery test report:Provided
video outgoing-inspection:Provided
max. weight of workpiece(kg):50
travel (x axis)(mm):1020
travel (z axis)(mm):250
place of origin:Guangdong, China
dimension(l*w*h):2400x1500x2000
brand name:HANSUN
model number:5Y
weight:3100
range of spindle speed:0 - 4500
CNC or Not:CNC
Control system:SYNTEC
max process diameter:400mm
spindle nose:A2-4
spindle speed:4500r/min
spindle bore:46mm
y axis travel:210mm
chuck size:5 inch
center height:96mm
y axis power structure:side milling*4+end milling*4
max passable bar diameter:35mm
y axis power head speed:4000r/min
x/z axis fast moving speed:X:26 Z:26 Y:18
