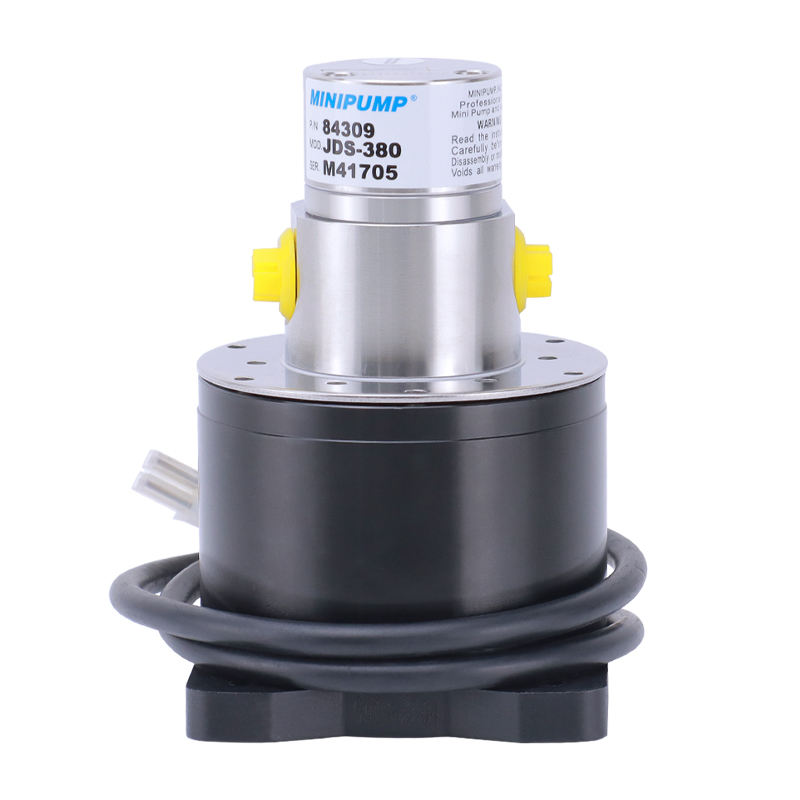

Compact Size High Pressure Mini Magnetic Drive Gear Pump Food Grade Self-Priming Precise Filling Machine Liquid Pump

No reviews yet
£16459
1-99 pieces
£13167
100-499 pieces
£10972
≥500 pieces
Select now

Flow Rate

1.4L/min(water as medium)

maximum head

other

type

Positive Displacement Pumps

+ 1 more variants

Customization options
motor (Min. order: 1 piece)

Key attributes

application

fluid control

pressure

high pressure

customized support

OEM, ODM, OBM

place of origin

Guangdong, China

power source

Electric

warranty

1 Year

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Key attributes

application
fluid control
pressure
high pressure
customized support
OEM, ODM, OBM
place of origin
Guangdong, China
power source
Electric
warranty
1 Year
model number
GQA032ESLB01
brand name
MINIPUMP
Applicable temperature
-40 to 105 degrees Celsius
Chemical Compatibility
Alcohol
Connection Type
Flange Connection
Control Method
Fully Automatic Control
Discharge Pipe Size
1/2 in
Displacement
0.32 mL/rev
Impeller Material
Stainless Steel
Max Flow Rate
1.4L/min(water as medium)
Max Pressure
1.2MPa
motor
Servo Motor, Stepper Motor, Brushless DC Motor
Outlet Type
Universal Style
Sealing Material
Ceramic
structure
magnetic gear pump
Material
Stainless Steel

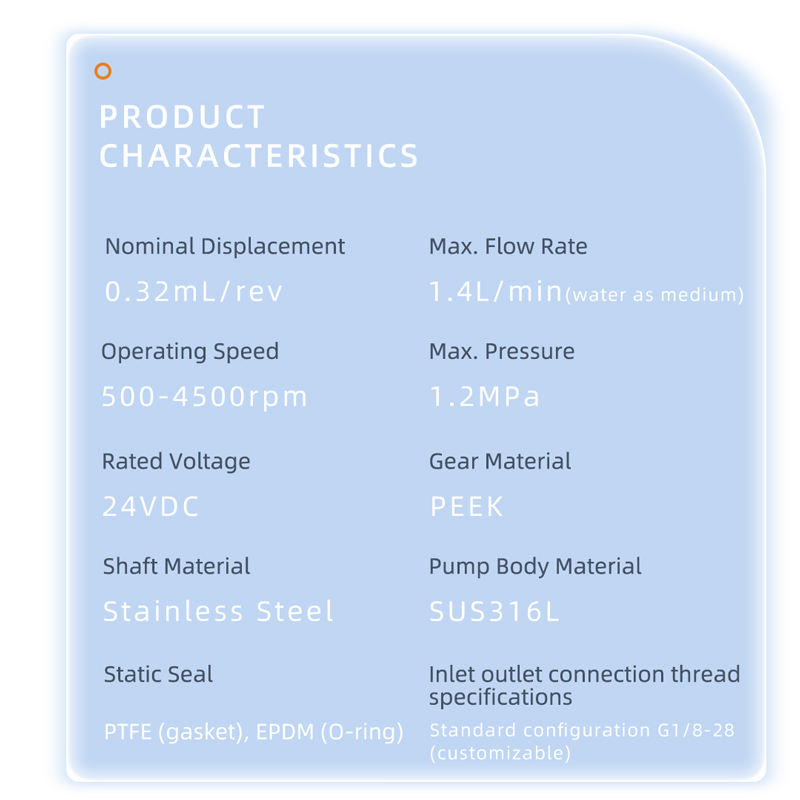

Nominal Displacement
0.32mL/rev
Max. Flow Rate
1.4L/min(water as medium)
Max. Pressure
1.2MPa
Viscosity Range
0.5-1500CP
Operating Speed
500-4500rpm
Rated Voltage
24VDC
Rated Power
40W
Gear Material
PEEK
Shaft Material
Stainless steel
Pump Body Material
SUS316L
Static Seal
PTFE (gaskets), EPDM (O-rings)
thread specifications
Standard configuration G1/8-28 (customizable)
Compatible Drive
Brushless DC Motor,Stepper Motor,Servo Motor
Temperature resistance
-40 to 105 degrees Celsius
