Attributes
5-YearWarranty(Year)
Guangdong, ChinaPlace of Origin
PVL-12200TModel Number
Pt POWER, Pt PowerBrand Name
Led Lighting, Outdoor LightingApplication
AluminumCase Material
Dimming:Triac 5 in 1 Dimmable
Dimming Mode:TRIAC/Phase,0-10V,1-10V,10V PWM,Potentiometer
Efficiency:89%-92%
Energy Transfer:AC-DC
Input Voltage:100-277VAC
Lighting solutions service:Lighting And Circuitry Design, other
Output Current:8.33A/16.7A
Output Frequency:50-60HZ
Output Power:200W
Output Type:Single
Product Weight（kg）:1.48
Topology:Ac-Dc Converter
Type:IP67 Waterproof
OEM/ODM:Yes
Warranty:5 Years
Working temperature:-25°C~+60°C
IP Rate:IP67
Power Factor:≥0.95
EMC emission:FCC part 15

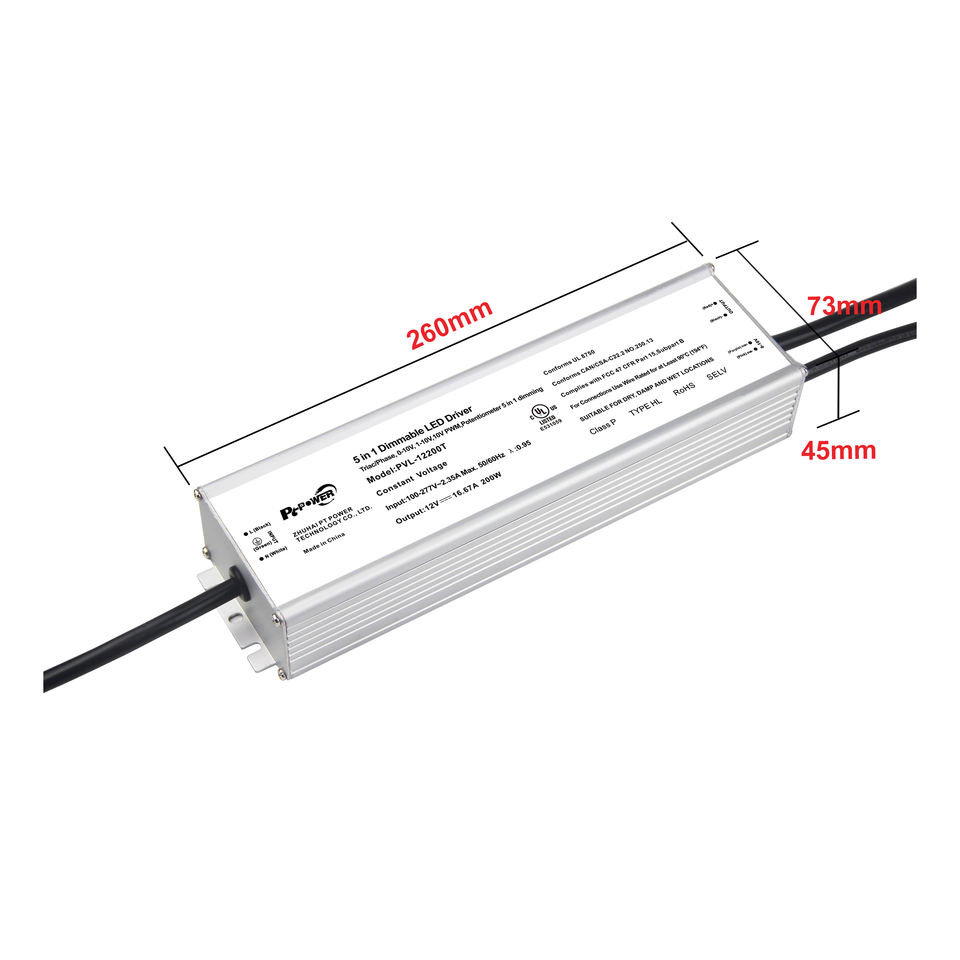

Size:260*73*45mm
Type:Constant Voltage LED Driver
Certification:UL/CUL/FCC/Class P/TYPE HL/RoHS
Safety Standard:Ul8750(Class P, TYPE HL),CAN/CSA-C22.2 NO.250.13
Protection:Short Circuit, Overload and Over-temperature protection
