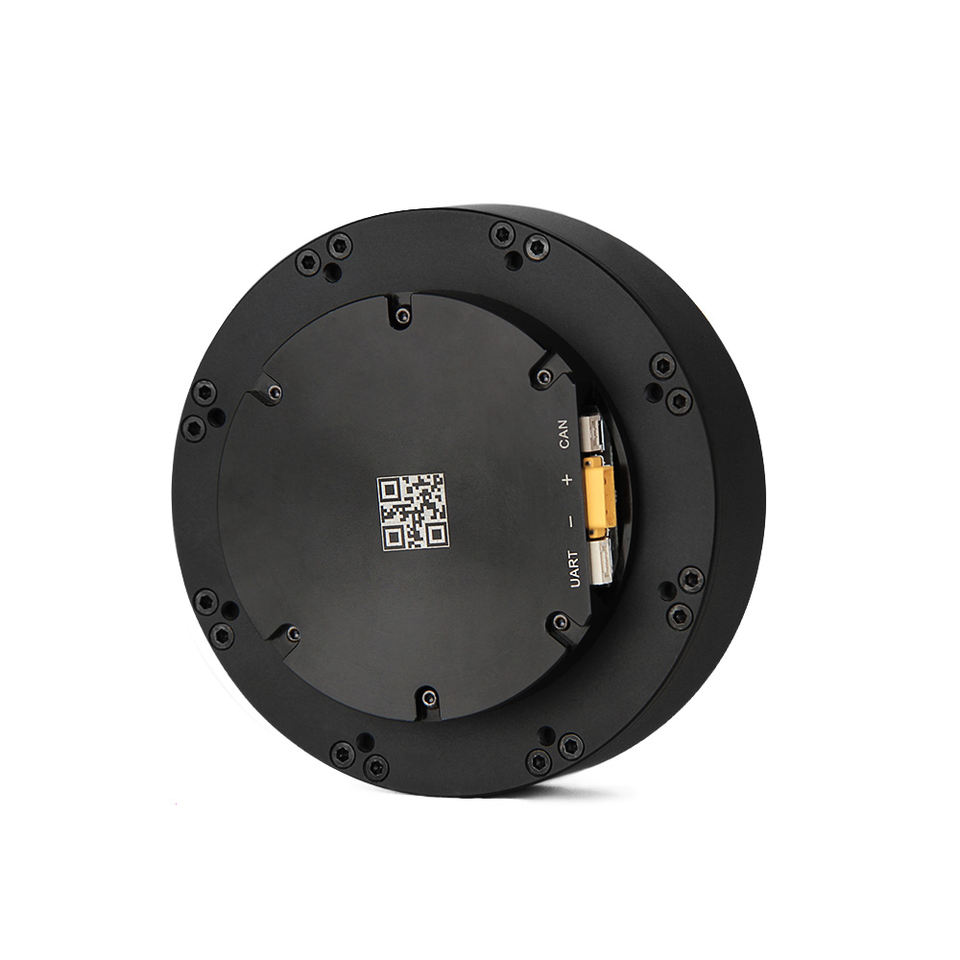

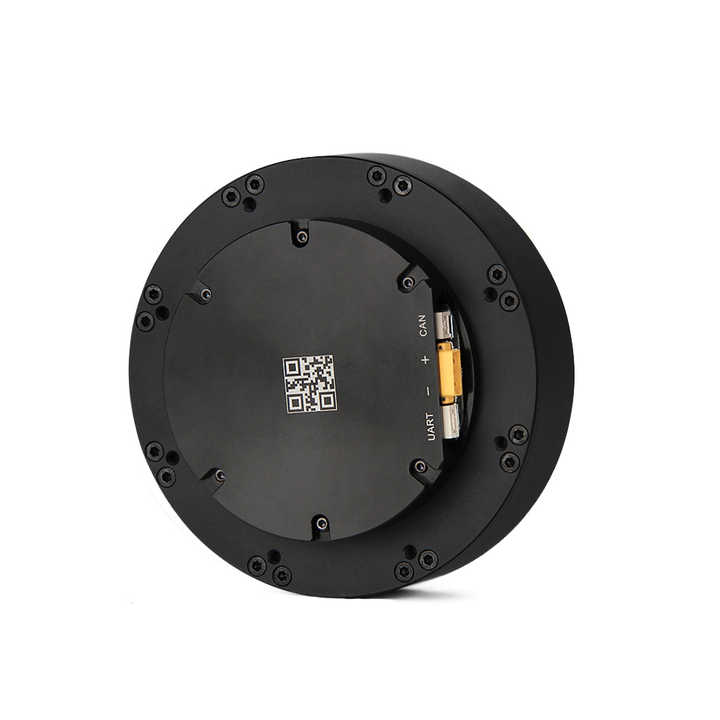

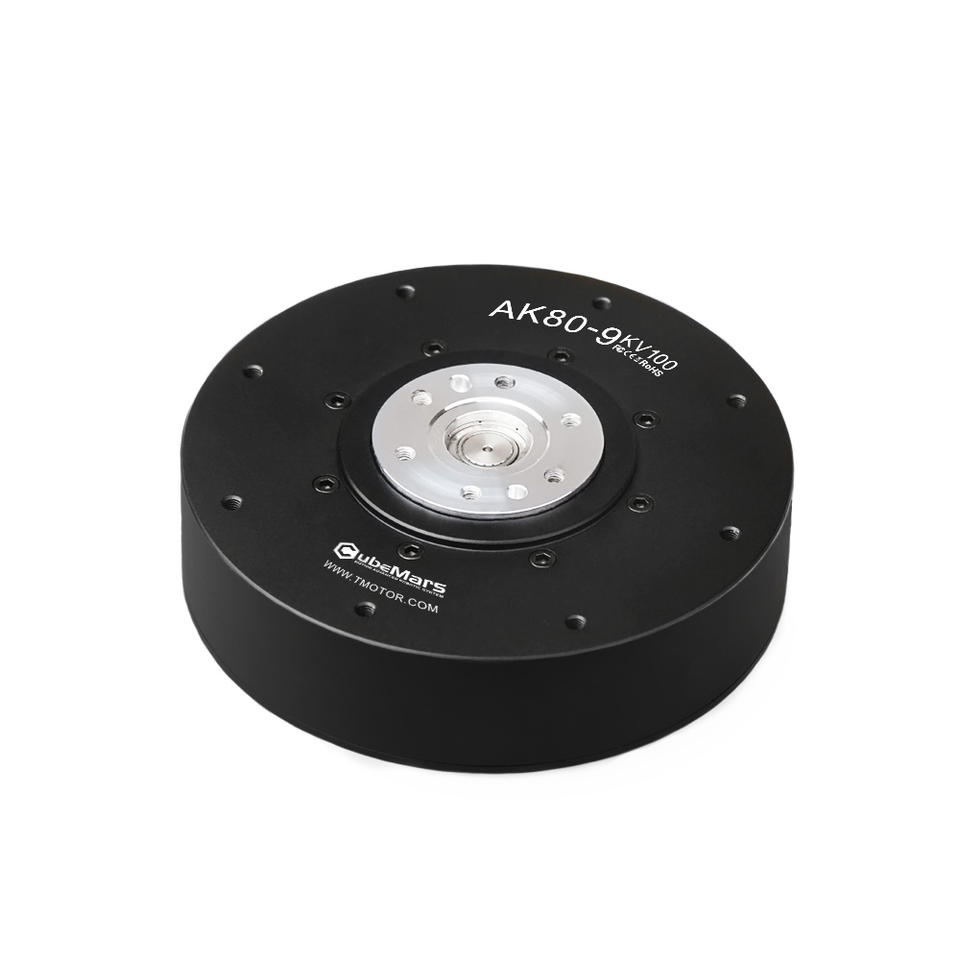

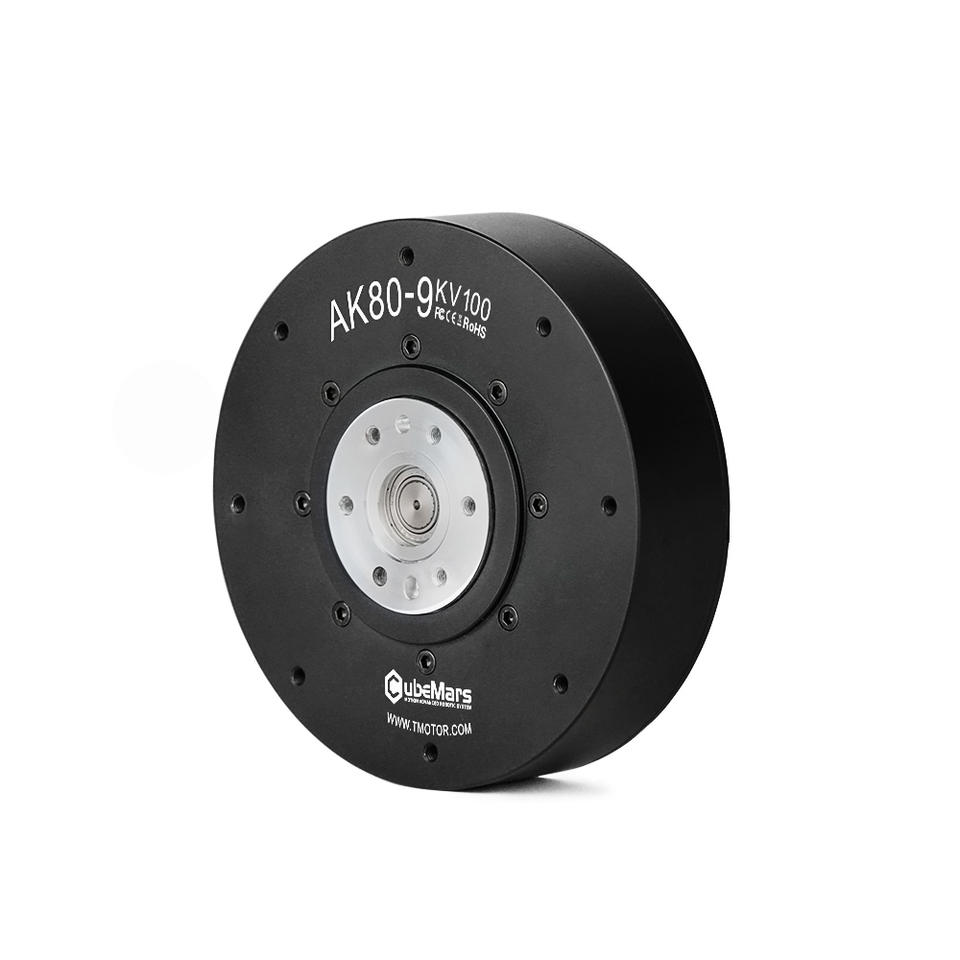

CubeMars AK80-9 High Torque Module Brushless DC 10nm 18Nm MIT Cheetah Robot Gear Motor for Robot Dog

See reviews

Nanchang Sanrui Intelligent Technology Limited Liability Company

17 yrs

CN

Attributes

BrushlessCommutation

48VRated voltage

1056WRated Power

Rated speed (rpm) : 390Speed Rpm

245rpm/24Speed(RPM)

IE 4Efficiency

Continuous Current(A):390 rpm

Place of Origin:Jiangxi, China

Frame:Yes

Motor Mounting Type:Combination Mounting

Model Number:AK80-9

Brand Name:CubeMars

Construction:Permanent Magnet

Protect Feature:Explosion-proof

Torque:9nm/18nm

Type:Servo Motor with Gear

Usage:Robot dog, robotic arm, exoskeleton robot, mit cheetah, agv car, high precision equipments

Warranty:3 months ~ 1 year

Weight (g):485g

Rated Torque (N.m):9 N.m

Peak Torque (N.m):18 N.m

Pole-Pair:21

Driving way:FOC

Phase:Three Phase

Reduction ratio:9:1

Maximum torque weight ratio (Nm/kg):37

Inner loop encoder type:Magnetic encoder

Certification:CE Rohs ISO FCC

Service

1-year warranty

1-year warranty

Key attributes

Commutation

Brushless

Rated voltage

48V

Rated Power

1056W

Speed Rpm

Rated speed (rpm) : 390

Speed(RPM)

245rpm/24

Efficiency

IE 4

Type

Servo Motor with Gear

Construction

Permanent Magnet

Frame

Yes

Motor Mounting Type

Combination Mounting

Protect Feature

Explosion-proof

Usage

Robot dog, robotic arm, exoskeleton robot, mit cheetah, agv car, high precision equipments

Warranty

3 months ~ 1 year

Continuous Current(A)

390 rpm

Model Number

AK80-9

Torque

9nm/18nm

Place of Origin

Jiangxi, China

Brand Name

CubeMars

Weight (g)

485g

Rated Torque (N.m)

9 N.m

Peak Torque (N.m)

18 N.m

Pole-Pair

21

Driving way

FOC

Phase

Three Phase

Reduction ratio

9:1

Maximum torque weight ratio (Nm/kg)

37

Inner loop encoder type

Magnetic encoder

Certification

CE Rohs ISO FCC

Packaging and delivery

Selling Units

Single item

Single package size

12X8X8 cm

Single gross weight

0.800 kg

Lead time

Product descriptions from the supplier

FREE shipping capped at £20

Minimum order quantity: 1 piece

£34285-41905
