Custom Portable Distribution Box 3 Outlet 16A Industrial Socket 1P+N 32A RCD+3 MCB IP65 for Construction Distribution box
No reviews yet
Attributes
220 VRated Voltage
16 A, 32 ARated Current
Industrial Power EnclosureApplication
Ip44IP Level
Distribution BoxType
0Number of Sockets
Place of Origin:Guangdong, China
Model Number:YH-ST75
Brand Name:Yuhe
Lock Type:/

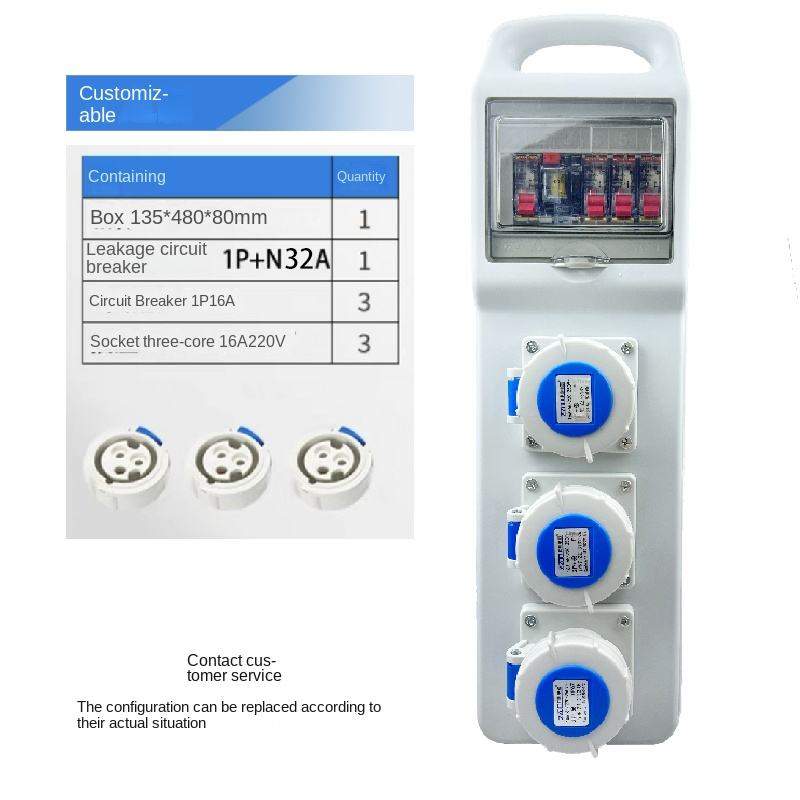

Product Type:Portable waterproof socket box with customizable configuration
Shell Material:High strength PC (polycarbonate), impact resistant
Protection Rating:IP54, dust protected and splash proof from all directions
Forming Process:Integrated molding, seamless and durable construction
Enclosure Size:135mm height x 480mm width x 80mm depth
Color:Gray or customizable as per customer request
Mounting Type:Portable with handle or wall mounted
Handle:Built-in carrying handle for easy transport
Lockable Buckle:Anti-off buckle, can be padlocked for security
Sealing Ring:Rubber sealing ring for dust and rain protection
Internal Components:Brand components, reliable and durable
Leakage Protection:1P+N 32A residual current device (RCD) for safety
RCD Sensitivity:30mA trip current for shock prevention
Main Switch Rating:32A for RCD main incoming
Circuit Breaker:1P 16A miniature circuit breaker (MCB), 3 pieces
Socket Type Option 1:16A 220V three-core industrial socket (3 pieces)
Socket Type Option 2:10A 220V five-hole waterproof socket (3 pieces)
Number of Outlets:3 outlets standard, configurable
Pre-wired:Box is pre-wired, ready to use directly
Earthquake Resistance:High hardness, resistant to vibration and shock
Drop Resistance:Can withstand accidental drops without damage
Weatherproof:UV resistant, suitable for outdoor use
Operating Temperature:-25°C to +60°C wide temperature range
Customizable Configuration:Sockets, breakers, and RCD can be changed on request
Cable Entry:Bottom or side cable gland entry (not pre-wired input)
Gland Thread Size:PG or metric thread, suitable for standard cable glands
Application 1:Construction sites, temporary power supply
Application 2:Outdoor events, camping, and emergency power
Application 3:Industrial maintenance, workshops, and garages
Custom Logo:Silk screen or label with customer logo available
Key attributes
Rated Voltage
220 V
Rated Current
16 A, 32 A
Application
Industrial Power Enclosure
IP Level
Ip44
Type
Distribution Box
Number of Sockets
0
Lock Type
/
Place of Origin
Guangdong, China
Model Number
YH-ST75
Brand Name
Yuhe
Product Type
Portable waterproof socket box with customizable configuration
Shell Material
High strength PC (polycarbonate), impact resistant
Protection Rating
IP54, dust protected and splash proof from all directions
Forming Process
Integrated molding, seamless and durable construction
Enclosure Size
135mm height x 480mm width x 80mm depth
Color
Gray or customizable as per customer request
Mounting Type
Portable with handle or wall mounted
Handle
Built-in carrying handle for easy transport
Lockable Buckle
Anti-off buckle, can be padlocked for security
Sealing Ring
Rubber sealing ring for dust and rain protection
Internal Components
Brand components, reliable and durable
Leakage Protection
1P+N 32A residual current device (RCD) for safety
RCD Sensitivity
30mA trip current for shock prevention
Main Switch Rating
32A for RCD main incoming
Circuit Breaker
1P 16A miniature circuit breaker (MCB), 3 pieces
Socket Type Option 1
16A 220V three-core industrial socket (3 pieces)
Socket Type Option 2
10A 220V five-hole waterproof socket (3 pieces)
Number of Outlets
3 outlets standard, configurable
Pre-wired
Box is pre-wired, ready to use directly
Earthquake Resistance
High hardness, resistant to vibration and shock
Drop Resistance
Can withstand accidental drops without damage
Weatherproof
UV resistant, suitable for outdoor use
Operating Temperature
-25°C to +60°C wide temperature range
Customizable Configuration
Sockets, breakers, and RCD can be changed on request
Cable Entry
Bottom or side cable gland entry (not pre-wired input)
Gland Thread Size
PG or metric thread, suitable for standard cable glands
Application 1
Construction sites, temporary power supply
Application 2
Outdoor events, camping, and emergency power
Application 3
Industrial maintenance, workshops, and garages
Custom Logo
Silk screen or label with customer logo available
Packaging and delivery
Selling Units
Single item
Single package size
31.5X23X12 cm
Single gross weight
2.000 kg
Lead time
Customization options
Customized logo(+ from /Min. order: 1,000 pieces)
Customized packaging(+ from /Min. order: 100,000 pieces)
Graphic customization(+ from /Min. order: 10,000 pieces)
View details
Product descriptions from the supplier
10 - 999 pieces
£7.45
1,000 - 9,999 pieces
£3.90
≥ 10,000 pieces
£0.7072
Variations

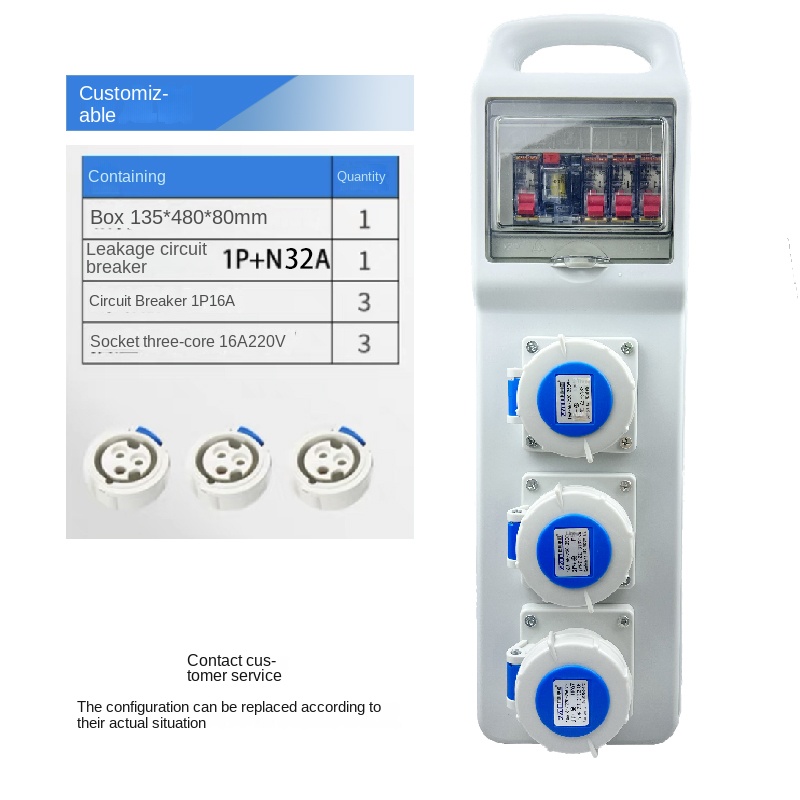

Select nowColor: 32A leakage + 16A circuit breaker + three-pin socket
Material: Plastic
Plastic
Size
135*480*80mm(5.31*18.90*3.15in)
Customization options
Customized logo (Min. order: 1,000 pieces)
Customized packaging (Min. order: 100,000 pieces)
Graphic customization (Min. order: 10,000 pieces)
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
