Attributes
5-YearWarranty(Year)
Guangdong, ChinaPlace of Origin
PV-24150DT-M1A/PV-48150DT-M1AModel Number
Pt POWERBrand Name
Led Lighting, Outdoor Lighting, Street LightApplication
AluminumCase Material
Dimming:Dali
Dimming Mode:DALI& Push Dimming
Efficiency:≥92%
Energy Transfer:AC-DC
Input Voltage:AC170-264V
Lighting solutions service:Lighting And Circuitry Design, Project Installation, Other
Output Current:3.13A/6.25A
Output Frequency:50-60HZ
Output Power:150W
Output Type:Single
Product Weight（kg）:0.58
Topology:Ac-Dc Converter
Type:IP67 Waterproof
Working Temperature:-25°C~+60°C
Waterproof IP Rate:IP67
Certification:CE/CB/SAA RoHS

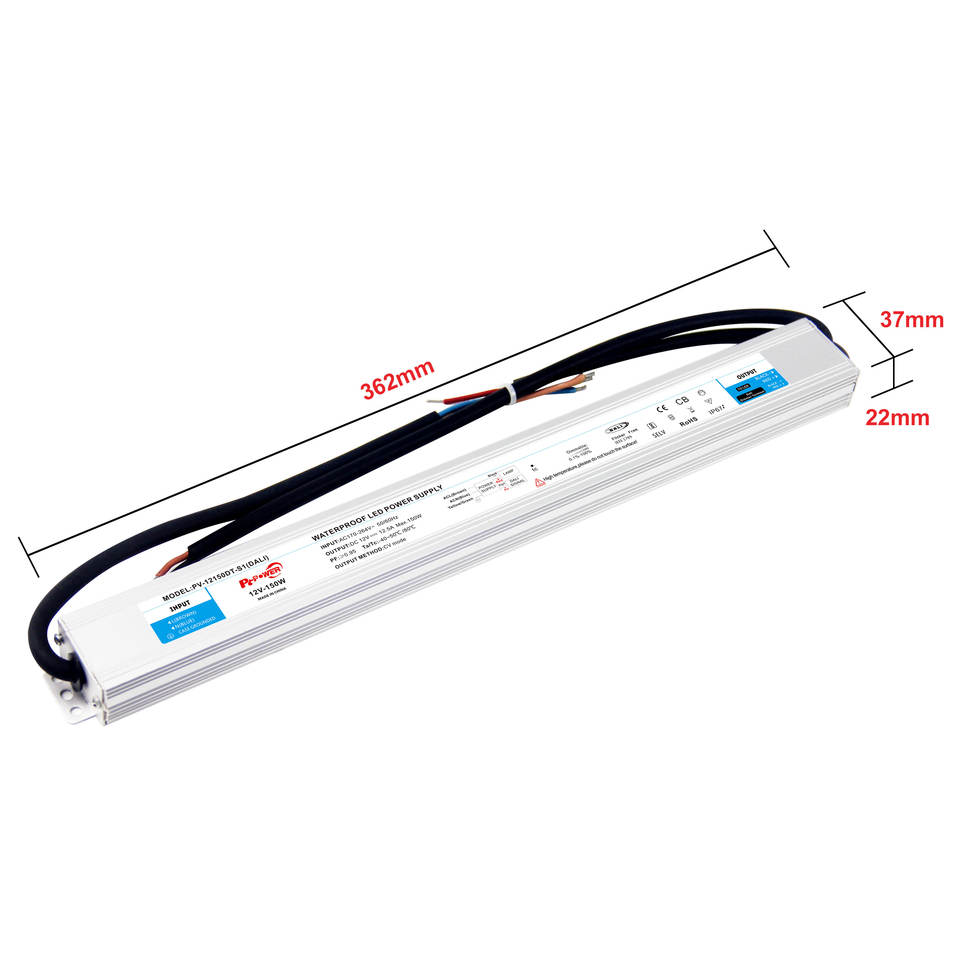

Size:362*37*22mm
OEM/ODM:Yes
Output Voltage:DC 24V 48V
Protection:short circuit, overload protection
DALI standard:IEC62386
EMC standards:EN55015,EN61000-3-2,EN61000-3-3
Safety standard:EN61347-1,EN61347-2-13
Other application:Class 1 2 3 led lighting
standby power consumption:<0.5W
