Attributes
5-YearWarranty(Year)
Guangdong, ChinaPlace of Origin

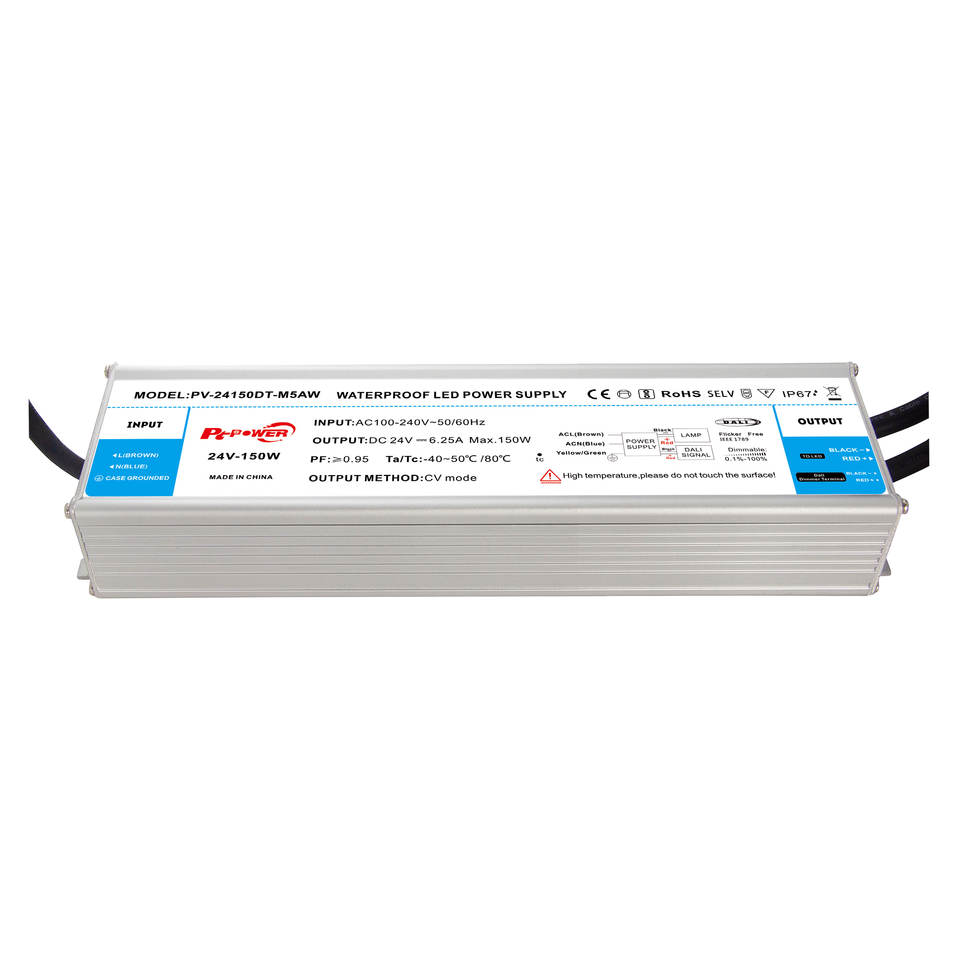

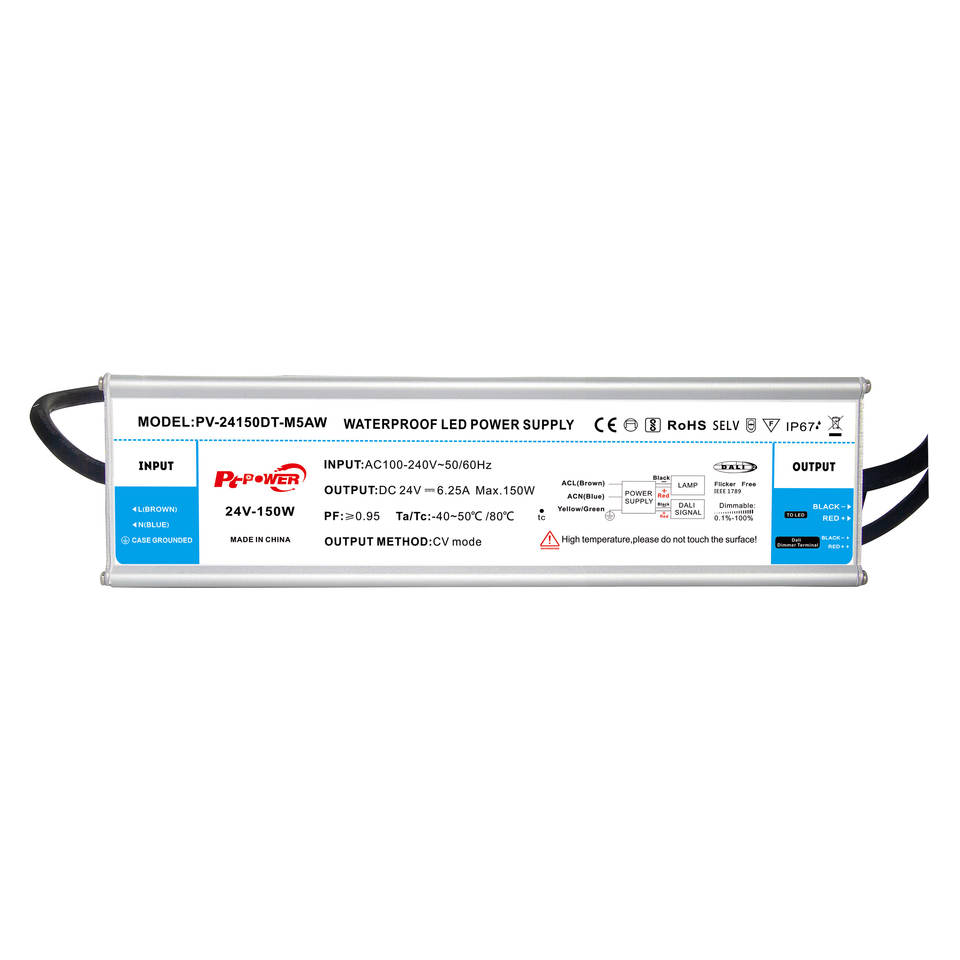

PV-24150DT-M5A/PV-24200DT-M5AModel Number
Pt POWERBrand Name
Led Lighting, Outdoor Lighting, Street LightApplication
AluminumCase Material
Dimming:Dali
Dimming Mode:DALI & Push Dimmable
Efficiency:≥92%
Energy Transfer:AC-DC
Input Voltage:AC170-264V
Lighting solutions service:Lighting And Circuitry Design, Project Installation, Other
Output Current:6.25A/8.33A
Output Frequency:50/60 Hz
Output Power:150W/200W
Output Type:Single
Product Weight（kg）:0.7
Topology:Ac-Dc Converter
Type:IP67 Waterproof
Type:Constant Voltage LED Driver
Waterproof Level:IP67
Certification:CE/CB/SAA/RoHS
OEM/ODM:Yes
Power Factor:PF≥0.95
Feature:Flicker-free dimming 0-100%
Standby power consumption:<0.5W
Working temperature:-25°C~+60°C
EMC Standard:EN55015,EN61000-3-2,EN61000-3-3
Safety standard:EN61347-1,EN61347-2-13
DALI Standard:IEC 62386
Protection:Short circuit, overload protection
