Attributes

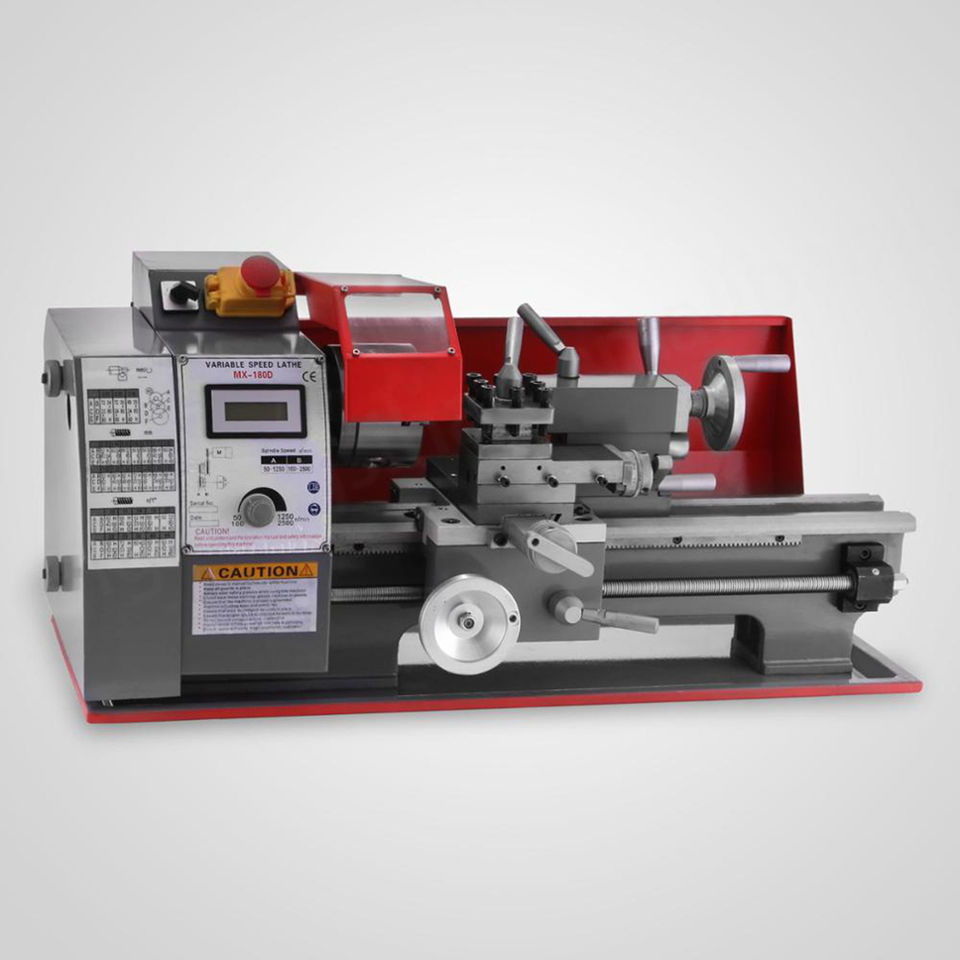

TURNING CENTERtype
300max. length of workpiece (mm)
30max. weight of workpiece(kg)
Singleno. of spindles
55travel (x axis)(mm)
75travel (z axis)(mm)
positioning accuracy (mm):±0.002
repeatability (x/y/z) (mm):±0.002
place of origin:Guangdong, China
warranty:1 Year
machining capacity:Medium Duty
width of bed (mm):180
number of axes:2
dimension(l*w*h):820*470*460mm
brand name:Vevor
model number:180CC000000000001V2
voltage:220V
tool post stations:8
weight:70
key selling points:Multifunctional
machinery test report:Provided
video outgoing-inspection:Provided
cutting torque:2.5
Taper of Spindle Bore:MT3
Taper of Tailstock Quill:MT2
Spindle Speed:50-1250RPM(LOW)/100-2500(HIGH)
Distance Between Centers:12inch(300mm)
Swing Over Bed:7inch (180mm)
Range of Threads:10-44T.P.I (0.5-3mm)
Range of Longitudinal Feeds:0.08-0.16mm
Spindle Bore:1inch (21mm)
Cross Slide Travel:3inch (75mm)
Top Slide Travel:2inch (55mm)
Selling Units:Single item
Single package size:78X48X42 cm
Single gross weight:65.000 kg
