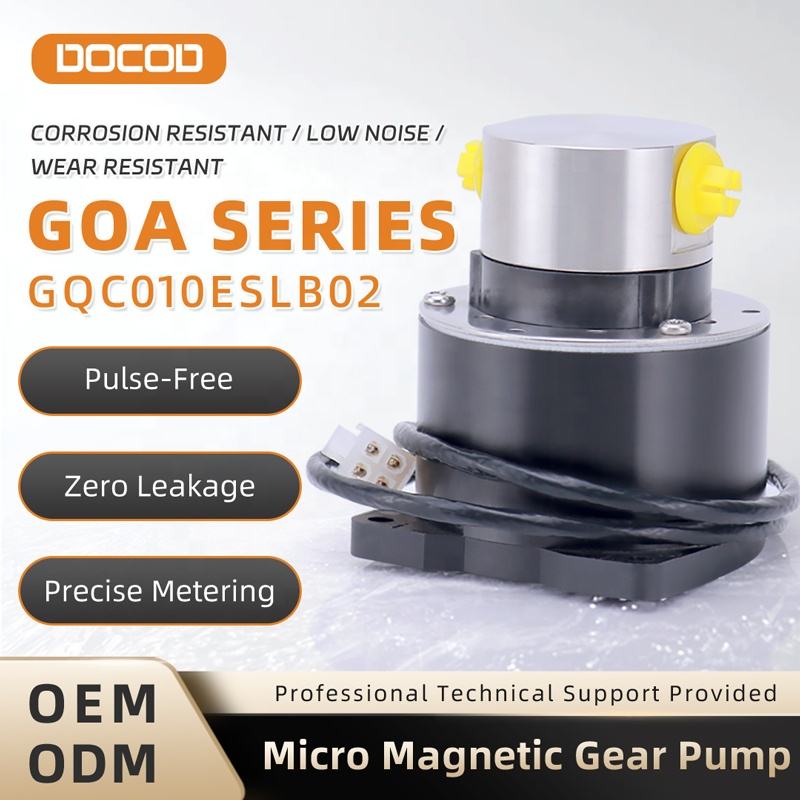

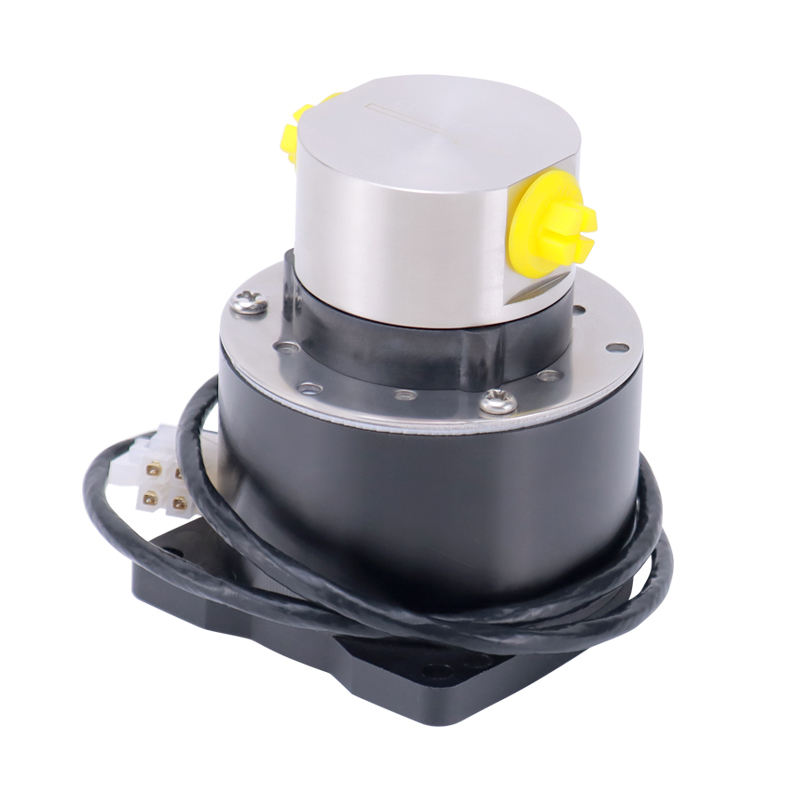

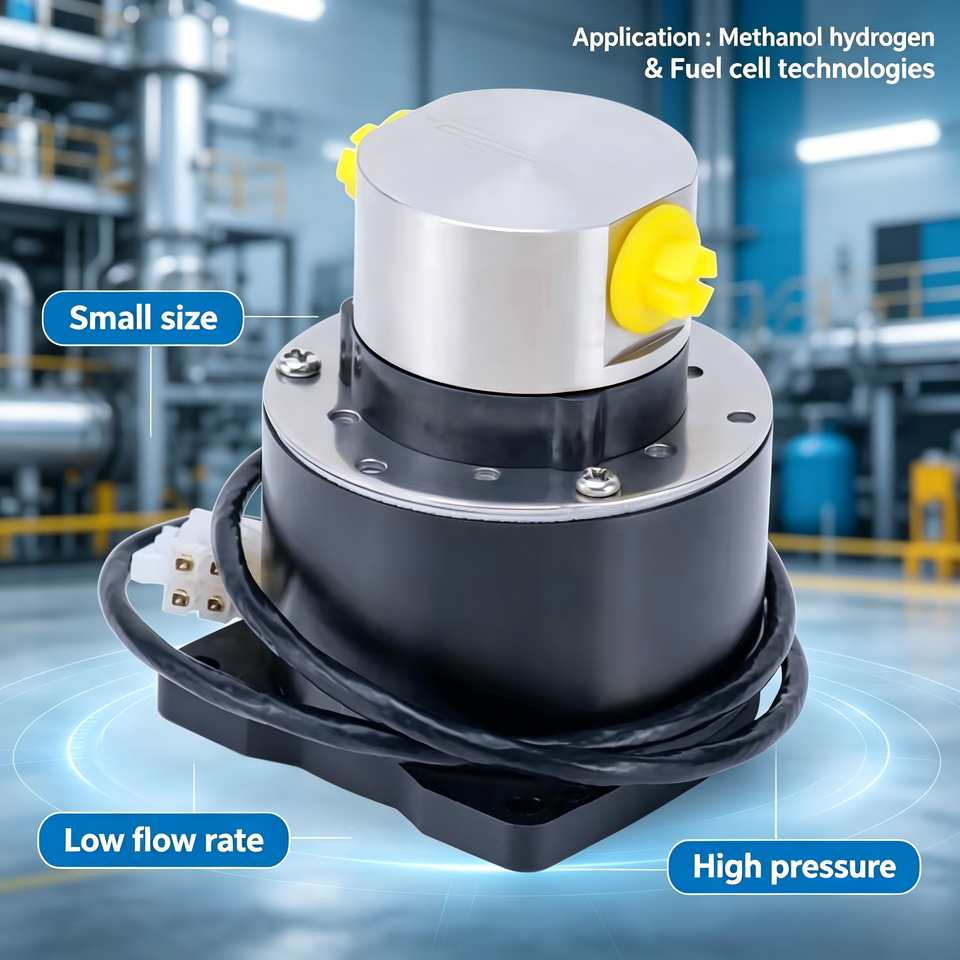

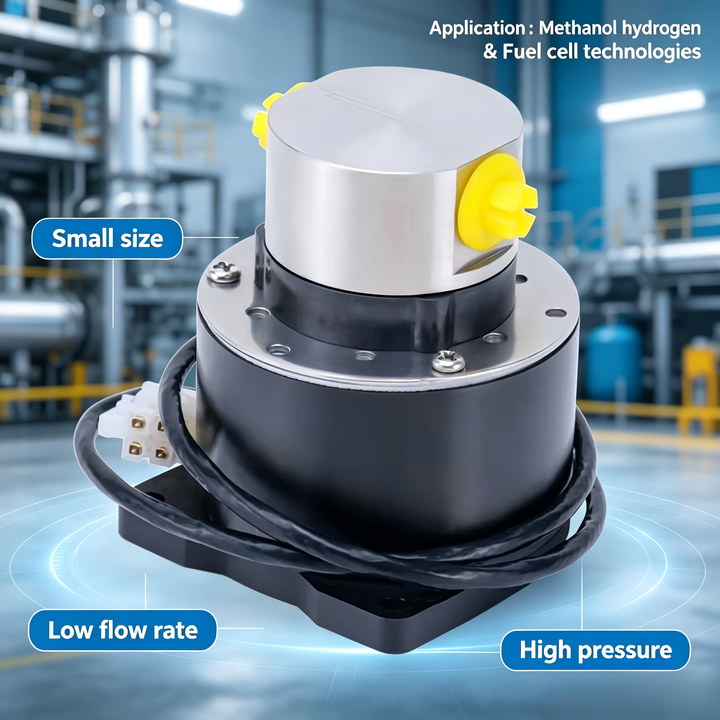

1.6 MPa 316L Stainless Steel Micro Magnetic Drive Gear Pump 24V BLDC Motor for Precision Liquid Metering and Dosing Applications

No reviews yet4 sold billboard

billboard

#5 hot selling in BLDC Motor Pumps

$219.23

1-99 pieces

$175.38

100-499 pieces

$146.15

≥500 pieces

Flow Rate

maximum head

type

Customization options

motor (Min. order: 1 piece)

Key attributes

application

Other

pressure

High Pressure

customized support

OEM, ODM, OBM

place of origin

Guangdong, China

power source

Electric

warranty

1 Year

At a glance

SUS316L Pump Body: The SUS316L stainless steel pump body ensures high corrosion resistance and durability, making it suitable for handling a wide range of chemicals.
PEEK Gear Material: PEEK gears provide excellent chemical and wear resistance, ensuring reliable performance in harsh environments.
Magnetic Drive Sealing: The magnetic drive with PTFE sealing ensures zero leakage, enhancing safety when handling volatile fluids like methanol.
High Pressure Rating: With a maximum pressure rating of 1.6MPa, the pump is capable of delivering stable and precise flow in high-pressure applications.

Shipping

Select shipping

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Payment & financing

Buy now, pay later

Key attributes

application

Other

pressure

High Pressure

customized support

OEM, ODM, OBM

place of origin

Guangdong, China

power source

Electric

warranty

1 Year

model number

GQC010ESLB02

brand name

DOCOD

Applicable temperature

-40 to 105 degrees Celsius

Chemical Compatibility

Water

Max Flow Rate

480mL/min

Max Pressure

1.6MPa

motor

Servo Motor, Brushless DC Motor, Stepper Motor

structure

Gear Pump

Material

Stainless Steel

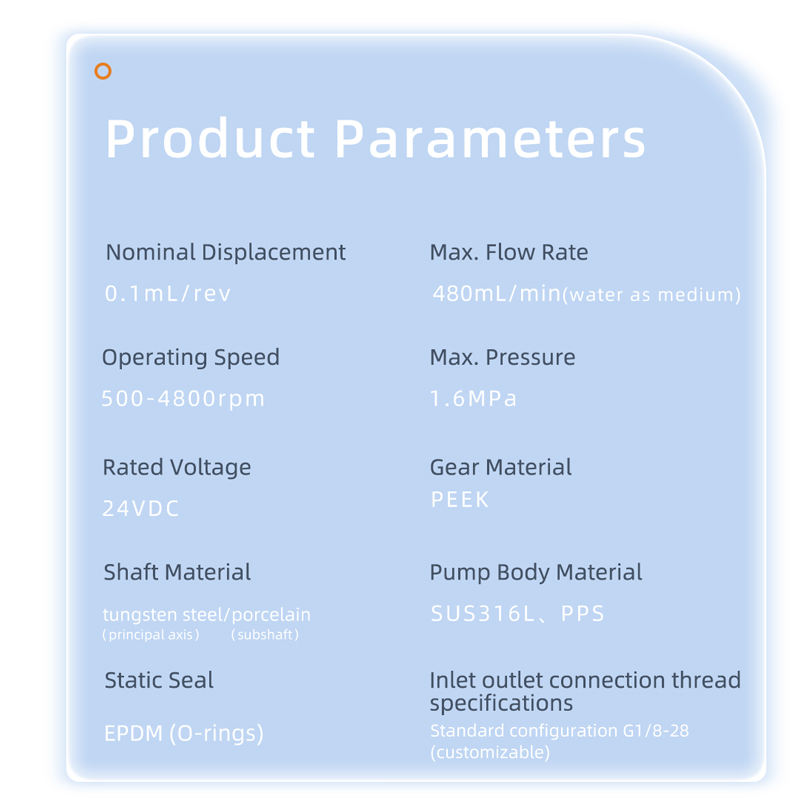

Nominal Displacement

0.1mL/rev

Max. Flow Rate

480mL/min(water as medium)

Max. Pressure

1.6MPa

Viscosity Range

0.5-1500CP

Operating Speeds

500-4800rpm

Rated Voltage

24VDC

Rated Power

20W

Gear Material

PEEK

Pump Body Material

SUS316L

Static Seal

EPDM (O-rings)

thread specifications

Standard configuration G1/8-28(customizable)

Compatible Drive

Brushless DC Motor, Stepper Motor, Servo Motor

Temperature resistance

-40 to 105 degrees Celsius

Shaft Material

Tungsten steel (principal axis), Porcelain(subshaft)
