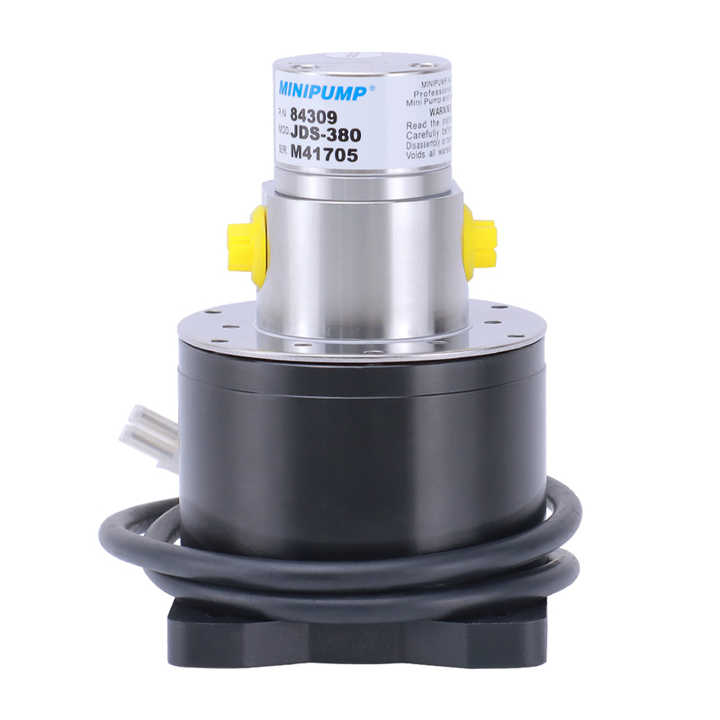

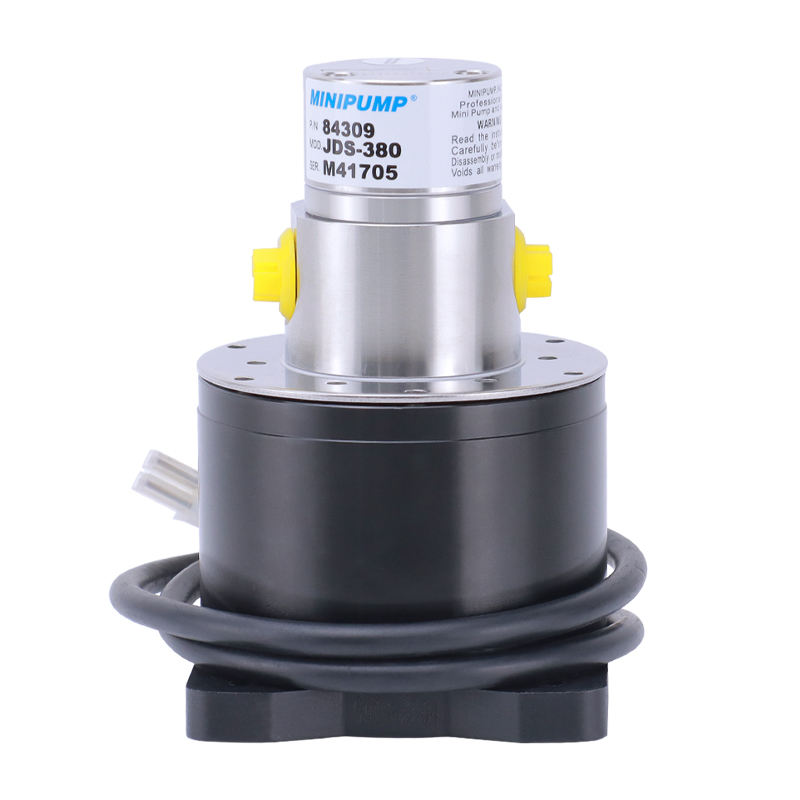

DOCOD 0.32mL/rev Stainless Steel Magnetic Micro Pump with Brushless Motor 24V Oilless Small Gear Water Pump
No reviews yet
Attributes
Otherapplication
0.05-1.2Mpapressure
OEM, ODM, OBMcustomized support
1 Yearwarranty
Guangdong, Chinaplace of origin
Electricpower source
structure:Gear Pump
model number:GQA032ESLB01
brand name:DOCOD
Applicable temperature:-40 to 105 degrees Celsius
Chemical Compatibility:Water

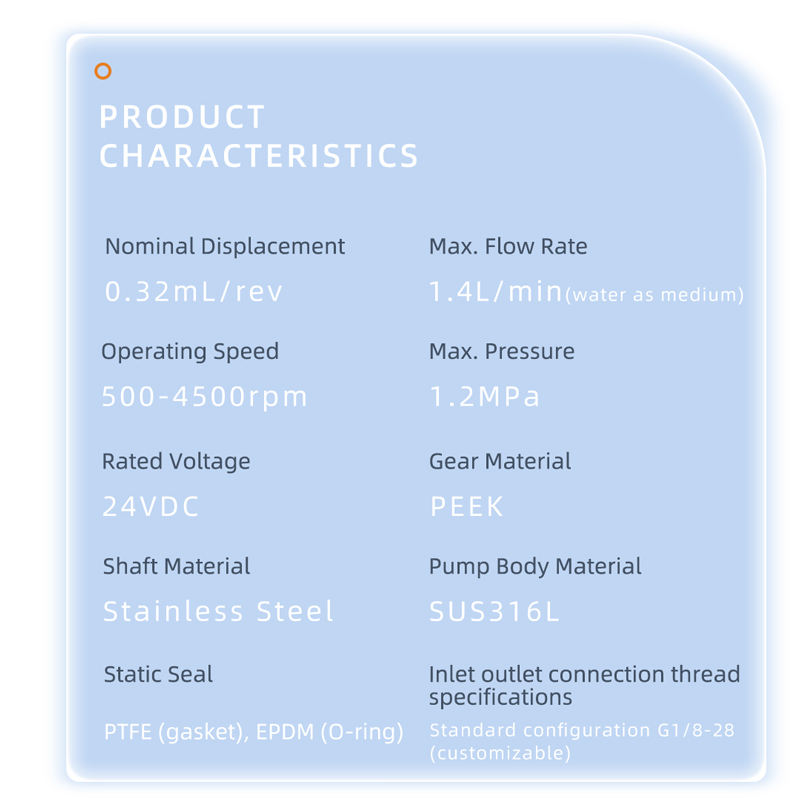

Displacement:0.32mL/rev

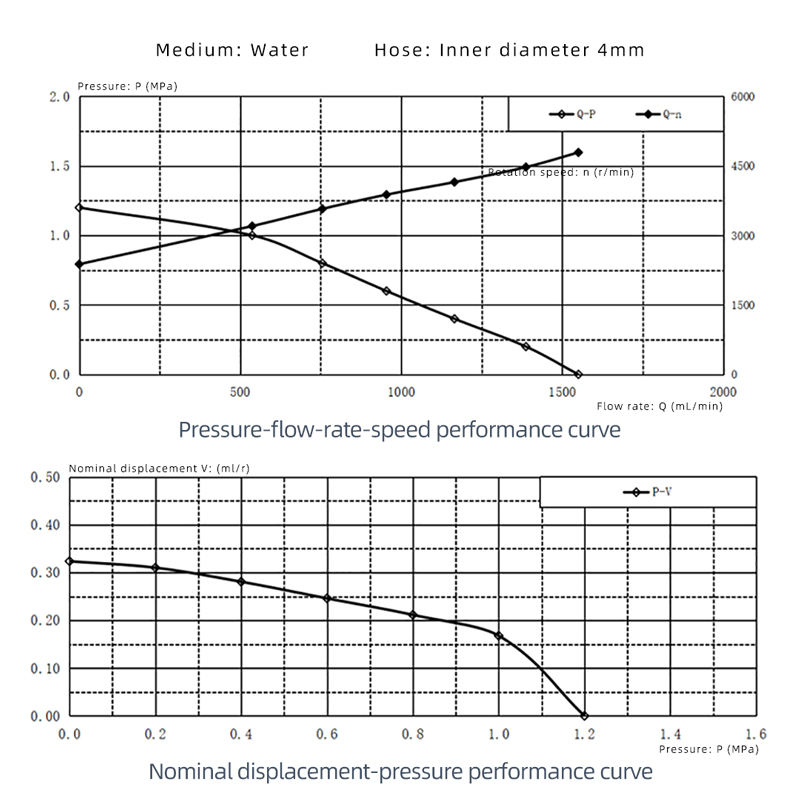

Flow Rate:1.4L/min
Max Flow Rate:1.4L/min(water as medium)
Max Pressure:1.2MPa
motor:Servo Motor, Brushless DC Motor, Stepper Motor
Material:Stainless Steel
Viscosity Range:0.5-1500CP
Operating Speeds:500-4500rpm
Rated Voltage:24VDC
Rated Power:40W
Gear Material:PEEK
Pump Body Material:SUS316L
Static Seal:PTFE (gaskets), EPDM (O-rings)

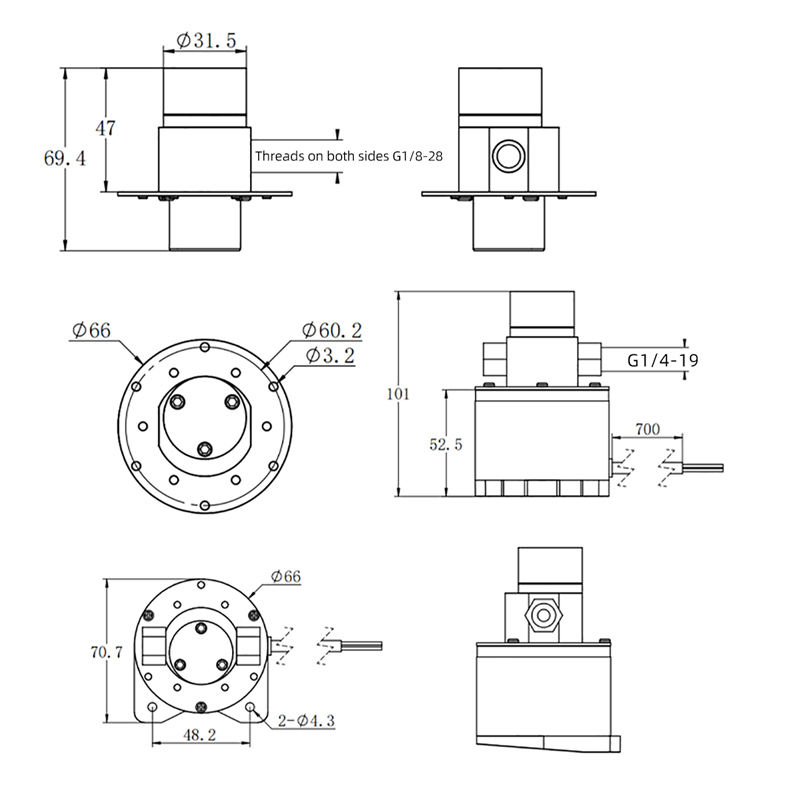

thread specifications:G1/8-28
Shaft Material:Stainless steel
Compatible Drive:Brushless DC, Stepper, Servo
Key attributes
application
Other
pressure
0.05-1.2Mpa
customized support
OEM, ODM, OBM
warranty
1 Year
place of origin
Guangdong, China
power source
Electric
structure
Gear Pump
model number
GQA032ESLB01
brand name
DOCOD
Applicable temperature
-40 to 105 degrees Celsius
Chemical Compatibility
Water
Displacement
0.32mL/rev
Flow Rate
1.4L/min
Max Flow Rate
1.4L/min(water as medium)
Max Pressure
1.2MPa
motor
Servo Motor, Brushless DC Motor, Stepper Motor
Material
Stainless Steel
Viscosity Range
0.5-1500CP
Operating Speeds
500-4500rpm
Rated Voltage
24VDC
Rated Power
40W
Gear Material
PEEK
Pump Body Material
SUS316L
Static Seal
PTFE (gaskets), EPDM (O-rings)
thread specifications
G1/8-28
Shaft Material
Stainless steel
Compatible Drive
Brushless DC, Stepper, Servo
