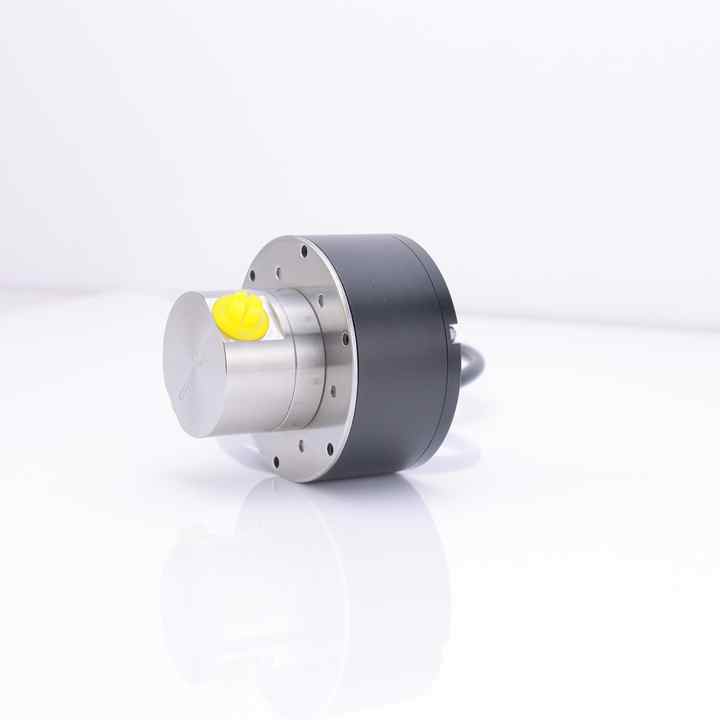

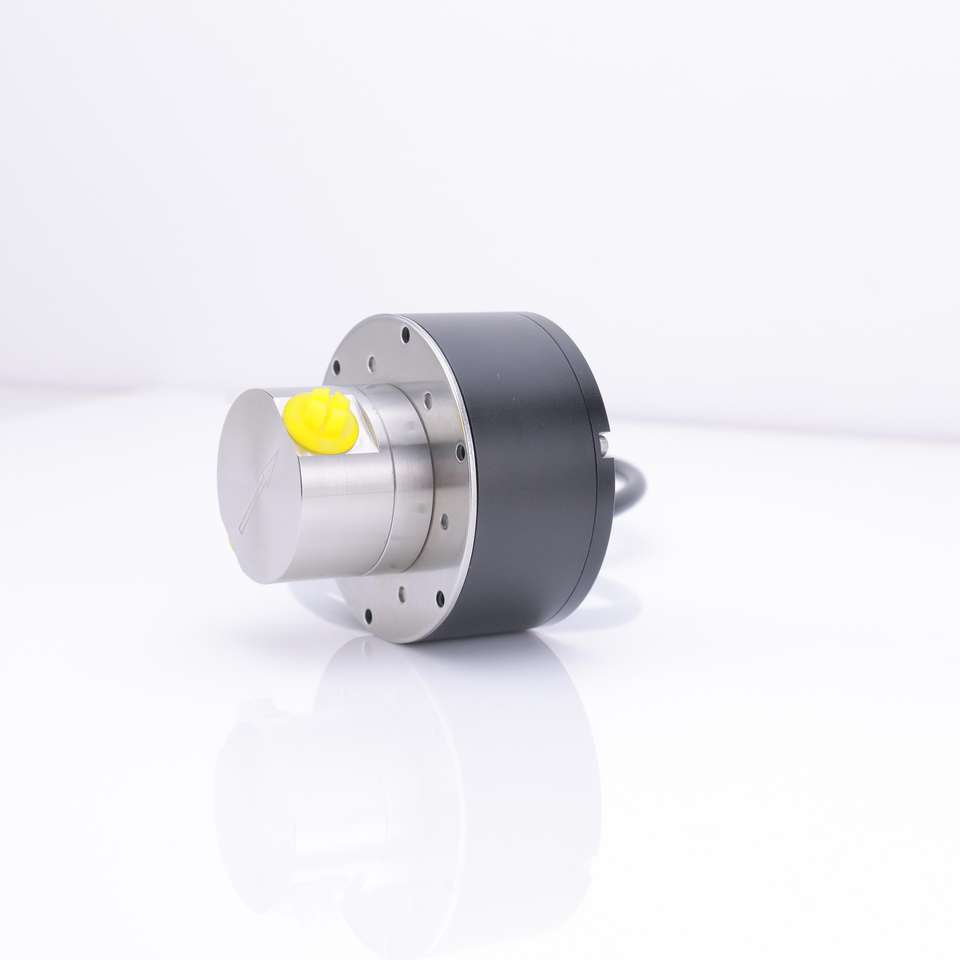

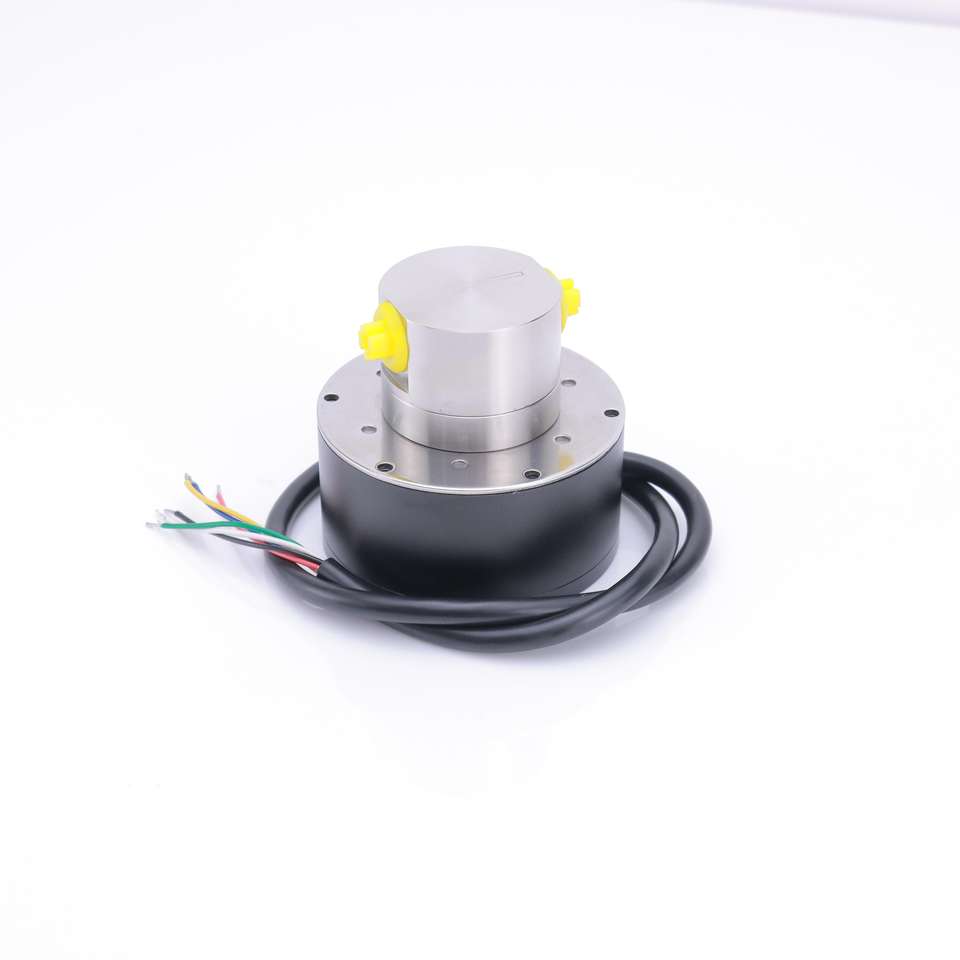

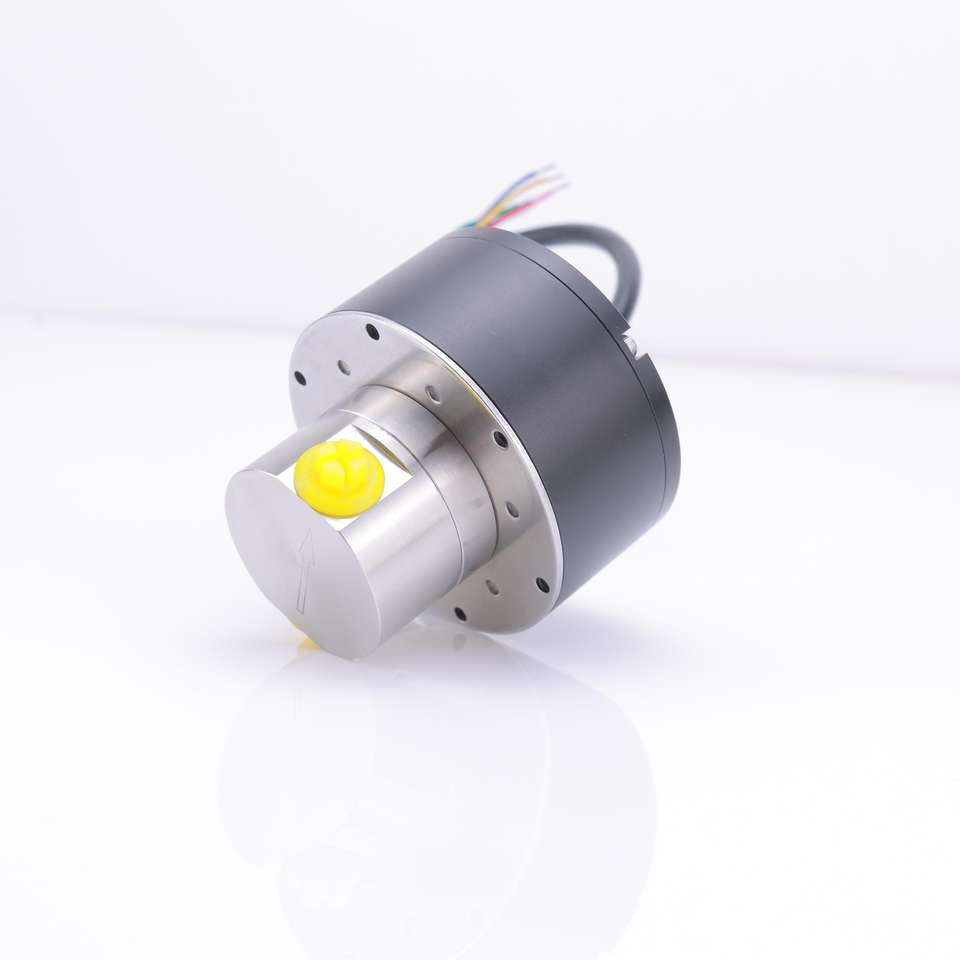

24V DC Precision Metering Magnetic Gear Pump 3MPa High Pressure SS316L Brushless Motor 300mL/min Micro Pump
No reviews yet3 sold
Attributes
Automotive Industryapplication
Gear Pumpstructure
300mL/minMax Flow Rate
3MPaMax Pressure
Electricpower source
Water, oilsChemical Compatibility
pressure:High Pressure
customized support:OEM, ODM, OBM
place of origin:Guangdong, China
warranty:1 Year
model number:GQC010ESLD01
brand name:DOCOD
Applicable temperature:-40 to 105 degrees Celsius
motor:Servo Motor, Brushless DC Motor, Stepper Motor
Sealing Material:Magnetic, PTFE, Stainless Steel
Material:Stainless Steel
Nominal Displacement:0.1mL/rev
Max. Flow Rate:300mL/min(water as medium)
Max. Pressure:3MPa
Rated Voltage:24VDC
Rated Power:70W
Gear Material:PEEK
Pump Body Material:SUS316L
Static Seal:EPDM (O-rings)
thread specifications:Standard configuration G1/8-28(customizable)
Compatible Drive:Brushless DC Motor, Stepper Motor, Servo Motor
Temperature resistance:-40 to 105 degrees Celsius
Shaft Material:Tungsten steel (principal axis), Porcelain(subshaft)
Key attributes
application
Automotive Industry
structure
Gear Pump
Max Flow Rate
300mL/min(10.14fl oz/min)
Max Pressure
3MPa(435.11psi)
power source
Electric
Chemical Compatibility
Water, oils
Sealing Material
Magnetic, PTFE, Stainless Steel
Applicable temperature
-40 to 105 degrees Celsius
Material
Stainless Steel
motor
Servo Motor, Brushless DC Motor, Stepper Motor
warranty
1 Year
customized support
OEM, ODM, OBM
pressure
High Pressure
model number
GQC010ESLD01
brand name
DOCOD
place of origin
Guangdong, China
Nominal Displacement
0.1mL/rev
Max. Flow Rate
300mL/min(water as medium)
Max. Pressure
3MPa
Rated Voltage
24VDC
Rated Power
70W
Gear Material
PEEK
Pump Body Material
SUS316L
Static Seal
EPDM (O-rings)
thread specifications
Standard configuration G1/8-28(customizable)
Compatible Drive
Brushless DC Motor, Stepper Motor, Servo Motor
Temperature resistance
-40 to 105 degrees Celsius
Shaft Material
Tungsten steel (principal axis), Porcelain(subshaft)
Packaging and delivery
Selling Units
Single item
Lead time
Customization options
motor(+ from /Min. order: 1 piece)
View details
Product descriptions from the supplier
Customizable
1 - 99 pieces
£19856
100 - 499 pieces
£15886
>= 500 pieces
£13238
Variations
Select nowFlow Rate: 300mL/min(10.14fl oz/min)
300mL/min(10.14fl oz/min)
maximum head: other
other
type: Gear pump
Gear pump
voltage
24VDC
Customization options
motor (Min. order: 1 piece)
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
