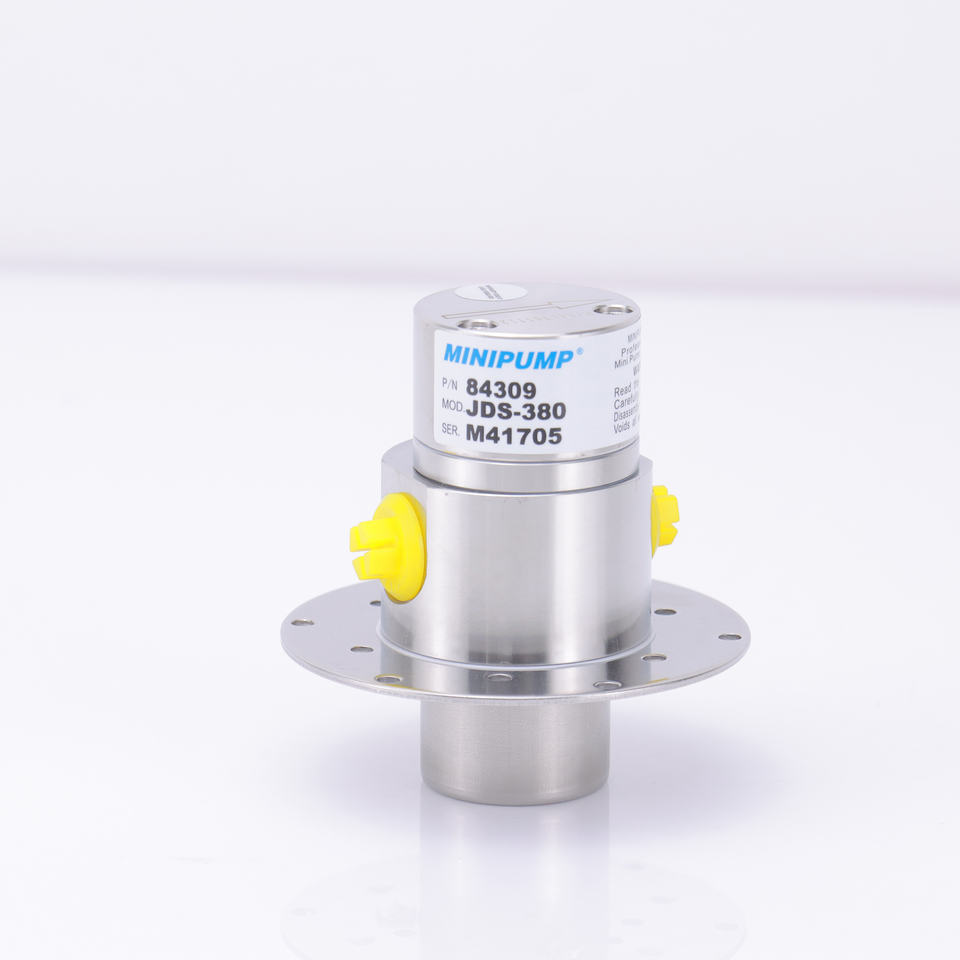

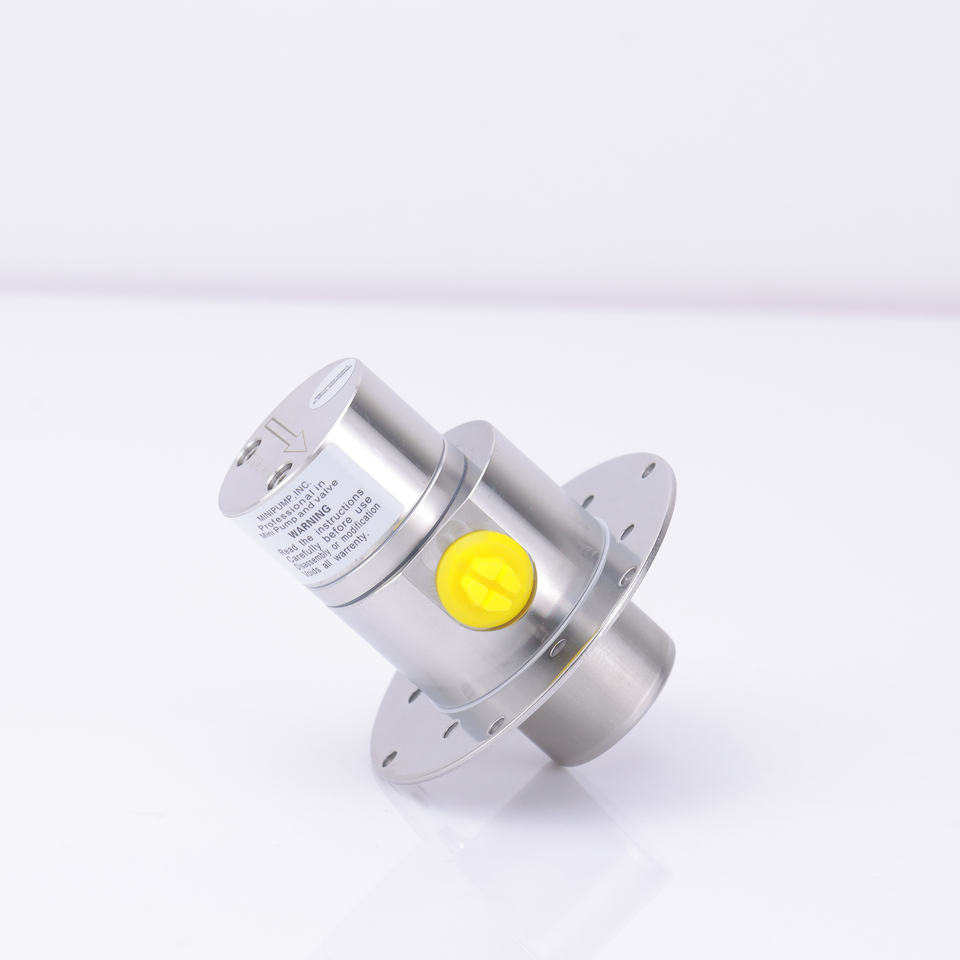

DOCOD 316L Stainless Steel Small Water Oil Pump Metering Ice Cream Coffee Machine Micro Magnetic Drive Gear Pumps Head
No reviews yet
Attributes
Food And Beverage Industryapplication
0.05-1.2Mpapressure
OEM, ODM, OBMcustomized support
1 Yearwarranty
Guangdong, Chinaplace of origin
Electricpower source
structure:Gear Pump
model number:GQA032ESLB01
brand name:DOCOD
Applicable temperature:-40 to 105 degrees Celsius
Chemical Compatibility:Alcohol, Diesel, oils, Water
Displacement:0.32mL/rev
Max Flow Rate:1.4L/min(water as medium)
Max Pressure:1.2MPa
motor:Servo Motor, Brushless DC Motor, Stepper Motor
Material:Stainless Steel
Viscosity Range:0.5-1500CP
Operating Speeds:500-4500rpm
Rated Voltage:24VDC
Rated Power:40W
Gear Material:PEEK
Pump Body Material:SUS316L
Static Seal:PTFE (gaskets), EPDM (O-rings)

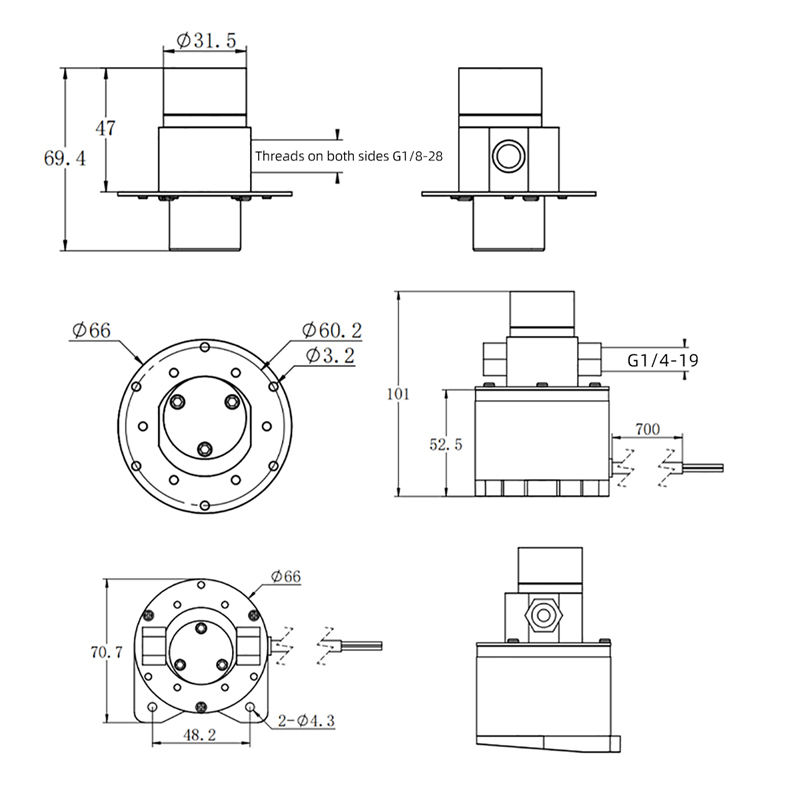

thread specifications:G1/8-28
Shaft Material:Stainless steel
Compatible Drive:Brushless DC, Stepper, Servo
Key attributes
application
Food And Beverage Industry
pressure
0.05-1.2Mpa
customized support
OEM, ODM, OBM
warranty
1 Year
place of origin
Guangdong, China
power source
Electric
structure
Gear Pump
model number
GQA032ESLB01
brand name
DOCOD
Applicable temperature
-40 to 105 degrees Celsius
Chemical Compatibility
Alcohol, Diesel, oils, Water
Displacement
0.32mL/rev
Max Flow Rate
1.4L/min(water as medium)
Max Pressure
1.2MPa
motor
Servo Motor, Brushless DC Motor, Stepper Motor
Material
Stainless Steel
Viscosity Range
0.5-1500CP
Operating Speeds
500-4500rpm
Rated Voltage
24VDC
Rated Power
40W
Gear Material
PEEK
Pump Body Material
SUS316L
Static Seal
PTFE (gaskets), EPDM (O-rings)
thread specifications
G1/8-28
Shaft Material
Stainless steel
Compatible Drive
Brushless DC, Stepper, Servo
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
1 - 99 pieces
£10676
100 - 499 pieces
£8540
>= 500 pieces
£7117
Variations
Select now最大流速: 1.4L/min
1.4L/min
最大扬程: other
other
类型: Gear pump
Gear pump
电压
24VDC
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
