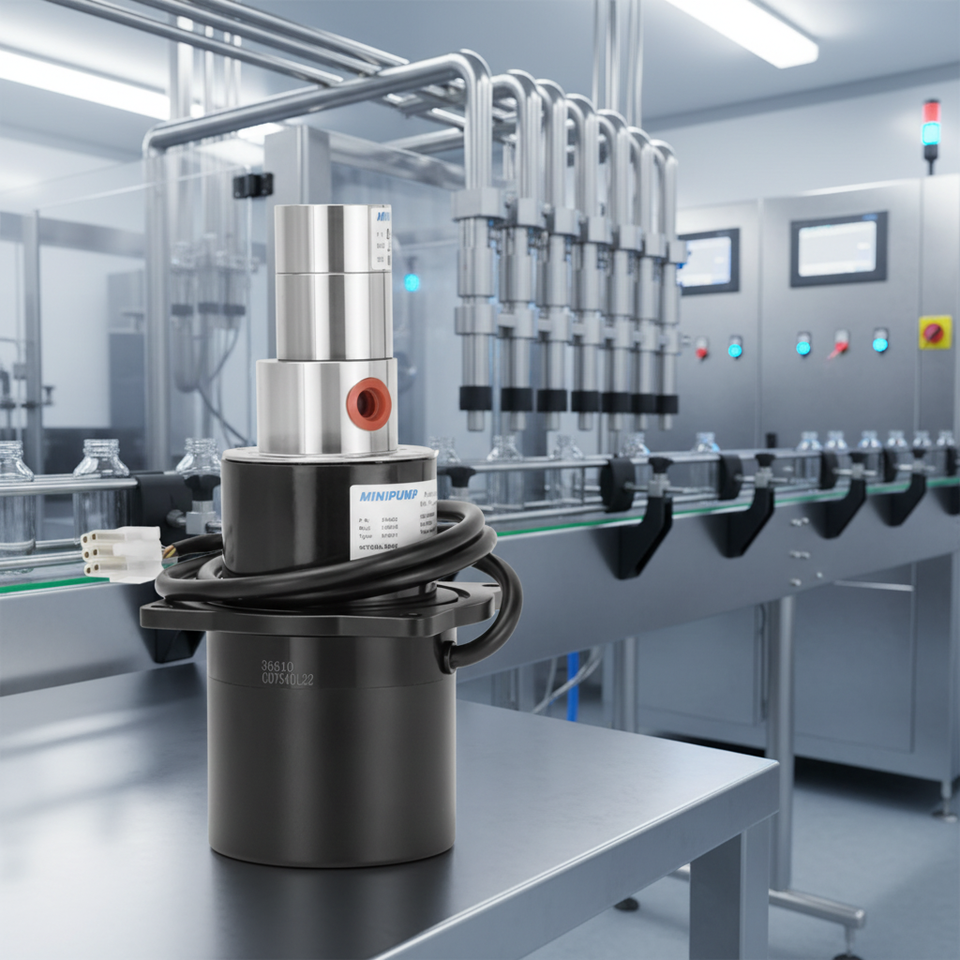

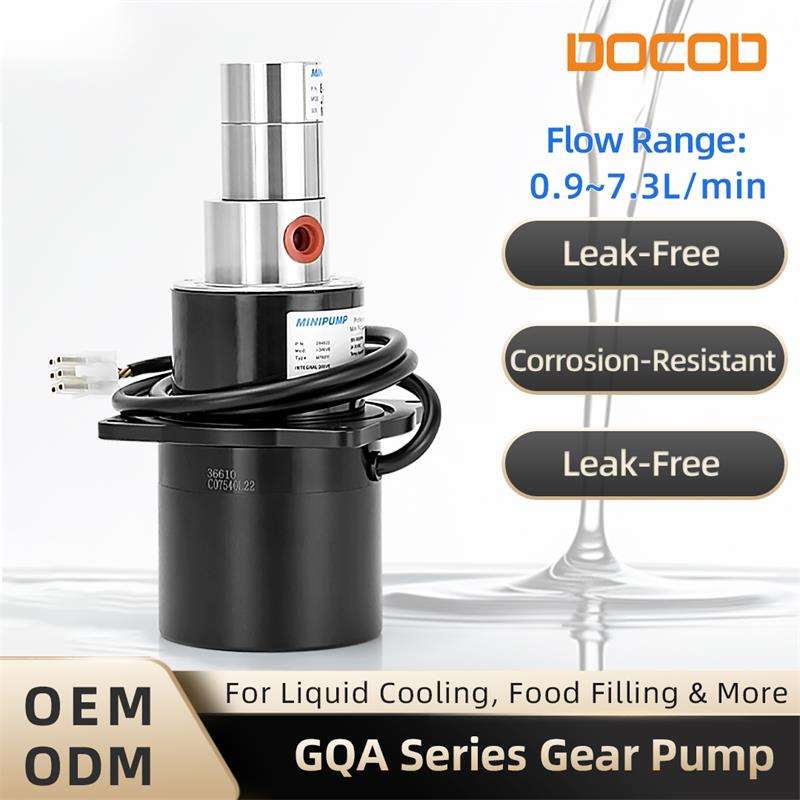

DOCOD Automatic Filling Equipment Quantitative Transmission Gear Metering Pump Precise Fluid Control

No reviews yet3 soldbillboard#3 most popular in Pumps With O Ring Seals
$295.38
1-99 pieces
$236.31
100-499 pieces
$196.92
≥500 pieces
Select now

Flow Rate

7.3L/min

maximum head

other

type

Gear pump

+ 1 more variants

Customization options
motor (Min. order: 1 piece)

Key attributes

application

Other

pressure

Low Pressure

customized support

OEM, ODM, OBM

place of origin

Guangdong, China

power source

Electric

warranty

1 Year

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Key attributes

application
Other
pressure
Low Pressure
customized support
OEM, ODM, OBM
place of origin
Guangdong, China
power source
Electric
warranty
1 Year
model number
GQA175ESLD01
brand name
DOCOD
Applicable temperature
-40 to 105 degrees Celsius
Chemical Compatibility
Alcohol, Diesel, oils, Water
Displacement
1.75ml/rev
Max Flow Rate
7.3L/min
Max Pressure
0.05-1.2MPa (preset value0.7MPa)
motor
Servo Motor, Stepper Motor, Brushless DC Motor
Sealing Material
Ceramic
structure
Gear Pump
Material
Stainless Steel
Nominal Displacement
1.75ml/rev
Max. Flow Rate
7.3L/min(water as medium)
Max. Pressure
0.35MPa
Viscosity Range
0.5-1500CP
Operating Speeds
500-4200rpm
Rated Voltage
24VDC
Rated Power
70W
Gear Material
PEEK
Pump Body Material
SUS316L
Shaft Material
Stainless steel
Static Seal
PTFE (gaskets), EPDM (O-rings)
thread specifications
Standard configuration G1/8-28(customizable)
Compatible Drive
Brushless DC Motor, Stepper Motor, Servo Motor
